TECHNICAL DATASHEET

CliQ II DIN Rail Power

Supply

24 V 240 W 2

Phase

/ DRP-24V240W2BN

All parameters are specified at 25°C ambient and AC x 2 input unless otherwise indicated.

www.DeltaPSU.com (September 2021, Rev. 06)

Highlights & Features

•Designed for single phase input 180-305 Vac (for L-N) or

2 of 3-Phase system 2 x 180-550 Vac (for L-L) or 254-780 Vdc

•Compact and corrosion resistant aluminium casing

•High Efficiency > 90.0%

•Conforms to harmonic current IEC/EN 61000-3-2, Class A

•Wide operating temperature range from -30°C to +70°C

•Built-in DC OK Contact

•Conformal coating on PCBAs to protect against common

dust and chemical pollutants

•Certified according to IEC/EN/UL 62368-1

Safety Standards

CB Certified for worldwide use

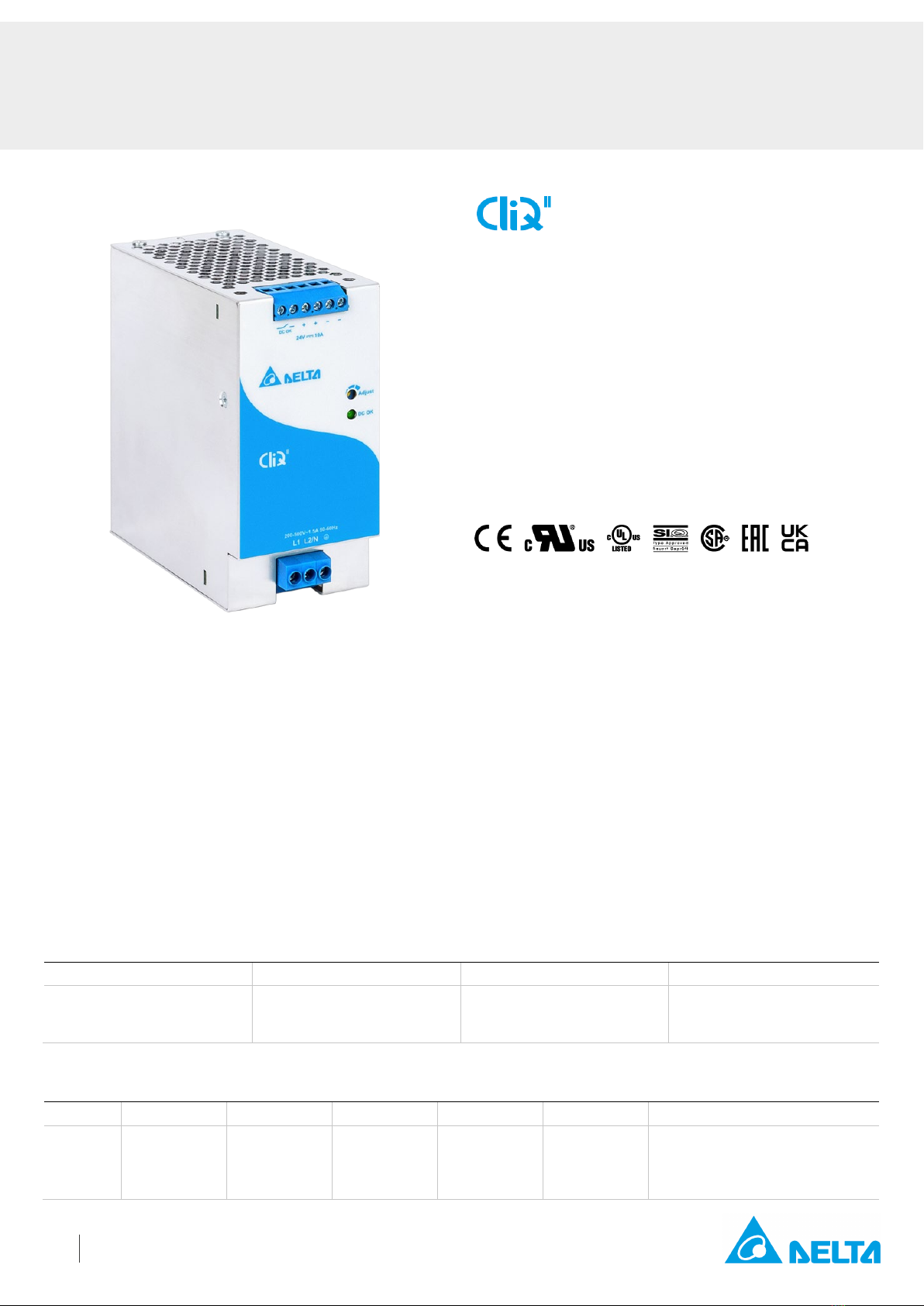

Model Number: DRP-24V240W2BN

Unit Weight: 0.81 kg (1.79 lb)

Dimensions (L x W x D): 124 x 60 x 117 mm

(4.88 x 2.36 x 4.61 inch)

General Description

The CliQ II DIN rail power supply series with a model offering two phase 2 x 180-550 Vac (for L-L) or single phase 180-305 Vac (for L-

N) for 24 V/10 A output. The DRP-24V240W2BN has safety approvals for single phase and two phase input according to

IEC/EN/UL 60950-1, IEC/EN/UL 62368-1 and UL 508 safety standards. The product features wide AC input voltage for single or two

phase range. Such feature can protect the power supply from damage when user accidentally apply two phase input on the single

phase power supply. Other advantages include reduced external input protection components and improved installation time since

there is only two phase connection. The product performs under wide operating temperature from -30°C to 70°C with 2-Phase of 3-

Phase application (for L-L). Conformal coating is applied on the PCBA to protect against common dust and chemical pollutant to

withstand harsh industrial environments. Other major safety approvals included.

Model Information

CliQ II DIN Rail Power Supply

Model

Number

Input Voltage Range Rated Output

oltage

Rated Output Curr

ent

DRP-24V240W2BN 2 x 180-550 Vac (2-Phase)

180-305 Vac (Single Phase)

254-780 Vdc

24 Vdc 10.0 A

Model Numbering

P – 24V

240W

DIN Rail Power Supply Output Voltage Output Power Two Phase CliQ II Series N - Metal Case,

without Class I, Div 2 and ATEX

TECHNICAL DATASHEET

CliQ II DIN Rail Power

Supply

24 V 240 W 2

Phase

/ DRP-24V240W2BN

All parameters are specified at 25°C ambient and AC x 2 input unless otherwise indicated.

www.DeltaPSU.com (September 2021, Rev. 06)

Specifications

Input Ratings / Characteristics

Nominal Input Voltage 2 x 200-500 Vac (2-Phase)

200-277 Vac (Single Phase)

Input Voltage Range 2 x 180-550 Vac (2-Phase)

180-305 Vac (Single Phase)

Nominal Input Frequency 50-60 Hz

Input Frequency Range 47-63 Hz

DC Input Voltage Range* 254-780 Vdc

Input Current < 2.00 A @ 2 x 230 Vac, < 1.00 A @ 2 x 400 Vac

Efficiency at 100% Load > 90.0% @ 2 x 400 Vac

Max Power Dissipation 0% load < 8.5 W @ 2 x 200 Vac, < 9.5 W @ 2 x 500 Vac

100% load < 26.5 W @ 2 x 200 Vac, < 21.5 W @ 2 x 500 Vac

Max Inrush Current (Cold Start) < 50 A @ 2 x 200 Vac & 2 x 500 Vac

Leakage Current < 3.5 mA @ 500 Vac

*Safety approval according to IEC/EN/UL 60950-1 and IEC/EN/UL 62368-1.

Output Ratings / Characteristics**

Nominal Output Voltage 24 Vdc

Factory Set Point Tolerance 24 Vdc ± 2%

Output Voltage Adjustment Range 24-28 Vdc

Output Current 10.0 A (continuously operating at 24 V)

12.0 A (Power Boost for 3 seconds at 24 V, refer to the details

in the Functions section)

Output Power 240 W (continuously operating at 24 V)

288 W (Power Boost for 3 seconds at 24 V, refer to the details

in the Functions section)

Line Regulation < 0.5% (@ 200-550 Vac input, 100% load)

Load Regulation < 1.0% (@ 200-550 Vac input, 0-100% load)

PARD*** (20 MHz) < 150 mVpp @ -10°C and above

< 200 mVpp @ below -10°C

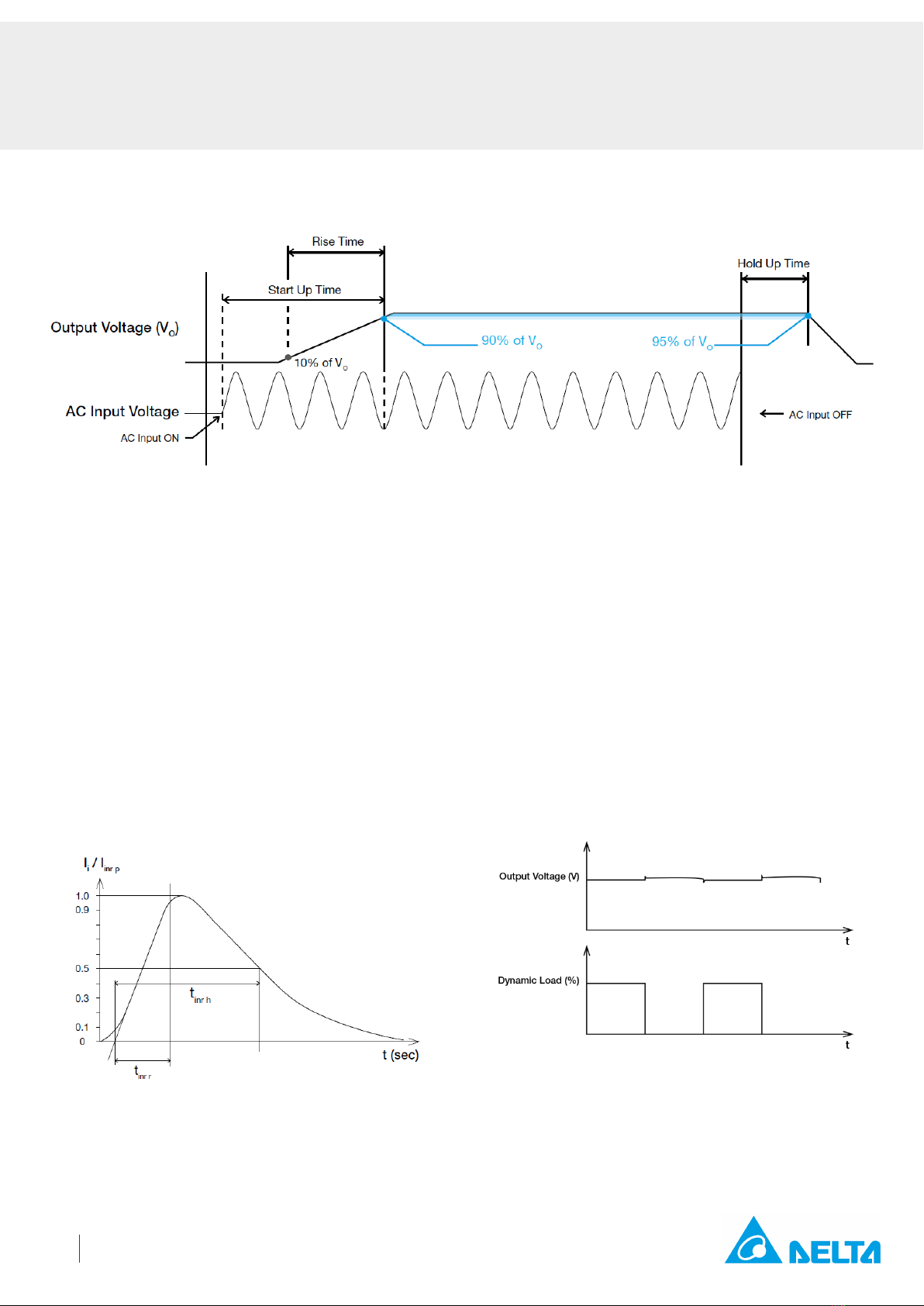

Rise Time

< 100 ms @ nominal input (100% load)

Start-up Time < 1,000 ms @ nominal input (100% load)

Hold-up Time > 18 ms @ 2 x 230 Vac,

> 30 ms @ 2 x 400 Vac (100% load)

Dynamic Response

(Overshoot & Undershoot O/P Voltage)

± 5% @ 180-550 Vac input, 0-100% load

(Slew Rate: 0.1 A/μs, 50% duty cycle @ 5Hz)

Start-up with Capacitive Loads 10,000 µF Max

Functional DC OK Relay Contact 30 V / 1 A Max

The relay is usually closed when the output is normal

**For power de-rating from 50°C to 70°C, see power de-rating on page 3.

***PARD is measured with an AC coupling mode, 5cm wires, and in parallel with 0.1 μF ceramic capacitor & 47 μF electrolytic capacitor.

TECHNICAL DATASHEET

CliQ II DIN Rail Power

Supply

24 V 240 W 2

Phase

/ DRP-24V240W2BN

All parameters are specified at 25°C ambient and AC x 2 input unless otherwise indicated.

www.DeltaPSU.com (September 2021, Rev. 06)

Mechanical

Case Cover / Chassis

Aluminium

Dimensions (L x W x D) 124 x 60 x 117 mm (4.88 x 2.36 x 4.61 inch)

Unit Weight

0.81 kg (1.79 lb)

Indicator Green LED DC OK

Cooling System Convection

Terminal

Input

3 Pins (Rated 600V/35 A)

Output

4 Pins (Rated 300 V/28 A)

Wire Input

AWG 18-8

Output

AWG 16-12*

Mounting Rail

Standard TS35 DIN Rail in accordance with EN 60715

Noise (1 Meter from power supply)

Sound Pressure Level (SPL) < 40 dBA

*For AWG 16-12, ensure that all output terminals are connected.

Environment

Surrounding Air Temperature Operating -30°C to +70°C

Storage

-40°C to +85°C

Power De-rating

Vertical Mounting

> 50°C de-rate power by 2.25% / °C

Horizontal Mounting > 30°C de-rate power by 2% / °C

Input Voltage

< 200 Vac de-rate power by 0.5% / Vac

Operating Humidity 5 to 95% RH (Non-Condensing)

Operating Altitude 0 to 2,500 Meters (8,200 ft.) for ITE application

0 to 2,000 Meters (6,560 ft.) for Industrial application

Shock Test Non-Operating IEC 60068-2-27, 30G (300m/S²) for a duration of 18ms,

1 times per direction, 3 times in total

Vibration Non-Operating IEC 60068-2-6, 10 Hz to 500 Hz @ 30 m/S² (3 G peak);

60 min per axis for all X, Y, Z direction

Bump Test Operating IEC 60068-2-29, Half Sine Wave: 10 G for a duration of 11ms,

1,000 times per direction, 6,000 times in total

Over Voltage Category III According to IEC/EN 62477-1 / EN 60204-1

(clearance and creepage distances) and

IEC 62103 (safety part)

Pollution Degree 2

Protections

Overvoltage 32 V ±10%, SELV Output, Hiccup Mode,

Non-Latching (Auto-Recovery)

Overload / Overcurrent > 120-180% of rated load current, Constant current,

Hiccup Mode (Auto-Recovery)

Over Temperature < 80°C Surrounding Air Temperature @ 100% load,

Non-Latching (Auto-Recovery)

Short Circuit Hiccup Mode, Non-Latching

(Auto-Recovery when the fault is removed)

Internal Fuse T 3.15 A

Degree of Protection

IP20

Protection Against Shock Class I with PE* connection

*PE: Primary Earth

TECHNICAL DATASHEET

CliQ II DIN Rail Power

Supply

24 V 240 W 2

Phase

/ DRP-24V240W2BN

All parameters are specified at 25°C ambient and AC x 2 input unless otherwise indicated.

www.DeltaPSU.com (September 2021, Rev. 06)

Reliability Data

MTBF > 500,000 hrs. as per Telcordia SR-332

I/P: 2 x 200 Vac & 500 Vac, O/P: 100% load, Ta: 25°C

Expected Cap Life Time 10 years (2 x 200 Vac & 500 Vac, 50% load @ 40°C)

Safety Standards / Directives

Electrical Equipment of Machines

EN/BS EN 60204-1 (over voltage category III)

Electrical Equipment for Use in Electrical Power Installations IEC/EN/BS EN 62477-1 / IEC 62103

Safety Entry Low Voltage SELV (IEC 60950-1)

Electrical Safety SIQ Bauart EN 62368-1

UL/cUL recognized UL 60950-1 and CSA C22.2 No. 60950-1 (File No. E191395)

UL 62368-1 and CSA C22.2 No. 62368-1 (File No. E191395)

CB scheme IEC 60950-1, IEC 62368-1

UKCA BS EN 62368-1

Industrial Control Equipment UL/cUL listed UL 508 and CSA C22.2 No. 107.1-01 (File No. E315355)

CSA CSA C22.2 No. 107.1-01 (File No. 181564)

CE In conformance with EMC Directive 2014/30/EU and

Low Voltage Directive 2014/35/EU

UKCA

In conformance with Electrical Equipment (Safety) Regulations

2016 No. 1011 and

The Electromagnetic Compatibility Regulations 2016 No. 1091

Galvanic Isolation Input to Output 4.0 KVac

Input to Ground 2.0 KVac

Output to Ground 1.5 KVac

TECHNICAL DATASHEET

CliQ II DIN Rail Power

Supply

24 V 240 W 2

Phase

/ DRP-24V240W2BN

All parameters are specified at 25°C ambient and AC x 2 input unless otherwise indicated.

www.DeltaPSU.com (September 2021, Rev. 06)

EMC

Emissions (CE & RE) Generic Standards: CISPR 32, EN/BS EN 55032, CISPR 11,

EN/BS EN 55011, FCC Title 47: Class B

Component Power Supply for General Use EN/BS EN 61204-3

Immunity Generic Standards: EN/BS EN 55024, EN/BS EN 61000-6-2

Electrostatic Discharge IEC 61000-4-2 Level 4 Criteria A1)

Air Discharge: 15 kV

Contact Discharge: 8 kV

Radiated Field IEC 61000-4-3 Level 3 Criteria A1)

80 MHz-1 GHz, 10V/M, 80% modulation (1 kHz)

1.4 GHz-2 GHz, 3V/M, 80% modulation (1 KHz)

2 GHz-2.7 GHz, 1V/M, 80% modulation (1 KHz)

Electrical Fast Transient / Burst IEC 61000-4-4 Level 3 Criteria A1)

2 kV

Surge IEC 61000-4-5 Level 3 Criteria A1)

Common Mode2): 2 kV

Differential Mode

: 1 kV

Conducted IEC 61000-4-6 Level 3 Criteria A1)

150 kHz-80 MHz, 10 Vrms

Power Frequency Magnetic Fields IEC 61000-4-8 Criteria A1)

30 A/Meter

Voltage Dips and Interruptions IEC 61000-4-11 100% dip; 1 cycle (20 ms); Self Recoverable

Low Energy Pulse Test (Ring Wave) IEC 61000-4-12 Level 3 Criteria A1)

Common Mode2): 2 kV

Differential Mode

: 1 kV

Harmonic Current Emission IEC/EN/BS EN 61000-3-2, Class A

Voltage Fluctuation and Flicker IEC/EN/BS EN 61000-3-3

1) Criteria A: Normal performance within the specification limits

2) Asymmetrical: Common mode (Line to earth)

3) Symmetrical: Differential mode (Line to line)

TECHNICAL DATASHEET

CliQ II DIN Rail Power

Supply

24 V 240 W 2

Phase

/ DRP-24V240W2BN

All parameters are specified at 25°C ambient and AC x 2 input unless otherwise indicated.

www.DeltaPSU.com (September 2021, Rev. 06)

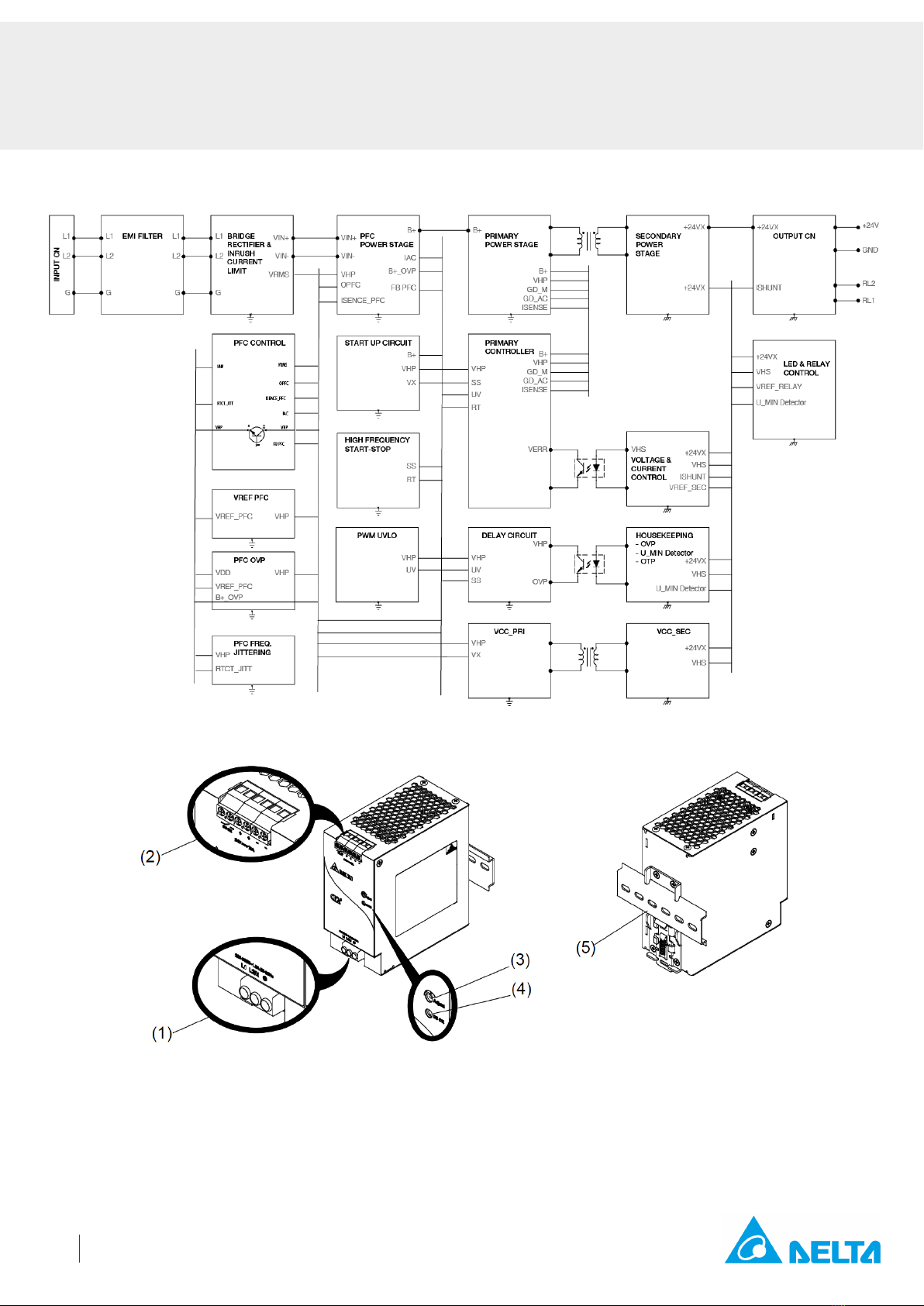

Block Diagram

Device Description

1) Input terminal block connector

2) Output terminal block connector

3) DC Voltage adjustment potentiometer

4) DC OK LED (Green)

5) Universal mounting rail system

TECHNICAL DATASHEET

CliQ II DIN Rail Power

Supply

24 V 240 W 2

Phase

/ DRP-24V240W2BN

All parameters are specified at 25°C ambient and AC x 2 input unless otherwise indicated.

www.DeltaPSU.com (September 2021, Rev. 06)

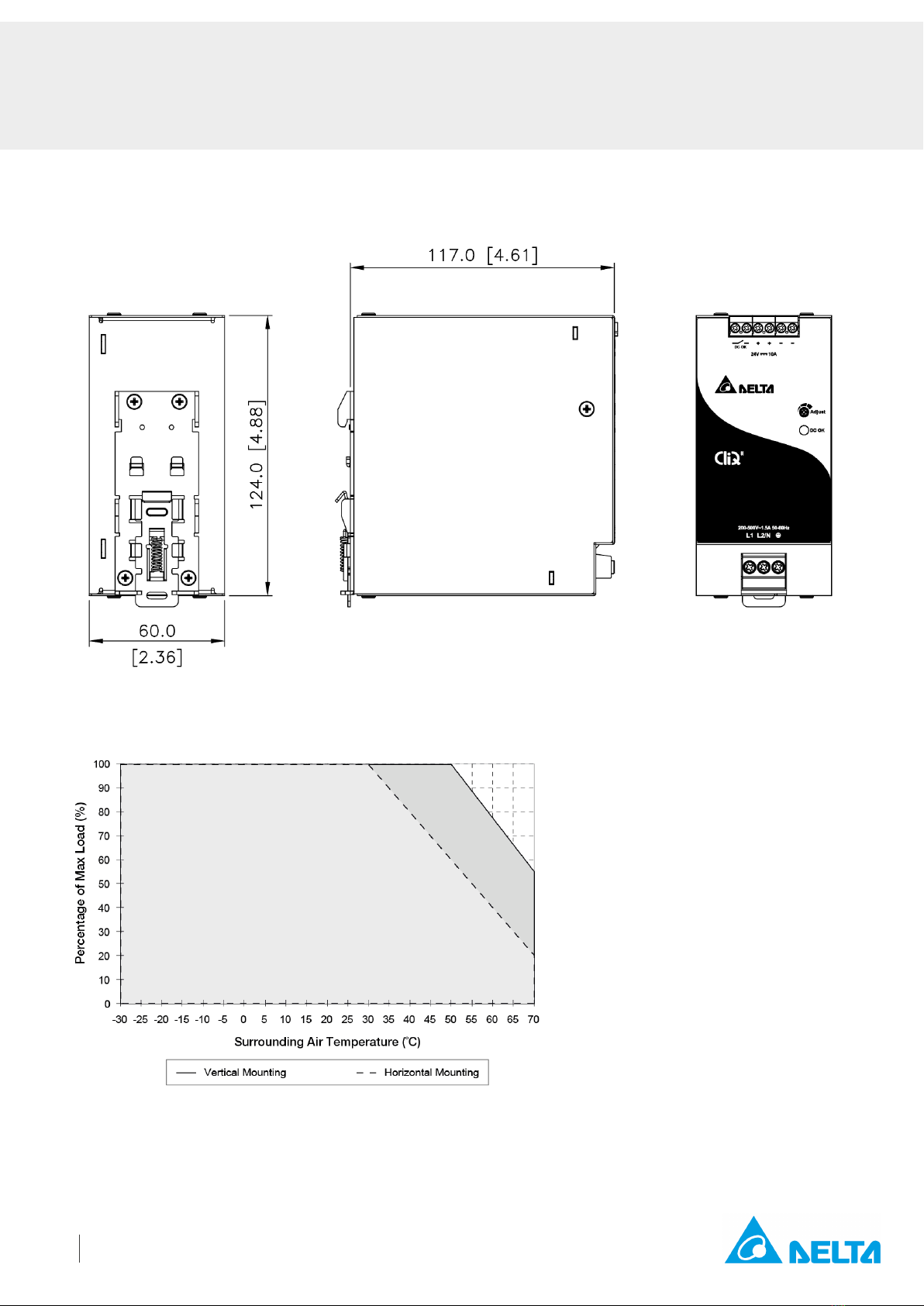

Dimensions

L x W x D: 124 x 60 x 117 mm (4.88 x 2.36 x 4.61 inch)

Engineering Data

Output Load De-rating VS Surrounding Air Temperature

Note

1. Power supply components may degrade, or

be damaged, when the power supply is

continuously used outside the shaded region,

refer to the graph shown in Fig. 1.

2. If the output capacity is not reduced when the

surrounding air temperature

exceeds its

specification as defined on Page 3 under

“Environment”, the device may run into Over

Temperature Protection. When activated, the

output voltage will go into bouncing mode

and will recover when the surrounding air

temperature is lowered or the load is reduced

as far as necessary to keep the device in

working condition.

3. In order for the device to function in the

manner intended, it is also necessary to keep

a safety distance as recommended in the

safety instructions while the device is in

operation.

Depending on the surrounding air

temperature and output load delivered by the

power supply, the device can be very hot!

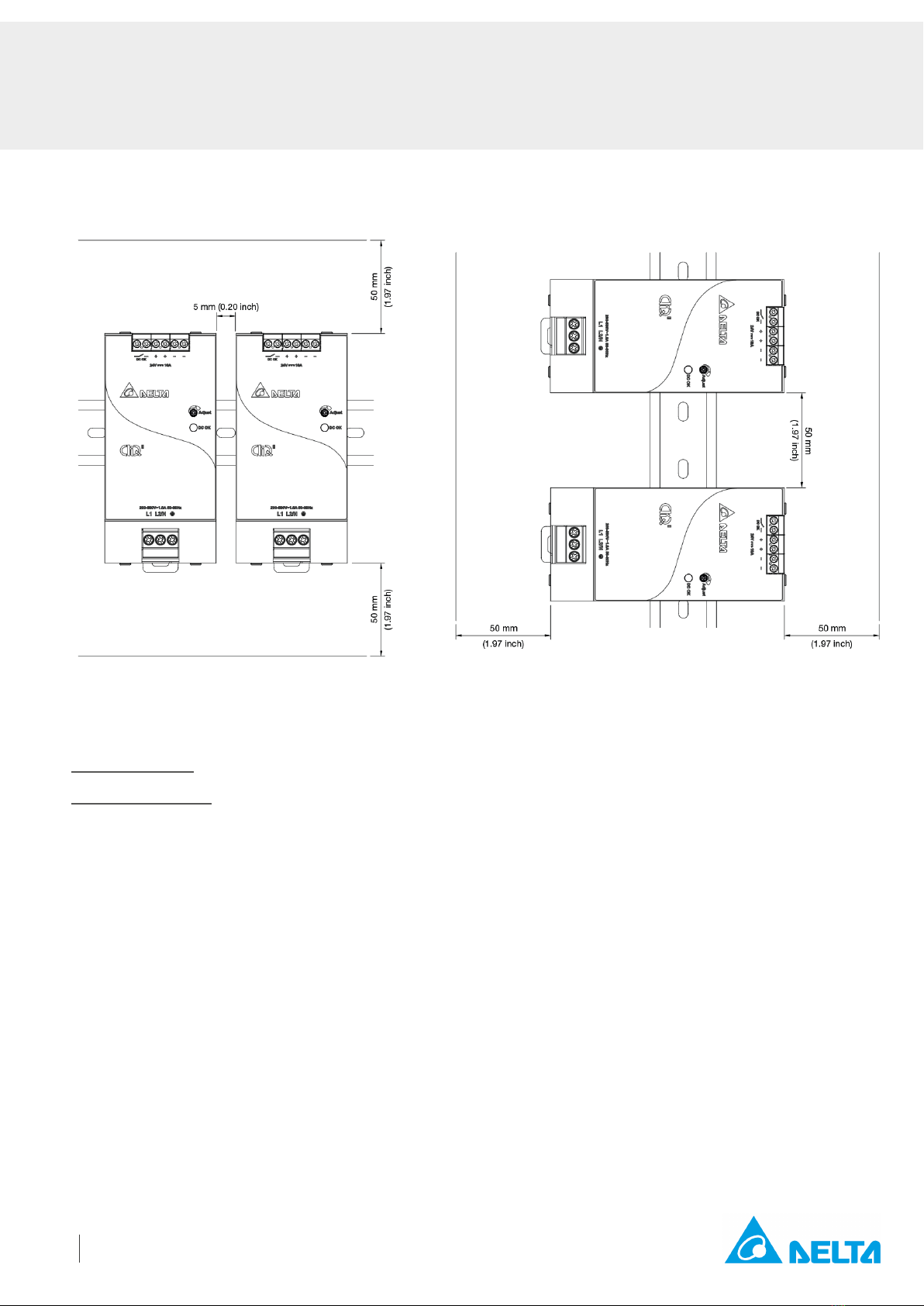

5. If the device has to be mounted in any other

orientation, please contact info@deltapsu.com

for more details.

Fig. 1 De-rating for Vertical Mounting Orientation

> 50°C de-rate power by 2.25% / °C

De-rating for Horizontal Mounting Orientation

> 30°C de-rate power by 2% / °C

TECHNICAL DATASHEET

CliQ II DIN Rail Power

Supply

24 V 240 W 2

Phase

/ DRP-24V240W2BN

All parameters are specified at 25°C ambient and AC x 2 input unless otherwise indicated.

www.DeltaPSU.com (September 2021, Rev. 06)

Output Load De-rating VS Input Voltage

Assembly & Installation

The power supply unit (PSU) can be mounted on 35 mm DIN rails in accordance with EN 60715. For Vertical Mounting, the device

should be installed with input terminal block at the bottom. For Horizontal Mounting, the device should be installed with input terminal

block on the left side.

Each device is delivered ready to install.

Mounting

No output power de-rating for the input

voltage range from 200 Vac to 550 Vac

Dismounting

Fig. 2.1 Mounting

Snap on the DIN rail as shown in Fig. 2.1:

1. Tilt the unit upwards and insert it onto the DIN rail.

2. Push downwards until stopped.

3. Press against the bottom front side for locking.

4. Shake the unit slightly to ensure that it is secured.

Fig. 2.2 Dismounting

To uninstall, pull or slide down the latch with screw driver as

shown in Fig. 2.2. Then slide the power supply unit (PSU) in

the opposite direction, release the latch and pull out the power

supply unit (PSU) from the rail.

In accordance to EN 60950 / UL 60950 and EN 62368 / UL 62368, flexible cables require ferrules.

Use appropriate copper cables designed to sustain operating temperature of:

1. 60°C, 60°C / 75°C for USA

2. At least 75°C for ambient not exceeding 30°C, and 90°C for ambient exceeding 30°C for Canada.

TECHNICAL DATASHEET

CliQ II DIN Rail Power

Supply

24 V 240 W 2

Phase

/ DRP-24V240W2BN

All parameters are specified at 25°C ambient and AC x 2 input unless otherwise indicated.

www.DeltaPSU.com (September 2021, Rev. 06)

Safety Instructions

Vertical Mounting

•ALWAYS switch mains of input power OFF before connecting and disconnecting the input voltage to the unit. If mains are not

turned OFF, there is risk of explosion / severe damage.

•To guarantee sufficient convection cooling, please refer to the following instructions to ensure sufficient clearance

around the device.

Vertical Mounting: 50 mm (1.97 inch) above and below the device as well as a lateral distance of 5 mm (0.20 inch) to other

units.

Horizontal Mounting: 50 mm (1.97 inch) above and below the device as well as a lateral distance of 50 mm (1.97 inch) to

other units.

•Note that the enclosure of the device can become very hot depending on the surrounding air temperature and load of the power

supply. Risk of burns!

•The main power must be turned off before connecting or disconnecting wires to the terminals.

•DO NOT insert any objects into the unit.

•Hazardous voltages may be present for up to 5 minutes after the input mains voltage is disconnected. Do not touch the unit during

this time.

•The power supplies unit should be installed in minimum IP54 rated enclosure.

•The power supplies are built in units and must be installed in a cabinet or room (condensation free environment and indoor

location) that is relatively free of conductive contaminants.

•CAUTION: Double pole/neutral fusing.

•CAUTION: “For use in a controlled environment”.

Horizontal Mounting

TECHNICAL DATASHEET

CliQ II DIN Rail Power

Supply

24 V 240 W 2

Phase

/ DRP-24V240W2BN

All parameters are specified at 25°C ambient and AC x 2 input unless otherwise indicated.

www.DeltaPSU.com (September 2021, Rev. 06)

Functions

Graph illustrating the Start-up Time, Rise Time, and Hold-up Time

Start-up Time

The time required for the output voltage to reach 90% of its final steady state set value, after the input voltage is applied.

Rise Time

The time required for the output voltage to change from 10% to 90% of its final steady state set value.

Hold-up Time

Time between the collapse of the AC input voltage, and the output falling to 95% of its steady state set value.

Inrush Current

Inrush current is the peak, instantaneous, input current measured

and, occurs when the input voltage is first applied. For AC input

voltages, the maximum peak value of inrush current will occur

during the first half cycle of the applied AC voltage. This peak

value decreases exponentially during subsequent cycles of AC

voltage.

Dynamic Response

The power supply output voltage will remains within ±5% of its

steady state value, when subjected to a dynamic load from 0 to

100% of its rated current.

50% duty cycle / 5 Hz

Tabla de contenidos

Otros manuales de Fuente de alimentación de Delta

Delta

Delta PMT2 150 W Series Manual de instrucciones

Delta

Delta PMR-V320WD Series Manual de usuario

Delta

Delta PMC-24V100W1AA Manual de usuario

Delta

Delta IMA-1000 Series Instrucciones de instalación y funcionamiento

Delta

Delta PMR V320WC Series Manual de usuario

Delta

Delta PMC-24V150W1A Series Manual de usuario

Delta

Delta LYTE II Manual de instrucciones

Delta

Delta PMC-05V015W1A Series Manual de usuario

Delta

Delta PMT Series Manual de instrucciones

Delta

Delta FORCE-GT Series Manual de instrucciones

Delta

Delta LYTE DRL-24V240W1A Series Manual de instrucciones

Delta

Delta CliQ II DRP048V120W1B Series Manual de instrucciones

Delta

Delta LOYTEC LPOW-2415A Manual de usuario

Delta

Delta LZ-16/R10 Manual de usuario

Delta

Delta PMC-24V100W1AA Manual de usuario

Delta

Delta PMU-27V155WC A Series Manual de usuario

Delta

Delta PMC-24V100W1AB Manual de usuario

Delta

Delta PMC-24V100W1AA Manual de usuario

Delta

Delta PMC-12V100W1AA Manual de usuario

Delta

Delta PMC-12V050W1AA Manual de usuario

Delta

Delta MCS-600 Series Manual de instrucciones

Delta

Delta PMC-24V050W1AA Manual de usuario

Delta

Delta DRS-24V100W1A Series Manual de instrucciones

Delta

Delta PMC-24V035W1AA Manual de usuario

Manuales populares de Fuente de alimentación de otras marcas

Monacor

Monacor PS-12CCD Manual de usuario

VOLTIMA

VOLTIMA MagicBox 15 Manual de usuario

Agilent Technologies

Agilent Technologies 6032A Manual de usuario

Miller

Miller Auto Deltaweld 452 Manual de usuario

BCP

BCP PUOUBK Hoja de instrucciones

HC 2210 Manual de usuario

Puls

Puls CT5.241 Manual de usuario

OCZ

OCZ ZX1250W Manual de usuario

iseg

iseg ECH 238 Manual de usuario

Power

Power XXL A Series Manual de usuario

Agilent Technologies

Agilent Technologies 6631B Manual de usuario

Renogy

Renogy PHOENIX 300 Manual de usuario

HP 6200B Manual de servicio

Epson

Epson Stylus Scan 2500 Manual de funcionamiento

Pulsar

Pulsar GREEN POWER CCTV PoE POE044816 Manual de usuario

Puls

Puls MiniLine ML50.100 Manual de usuario

Puls

Puls AS-Interface SLA4.100 Manual de usuario

Kenwood

Kenwood PS-60 Manual de usuario
