1. General Information
1.1. About this Manual
1.2. Product Description
1.3. Additional Information
2. Product Overview
2.1. Checking Unit and Accessories
2.2. Product Label
2.3. Exterior Objects
3. Installation
3.1. Unpack the Inverter
3.2. Mount the Inverter
4. Wiring
4.1 Preparation before Wiring
4.2. AC Grid Connection: 3-Phase+PE or 3-Phase+N+PE
4.2.1. Required Protective Devices and Cable Cross-sections
4.3. DC Connection (from PV Array)
4.4. Multiple Inverter Combinations
4.4.1. Three-Phase Parallel Combination System
4.4.2. Communication Module Connections
4.4.3. RS-485 Connection
4.4.4. Digital Input & EPO Function & DRMs
4.4.5. Dry Contact Connection
4.4.6. DC Output Connection
5. Turn on/off PV inverter
5.1. First startup
5.2. Home Page
5.3. LCD Flow Chart
5.3.1. Power Meter
5.3.2. Energy Log
5.3.3. Event Log
5.3.4. Inverter Information
5.3.5. General Settings
5.3.6. Install Settings
5.3.6.1. Inverter ID
5.3.6.2. Insulation
5.3.6.3. Country
5.3.6.4. Grid Settings
5.3.6.5. Dry Contact
5.3.6.6. EPO
5.3.6.7. AC connection
5.3.6.8. Max Power
5.3.7. Active/Reactive power
5.3.7.1. Power Limit
5.3.7.2. Power vs. Frequency
5.3.7.3. P(V)
5.3.7.4. Constant cosphi
5.3.7.5. Cosphi (P)
5.3.7.6. Constant Q
5.3.7.7. Q(V)
5.3.8. FRT (Fault ride through)
6.Maintenance
7.Error message and Trouble Shooting
8.De-Commissioning
9.Technical Data
5
5
5
5
6
6
7
8
9
9
10
14
14
15
15
18
19
19
20
21
23
24
24
25
25
26
27
27
28
28
29
30
30
31
31
31
32
33
34
34
34
35
35
36
37
37
38
39
39
40
41
42
48
49
Contents
03
Safety Instructions
This manual uses the following instructions for conveying important safety related information.
CAUTION !
Machine and equipment damage may occur if this hazardous situation is not
avoided.
WARNING !
Death and serious injury may occur if this hazardous situation is not
avoided.
Repair work on the device should ONLY be carried out by the manufacturer.
No user serviceable parts inside.
In Australia, installation and maintenance work shall be conducted by qualified
electrician and shall comply with Australian Regulations.
DANGER !
To avoid risk of electrical shock, do not open the solar inverter. Death and
serious injury will occur if this hazardous situation is not avoided.
WARNING ! BURN HAZARD
The unit may reach very high temperatures and the device surface can
become hot. Sufficient cooling is necessary for optimal yield.
04
1.General Information
1.1. About this Manual
This manual is to provide the explanation and procedures for installing,
operating, maintaining, and troubleshooting the below solar inverters:
RPI M6A/ RPI M8A/ RPI M10A
1.2. Product Description
This device is a 3-phase grid-tied solar inverter which does not support off-
grid functionality.
The operation of solar inverter is shown as Figure 1-1.Inverters convert the
DC input power supplied from the PV Array into 3-phase AC output power to
Grid.
Figure 1-1 Solar system operation illustration
1.3. Additional Information
For more detailed or other related product information, please visit
http://www.deltaww.com
PV Array Electrical GridSolar Inverter
Install if
necessary
DC Distribution
box
AC Distribution
box
Surge arrestor
Fuse
DC switch
Surge arrestor
AC breaker
3 phase,
N, PE
05
General Information
2.1 Checking Unit and Accessories
Unpredictable damages may occur during shipment. Check if all the
accessories are in the package, the standard accessories are list as
Table 2-1. If there is any visible damage to the inverter/accesories or any
damage to the packaging, please contact your inverter supplier.
2.Product Overview

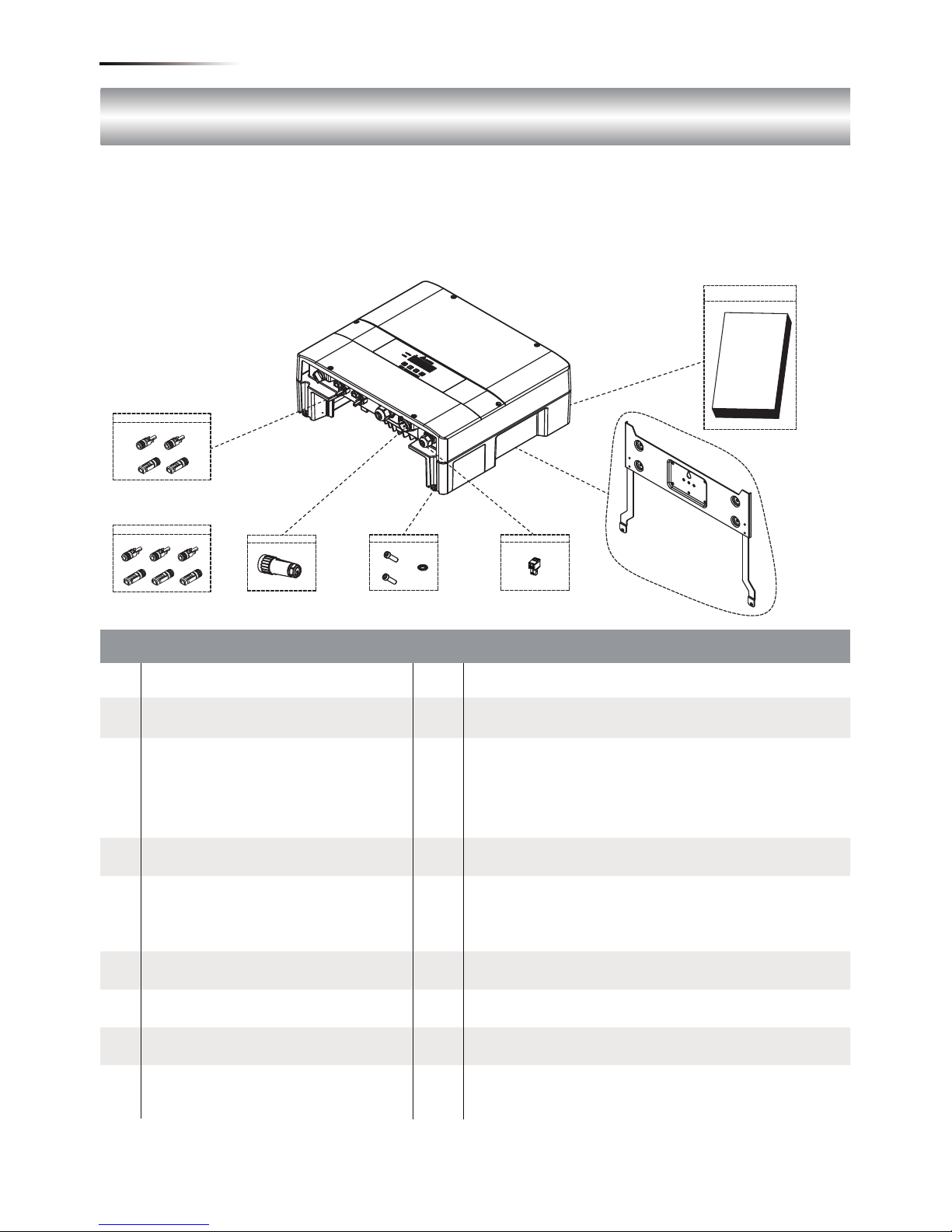

Figure 2-1 Packing list
For RPI M10A
For RPI M6A
For RPI M8A
RPI M6A/ RPI M8A/ RPI M10A
Object Qty Description
1 PV Inverter 1
1
1
1
RPI M6A/ RPI M8A/ RPI M10A solar inverter.
6 Screw 2 To fix solar inverter on the wall.
7 Washer 1 Use for external grounding.
8 12VDC Output Connector 1 For CNC406 using only,
DC output 12V / 0.5A max.
2
a. User Manual
b. Quick Installation Guide
(EU/AU/ EN/ DE/ FR/ NL)
c. General Safety Instruction
The Instruction to provide the information of
safety,Installation, specification, etc.
3 AC Plug
Mounting Bracket
Connector for AC connection.
To mount solar inverters on the wall.
4
5
DC Plug 2 / 3
sets
Connector for DC connection.
2 sets for M6A / M8A
3 sets for M10A
Table 2-1 Packing list
①
②
⑤
⑧
⑥⑦
④
③
06
Product Overview
2.2. Product Label
Users can identify the model number and the specifications by the information
on the product label. The location for the label please see Figure 2-2.
RPI M6A/ M8A/ M10A
Figure 2-2 Product label
07
Product Overview
2.3. Exterior Objects
The Inverter’s exterior objects are shown in Figure 2-3. The detailed input/
output interfaces illustration is shown in Figure 2-4.
LCD/LED Display
and Buttons
Communication Connection 1
AC Connectors
Manual Switch
DC Connectors
Label
RPI M6A/ M8A/ M10A
Communication Connections 2
Grounding Point
AC Connector
400Vac, 3Ph
Manual Switch
Communication 1
-RS-485 *2
-Ethernet (optional)
-Wi-Fi (optional)
Communication 2
-EPO *1
-Dry Contact *1
-Digital Input
-DRMs *5
*4 RPI M10A
RPI M6A/ M8A
Grounding
DRM
Mark
Figure 2-3 Inverter’s exterior objects
Figure 2-4 Input/output panels
08
Product Overview
CAUTION !
The unit should not be installed in direct sunlight.
WARNING !
• Do not install the unit near or on flammable surfaces.
• Please mount the unit tightly on a solid/smooth surface.
3.Installation
3.1. Unpack the Inverter
Figure 3-1 Unpacking the inverter
09
Installation
3.2. Mount the Inverter
This unit is designed to be wall-mounted. Please ensure the installation is
perpendicular to the floor and the AC plug at the bottom. Do not install the
device on a slanting wall.
To mount the inverter on the wall, please follow the procedure below:
1.Screw the mounting bracket on the wall with 8 M6 Phillips head screws.
Please refert to figure 3-4.
2.Attach the inverter to the mounting bracket.
3.Use Hex Wrench fixing the inverter with 2 M4 Hexagon Socket screws.
Please refer to figure 3-5.
Figure 3-2 Correct and incorrect installation
10
