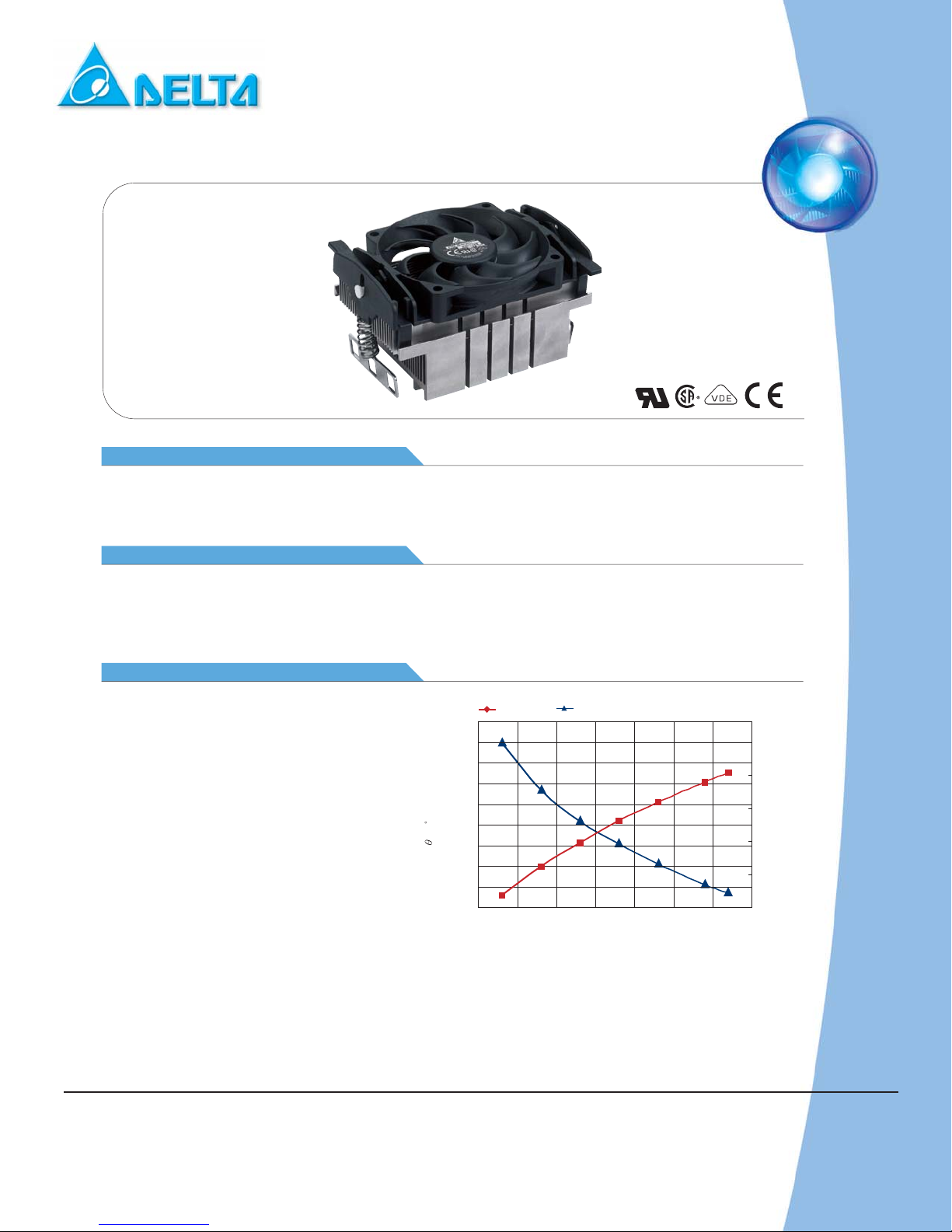

Delta Electronics FHS-A7015A40 Manual de usuario
Heat Sink
Thermal interface material
Fan(70x70x15mm)
·
·
·
Type: Thermal Shrink
Material: Fin-Aluminum 6063 or Equivalent.
Core-Copper C1100 or Equivalent.
Dimension: mm
Material: Dow Corning SC102 or Equivalent.
Rated Voltage: 12 V
Life Time:
two ball bearing 70000 hrs
one ball one sleeve bearing 40000 hrs
Connector:
a.. Lead wire: UL 1007 AWG#24
pin 1: black wire--------(-)
pin 2: red wire----------(+)
pin 3: blue wire---------(F00)
b. Housing: Molex 2695-03 22-01-3037 or equivalent
c. Terminal: Molex 2759t 08-50-0113 or equivalent
93.5 x 68.5 x 41.2
·
·
·
Thermal resistance: 0.28 C/W (ref.)
Heatsink Weight: 370 g (ref.)
Clipping Force: 32.0 Kgf (ref.)
o
·Intel Socket 478 Prescott FMB1.5
Application:
Speed (rpm)
Noise (dBA)
ca( C/W)
Thermal Resistance
Noise (dBA)
Thermal & Mechanical Specification:
Component Specification:
DELTA PRODUCTS CORPORATION
4405 CUSHING PARKWAY
FREMONT, CA 94538, U.S.A.
TEL : 1-510-668-5100
FAX : 1-510-668-0680
DELTA ELECTRONICS, INC.
252, SHANG YING ROAD, KUEI SAN,
TAOYUAN HSIEN 333, TAIWAN, R.O.C.
TEL: 886-3-3591968 EXT.2060
FAX: 886-3-3591991
DELTA ELECTRONICS EUROPE LTD.
2 YOUNG PLACE
KELVIN INDUSTRIAL ESTATE
EAST KILBRIDE, GLASGOW G75 OTD, U.K.
TEL : 44-1355-588888
FAX : 44-1355-588889
DELTA ELECTRONICS (JAPAN) INC.
DELTA SHIBADAIMON BUILDING
2-1-14 SHIBADAIMON, MINATO-KU,
TOKYO, 105-0012, JAPAN
TEL : 81-3-5733-1111
FAX : 81-3-5733-1211
* All readings are typical values at rated voltage.
* Specifications are subject to change without notice.
284A0404
FHS-A7015A40/FHS-A7015B40
0.26
0.28
0.3
0.32
0.34
0.36
0.38
2500 3500 4500 5500 6500
20
25
30
35
40
45
·
·
·
Heat Sink
Thermal interface material
Fan(70x70x15mm)
Type: Soldering Heat Sink
Material: Fin-Aluminum 6063 or Equivalent.
Base- Copper C1100
Dimension: 77 x 68.5 41.2 mm
Material: Dow Corning SC102 or Equivalent.
Life Time:
one ball one sleeve bearing 40000 hrs
two ball bearing 70000 hrs
Connector:
a..Lead wire: UL 1007 AWG#24
pin 1: black wire--------(-)
pin 2: red wire----------(+)
pin 3: blue wire---------(F00)
b. Housing: Molex 2695-03 22-01-3037 or equivalent
c. Terminal: Molex 2759t 08-50-0113 or equivalent
x
·
·
·
Thermal resistance: 0.26 C/W (ref.)
Heatsink Weight: 350 g (ref,)
Clipping Force: 32.0 Kgf (ref.)
o
·AMD Socket 754 K8 (Athlon 64)
Application:
Speed (rpm)
ca( C/W)
Noise (dBA)
Thermal Resistance
Noise (dBA)
Thermal & Mechanical Specification:
Component Specification:
DELTA PRODUCTS CORPORATION
4405 CUSHING PARKWAY
FREMONT, CA 94538, U.S.A.
TEL : 1-510-668-5100
FAX : 1-510-668-0680
DELTA ELECTRONICS, INC.
252, SHANG YING ROAD, KUEI SAN,
TAOYUAN HSIEN 333, TAIWAN, R.O.C.
TEL: 886-3-3591968 EXT.2060
FAX: 886-3-3591991
DELTA ELECTRONICS EUROPE LTD.
2 YOUNG PLACE
KELVIN INDUSTRIAL ESTATE
EAST KILBRIDE, GLASGOW G75 OTD, U.K.
TEL : 44-1355-588888
FAX : 44-1355-588889
DELTA ELECTRONICS (JAPAN) INC.
DELTA SHIBADAIMON BUILDING
2-1-14 SHIBADAIMON, MINATO-KU,
TOKYO, 105-0012, JAPAN
TEL : 81-3-5733-1111
FAX : 81-3-5733-1211
* All readings are typical values at rated voltage.
* Specifications are subject to change without notice.
FHS-A7015A41/FHS-A7015B41
285A0404
0.250
0.260
0.270
0.280
0.290
0.300
0.310
0.320
0.330
0.340
2500 3000 3500 4000 4500 5000 5500 6000
20.0000
25.0000
30.0000
35.0000
40.0000
45.0000
Heat sink·
·
·
Thermal interface material
Fan(70x70x15mm)
. Type: Extrusion
Material: Aluminum 6063 or Equivalent.
Dimension: 77 68.5 41.2 mm
Material: Dow Corning SC102 or Equivalent.
Life Time:
one ball one sleeve bearing 40000 hrs
two ball bearing 70000 hrs
Connector:
a..Lead wire: UL 1007 AWG#24
pin 1: black wire--------(-)
pin 2: red wire----------(+)
pin 3: blue wire---------(F00)
b. Housing: Molex 2695-03 22-01-3037 or equivalent
c. Terminal: Molex 2759t 08-50-0113 or equivalent
xx
·
·
·
Thermal resistance: 0.28
Heatsink Weight: 290 g (ref,)
Clipping Force: 32.0 Kgf (ref.)
oC/W (ref.)
·AMD Socket 754 K8 (Athlon 64)
Application:
Noise (dBA)
ca( C/W)
Speed (rpm)
Thermal Resistance
Noise (dBA)
Thermal & Mechanical Specification:
Component Specification:
DELTA PRODUCTS CORPORATION
4405 CUSHING PARKWAY
FREMONT, CA 94538, U.S.A.
TEL : 1-510-668-5100
FAX : 1-510-668-0680
DELTA ELECTRONICS, INC.
252, SHANG YING ROAD, KUEI SAN,
TAOYUAN HSIEN 333, TAIWAN, R.O.C.
TEL: 886-3-3591968 EXT.2060
FAX: 886-3-3591991
DELTA ELECTRONICS EUROPE LTD.
2 YOUNG PLACE
KELVIN INDUSTRIAL ESTATE
EAST KILBRIDE, GLASGOW G75 OTD, U.K.
TEL : 44-1355-588888
FAX : 44-1355-588889
DELTA ELECTRONICS (JAPAN) INC.
DELTA SHIBADAIMON BUILDING
2-1-14 SHIBADAIMON, MINATO-KU,
TOKYO, 105-0012, JAPAN
TEL : 81-3-5733-1111
FAX : 81-3-5733-1211
* All readings are typical values at rated voltage.
* Specifications are subject to change without notice.
FHS-A7015A42/FHS-A7015B42
286A0404
0.270
0.280
0.290
0.300
0.310
0.320
0.330
0.340
0.350
0.360
2500 3500 4500 5500 6500
20
25
30
35
40
45
·
·
·
Heat Sink
Thermal interface material
Fan(70x70x25mm)
Type: Soldering Heat Sink
Material: Fin-Aluminum 6063 or Equivalent.
Base-Copper C1100 or Equivalent.
Dimension: 93.5 68.5 41.2 mm
Material: Dow Corning SC102 or Equivalent.
Rated Voltage: 12 V
Life Time:
one ball one sleeve bearing 40000 hrs
two ball bearing 70000 hrs
Connector:
a..Lead wire: UL 1007 AWG#24
pin 1: black wire--------(-)
pin 2: red wire----------(+)
pin 3: blue wire---------(F00)
b. Housing: Molex 2695-03 22-01-3037 or equivalent
c. Terminal: Molex 2759t 08-50-0113 or equivalent
xx
·
·
·
Thermal resistance: 0.28 C/W (ref.)
Heatsink Weight: 350 g (ref.)
Clipping Force: 32.0 Kgf (ref.)
o
·Intel Socket 478 Prescott FMB1.5
Application:
ca( C/W)
Noise (dBA)
Thermal Resistance
Noise (dBA)
Speed (rpm)
Thermal & Mechanical Specification:
Component Specification:
DELTA PRODUCTS CORPORATION
4405 CUSHING PARKWAY
FREMONT, CA 94538, U.S.A.
TEL : 1-510-668-5100
FAX : 1-510-668-0680
DELTA ELECTRONICS, INC.
252, SHANG YING ROAD, KUEI SAN,
TAOYUAN HSIEN 333, TAIWAN, R.O.C.
TEL: 886-3-3591968 EXT.2060
FAX: 886-3-3591991
DELTA ELECTRONICS EUROPE LTD.
2 YOUNG PLACE
KELVIN INDUSTRIAL ESTATE
EAST KILBRIDE, GLASGOW G75 OTD, U.K.
TEL : 44-1355-588888
FAX : 44-1355-588889
DELTA ELECTRONICS (JAPAN) INC.
DELTA SHIBADAIMON BUILDING
2-1-14 SHIBADAIMON, MINATO-KU,
TOKYO, 105-0012, JAPAN
TEL : 81-3-5733-1111
FAX : 81-3-5733-1211
* All readings are typical values at rated voltage.
* Specifications are subject to change without notice.
FHS-A7025A04/FHS-A7025B04
Tool-Free
Clip
287A0404
0.26
0.28
0.3
0.32
0.34
0.36
0.38
2500 3000 3500 4000 4500 5000 5500
20
25
30
35
40
45
50
·
·
·
Heat Sink
Thermal interface material
Fan(90x90x25mm)
Type: Thermal Shrink
Material: Fin-Aluminum 6063 or Equivalent.
Core-Copper C1100 or Equivalent.
Dimension: 90 90 32 mm
Material: Dow Corning SC102 or Equivalent.
Rated Voltage: 12 V
Life Time:
one ball one sleeve bearing 40000 hrs
Connector:
a..Lead wire: UL 1007 AWG#24
pin 1: black wire--------(-)
pin 2: red wire----------(+)
pin 3: blue wire---------(F00)
b. Housing: WIESON 2510C888-001 or equivalent
c. Terminal: WIESON 2511-T1 or equivalent
xx
·
·
·
Thermal resistance: 0.25 C/W (ref.)
Heatsink Weight: 380 g (ref.)
Clipping Force: 20.0 Kgf (ref.)
o
·Intel Socket 775 Prescott FMB2.0
Application:
Thermal & Mechanical Specification:
Component Specification:
DELTA PRODUCTS CORPORATION
4405 CUSHING PARKWAY
FREMONT, CA 94538, U.S.A.
TEL : 1-510-668-5100
FAX : 1-510-668-0680
DELTA ELECTRONICS, INC.
252, SHANG YING ROAD, KUEI SAN,
TAOYUAN HSIEN 333, TAIWAN, R.O.C.
TEL: 886-3-3591968 EXT.2060
FAX: 886-3-3591991
DELTA ELECTRONICS EUROPE LTD.
2 YOUNG PLACE
KELVIN INDUSTRIAL ESTATE
EAST KILBRIDE, GLASGOW G75 OTD, U.K.
TEL : 44-1355-588888
FAX : 44-1355-588889
DELTA ELECTRONICS (JAPAN) INC.
DELTA SHIBADAIMON BUILDING
2-1-14 SHIBADAIMON, MINATO-KU,
TOKYO, 105-0012, JAPAN
TEL : 81-3-5733-1111
FAX : 81-3-5733-1211
* All readings are typical values at rated voltage.
* Specifications are subject to change without notice.
Speed (rpm)
Noise (dBA)
Thermal Resistance
Noise (dBA)
FHS-A9025A00
288A0404
0.240
0.250
0.260
0.270
0.280
0.290
0.300
0.310
0.320
2000 2500 3000 3500 4000 4500
30.0
35.0
40.0
45.0
50.0
ca( C/W)
