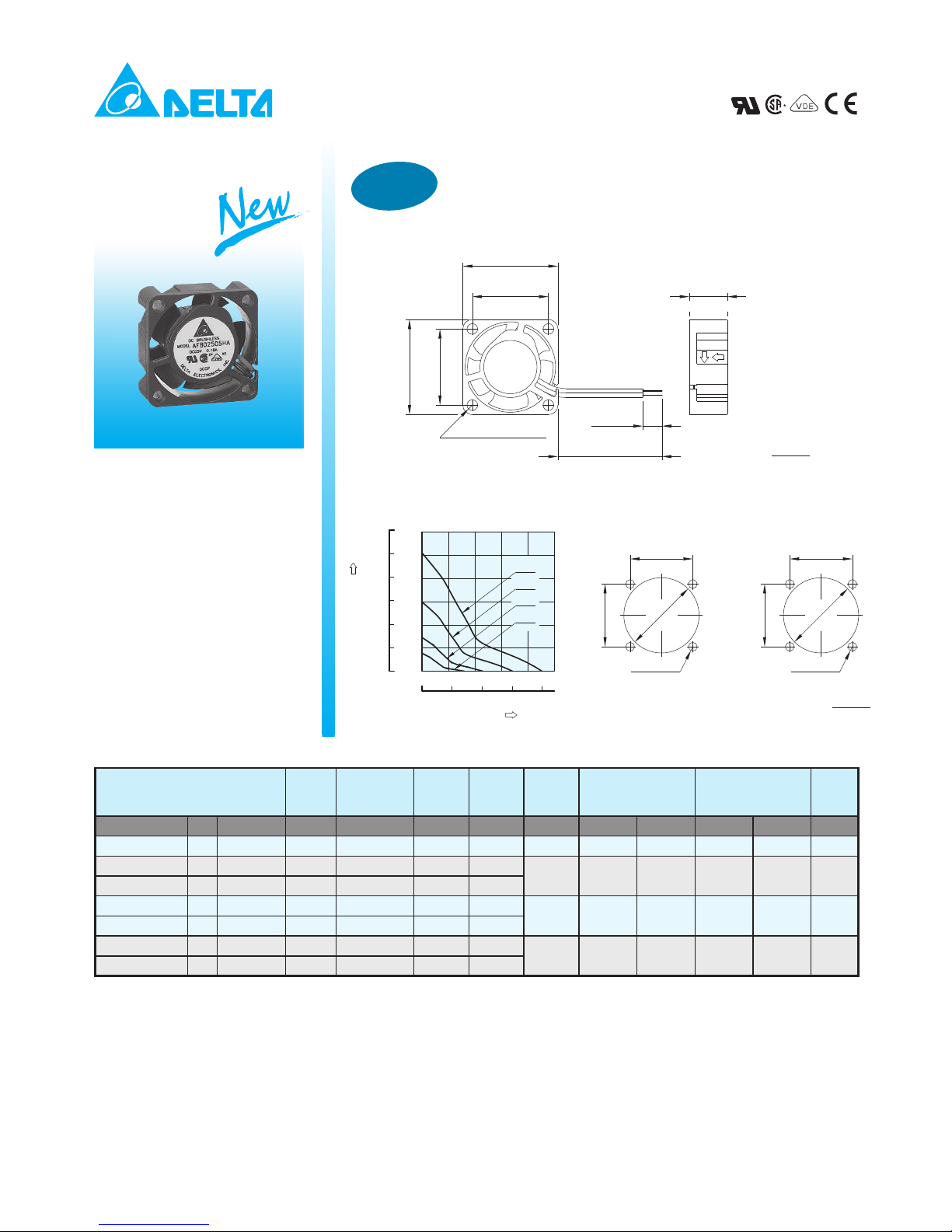

Delta Electronics Exhaust Fan AFB Series Manual de usuario

Air Pressure

Air Flow

(mm H2O)

(IN H2O)

(M3/MIN)

(CFM)

UNIT : (INCH)

INLET SIDE

OUTLET SIDE

0 0.6 1.2 1.8 2.4

0.06

0.12

0.18

0.24

0.30

0.36

4.5

1.5

3.0

6.0

7.5

9.0

.075.045 .060.030.0150

AFB02505/12XA-A

LABEL

20.0±0.3

25.0±0.5

(0.984±0.020)

(0.787±0.012)

(0.984±0.020)

25.0±0.5

20.0±0.3 10.0±0.5

(0.394±0.020)

10.0

150.0±10.0

(0.394)

(5.906±0.394)

4-Ø2.8±0.3

(4-Ø0.110±0.012)

20.0

(0.787)

20.0

Ø24.0

(Ø0.945)

20.0

(0.787)

20.0

(Ø0.945)

Ø24.0

4-Ø2.8

(4-Ø0.110) (4-Ø0.110)

4-Ø2.8

http://www.deltaww.com

AFB

■DIMENSIONS DRAWING

■P & Q CURVE (AT RATED VOLTAGE) ■MOUNTING PANEL CUTOUT

25 x 25 x 10 MM SERIES

* Bearing Type

Ball Bearings

* Material

Impeller & Frame : Plastic(UL 94V-0)

* Lead Wires :

UL 1061 AWG #26 OR Equivalent

Red Wire Positive(+)

Black Wire Negative(-)

* Weight : 10.5g (0.37 OZ)

* Rib Type Only & One Side Flange

MODEL Rated

Voltage

Operating

Voltage

Range

Input

Current

Input

Power Speed Maximum

Air Flow

Maximum

Air Pressure Noise

PART NO.

REV.

FUNCTION VDC VDC Amp Watt R.P.M. m3/min CFM mmH2O IN H2O dB-A

AFB02505LA -A -R00 / -F00 5 4.0 to 5.5 0.04 0.20 5000 0.024 0.85 1.15 0.045 18.0

AFB02505MA -A -R00 / -F00 5 4.0 to 5.5 0.06 0.30 7000 0.034 1.20 2.18 0.085 20.0

AFB02512MA -A -R00 / -F00 12 9.5 to 13.2 0.04 0.48

AFB02505HA -A -R00 / -F00 5 4.0 to 5.5 0.12 0.60 10000 0.052 1.84 4.48 0.176 23.5

AFB02512HA -A -R00 / -F00 12 7.0 to 13.2 0.06 0.72

AFB02505HHA -A -R00 / -F00 5 4.0 to 5.5 0.16 0.80 13000 0.068 2.40 7.65 0.300 28.0

AFB02512HHA -A -R00 / -F00 12 7.0 to 13.2 0.08 0.96

* Function type is optional.

* The max. air ow and the speed are measured in free air ; max. air pressure is measured at zero air ow.

* Noise is measured in anechoic chamber in free air, one meter from intake side.

* All readings are typical values at rated voltage.

* Specications are subject to change without notice.
