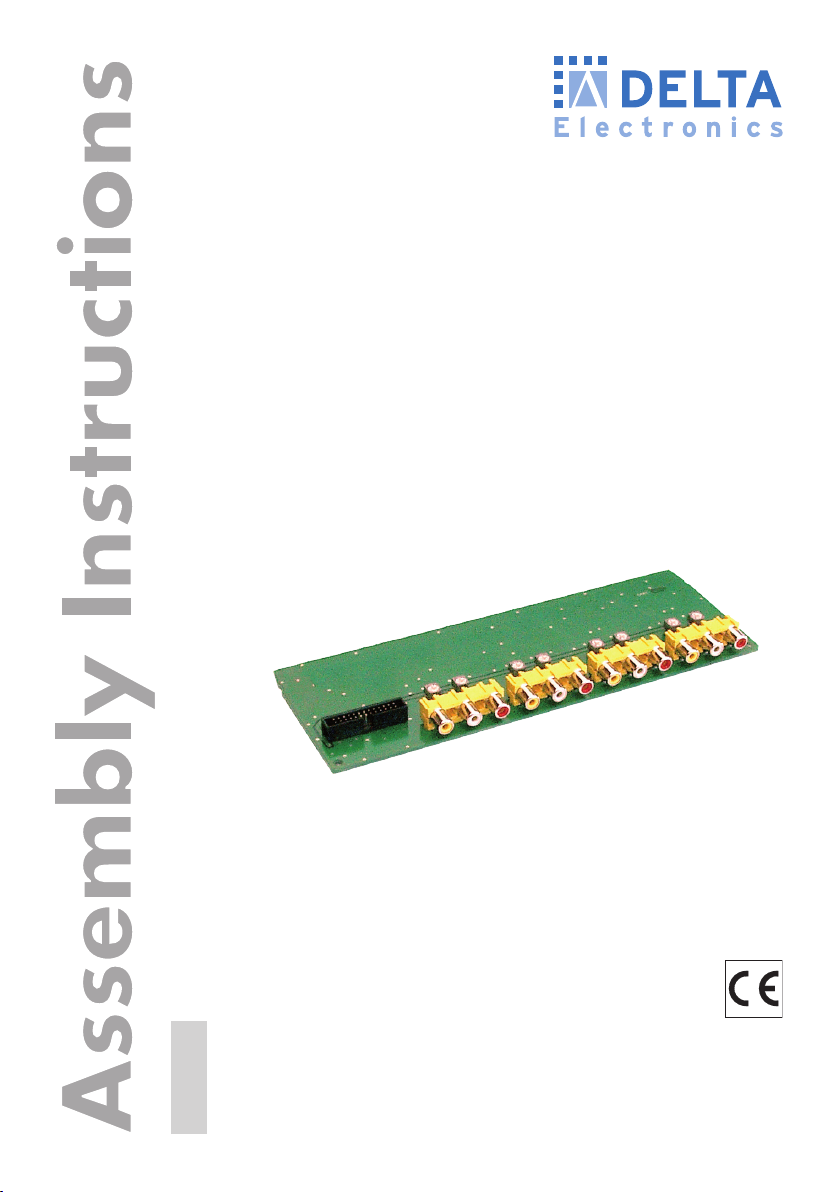

Delta Electronics KAD 340 Manual de usuario

English

KAD 340

KAB 3000 Basis Unit

Quad AV Adapting Unit

Notes on the Assembly Instructions.

As well as this supplementary Assembly

Instructions, the Assembly Instructions for the

KAB 3000

apply.

DCT DELTA GmbH

Bodanrückstraße 1

D-78351 Bodman

Phone: +49 (0) 7773 / 936331

Fax: +49 (0) 7773 / 929259

Email: info@dct-delta.de

Internet: http://www.dct-delta.de

- 2 - KAD 340

InhaltsverzeIchnIs

1 Safety regulations ..............................................................................................3

2 General information ..........................................................................................3

2.1 Scope of delivery ............................................................................... 3

2.2 Meaning of the symbols used ............................................................... 4

2.3 Technical data.................................................................................... 4

2.4 Description ........................................................................................ 5

3 Installation ........................................................................................................5

3.1 Installing the module ........................................................................... 5

3.2 Connecting the module ....................................................................... 6

4 Settings .............................................................................................................6

4.1 Audio level regulator .......................................................................... 6

4.2 Programming the modulator module ..................................................... 7

5 Final procedures ................................................................................................7

- 3 - KAD 340

1 safety regulatIons

• The standards IEC/EN/DIN EN 50083 resp. IEC/EN/DIN EN 60728 must

be observed.

• Do not perform installation and service work during thunderstorms.

• Assembly, installation and servicing should be carried out by authorised

electricians.

• Switch off the operating voltage of the system before beginning with assem-

bly or service work.

• Avoid short circuits!

• Observe the relevant country-specific standards, regulations and guidelines

on the installation and operation of antenna systems.

• To ensure electromagnetic compatibility, make sure all connections are tight

and the covers are screwed on securely.

• No liability is accepted for damage caused by faulty connections or inap-

propriate handling of the device.

Check the basis unit KAB 3000 according to the safety instructions listed in

their assembly instruction.

Take precautions to prevent static discharge when working on the device!

Electronic devices should never be disposed of in the household rubbish. In

accordance with directive 2002/96/EC of the European Parliament and the

European Council from January 27, 2003 which addresses old electronic and

electrical devices, such devices must be disposed of at a designated collection

facility. At the end of its service life, please take your device to one of these

public collection facilities for proper disposal.

2 general InformatIon

2.1 scope of delIvery

1 Quad AV Adapting Unit

KAD 340

1 AV cable

1 Brief Assembly Instructions

1 CD (assembly instructions)

- 4 - KAD 340

2.2 meanIng of the symbols used

Important note

—> General note

–

Optional use of the buttons

• Performing works

2.3 technIcal data

The requirements of the following EU directives are met:

2011/65/EU, 2014/30/EU, 2014/35/EU

The product fulfils the guidelines and standards for CE labelling.

Unless otherwise noted all values are specified as “typical”.

Inputs:

Audio

Impedance: .................................................................................. 47 kΩ

Audio level: ............................................................................... 0.5 Vrms

Video

Impedance: ....................................................................................75 Ω

Video level:....................................................................................1 Vpp

Connections:

Audio input: .................................................................... 8 cinch sockets

Video input: .................................................................... 4 cinch sockets

AV output: ...........................................................................

26-pin

socket

- 5 - KAD 340

2.4 descrIptIon

The Quad AV Adapting Unit

KAD 340

is designed for feeding audio and

video signals into the modulator modules

KMM 341

and

KMS 342

The audio signals that have been fed in reach the AV interface via the audio

sockets (red = right-hand channel, white = left-hand channel / mono) as well

as the downstream level regulator. The video signals fed in via the video sock-

ets (yellow) are also here. The existing signals are fed to the modulator module

via the AV interface.

3 InstallatIon

3.1 InstallIng the module

– Observe the instructions for installing outlined in chapters 4 and 9 of the

assembly instructions KAB 3000.

– Assemble the Quad AV Adapting Unit left of the corresponding modulator

module in a short, non-numbered groove.

—> The illustration shows, for example, slot 3 (modulator module) and

the slot for the add-on module (Quad AV Adapting Unit) for installa-

tion.

• Insert the Quad AV Adapting Unit into grooves A and B of the slot to the

left of the corresponding modulator module.

• Push the Quad AV Adapting Unit with a little pressure into the head-end

station until they click into place.

- 6 - KAD 340

3.2 connectIng the module

Channel strip ”A“

Audio right

Audio mono / left

Video

Channel strip ”B“

Channel strip ”C“

Channel strip ”D“

• Using the AV cable C, connect the Quad AV Adapting Unit to the modula-

tor module.

•

Connect the Cinch inputs of the

Quad AV Adapting Unit

to the audio and

video signal sources via the intended cable terminals on the

basis unit

4 settIngs

4.1 audIo level regulator

• If necessary, adjust the audio input level to the requirements using the level

controllers (factory setting: centre position).

Level control channel strip ”A“

Audio right

Audio left (mono)

Level control channel strip ”B“

Level control channel strip ”C“

Level control channel strip ”D“

- 7 - KAD 340

4.2 programmIng the modulator module

If a mono audio signal (white Cinch socket) is fed in, you program the cor-

responding channel strip of the connected mono modulator module to “Mono

L” (assembly instructions

KMM 341 / KMS 342

Bx 3A

Mono L

AUDIO

Mono L / L + R

5 fInal procedures

After installing the basis unit, upgrading accessories or installing modules it is

necessary to tighten all cable connections, cable terminals and cover screws in

order to maintain compliance with current EMC regulations.

• Securely tighten the cable connections using an appropriate open-ended

spanner.

• Test the output level of the output collector according to the KAB 3000 as-

sembly instructions and set the output level required for the cable system.

• Mount the base plate and the front cover (see KAB 3000 assembly instruc-

tions).

Service:

Phone: +49 (0) 7773 / 936331, Fax: +49 (0) 7773 / 929259, Email: [email protected]

DCT DELTA GmbH, Bodanrückstraße 1, D-78351 Bodman

Alterations reserved. Technical data E. & O.E. 17022017
