FAN HEATER

HVF3533

Please retain these instructions for future reference

Fan Heater HVF3533

Description of Appliance

The following terms are used throughout the instruction manual

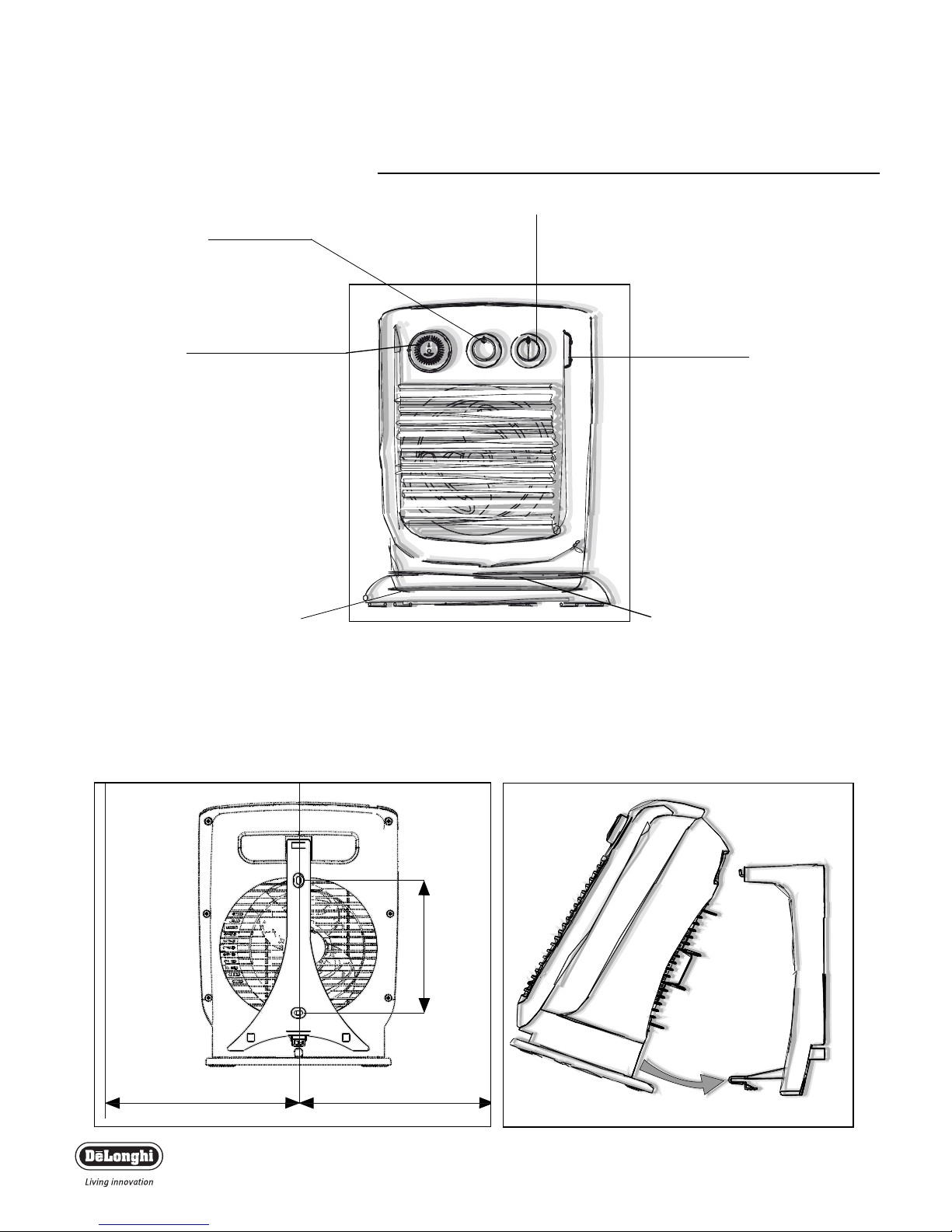

Wall Mounting Installation

300 mm MIN300 mm MIN

157,5 mm

Fig. 2

Fig. 1

Thermostat

Swivelling base

(certain models only) Pedal switch

(certain models only)

Indicator light

Timer

(certain models only)

Function selector

Thank you for choosing this De’Longhi appliance. To get

the best results from your new heater please read these

instructions carefully before use.This should ensure

optimum results and maximum safety.

SAFETY WARNINGS

• The first time you use the appliance, operate it for at least 15

minutes with the thermostat at maximum to eliminate the “new”

smell.A little smoke due to the protective substances applied to the

heating element before transport may be given off.This is completely

normal and not a cause for concern.

• Do not rest the power cable on the appliance.

• Always use the heater in a vertical position only.

• Do not obstruct the hot air outlet grilles or the air intake grille at the

top or the bottom of the appliance.

• If the power cable is damaged, it must be replaced by the manufacturer

or an authorised service centre in order to eliminate all risk.

• The appliance is not intended for use by persons (including children)

with reduced physical, sensory or mental capabilities, or lack of expe-

rience and knowledge, unless they have been given supervision or

instruction concerning use of the appliance by a person responsible

for their safety. Children should be supervised to ensure that they do

not play with the appliance.

• Do not use this appliance in rooms measuring less than 4m2. You

should avoid positioning it in currents of air which could disturb

operation of the heater.

• The heater must be positioned 50cm from furniture or other objects.

• As with any electrical appliance, whilst the instructions aim to cover

as many eventualities as possible, caution and common sense should

be applied when operating your appliance, particularly in the vicinity

of young children.

• This appliance is intended only for a domestic use.

A safety device trips and turns the appliance off in the event of

overheating or if it is placed in strong currents of air.To reset, unplug

the appliance from the mains socket and leave to cool down (about

five minutes), remove the cause of overheating, plug back into the

mains and turn on again.

A number of models are fitted with a special device which turns

power off if the appliance is tipped over, sloped or knocked. If this

occurs, you will hear a beep.

WARNING: In order to avoid overheating, never under any

circumstances cover the appliance during operation.

CAUTION: In order to avoid a hazard due to inadvertent resetting of

the thermal cutout, this appliance must not be supplied through an

external switching device, such as an external timer, or connected to a

circuit that is regularly switched on and off by the utility.

Fan Heater HVF3533

Important information for correct disposal of the product in

accordance with EC Directive 2002/96/EC.

At the end of its working life, the product must not be

disposed of as urban waste. It must be taken to a special local

authority differentiated waste collection centre or to a dealer

providing this service. Disposing of a household appliance

separately avoids possible negative consequences for the

environment and health deriving from inappropriate

disposal and enables the constituent materials to be

recovered to obtain significant savings in energy and resources. As a

reminder of the need to dispose of household appliances separately, the

product is marked with a crossed-out wheeled dustbin.

Electrical connection (U.K. only)

A) If your appliance comes fitted with a plug, it will incorporate a 13

Amp fuse. If it does not fit your socket, the plug should be cut off

from the mains lead and an appropriate plug fitted, as below.

WARNING:Very carefully dispose of the cut off plug after

removing the fuse: do not insert in a 13 Amp socket elsewhere in

the house as this could cause a shock hazard.With alternative plugs

not incorporating a fuse, the circuit must be protected by a 15

Amp fuse. If the plug is a moulded-on type, the fuse cover must be

re-fitted when changing the fuse using a 13 Amp Asta approved fuse

to BS 1362. In the event of losing the fuse cover, the plug must

NOT be used until a replacement fuse cover can be obtained from

your nearest electrical dealer.The colour of the correct replace-

ment fuse cover is that as marked on the base of the plug.

B) If your appliance is not fitted with a plug, please follow the

instructions provided below.

IMPORTANT

The wires in the mains lead are coloured in accordance with the fol-

lowing code: Blue: Neutral

Brown: Live

As the colours of the wires in the mains lead may not correspond

with the coloured markings identifying the terminals in your plug,

proceed as follows:

The blue wire must be connected to the terminal marked with the

letter N or coloured black.

The brown wire must be connected to the terminal marked with

the letter L or coloured red.

If you have a 3-pins plug, do not connect any wire to the "earth"

terminal.

Fan Heater HVF3533 4

Fan Heater HVF3533

Dear Customer – The plug on this appliance will get ‘warm’ during

use, this is perfectly normal.This product is A HIGH POWER

HEATING APPLIANCE designed to our usual high standards but

please make sure your wall sockets are in good condition and the

plug is inserted correctly to avoid any accidental overheating. We

suggest that you check the plug AND THE SOCKET regularly if the

heater is in prolonged use, if you are in any doubt please consult an

electrician.

WALL MOUNTING INSTALLATION

The appliance may be either portable or wall-mounted (if supplied

with a bracket). Models with motorised base cannot be wall

mounted.To mount on the wall, proceed as follows:

- Fix the bracket to the wall respecting the minimum

measurements indicated (fig. 1).

- Attach the appliance to the top hook of the bracket, then rotate

gently until it hooks to the bottom tooth of the bracket (fig. 2).

- The appliance must not be placed immediately under a fixed

power socket.

Note: If you do not intend to wall mount the appliance, do not

attach the bracket to the unit.

FUNCTIONING AND USE

Models with function selector and thermostat.

Make sure the appliance is off before plugging into the

mains.

1. Plug the appliance into the mains. The light comes on. If your

appliance has a timer, see the section "Models with 24 hour

timer". However, to operate the appliance without programming,

move all the teeth of the timer to the outside.

2. Turn the thermostat dial to maximum.

3. Summer mode (fan only): turn the function selector to the

position.

4. Low power operation: turn the function selector to position

1(in models with two fan speeds, the fan operates at minimum).

5. Medium power operation: turn the function selector to

position 2(in models with two fan speeds, the fan operates at

maximum).

6. High power operation: turn the function selector to position

3(the fan operates at maximum).

7. Switching off: turn the function selector to the "0" position.

Note: In models with two power levels, position 2corresponds

to maximum power.

Setting the thermostat:

Turn the thermostat to maximum.When the room has reached the

required temperature, turn the thermostat dial slowly

anticlockwise until you hear a click and the fan goes off.

The thermostat will then keep room temperature at the selected

level automatically.

Fan Heater HVF3533

FROST PREVENTION MODE

With the function selector in position 3and the thermostat dial in

position , the appliance maintains room temperature at about 5°C,

preventing freezing with minimal energy consumption.

Models with thermostat only

To switch the appliance on turn the thermostat dial to maximum.To

switch the appliance off completely, turn the dial to the minimum

position, then unplug from the mains.

MODELS WITH 24 HOUR TIMER

After setting the thermostat and function selector to the required

position, to programme heating, proceed as follows:

- Turn the timer disk clockwise until the arrow on the timer L

lines up with the number corresponding to the current time.

- Set the times when you want the appliance to operate by

pushing the teeth towards the outside. Each tooth corresponds

to 30 minutes.

The radiator will now function automatically each day at the times

set.

Note: To use the appliance without programming, push all the teeth

outwards.

EXAMPLE

THE TIMER IS SET FOR THE FOL-

LOWING PERIODS OF OPERATION:

FROM 10 TO 12: ON

FROM 12 TO 18: OFF

FROM 18 TO 20: ON

FROM 20 TO 10: OFF TEETH IN THE

"ON" POSITION

TEETH IN THE

"ON" POSITION

TEETH IN THE

"OFF"

POSITION

ARROW ON

CURRENT TIME

10.00

MODELS WITH SWIVELLING BASE AND ON/OFF pedal

switch

Certain models have a swivelling base and ON/OFF pedal switch.

The appliance can be manually oriented to an angle of 30° to the

right or left to direct the air flow in the preferred direction.

To turn the appliance on, set the thermostat dial and function

selector (and possibly also the timer) as described above, then press

the pedal on the base.

To turn the appliance off, just press the pedal again.

Important: The appliance will come on only if you press the pedal.

MODELS WITH MOTORISED ROTATING BASE

Certain models have a motorised rotating base.

To distribute the air flow over a larger area, press the pedal. The

appliance swings from right to left. To stop the appliance in the

desired position, simply press the pedal again.

Models with motorised base are fitted with a tip-over switch which

turns the appliance off if it falls over.To restart the appliance, simply

place it upright again.

CLEANING & MAINTENANCE

- Always unplug from the mains socket before cleaning.

- Clean the air intake and outlet grilles regularly.

- Do not use abrasive products or solvents to clean the appliance.

Fan Heater HVF3533 7

5711410531/03.10

De’Longhi Appliances

via L. Seitz, 47

31100 - Treviso - Italia

Tabla de contenidos

Otros manuales de Calentador de DeLonghi

DeLonghi

DeLonghi TOWER CERAMIC HEATER Manual de usuario

DeLonghi

DeLonghi TRD40820 Manual de usuario

DeLonghi

DeLonghi HFX25S20 Manual de usuario

DeLonghi

DeLonghi TRD50615E Manual de usuario

DeLonghi

DeLonghi TRRSE Series Manual de usuario

DeLonghi

DeLonghi RCH100 Manual de usuario

DeLonghi

DeLonghi CERAMIC FAN HEATER Manual de usuario

DeLonghi

DeLonghi DRAGON 4 Manual de usuario

DeLonghi

DeLonghi Electric oil filled radiator Manual de usuario

DeLonghi

DeLonghi HX Series Manual de usuario

DeLonghi

DeLonghi HVS Series Manual de usuario

DeLonghi

DeLonghi Heater Manual de instrucciones de instalación

DeLonghi

DeLonghi DRAGON HM3 Manual de usuario

DeLonghi

DeLonghi EW 7707CM Manual de usuario

DeLonghi

DeLonghi TRD40615ECA Manual de usuario

DeLonghi

DeLonghi DFH333MT Manual de usuario

DeLonghi

DeLonghi EW7707CB Manual de usuario

DeLonghi

DeLonghi TRD Series Manual de usuario

DeLonghi

DeLonghi HSX4315E Manual de usuario

DeLonghi

DeLonghi KH390715CB-6A Manual de usuario

DeLonghi

DeLonghi DRAGON 3 Manual de usuario

DeLonghi

DeLonghi EW7507EB Manual de usuario

DeLonghi

DeLonghi CERAMIC FAN HEATER Manual de usuario

DeLonghi

DeLonghi TRR0715 Manual de usuario

Manuales populares de Calentador de otras marcas

oventrop

oventrop Regucor Series Manual de usuario

Blaze King

Blaze King CLARITY CL2118.IPI.1 Manual de usuario

ELMEKO

ELMEKO ML 150 Manual de usuario

BN Thermic

BN Thermic 830T Manual de usuario

KING

KING K Series Guía

Empire Comfort Systems

Empire Comfort Systems RH-50-5 Guía de inicio rápido

Well Straler

Well Straler RC-16B Manual de usuario

EUROM

EUROM 333299 Manual de usuario

Heylo

Heylo K 170 Manual de usuario

Eterna

Eterna TR70W Manual de usuario

Clarke

Clarke GRH15 Manual de instrucciones

IRSAP

IRSAP The Radiator Company Ovali Manual de usuario

Empire Heating Systems

Empire Heating Systems WCC65 Manual de usuario

Wetekom

Wetekom 92 86 43 Manual de usuario

Desa

Desa SPC170-F Manual de usuario

Watlow

Watlow Watrod Electric Tubular Heaters Manual de usuario

Haverland

Haverland ECO-DRY GPS Series Manual de lista de piezas

Stelpro

Stelpro ASILVC2060 Series Manual de usuario
