DeLonghi Dragon4 Pro Manual de usuario

Better Everyday

TRD50615E

Get Started

This short guide is not

intended to explain

all the functions

of the appliance.

Please read all of the

owner’s instruction booklet

before use.

ELECTRIC

OIL FILLED

RADIATOR

HOW TO SET UP

lug the unit into

an outlet

Hour digits will blink.

12 3

Set clock: Turn dial to

set current hour in military

time (ex: 13 equals 1pm;

22 equals 10pm ).

Push dial to

conﬁrm hour.

4 5

Minute digits

will blink.

Turn dial to set

current minutes.

Push dial to conﬁrm

minutes. A long

beeping sound will

be heard.

TRD50615E

MANUAL OPERATION MODE (TEMP/POWER LEVELS)

Push the standby/power

button to turn unit ON.

Turn dial to select desired

temperature. New

temperature is now set.*

12 3

If you want to change power

level, press dial twice and

follow steps 4 and 5.

Turn dial to desired power level.

(see chart below)

4 5

Push dial to conﬁrm power

level selection.

* Note:

It is not possible

to switch between

Fahrenheit and

Celsius.

SELECTED VERSUS WORKING POWER LEVELS

Min

50°F

Min

50°F

Max

less than T1

Max

83°F

Default

69°F

Default Anti-frost

41°F

Red light

Green light

The unit will automatically switch between the unit’s working power levels depending on

the difference between your desired selected temperature and the actual room temperature.

Note: If none of the working power

level bars are lit, the unit is not

consuming any wattage.

TIMER OPERATION MODE

Note:

T2 temperature must not exceed the temperature of T1

Preset daily timer program

The default preset daily timer program is the following:

T1=69°F

42 6 810 12 14 16 18 20 22 0

69°F

T2 T2 T2

T1T1

Note:

This chart is showing timer

settings as follows:

T2 from midnight to 5am,

T1 from 5am to 8am,

T2 from 8am to 4pm,

T1 from 4pm to 10pm,

T2 from 10pm to midnight.

(24)

Time Intervals

Explaining T1 and T2

NOTE: Green and red indicators differentiate the two timer settings.

They do NOT stand for “go” and “stop”.

In the example above,

T1 T2

shows Timer 1’s MIN (50ºF) and MAX (83ºF) temperature range

as well as the unit’s default temperature setting (69ºF).

T1 T2

shows your choice of Timer 2 set

to unit’s default of OFF, set to anti-freeze function temperature (41ºF), or set between MIN

(50ºF) and any temperature lower than your MAX setting of Timer 1 (green).

Preset Daily Timer Program

TRD50615E

PROGRAMMING TIMER OPERATION MODE

Setting Timer Temperatures T1 and T2

To modify red (T2),

turn dial till red light

blinks. Push dial

to conﬁrm. Or, to

modify green (T1

already ﬂashing),

push dial to conﬁrm.

5 6

Display will show the

current setting for

the green or red

temperature.

Turn dial to the

desired temperature.

Push dial to conﬁrm.

Repeat steps 2 to 8

for temperature not

yet set (T1 or T2).

Turn unit ON

(display

should show

temperature and

power level).

1 2

Push dial once, then

power level will blink.

Turn dial till clock

blinks.

Press dial to conﬁrm

(green light will ﬂash).

SETTING TIME PERIODS FOR T1 AND T2

Turn dial to select

the ending time for

the ﬁrst or previous

program selected.

Push dial to conﬁrm.

The ending time

will appear and

green (T1) or red

(T2) LED indicator

will blink.

Turn dial to select

between green (T1)

and red (T2). Push

dial to conﬁrm.

Changing 24 Hour Daily Timer Program

Last time setting will ﬂash.

Turn dial clockwise to next

time setting. Press dial to

conﬁrm. Repeat steps 8

and 9 for additional

settings to cover ALL 24

hours. Last time setting

must be to

00:00

(midnight). If timer set

correctly long beeping

sound will conﬁrm.

Turn off unit to

STANDBY mode

(display shows

time).

1 2

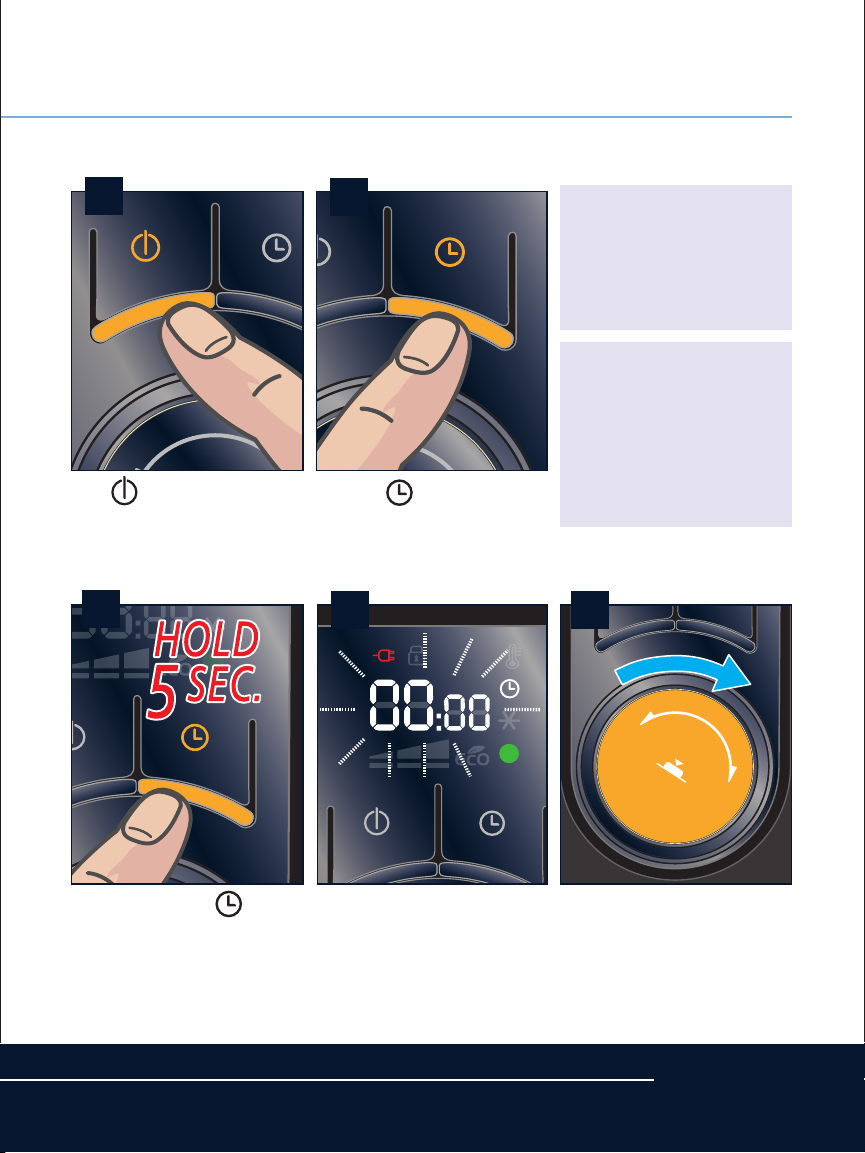

Push and hold

the timer button

for 5 seconds.

Turn dial to

select green (T1)

or red

(T2).

Press

dial to conﬁrm.

00:00 will be

blinking and green

(T1) or red (T2) LED

will light.

Display will show

00:00 (midnight).

Green LED (T1)

will be blinking.

TRD50615E

Push the timer

button to

activate the

timer program.

ACTIVATING AND DISPLAYING TIMER SETTINGS

The display shows which

temperature settings (green

T1 or red T2) have been

programed starting from

midnight (

00:00

Turn dial clockwise to scroll

thru the programmed time

settings from 00:00 (midnight)

thru 23:45 (11:45pm).

Push STANDBY/ POWER

button to turn on unit.

Push and hold the timer

button for 5 seconds.

Note for step 4:

A switch from red to

green or green to

red indicates when

programmed timer

settings are scheduled

to change.

General Note:

If you don’t wish to set

your own timer settings,

you can use the preset

settings (see page 4).

Activate Timer Settings (follow steps 1-2)

Display Timer Settings (follow steps 1-5)

Better Everyday

www.delonghi.com

like us: DeLonghi North America – follow us @DeLonghiNA

5711011411 _00_0219
