DeLonghi Intensa ECAM 23.210 Manual de usuario



MACCHINA DA CAFFÈ SUPER AUTOMATICA

SUPER AUTOMATIC COFFEE MACHINE

DE’LONGHI ECAM 23.210 (INT/CH/IT) - ECAM 23.216 (DE)

DATI TECNICI / TECHNICAL DATA / TECHNISCHE DATEN / DONNEES TECHNIQUES /

DATOS TECNICOS

SCHEDA TECNICA ST1516 / 2009

Voltaggio / Voltage / Spannung / Voltage / Voltaje V / Hz 220 - 240 / 50-60

Max. potenza assorbita / Max. input power W 1450

SEZIONE CAFFÈ / COFFEE SECTION

Sonda termica / Temperature probe °C 98 (Caè / Acqua calda)

(Coee / Hot water)

Fusibile termico TCO / Thermal fuse TCO °C 192

Potenza resistenza riscaldamento / Heater power W 1400

Pompa / Pump Type / W ULKA EP5W / 48

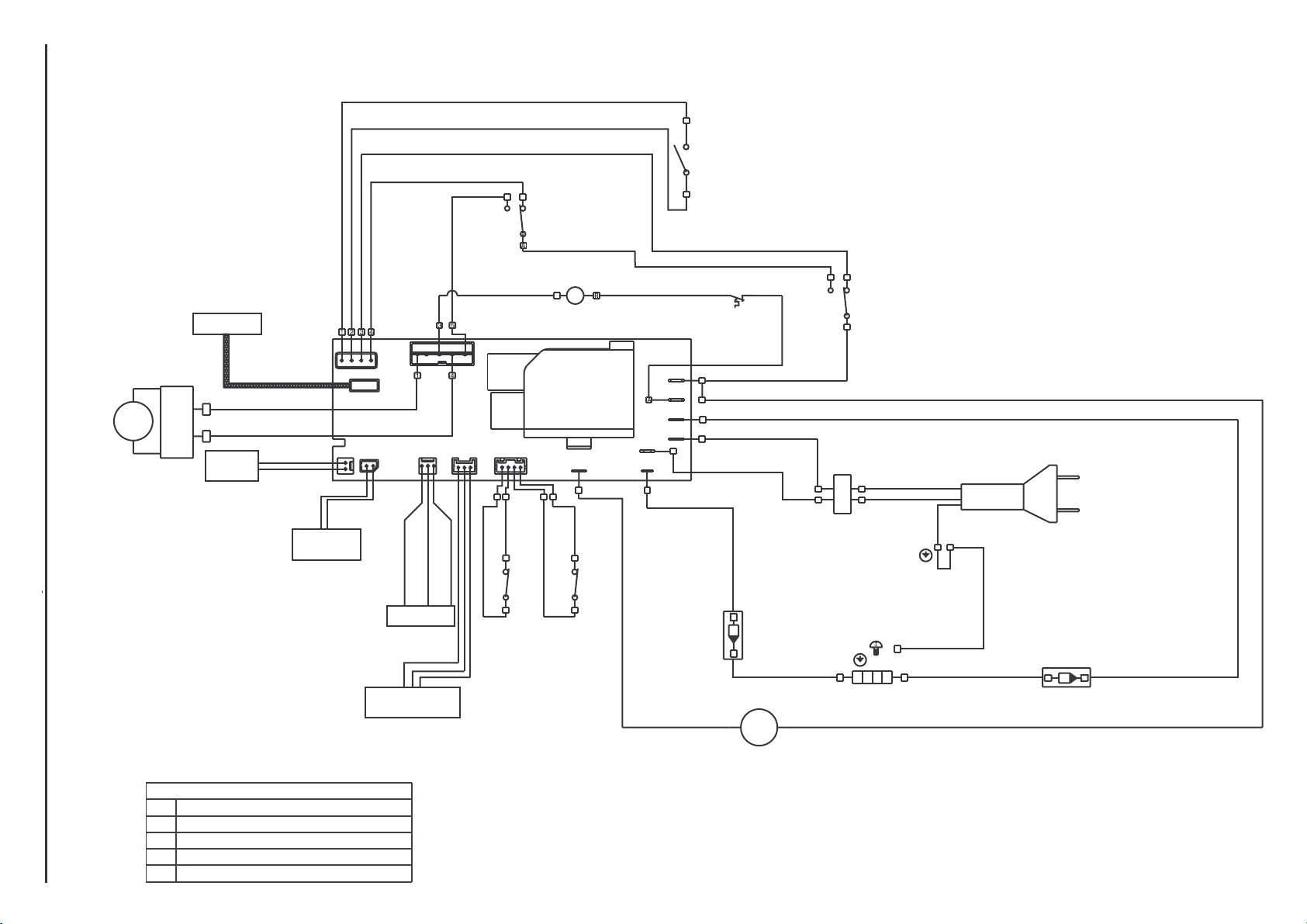

SCHEMA ELETTRICO / ELECTRICAL DIAGRAM

BIANCO/WHITE

ROSSO/RED

VERDE/GREEN

BIANCO/WHITE

ROSSO/RED

BIANCO/WHITE

NERO/BLACK

BIANCO/WHITE

MARRONE/BROWN MARRONE/BROWN

MARRONE/BROWN

BLU/BLUE

GIA-VER/YLW-GRN

GIA-VER

YLW-GRN

ROSSO/RED

NERO/BLACK

SENSORE REED

REED SENSOR

SONDA TEMP.

TEMP. PROBE

FLUSSIMETRO

FLOWMETER

TCO

THERMAL CUT OFF

TCO

THERMAL CUT OFF

CALDAIA/BOILER

PUMP THERMAL PROTECTOR

MOTOPROTETTORE POMPA

INTERRUTTORE ON/OFF

ON/OFF SWITCH

CELLA DI HALL

HALL CELL

MOTORE TRASMISSIONE

TRANSMISSION MOTOR

POMPA/PUMP

SCHEDA POTENZA

POWER BOARD

MACININO/COFFEE GRINDER

SCHEDA DISPLAY

DISPLAY PCB

LEGENDA MICRO / MICROSWITCHES

Infusore alto / Infuser top position

Infusore basso / Infuser bottom position

Cassetto fondi / Coffee grounds container

Tanica / Tank

Rubinetto / Tap

M1 M5

J13

J9 J6 J7 J8 J4

1234

SCHEDA TECNICA ST1516/20092

MOTORE TRASMISSIONE

TRANSMISSION MOTOR

SCHEDA DISPLAY

DISPLAY PCB

SENSORE REED

REED SENSOR

SONDA TEMP.

TEMP. PROBE

FLUSSIMETRO

FLOWMETER

CELLA DI HALL

HALL SENSOR

SCHEDA POTENZA

POWER BOARD

INTERRUTTORE ON/OFF

ON/OFF SWITCH

M1 M5

TCO

THERMAL CUT OFF

TCO

THERMAL CUT OFF

RESISTENZA

HEATING EL.

MACININO/COFFEE GRINDER

PUMP THERMAL PROTECTOR

MOTOPROTETTORE POMPA

POMPA/PUMP

J13 J5

F8 F4 F3 F2 F1

LLL

SCHEDA TECNICA ST1516/20093

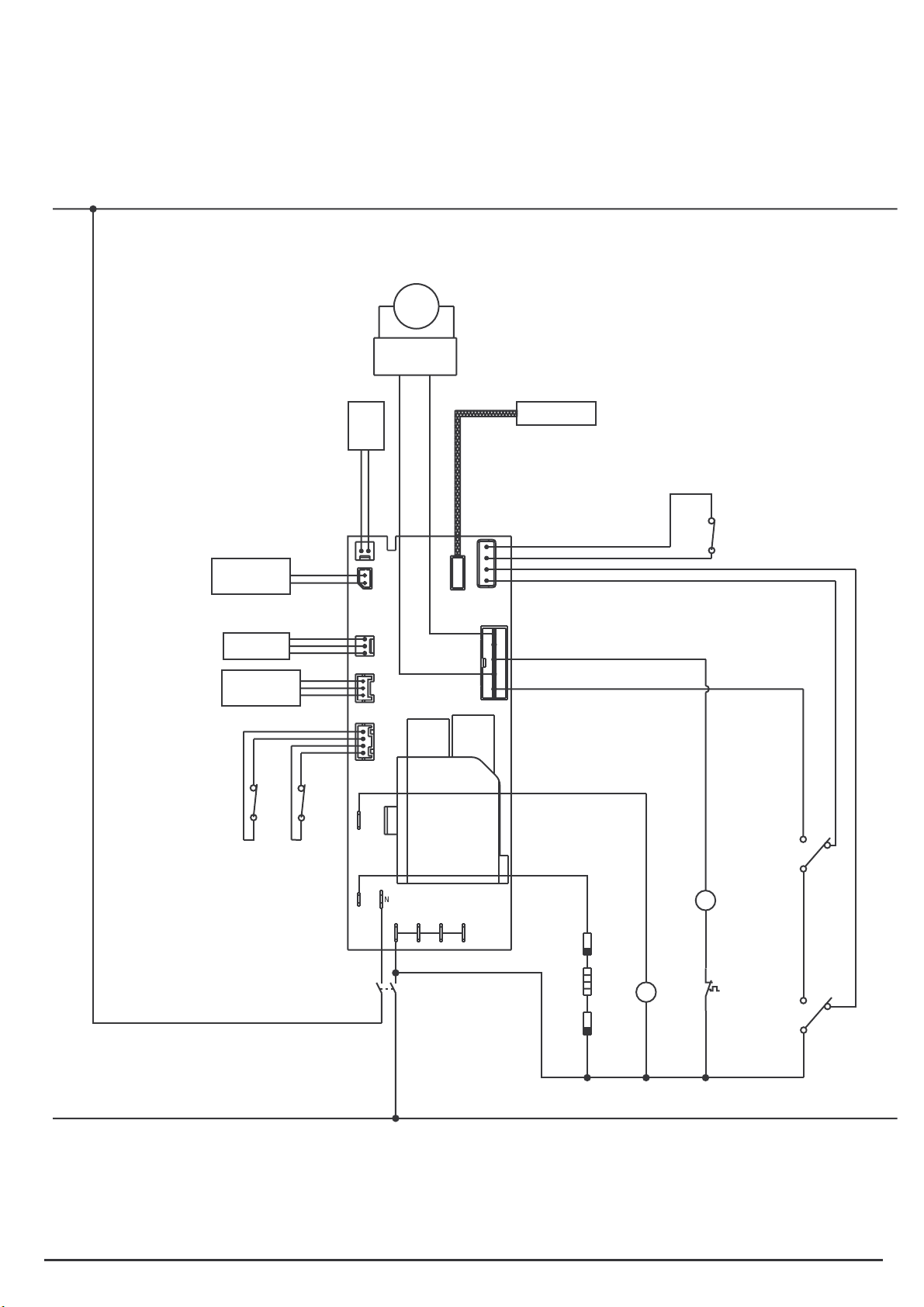

SCHEMA ELETTRICO / ELECTRICAL DIAGRAM

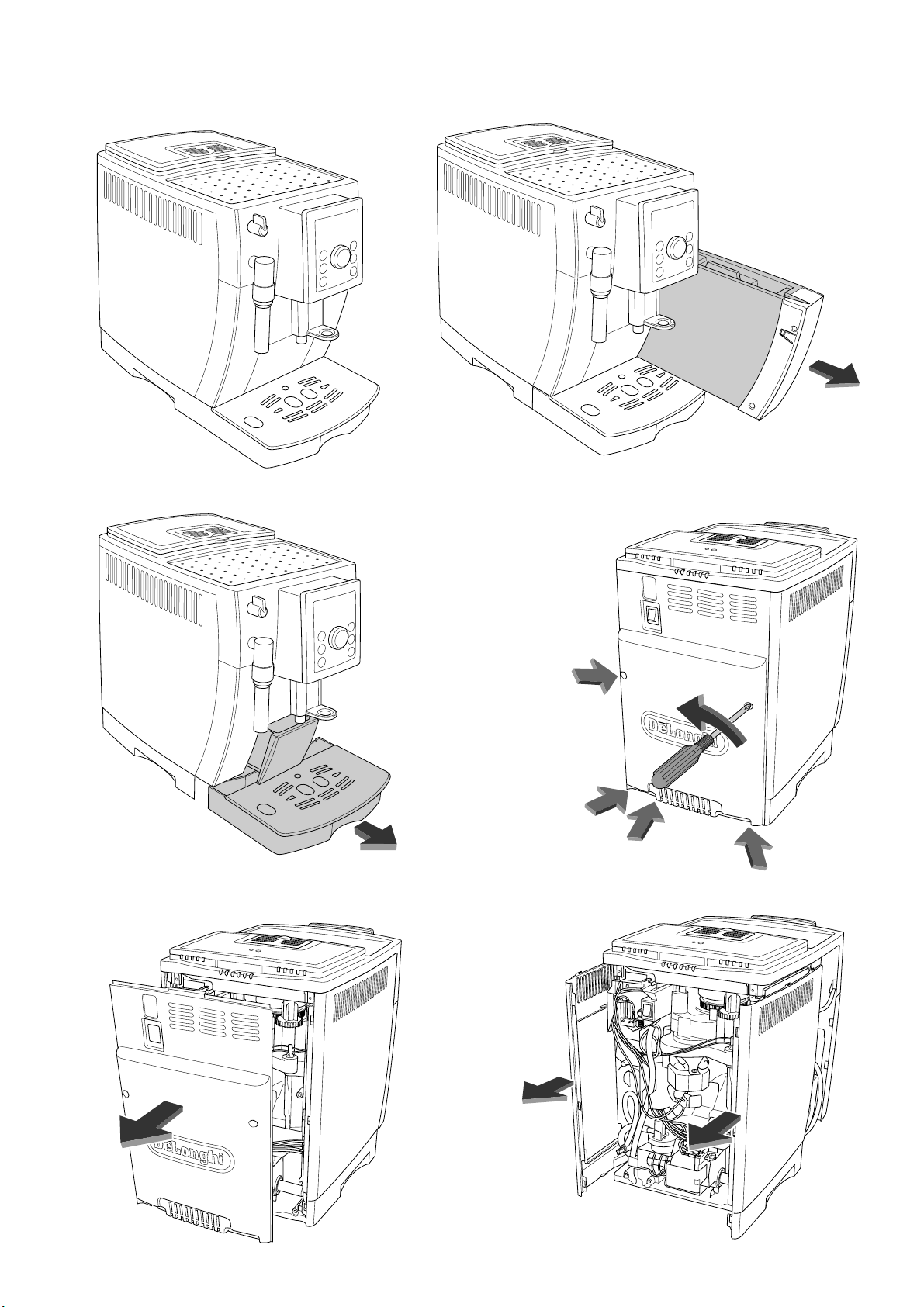

Picture 2.

Take off water

tank

Picture 4.

Unscrew the 5 indicated screws

(Torx T20)

Picture 3.

Take off drip tray

and waste container

5.1 Remove back panel 5.2 Unhook side panels

Picture 1

Picture 5

ACCESSIBILITY

Page 1

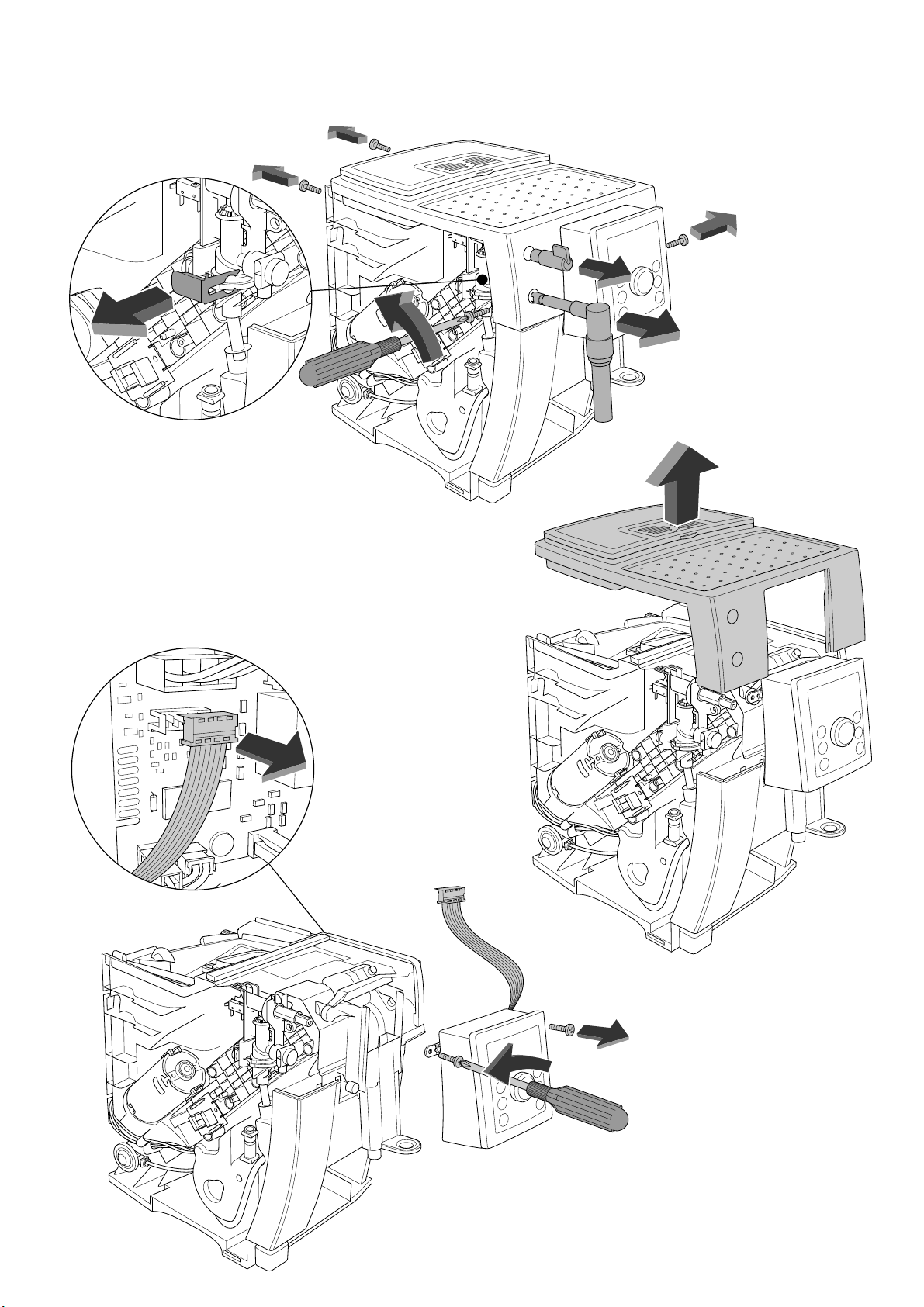

Picture 6 - TO REMOVE CONTROL PANEL

6.1 Take off plastic hook first

6.2 Take off knob and

frother

6.3 Unscrew the 4

indicated screws (2 on the

back +2 on the sides)

6.4

Lift upper panel

6.6

Unscrew the 2 indicated screws.

Then, lift with care the Control Panel

6.5

Take off cable

Page 2

Picture 7 - TO REMOVE COFFEE GRINDER

7.1

Take off cables on the right

side of the board

7.2

Lift coffee grinder pushing

it back with delicacy

7.3

To separate coffee grinder

unscrew the indicated screw.

8.1

Take off cable and

take out flowmeter

Picture 8 - TO REMOVE FLOWMETER

Page 3

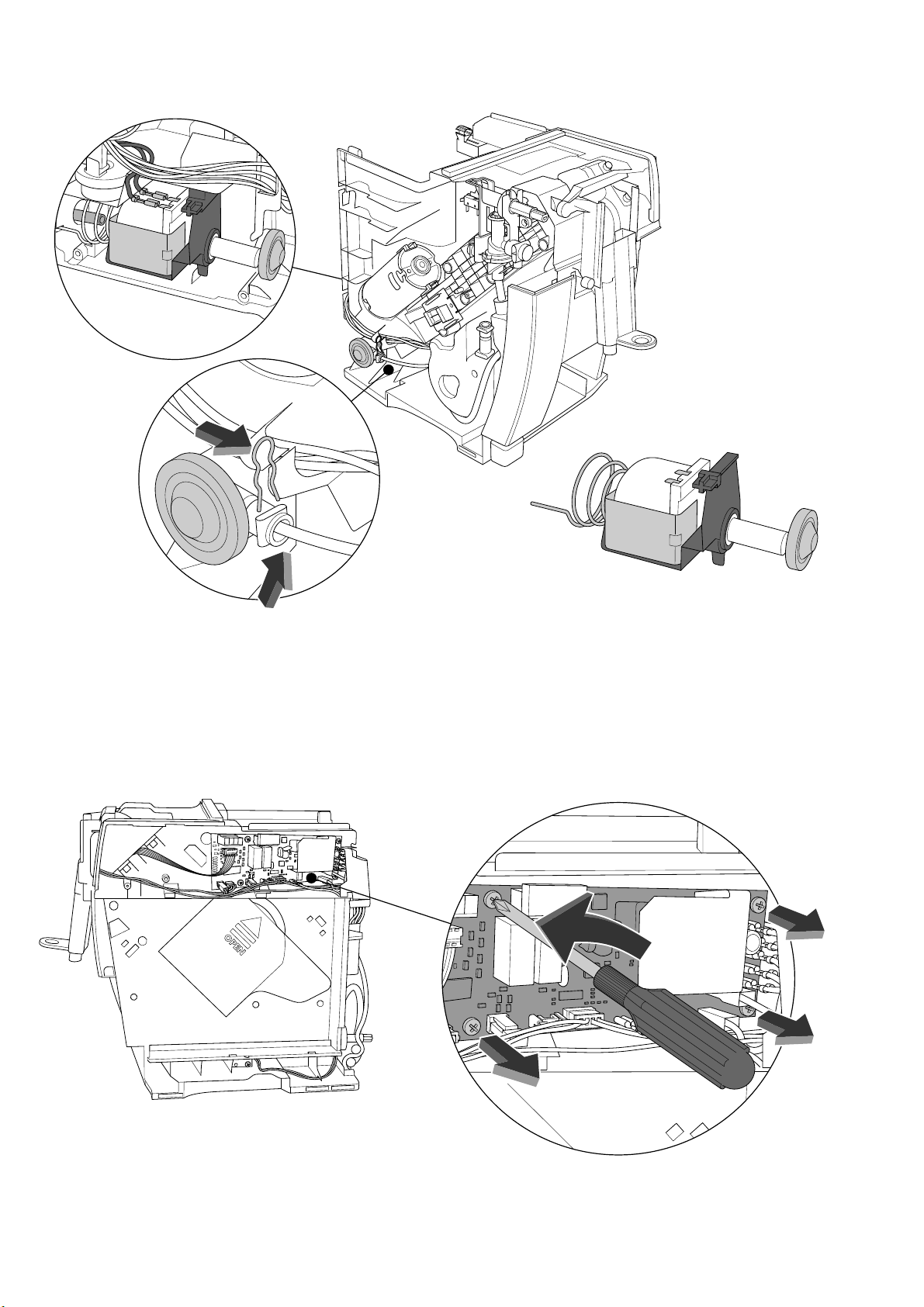

Picture 9 - TO REMOVE PUMP

9.1

Take off the spring

and then the tube

Attention: Some water could come out

from the tube, since the water circuit is

empting out

9.2

Take off pump

9.3

Attention: After you have taken off cables,

you will have to take off pump thermal protector.

Since it is glued, you will have to use a certain strength.

Remember to glue it again when you will reassemble it

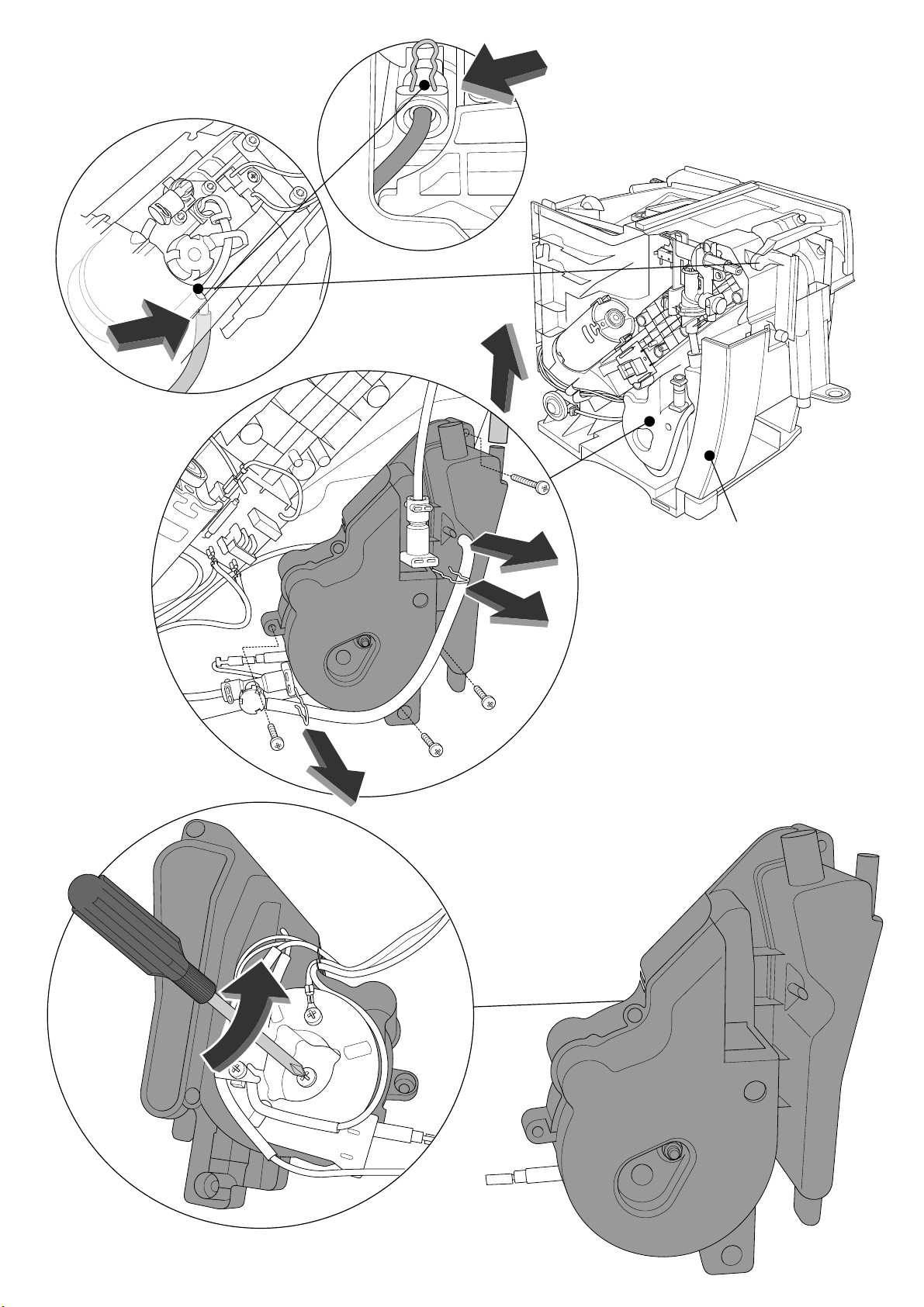

10.1

Take off the 4 indicated screws. After you have taken off cables, take out the board

Picture 10 - TO REMOVE BOARD

Page 4

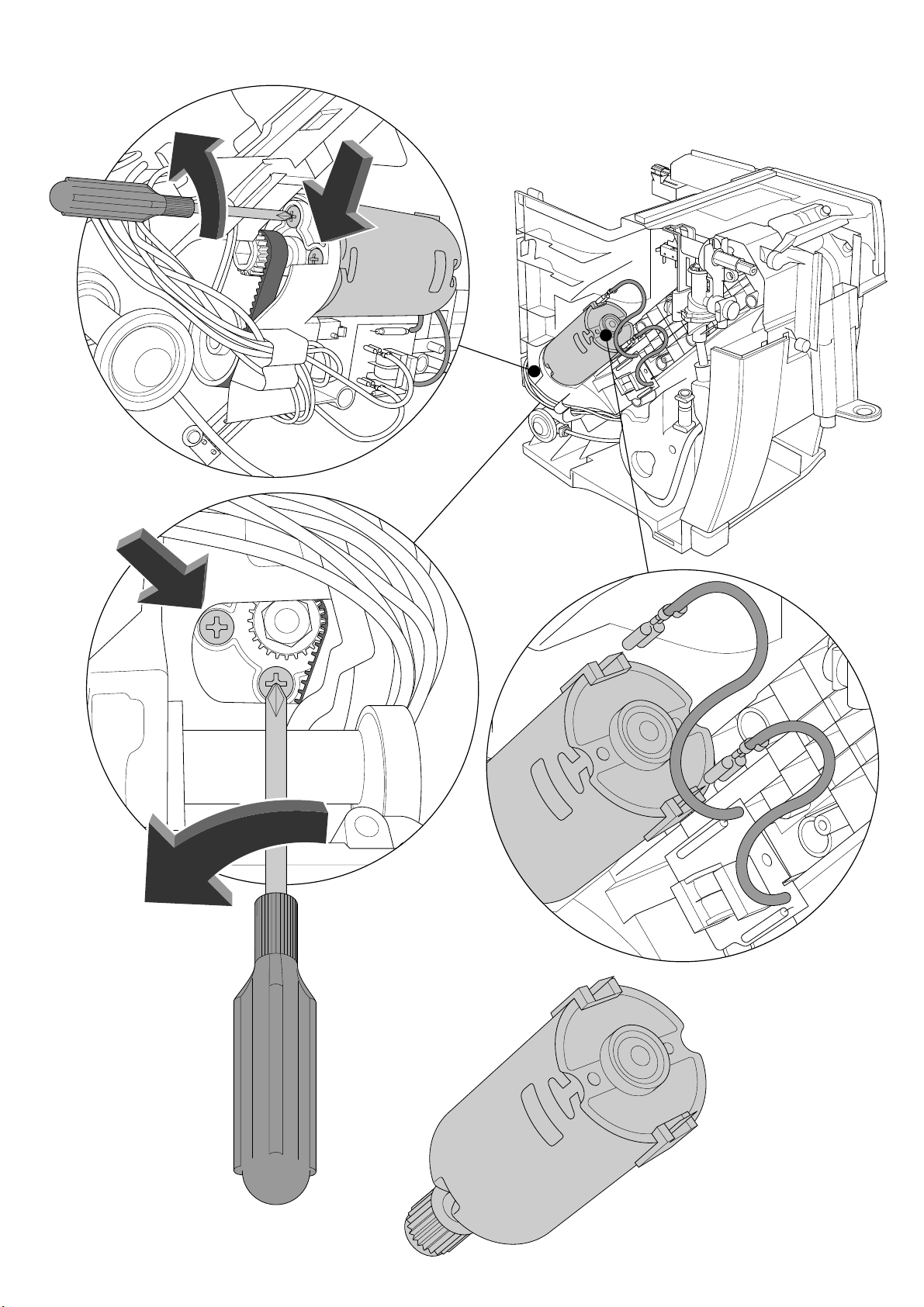

11.1

Unscrew the 4 indicated screw

you find on the rear of the motor

Picture 11 - TO REMOVE MOTOR

11.2

take off the 2 cables

and then take off

the DC motor.

Pay attention to

polarity when

replacing it

Page 5

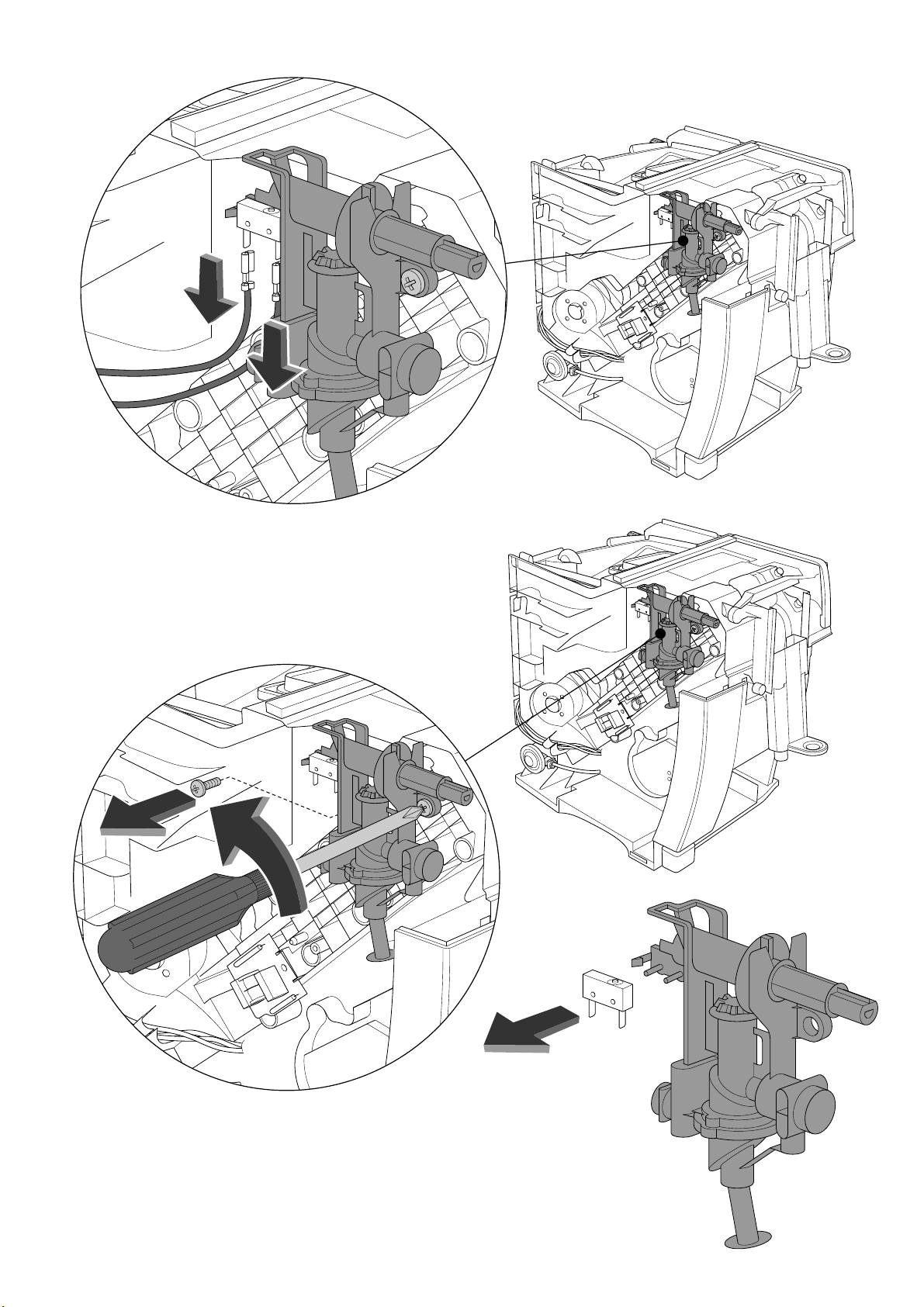

Picture 12 - TO REMOVE TAP STEAM/HOT WATER

12.1

Take off cables

12.2

Unscrew the 2 indicated screws

12.3

Take off microswitch

Page 6

Picture 13 - TO REMOVE BOILER

13.1

Take off the indicated 2 springs

and the 4 screws.

13.2

Take off the

tube

13.3

Take off the spring

indicated by the arrow and

then the tube

13.4

Take off the cover.

Then unscrew the 2 indicated

screws to disassemble

the boiler

Page 7

Attention: to take off the boiler,

push with delicacy the plastic panel
