Dell Storage Center

SCv2080 Storage System

Getting Started Guide

Regulatory Model: E11J

Regulatory Type: E11J001

Notes, Cautions, and Warnings

NOTE: A NOTE indicates important information that helps you make better use of your computer.

CAUTION: A CAUTION indicates either potential damage to hardware or loss of data and tells you

how to avoid the problem.

WARNING: A WARNING indicates a potential for property damage, personal injury, or death.

intellectual property laws. Dell™and the Dell logo are trademarks of Dell Inc. in the United States and/or other

jurisdictions. All other marks and names mentioned herein may be trademarks of their respective companies.

2015 - 03

Rev. A00

Before You Begin

Consider the following best practices before setting up your SCv2080 storage system.

• Dell recommends that you use a dedicated SAN network for data transmission when using a Fibre

Channel or iSCSI storage system.

• Complete the Worksheet to Record System Information in this guide before configuring the storage

system.

• Always configure redundant data paths to provide alternate paths to and from the host server should

one of the data paths become disabled.

• Before connecting any cables between the storage system and host server or expansion enclosure,

physically label each port and connector.

• Always follow proper power-up and power-down procedures when cycling power across the

network. Verify that critical network components are on separate power circuits.

NOTE: This product is intended for restricted access locations, such as a dedicated equipment

room or equipment closet.

WARNING: If installed in a closed or multi-unit rack assembly, the operating ambient

temperature of the rack environment may be greater than room ambient temperature. Therefore,

consideration should be given to installing the equipment in an environment compatible with the

maximum ambient temperature (Tma) specified by the manufacturer.

Safety Warnings

A fully configured SCv2080 storage system weighs up to 130 kg

(287 lb). An unpopulated storage system weighs 62 kg (137 lb). Use

appropriate lifting methods when installing the storage system.

The operating temperature inside the drawers of a storage system

can reach up to 60°C (140°F). Take care when opening drawers and

removing disk carriers.

Disconnect all electrical supply connections to the storage system

before proceeding.

CAUTION: Remove the battery pack before removing a

storage controller from the storage system.

WARNING: Installing an incompatible battery may increase the risk of fire or explosion. Observe

the following precautions:

• The battery should only be replaced with a battery that is the same or equivalent as the factory

installed battery.

• Do not attempt to open or service the battery. Do not dispose of the battery in a fire or with

household waste. Contact the local waste disposal agency for the location of the nearest battery

deposit site.

Laser Radiation for Fibre Channel Storage Systems

CAUTION: Class I laser radiation when open, avoid exposure to beam.

WARNING: Laser radiation, avoid direct exposure to beam.

The unit is certified in the U.S. to conform to the requirements of DHHS 21 CFR, chapter 1 Subchapter J

for Class I (1) laser products, and elsewhere is certified as a Class I laser product conforming to the

requirements of IEC 60825-1:2007.

Class I laser products are not considered to be hazardous. The laser system and unit are designed so

there is never any human access to laser radiation above a Class I level during normal operation, user

maintenance or prescribed service condition.

Worksheet to Record System Information

Use the following worksheet to record the information that is needed to install the SCv2080 storage

system.

Storage Center Information

Gather and record the following information about the Storage Center network and the administrator

user.

Table 1. Storage Center Network

Service Tag ________________

Management IPv4 address (Storage Center management address) ___ . ___ . ___ . ___

Left Controller IPv4 address (Controller 1 MGMT port) ___ . ___ . ___ . ___

Right Controller IPv4 address (Controller 2 MGMT port) ___ . ___ . ___ . ___

Subnet mask ___ . ___ . ___ . ___

Gateway IPv4 address ___ . ___ . ___ . ___

Domain name ________________

DNS server address ___ . ___ . ___ . ___

Secondary DNS server address ___ . ___ . ___ . ___

Table 2. Storage Center Administrator

Password for the default Storage Center “Admin” user ________________

Email address of the default Storage Center “Admin” user ________________

iSCSI Fault Domain Information

For a storage system with iSCSI front-end ports, gather and record network information for the iSCSI fault

domains. This information is needed to complete the Discover and Configure Uninitialized SCv2000

Series Storage Centers wizard.

NOTE: For a storage system deployed with two Ethernet switches, Dell recommends setting up

each fault domain on separate subnets.

See the Dell Storage Center SCv2080 Storage System Deployment Guide for information about setting

up iSCSI fault domains.

Table 3. iSCSI Fault Domain 1

Target IPv4 address ___ . ___ . ___ . ___

Subnet mask ___ . ___ . ___ . ___

Gateway IPv4 address ___ . ___ . ___ . ___

IPv4 address for storage controller module 1: port 1 ___ . ___ . ___ . ___

IPv4 address for storage controller module 2: port 1 ___ . ___ . ___ . ___

(Four port I/O card only) IPv4 address for storage controller module 1:

port 3

___ . ___ . ___ . ___

(Four port I/O card only) IPv4 address for storage controller module 2:

port 3

___ . ___ . ___ . ___

Table 4. iSCSI Fault Domain 2

Target IPv4 address ___ . ___ . ___ . ___

Subnet mask ___ . ___ . ___ . ___

Gateway IPv4 address ___ . ___ . ___ . ___

IPv4 address for storage controller module 1: port 2 ___ . ___ . ___ . ___

IPv4 address for storage controller module 2: port 2 ___ . ___ . ___ . ___

(Four port I/O card only) IPv4 address for storage controller module 1:

port 4

___ . ___ . ___ . ___

(Four port I/O card only) IPv4 address for storage controller module 2:

port 4

___ . ___ . ___ . ___

Additional Storage Center Information

The Network Time Protocol (NTP) and Simple Mail Transfer Protocol (SMTP) server information is

optional. The proxy server information is also optional, but it may be required to complete the Discover

and Configure Uninitialized SCv2000 Series Storage Centers wizard.

Table 5. NTP, SMTP, and Proxy Servers

NTP server IPv4 address ___ . ___ . ___ . ___

SMTP server IPv4 address ___ . ___ . ___ . ___

Backup SMTP server IPv4 address ___ . ___ . ___ . ___

SMTP server login ID ________________

SMTP server password ________________

Proxy server IPv4 address ___ . ___ . ___ . ___

Fibre Channel Zoning Information

For a storage system with Fibre Channel front-end ports, record the physical and virtual WWNs of the

Fibre Channel ports in Fault Domain 1 and Fault Domain 2. This information is displayed on the Review

Front-End page of the Discover and Configure Uninitialized SCv2000 Series Storage Centers wizard.

Use this information to configure zoning on each Fibre Channel switch.

See the Dell Storage Center SCv2080 Storage System Deployment Guide for information about setting

up Fibre Channel zoning.

Table 6. Physical WWNs in Fault Domain 1

Physical WWN of storage controller 1: port 1 ________________

Physical WWN of storage controller 2: port 1 ________________

(Four port I/O card only) Physical WWN of storage controller 1: port 3 ________________

(Four port I/O card only) Physical WWN of storage controller 2: port 3 ________________

Table 7. Virtual WWNs in Fault Domain 1

Virtual WWN of storage controller 1: port 1 ________________

Virtual WWN of storage controller 2: port 1 ________________

(Four port I/O card only) Virtual WWN of storage controller 1: port 3 ________________

(Four port I/O card only) Virtual WWN of storage controller 2: port 3 ________________

Table 8. Physical WWNs in Fault Domain 2

Physical WWN of storage controller 1: port 2 ________________

Physical WWN of storage controller 2: port 2 ________________

(Four port I/O card only) Physical WWN of storage controller 1: port 4 ________________

(Four port I/O card only) Physical WWN of storage controller 2: port 4 ________________

Table 9. Virtual WWNs in Fault Domain 2

Virtual WWN of storage controller 1: port 2 ________________

Virtual WWN of storage controller 2: port 2 ________________

(Four port I/O card only) Virtual WWN of storage controller 1: port 4 ________________

(Four port I/O card only) Virtual WWN of storage controller 2: port 4 ________________

Locating Your Service Tag

Your storage system is identified by a unique Service Tag number.

You can find the Service Tag number on the back of the storage system chassis. Dell uses this

information to route support calls to the appropriate personnel.

Other Information You May Need

Additional information you may need to install the storage system.

NOTE: See the safety and regulatory information that shipped with your Storage Center

components. Warranty information is included as a separate document.

• The Dell Storage Center SCv2080 Storage System Deployment Guide provides information about

cabling Storage Center hardware components and configuring a new Storage Center using the Dell

Storage Client.

• The Dell Storage Center Dell Storage Client Administrator’s Guide describes how to use the Dell

Storage Client to manage a Storage Center.

Installation and Configuration

Before you begin installation, make sure that the site where you plan to install the storage system has 208

V power from an independent source or a rack power distribution unit with a UPS. (110 V power is not

supported.)

In addition, verify that there is a 5U space in the lower 20U of the rack to install the storage system. If you

plan to install the storage system above the lower 20U of a rack, a customer-provided mechanical lift

must be used to avoid injury.

Safety Precautions

Always follow these safety precautions to avoid injury and damage to Storage Center equipment.

If equipment described in the document is used in a manner not specified by Dell, the protection

provided by the equipment may be impaired. For your safety and protection, observe the rules described

in the following sections.

NOTE: See the safety and regulatory information that shipped with each Storage Center

component. Warranty information may be included within this document or as a separate

document.

Installation Safety Precautions

Follow these safety precautions:

• Dell recommends that only individuals with rack-mounting experience install an SCv2080 storage

system in a rack.

• You need at least two people to lift the storage system chassis from the shipping box and three

people to install it in the rack. The empty chassis weighs approximately 62kg (137 lbs).

• Make sure the storage system is fully grounded at all times to prevent damage from electrostatic

discharge.

• When handling the storage system hardware, you should use an electrostatic wrist guard (not

included) or a similar form of protection.

The storage system chassis MUST be mounted in a rack; the following safety requirements must be

considered when doing so:

• The rack construction must be capable of supporting the total weight of the installed chassis and the

design should incorporate stabilizing features suitable to prevent the rack tipping or being pushed

over during installation or in normal use.

• When loading a rack with chassis, fill from the bottom up; empty from the top down.

• To avoid danger of the rack toppling over, do not slide more than one chassis out of the rack at a

time.

• The storage system must be operated with low-pressure rear exhaust installation [back pressure

created by rack doors and obstacles not to exceed 5 Pascals (0.5 mm water gauge)].

• The rack design should take into consideration the maximum operating ambient temperature for the

unit, which is 35°C.

Unpacking Storage Center Equipment

Unpack the storage system and identify the items in your shipment.

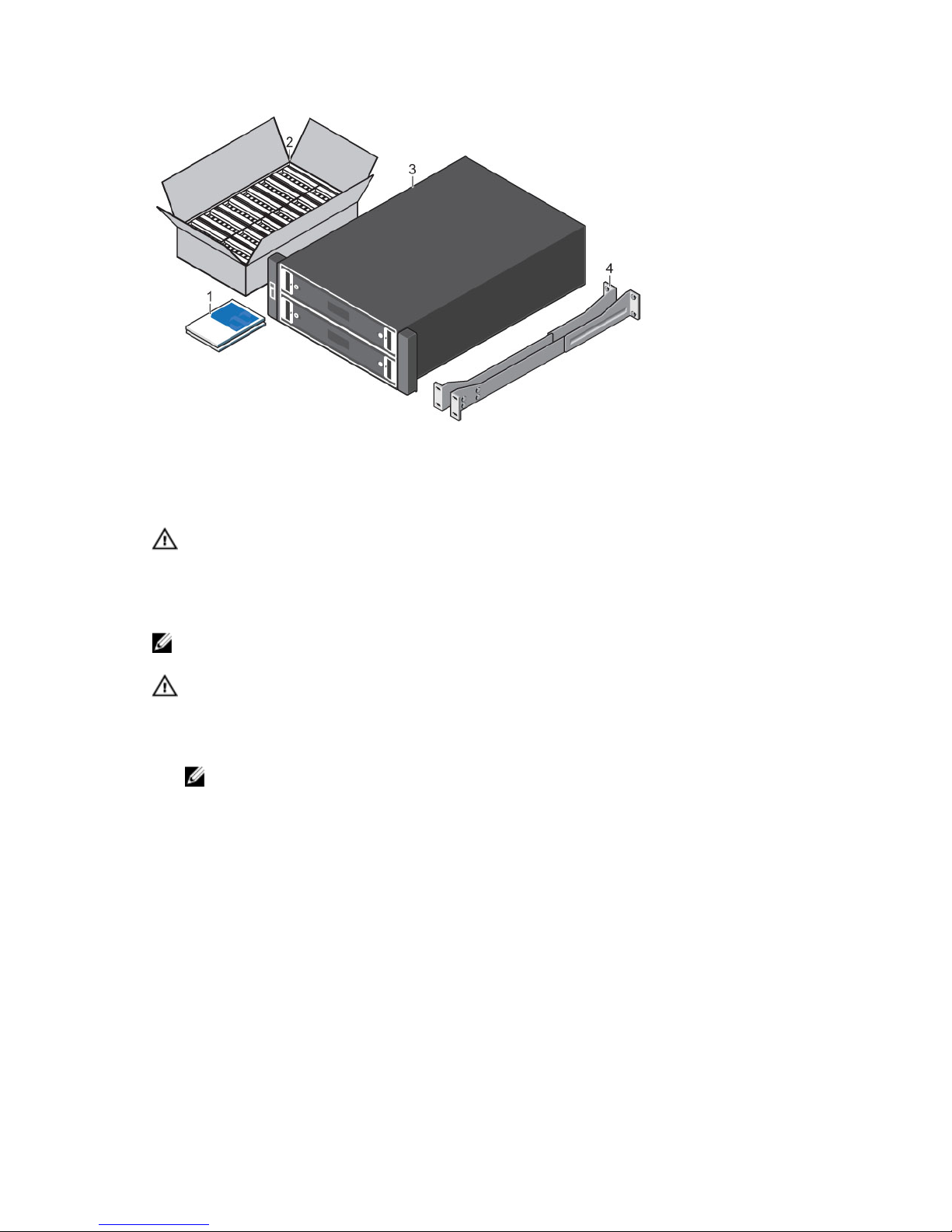

Figure 1. SCv2080 Storage System Components

1. Documentation 2. Hard Drives

3. Storage system 4. Rack rails

WARNING: Two people using lift straps are required to lift the storage system to avoid injury.

Installing the Storage System in a Rack

Install the SCv2080 storage system and other Storage Center system components in a rack.

NOTE: Mount the storage system in a manner that allows for expansion in the rack and prevents the

rack from becoming top‐heavy.

WARNING: If you plan to install the storage system above the lower 20U of a rack, a customer-

provided mechanical lift must be used to avoid injury.

1. Determine where to mount the storage system in the rack and mark the location at the front and rear

of the rack.

NOTE: The storage system and expansion enclosures each require 5U of rack space for

installation.

2. Position the rails at the marked locations and extend the rails to fit the rack.

3. Slide the storage system chassis onto the rails.

Figure 2. Mount the SCv2080 Storage System Chassis

4. Secure the storage system chassis to the rack using hold-down brackets.

5. If the Storage Center system includes an expansion enclosure, mount the expansion enclosure above

the storage system. See the instructions included with the expansion enclosure for detailed steps.

Installing the Hard Drives

Hard drives are connected to the backplane of the drawers using Disk Drive in Carrier (DDIC) hard drive

carriers.

The minimum number of drives in an SCv2080 storage system is 28 (one full, front row in the top drawer

and one full, front row in the bottom drawer).

1. Open the bottom drawer.

CAUTION: If the storage system operates for too long (depending on altitude) with a drawer

open, the storage system may overheat, causing a power failure and data loss. Such use may

invalidate the warranty.

a. Push and hold both drawer latches toward the center of the drawer.

b. Pull the drawer all the way out until it stops.

2. Insert each disk drive in carrier (DDIC) into the drawer, one at a time.

CAUTION: To maintain proper airflow, the drawers must be populated with drives in whole

rows (there are three rows of 14 drives per drawer). The number of populated rows between

drawers must not differ by more than one. Populate the rows from the front to the rear of the

drawer.

a. Hold the DDIC vertically and slide it most of the way into the slot.

b. Using both hands, apply downward pressure firmly and equally across the DDIC.

c. While maintaining downward pressure on the DDIC, slide the top plate toward the back of the

drawer until it clicks in place.

Otros manuales para SCv2080

Tabla de contenidos

Otros manuales de Almacenamiento de Dell

Dell

Dell PowerVault RD1000 Manual de usuario

Dell

Dell PowerVault 136T Manual del propietario

Dell

Dell PowerVault NX3100 Manual de usuario

Dell

Dell Portable Thunderbolt 3 SSD Manual de usuario

Dell

Dell Storage Center SCv2000 Manual de usuario

Dell

Dell EMC Unity All Flash Instrucciones de instalación y mantenimiento

Dell

Dell PowerVault DR4100 Manual de usuario

Dell

Dell PowerVault 201S Manual de usuario

Dell

Dell PowerVault DL2000 Manual de usuario

Dell

Dell SD630-S Guía de referencia rápida

Dell

Dell PowerVault NX3500 Manual de usuario

Dell

Dell PowerVault 110T DLT VS80 Manual de usuario

Dell

Dell DX6000 Manual de usuario

Dell

Dell PowerVault MD Series Manual de servicio

Dell

Dell DR4000 Restore Manager Manual de usuario

Dell

Dell PowerVault MD2460 Manual de usuario

Dell

Dell PowerVault RD1000 Manual de usuario

Dell

Dell PowerVault DL2200 CommVault Manual de usuario

Dell

Dell PowerVault MD3200 Series Manual de usuario

Dell

Dell PowerVault MD3000i Manual técnico

Dell

Dell PowerVault LTO4-120 Manual de usuario

Dell

Dell Storage Center SCv2000 Guía de referencia rápida

Dell

Dell PowerVault NX400 Manual de usuario

Dell

Dell PowerVault TL2000 Guía de inicio rápido

Manuales populares de Almacenamiento de otras marcas

QNAP

QNAP TS 32PXU Series Manual de usuario

LaCie

LaCie RUGGED RAID Manual de usuario

Freecom

Freecom CLS DOCK Manual de usuario

PNY

PNY Attache P-FD64MBATT3 Manual de usuario

HP StorageWorks MSL2024 Manual de usuario

OLT

OLT 6x6 Maximizer Manual de usuario

Transcend

Transcend JetFlash 160 Manual de usuario

LaCie

LaCie RUGGED MINI Manual de usuario

Thunderbolt

Thunderbolt 600 Manual de usuario

Panasonic

Panasonic LB-DH8 series Manual

Intel

Intel RAID High Availability Manual de usuario

LaCie

LaCie 12big Thunderbolt 3 Manual de usuario

Spectra Logic

Spectra Logic T-Series Spectra T50e Manual de usuario

Panasonic

Panasonic LKM-F931-1 Manual de usuario

Tabernus

Tabernus Enterprise Erase E2400 Manual de usuario

Rocstor

Rocstor COMMANDER 3F series Manual de usuario

HP P9000 Manual de usuario

Western Digital

Western Digital Ultrastar Data60 Manual de usuario
