Dell PowerVault NX3100 Manual de usuario

Dell™ PowerVault™

NX3100 Systems

Getting Started

With Your System

Začínáme se systémem

Guide de mise en route

Handbuch zum Einstieg mit dem System

Τα πρώτα βήματα με το σύστημά σας

Rozpoczęcie pracy z systemem

Приступая к работе с системой

Pasos iniciales con el sistema

Sistem Başlangıç Kılavuzu

Dell™ PowerVault™

NX3100 Systems

Getting Started

With Your System

Regulatory Model E13S Series

Notes, Cautions, and Warnings

NOTE: A NOTE indicates important information that helps you make better use of

your computer.

CAUTION: A CAUTION indicates potential damage to hardware or loss of data if

instructions are not followed.

WARNING: A WARNING indicates a potential for property damage, personal

injury, or death.

____________________

Information in this document is subject to change without notice.

ReproductionofthesematerialsinanymannerwhatsoeverwithoutthewrittenpermissionofDellInc.

is strictly forbidden.

Trademarks used in this text: Dell, the DELL logo, and PowerVault are trademarks of Dell Inc.;

Intel and Xeon are registered trademarks of Intel Corporation in the U.S. and other countries.

Microsoft and Windows are either trademarks or registered trademarks of Microsoft Corporation

in the United States and/or other countries.

Other trademarks and trade names may be used in this document to refer to either the entities claiming

the marks and names or their products. Dell Inc. disclaims any proprietary interest in trademarks and

trade names other than its own.

Regulatory Model E13S Series

May 2010 P/N W13ND Rev. A01

Getting Started With Your System 3

Installation and Configuration

WARNING: Before performing the following procedure, review the safety

instructions that came with the system.

Unpacking the System

Unpack your system and identify each item.

Assemble the rails and install the system in the rack following the safety

instructions and the rack installation instructions provided with your system.

4Getting Started With Your System

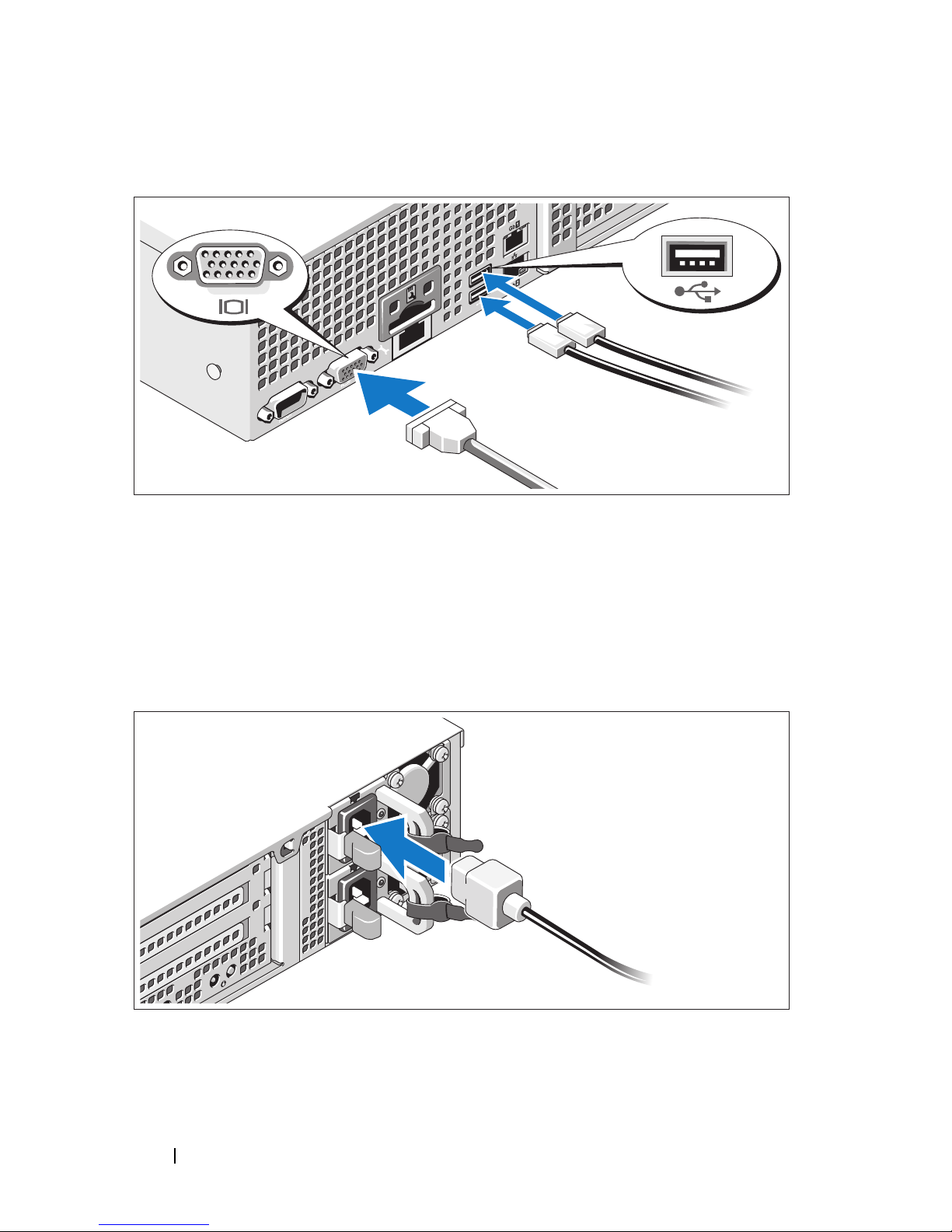

Optional – Connecting the Keyboard, Mouse, and Monitor

Connect the keyboard, mouse, and monitor (optional).

The connectors on the back of your system have icons indicating which cable

to plug into each connector. Be sure to tighten the screws (if any) on the

monitor's cable connector.

Connecting the Power Cable(s)

Connect the system’s power cable(s) to the system and, if a monitor is used,

connect the monitor’s power cable to the monitor.

Getting Started With Your System 5

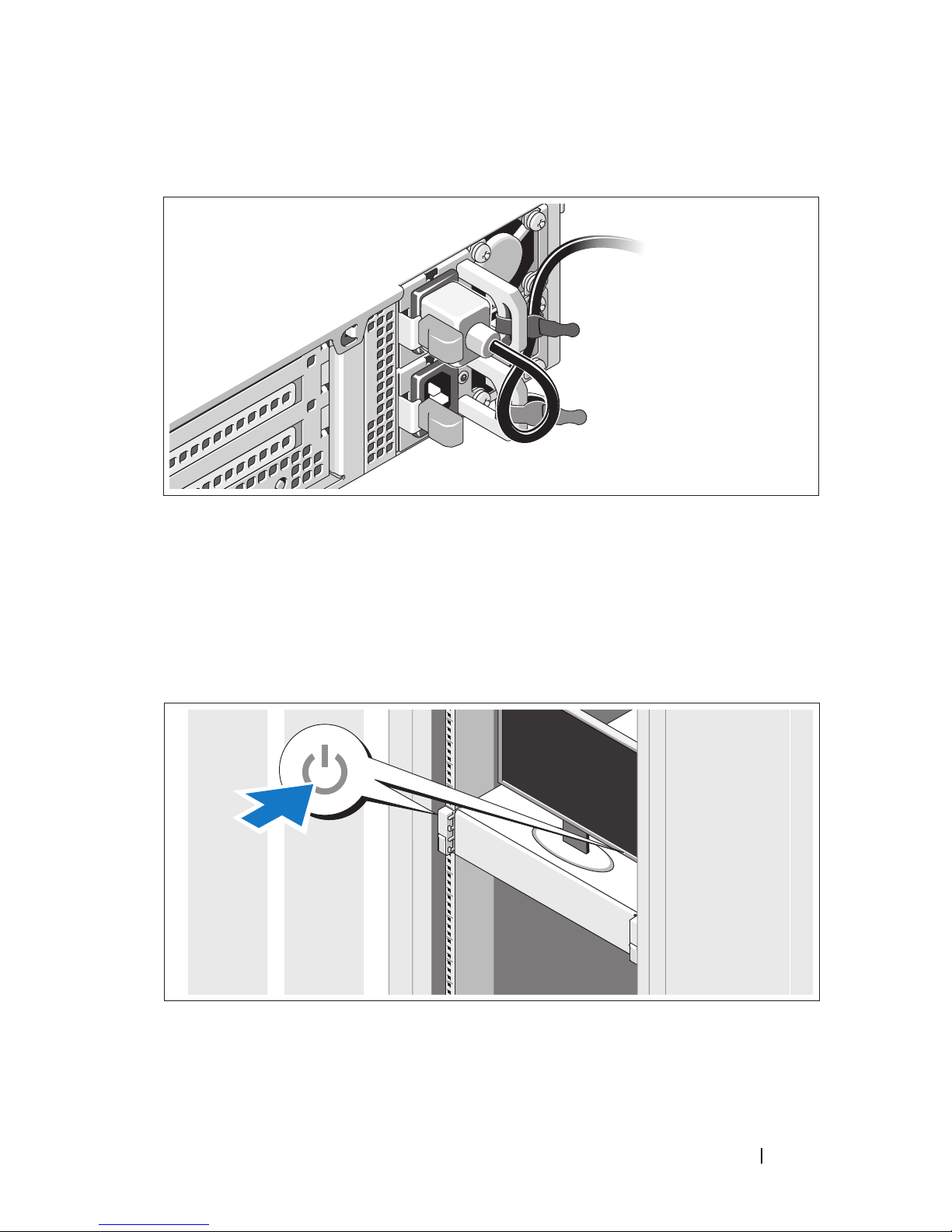

Securing the Power Cable(s)

Bend the system power cable into a loop as shown in the illustration and secure

the cable to the bracket using the provided strap. Plug the other end of the

power cable into a grounded electrical outlet or a separate power source such as

an uninterrupted power supply (UPS) or a power distribution unit (PDU).

Turning On the System

Press the power button on the system and the monitor. The power indicators

should light.

6Getting Started With Your System

Installing the Optional Bezel

Install the bezel (optional).

Supported Operating System

Your system is preinstalled with Microsoft®Windows®Storage Server 2008 (x64)

Edition.

NOTE: For the latest information on supported operating systems,

see support.dell.com.

Getting Started With Your System 7

Other Information You May Need

WARNING: See the safety and regulatory information that shipped with

your system. Warranty information may be included within this document or

as a separate document.

• The rack documentation included with your rack solution describes

how to install your system into a rack.

• The

Hardware Owner’s Manual

provides information about system

features and describes how to troubleshoot the system and install or

replace system components. This document is available online at

support.dell.com/manuals

• Any media that ships with your system that provides documentation

and tools for configuring and managing your system, including those

pertaining to the operating system, system management software,

system updates, and system components that you purchased

with your system.

NOTE: Always check for updates on support.dell.com/manuals and read the

updates first because they often supersede information in other documents.

Obtaining Technical Assistance

If you do not understand a procedure in this guide or if the system does

not perform as expected, see your Hardware Owner’s Manual. Dell™ offers

comprehensive hardware training and certification. See dell.com/training for

more information. This service may not be offered in all locations.

8Getting Started With Your System

NOM Information (Mexico Only)

The following information is provided on the device described in this

document in compliance with the requirements of the official Mexican

standards (NOM):

Technical Specifications

Importer:

Model number: E13S Series

Supply voltage: 100–240 V CA

Frequency: 50/60 Hz

Current consumption: 7.5–4.0 A

Processor

Processor type Two Intel®Xeon®processors 5500

or 5600 series

Expansion Bus

Bus type PCI Express Generation 2

Expansion slots using riser cards

NOTE: Depending on the configuration, your system may have either riser 1 or riser 2.

Riser 1

Riser 2

Slot 1: PCIe x4, half-length, full-height

Slot 2: PCIe x4, full-length, full-height

Slot 3: PCIe x8, half-length, full-height

Slot 4: PCIe x4, internal slot for integrated card

NOTE: All four slots are x8 connectors.

Slot 1: PCIe x16, full-length, full-height

Slot 2: PCIe x4, internal for integrated card

NOTE: A General Purpose Computation on

Graphics Processing Units (GPGPU) optimized

configuration is available on riser 2.
