Dell PowerEdge R640XL Manual de usuario

Security Analytics Gen14 Dell Hardware

Configuration Guide

18 Dec 2020

Broadcom, the pulse logo, Connecting everything, and Symantec are among the trademarks of Broadcom.

The term “Broadcom” refers to Broadcom Inc. and/or its subsidiaries. For more information, please visit www.broadcom.com.

Broadcom reserves the right to make changes without further notice to any products or data herein to improve reliability,

function, or design. Information furnished by Broadcom is believed to be accurate and reliable. However, Broadcom does

not assume any liability arising out of the application or use of this information, nor the application or use of any product or

circuit described herein, neither does it convey any license under its patent rights nor the rights of others.

Security Analytics Gen14 Dell Hardware

Configuration Guide

18 Dec 2020

Gen14 Dell Hardware

Security Analytics

Configuration Guide

Table of Contents

Chapter 1: Introduction ...................................................................................................................... 4

About This Guide .............................................................................................................................................................4

Requirements ...................................................................................................................................................................4

Prerequisites (Before Using This Configuration Guide) ..............................................................................................5

Where to Go for Help .......................................................................................................................................................5

Server I/O Configuration..................................................................................................................................................6

Storage Array I/O Configuration .....................................................................................................................................6

Security Analytics Systems ............................................................................................................................................8

Chapter 2: Connect the Storage Arrays ........................................................................................... 9

Cabling for Small Sensor Systems.................................................................................................................................9

Cabling for Large Sensor Systems ..............................................................................................................................12

Chapter 3: First-time Power On and Initialization .......................................................................... 18

Powering On Sensor Systems ......................................................................................................................................18

Configure the Server’s iDRAC Port ..............................................................................................................................18

Initialize and License the Server...................................................................................................................................19

Configure Network Settings for the Storage Array .....................................................................................................20

Chapter 4: Disk Array Configuration .............................................................................................. 21

Clear Disk Arrays on the Storage Array.......................................................................................................................21

Configure Capture and Indexing Filesystems .............................................................................................................24

Gen14 Dell Hardware

Security Analytics

Configuration Guide

Chapter 1: Introduction

About This Guide

This guide documents how to install Security Analytics on Gen14 Dell hardware—to a SA-SRVG8-20 or SA-SRVG8-40

server as a standalone Central Manager (CM), or as a Sensor connected to SA-STAG8-2U144 or SA-STAG8-5U840 storage

arrays and SA-STXG8-2X144 expansion enclosures.

For other hardware configurations, consult the appropriate configuration guide, available from techdocs.broadcom.com:

Security Analytics Configuration Guide for SA-S500 Series

Security Analytics Configuration Guide for Gen13 Dell Hardware

Security Analytics Configuration Guide for Gen12 Dell Hardware

WARNING! You cannot combine Gen14 Dell hardware with Gen12 or Gen13 Dell hardware, or with SA-S500 Series servers.

The Gen14 Dell hardware documented in this guide should only be used as indicated with the specified Symantec models.

Requirements

The Security Analytics systems documented in this guide require the following:

Server

– Symantec SA-SRVG8-20 (Dell PowerEdge R640XL)

– Symantec SA-SRVG8-40 (Dell PowerEdge R640XL)

Optional storage:

– SA-STAG8-2U144 storage array (Dell PowerVault ME4012)

– SA-STAG8-5U840 storage array (Dell PowerVault ME4084)

– SA-STXG8-2X144 expansion enclosure (Dell PowerVault ME412)

Security Analytics 8.1.3 or later with license key

VGA or serial monitor and cable

USB keyboard

Category 6A network cables for 10GBase-T operation

Management workstation with Ethernet connectivity

Gen14 Dell Hardware

Security Analytics

Configuration Guide

Prerequisites (Before Using This Configuration Guide)

Before attempting to configure a Security Analytics system with Gen14 Dell hardware, make sure to first complete the

following quick start guides for your server and storage array.

1. Complete the following steps to install the SA-SRVG8-20 or SA-SRVG8-20 server, per the instructions in the

SA Gen14 Dell Server Quick Start Guide, available at: techdocs.broadcom.com

Unpack the server.

Rackmount the server.

Install the Cable Management Arm (CMA).

Connect cables.

Perform the initial configuration.

License the server.

2. Complete the following steps to install the SA-STAG8-2U144 or SA-STAG8-5U840 storage array, per the instructions in

the SA Gen14 Dell Storage Quick Start Guide, available at: techdocs.broadcom.com

Unpack the storage array.modu

Rackmount the storage array.

Install drives in the SA-STAG8-5U840storage array.

Connect cables.

Power on the system.

Configure network settings for the storage array.

Where to Go for Help

Symantec Technical Support

For Symantec Technical Support, case management, licenses, and product downloads, go to:

support.broadcom.com/security

Security Analytics Help and Documentation

For Security Analytics help, in the web UI, select Settings > Help > [language].

For Security Analytics software documentation, go to techdocs.broadcom.com and type “Security” in the search field,

then click Security Analytics.

Appliance Documentation

For Symantec server and storage array documentation, go to techdocs.broadcom.com and type “Appliances” in the

search field, then click Hardware Appliances.

For Dell PowerEdge server documentation, go to dell.com/poweredgemanuals and navigate to your server model

(PowerEdge R640).

For Dell PowerVault storage documentation, go to dell.com/storagemanuals and navigate to your storage array model

(PowerVault ME4012, ME4084, or ME412).

Gen14 Dell Hardware

Security Analytics

Configuration Guide

Server I/O Configuration

The following servers can be used as a standalone Central Manager (CM) or as a Sensor connected to storage arrays. They

include the following iDRAC, MGMT, Ethernet (LAN), and RAID controller (SAS) ports.

Storage Array I/O Configuration

The following storage arrays can be used in Sensor Systems. They include the following MGMT and SAS ports.

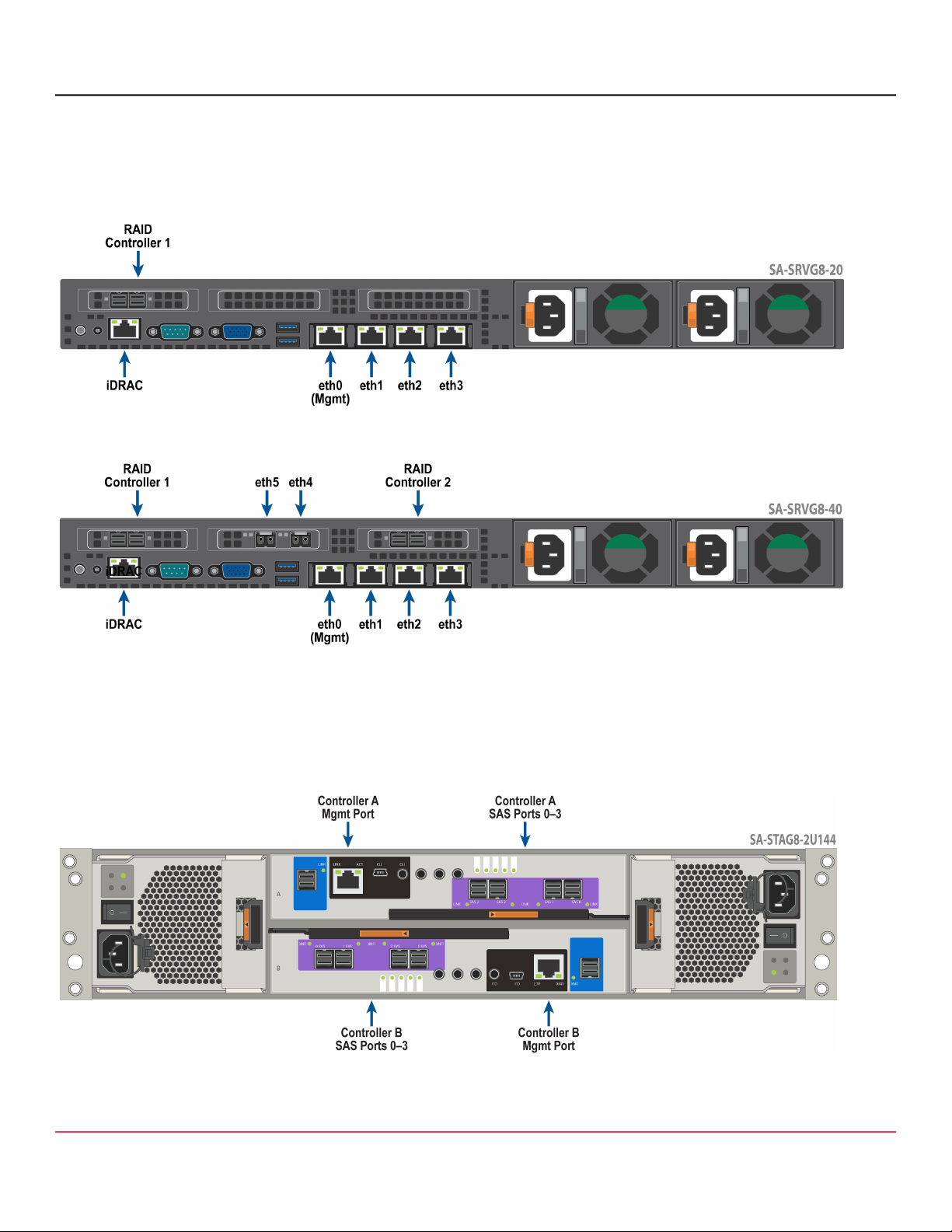

SA-SRVG8-20 Server Rear Panel

SA-SRVG8-40 Server Rear Panel

SA-STAG8-2U144 Storage Array Rear Panel

Gen14 Dell Hardware

Security Analytics

Configuration Guide

SA-STAG8-5U840 Storage Array Rear Panel

SA-STXG8-2X144 Expansion Enclosure Rear Panel

Gen14 Dell Hardware

Security Analytics

Configuration Guide

Security Analytics Systems

The following Security Analytics systems (8.1.3 or later) are supported with the specified Gen14 Dell hardware.

NOTE: Central Manager (CM) servers do not require external storage.

CM or Sensor / Space Storage Array / Space Expansion Enclosure / Space Network

Central

Manager

1(1) SA-SRVG8-20 12TB – – – – 10/1GbE

2(1) SA-SRVG8-40 12TB – – – – 10/1GbE,

25/10/1GbE

Small

Sensor

1(1) SA-SRVG8-20 12TB (1) SA-STAG8-2U144 144TB – – 10/1GbE

2(1) SA-SRVG8-20 12TB (1) SA-STAG8-2U144 144TB (1–3) SA-STXG8-2X144 144TB–

432TB

10/1GbE

3(1) SA-SRVG8-20 12TB (1) SA-STAG8-5U840 840TB – – 10/1GbE

Large

Sensor

1(1) SA-SRVG8-40 12TB (1) SA-STAG8-2U144 144TB – – 10/1GbE,

25/10/1GbE

2(1) SA-SRVG8-40 12TB (1) SA-STAG8-2U144 144TB (1–3) SA-STXG8-2X144 144TB-

432TB

10/1GbE,

25/10/1GbE

3(1) SA-SRVG8-40 12TB (1) SA-STAG8-5U840 840TB – – 10/1GbE,

25/10/1GbE

4(1) SA-SRVG8-40 12TB (2) SA-STAG8-2U144 288TB – – 10/1GbE,

25/10/1GbE

5(1) SA-SRVG8-40 12TB (2) SA-STAG8-2U144 288TB (1–3) SA-STXG8-2X144 144TB-

432TB

10/1GbE,

25/10/1GbE

6(1) SA-SRVG8-40 12TB (2) SA-STAG8-5U840 1680TB – – 10/1GbE,

25/10/1GbE

Security Analytics Systems for Dell Gen14 Hardware

Gen14 Dell Hardware

Security Analytics

Configuration Guide

Chapter 2: Connect the Storage Arrays

If you are configuring a Sensor System, all servers, storage arrays, and expansion enclosures must be connected before

powering on the system and configuring disk arrays. Before connecting cables, make sure that all severs, storage arrays,

and expansion enclosures have been rackmounted and powered off. For SAS connections, use the 12Gb HD-Mini to HD-

Mini SAS cables included with the storage array, or equivalent.

Cabling for Small Sensor Systems

Security Analytics Small Sensor Systems include the following.

Small Sensor System #1—(1) SA-SRVG8-20, (1) SA-STAG8-2U144.

Small Sensor System #2—(1) SA-SRVG8-20, (1) SA-STAG8-2U144, (1–3) SA-STXG8-2X144.

Small Sensor System #3—(1) SA-SRVG8-20, (1) SA-STAG8-5U840.

Small Sensor System #1

SAS cabling for the Small Sensor System #1 is as follows:

(1) SA-SRVG8-20 + (1) SA-STAG8-2U144

Server SA-SRVG8-20 Sensor SA-STAG8-2U144 Storage Array

RAID Controller Port Controller Module Port

Slot 1 SAS 0 A (Top) SAS 0

Slot 1 SAS 1 B (Btm) SAS 0

Cabling Guide for Small Sensor System #1

Gen14 Dell Hardware

Security Analytics

Configuration Guide

Small Sensor System #2

SAS cabling for the Small Sensor System #2 is as follows:

(1) SA-SRVG8-20 + (1) SA-STAG8-2U144 + (1–3) SA-STXG8-2X144

SA-SRVG8-20 Sensor

SA-STAG8-2U144

Storage Array

SA-STXG8-2X144

Expansion Enclosure (Up to 3)

RAID Cont Port Cont Mod Port Cont Mod Port Cont Mod Port Cont Mod Port

Slot 1 SAS 0 A (Top) SAS 0

Slot 1 SAS 1 B (Btm) SAS 0

A (Top) SAS Exp A (Top) SAS A

B (Btm) SAS Exp B (Btm) SAS C

A (Top) SAS C A (Top) SAS A

B (Btm) SAS C B (Btm) SAS A

A (Top) SAS C A (Top) SAS A

B (Btm) SAS C B (Btm) SAS A

Cabling Guide for Small Sensor System #2
