Installation and Configuration 3

This server is intended for installation only in restricted access locations as

defined in Cl. 1.2.7.3 of IEC 60950-1: 2001 where both these conditions

apply:

• Access can only be gained by service persons or by users who have been

instructed about the reasons for the restrictions applied to the location and

about any precautions that shall be taken.

• Access is through the use of a tool or lock and key, or other means of

security, and is controlled by the authority responsible for the location.

Installation and Configuration

Unpacking the System

Unpack your system and identify each item.

Installing the Tool-Less Rail Solution

CAUTION: Restricted Access Location

WARNING: Before performing the following procedure, review and follow the

safety instructions that came with the system.

WARNING: Whenever you need to lift the system, get others to assist you.

To avoid injury, do not attempt to lift the system by yourself.

WARNING: The system is not fixed to the rack or mounted on the rails. To avoid

personal injury or damage to the system, you must adequately support the system

during installation and removal.

WARNING: To avoid a potential electrical shock hazard, a third wire safety

grounding conductor is necessary for the rack installation. The rack equipment

must provide sufficient airflow to the system to maintain proper cooling.

CAUTION: When installing rails in a square-hole rack it is important to ensure

that the square peg slides through the square holes.

CAUTION: Square studs must be flush with the rack posts to install properly.

4Installation and Configuration

Pull on the latch release buttons on the end piece midpoints to open the

rail latches.

Align the end pieces of the rails on the vertical rack flanges to seat the pegs

in the bottom hole of the first U and the top hole of the second U. Engage

the back end of the rail until the latch locks in place.

NOTE: The rails can be used in both square-hole and round-hole racks.

Front

Back

Installation and Configuration 5

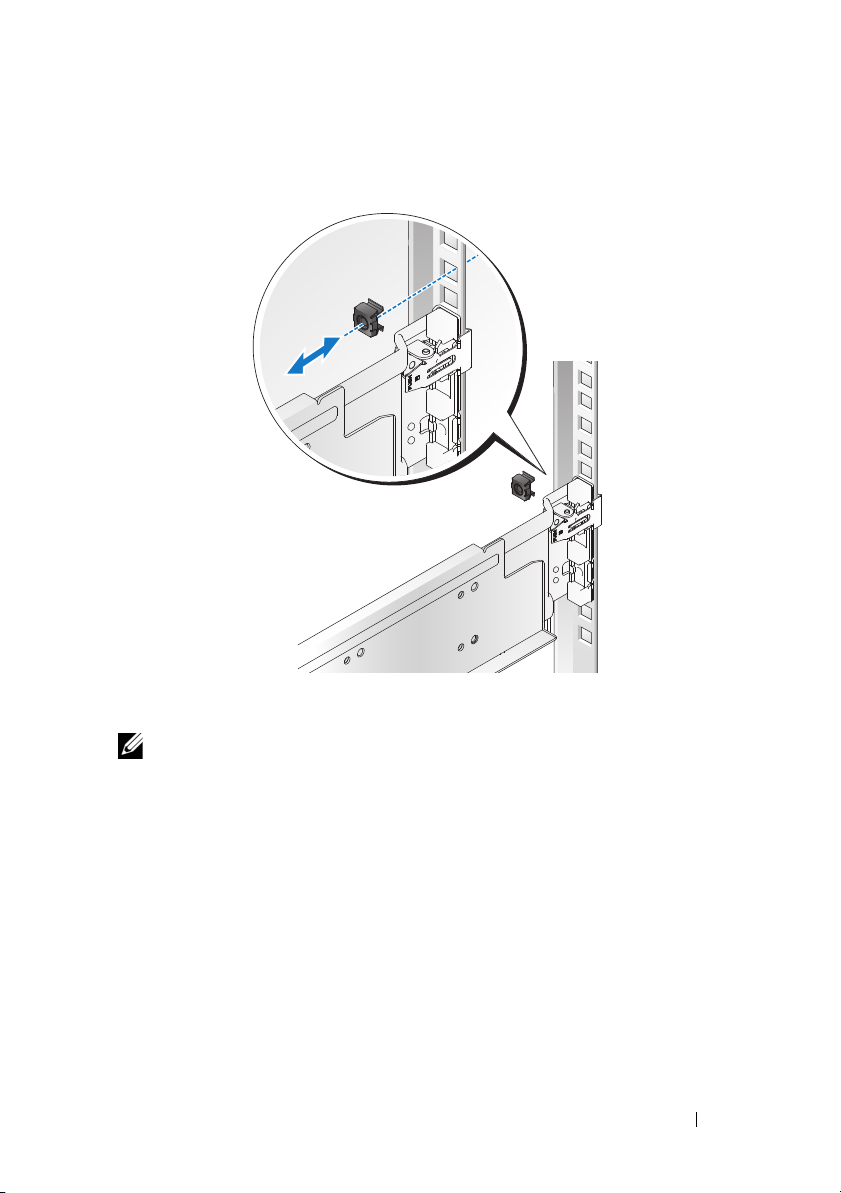

Insert the cage nut on the rack.

Repeat steps 1 to 4 to position and seat the front end piece on the vertical

flange.

NOTE: To remove the rails, pull on the latch release button on the end piece

midpoint and unseat each rail.

6Installation and Configuration

Installing the System

Empty the System Chassis

Unplug the power cable from the power supply unit.

Pull out the power supply unit handle.

Installation and Configuration 7

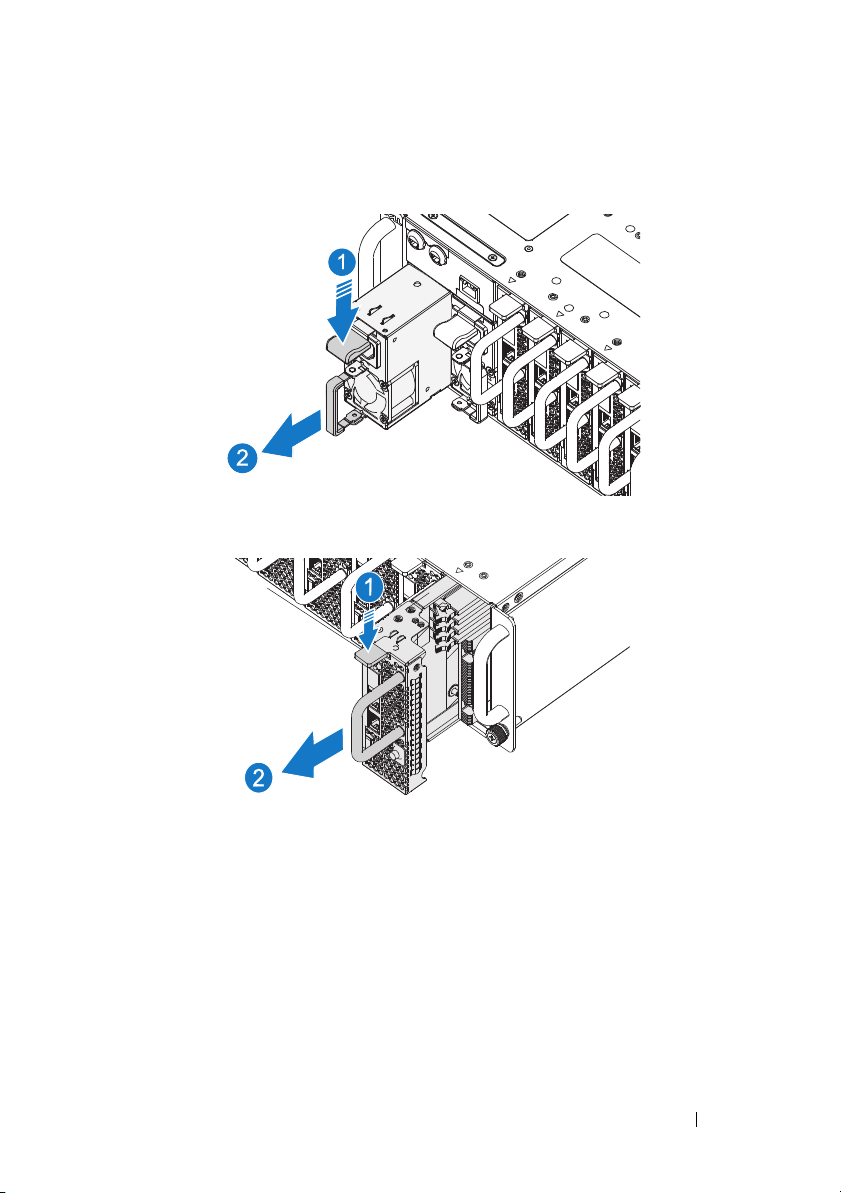

Press down on the release latch



Pull the power supply unit out of the system



Press the release latch down



and pull the sled out of the system



8Installation and Configuration

Install the System Into the Rack

Slide the system into the rack.

If present, remove the chassis stabilizer shipping bracket (optional) from

the rack.

Tighten the captive thumbscrews to secure the ears of the system to the

front of the rack.

Install the stopping bracket on the post and secure with M5 screws.

WARNING: Whenever you need to lift the system, get others to assist you.

To avoid injury, do not attempt to lift the system by yourself.

NOTE: To transport systems already installed in the rack, ensure that the two

chassis stabilizer shipping brackets (optional) are in place.

NOTE: Make sure the latch release mechanism is engaged correctly.
