Dell PowerEdge B02S Manual de usuario

Dell PowerEdge C410x

Hardware Owner’s Manual

Notes, Cautions, and Warnings

NOTE: A NOTE indicates important information that helps you make better use of your computer.

CAUTION: A CAUTION indicates potential damage to hardware or loss of data if instructions are not followed.

WARNING: A WARNING indicates a potential for property damage, personal injury, or death.

Information in this publication is subject to change without notice.

Reproduction of these materials in any manner whatsoever without the written permission of Dell Inc. is strictly

forbidden.

Trademarks used in this text: Dell™, the DELL logo, and PowerEdge™ are trademarks of Dell Inc.

Other trademarks and trade names may be used in this publication to refer to either the entities claiming the

marks and names or their products. Dell Inc. disclaims any proprietary interest in trademarks and trade names

other than its own.

Regulatory Model B02S

July 2010 Rev. A00

Contents

NOTES, CAUTIONS, AND WARNINGS I

CONTENTS II

INTRODUCTION 1

Checklist 1

CHAPTER 1: PRODUCT OVERVIEW 2

1.1 A Tour of the System 2

1.1.1. System Front View 2

1.1.2. System Back View 3

1.2 System LEDs Description 4

1.2.1. Front System LEDs 4

1.2.2. LAN LEDs 5

CHAPTER 2: REMOVING AND INSTALLING HARDWARE 6

Safety Measures 6

2.1. Dell PowerEdge C410X Middle Board Connectors and Jumpers 7

2.2. System Cover 8

2.3. GPGPU Cage 9

2.4. Replacing GPGPU Card 10

2.5. System Fans 14

2.6. System Fans Cages 16

2.7. Power Supplies 18

2.8. Removing Power Distribution Board (PDB) 19

2.9. Replacing iPass Board 22

2.10. Replacing Middle Board 25

2.11. Replacing Front I/O Panel 26

2.12. Installing the Rail and the System 28

CHAPTER 3: CABLE ROUTINGS 30

III

iPass Port Mapping 31

CHAPTER 4: BMC REMOTE MANAGEMENT CONSOLE 32

Initial Configuration via DHCP Server 32

Static/DHCP IP Controlled by Front Panel Button 33

Remote Management Console Overview 34

Enter Dell Remote Management Console 35

Properties 35

Configuration 36

Network 36

Security 37

User 38

Services 39

IPMI 40

Sessions 42

Updates 43

Utilities 44

Server Information 45

Power Control 45

Power Consumption 46

GPU Power Consumption 47

Thermal 48

Fans 48

Temperatures 48

System Event Log 49

Platform Events 50

Traps Settings 51

Email Settings 52

CHAPTER 5: TROUBLESHOOTING YOUR SYSTEM 53

CHAPTER 6: GETTING HELP 58

Contacting Dell 58

INDEX 59

Introduction

Checklist

Carefully unpack the Dell PowerEdge C410X server and check that the following items were included.

One Dell PowerEdge C410X system

Dell PowerEdge C410x Getting Started Guide

Safety, Environmental, and Regulatory Information (SERI)

Warranty and Support Information (WSI) or End User License Agreement (EULA)

Contact Dell if some items are missing or appear damaged.

Chapter 1: Product Overview

1.1 A Tour of the System

The following sections describe the external features of the Dell PowerEdge C410X server.

1.1.1. System Front View

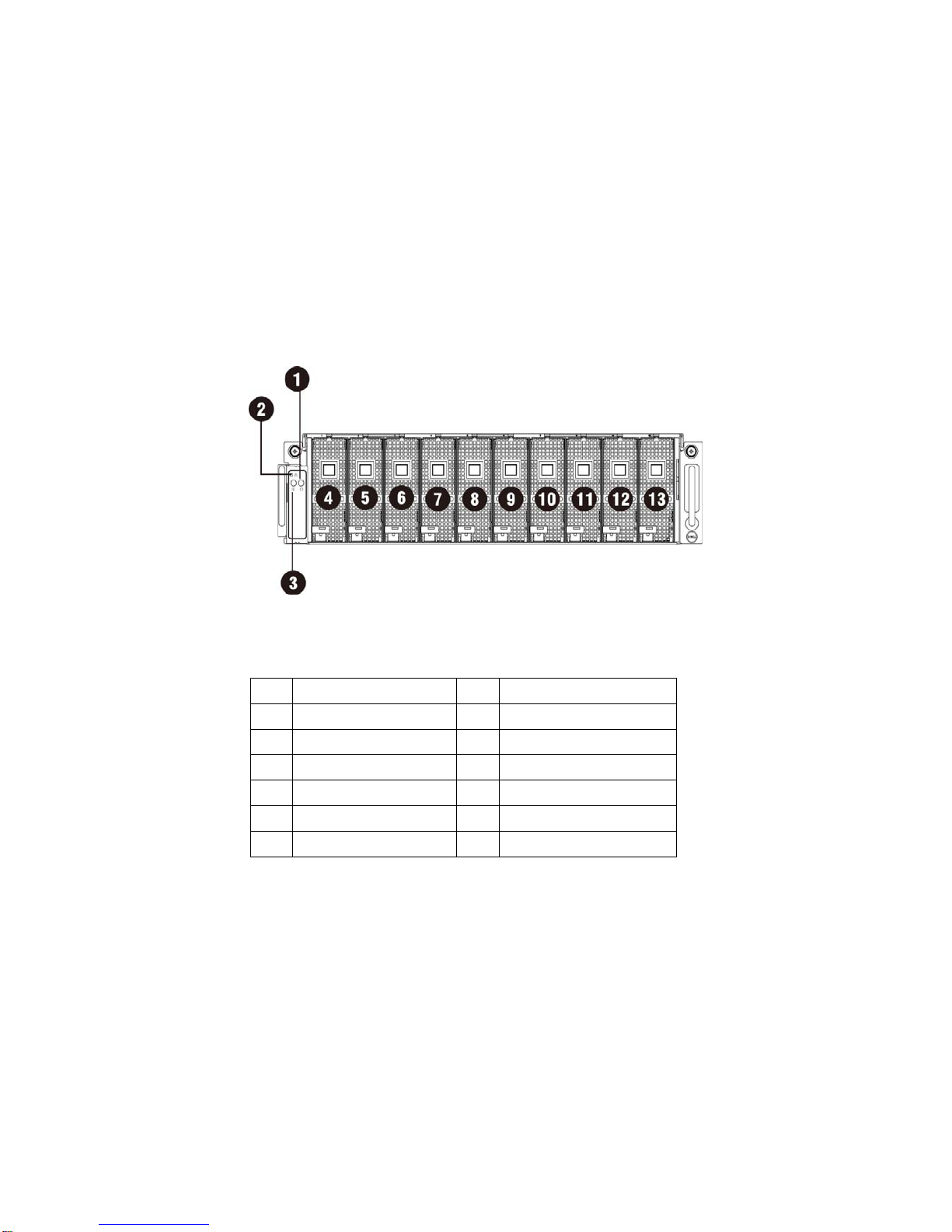

Figure 1 – Front View

1 System LED 8 GPGPU Cage 5

2 UID LED/Button 9 GPGPU Cage 6

3 Power LED/Button 10 GPGPU Cage 7

4 GPGPU Cage 1 11 GPGPU Cage 8

5 GPGPU Cage 2 12 GPGPU Cage 9

6 GPGPU Cage 3 13 GPGPU Cage 10

7 GPGPU Cage 4

1.1.2. System Back View

Back view of system is shown below:

Figure 2 – Back View

1 Power Module 1 11 iPass connector 6

2 Power Module 2 12 iPass connector 7

3 Power Module 3 13 iPass connector 8

4 Power Module 4 14 GPGPU Cage 11

5 BMC LAN Cable 15 GPGPU Cage 12

6 iPass connector 1 16 GPGPU Cage 13

7 iPass connector 2 17 GPGPU Cage 14

8 iPass connector 3 18 GPGPU Cage 15

9 iPass connector 4 19 GPGPU Cage 16

10 iPass connector 5

1.2 System LEDs Description

1.2.1. Front System LEDs

The front system LEDs contain Status LED, Power LED and UID LED information.

The detailed LEDs information is listed below:

Figure 3 – Front System LEDs

Table 1 Front System LEDs

Displays status/errors and is controlled by BMC.

Color Condition Occurrence

Blink Fast Power supply fail

On FAN fail or sensor error

Status LED

Amber

Blink GPU card fail

Lights when front or rear ID button is pressed.

Color Condition Occurrence

Off No identification

UID LED

Blue Blinking ID Button pressed on system (ID command

executed)

Lights green when server is powered on.

Color Condition Occurrence

On Power on

Power LED

Green Blinking Power on fail or without

any GPU card

1.2.2. LAN LEDs

Figure 4 – LAN LEDs

Table 2 LAN LEDs

LAN LAN Link/Activity Color Condition Occurrence

On LAN Link / no Access

Green Blink LAN Access

N/A Off Idle

10 LAN Speed N/A Off 10Mbps connection

100 LAN Speed On 10Mbps connection

Green Blink Port identification with 10 or 100Mbps connection

GbE LAN Speed On 1Gbps connection

Yellow Blink Port identification with 1Gbps connection

Chapter 2: Removing and Installing Hardware

Safety Measures

Computer components and electronic circuit boards can be damaged by discharges of static electricity.

Working on computers that are still connected to a power supply can be extremely dangerous. Follow the

simple guidelines below to avoid damage to your computer or injury to yourself.

Always disconnect the computer from the power outlet whenever you are working inside the

computer case.

If possible, wear a grounded wrist strap when you are working inside the computer case.

Alternatively, discharge any static electricity by touching the bare metal system of the

computer case, or the bare metal body of any other grounded appliance.

Hold electronic circuit boards by the edges only. Do not touch the components on the board

unless it is necessary to do so. Do not flex or stress the circuit board.

Leave all components inside the static-proof packaging until you are ready to use the

component for the installation.
