Dell PowerEdge 2800 Manual

www.dell.com | support.dell.com

Dell™ Systems

Installing the 1 x 2 SCSI

Module

安装 1 x 2 SCSI 模块

Installation du module SCSI 1 x 2

Installation des 1 x 2-SCSI-Moduls

1 x 2 SCSI モジュールの取り付け

1 x 2 SCSI 모듈 설치

Instalación del módulo SCSI 1 x 2

F6590bk0.book Page 1 Tuesday, July 6, 2004 4:33 PM

F6590bk0.book Page 2 Tuesday, July 6, 2004 4:33 PM

www.dell.com | support.dell.com

Dell™ Systems

Installing the 1 x 2 SCSI

Module

F6590bk0.book Page 1 Tuesday, July 6, 2004 4:33 PM

Notes, Notices, and Cautions

NOTE: A NOTE indicates important information that helps you make better use of your computer.

NOTICE: A NOTICE indicates either potential damage to hardware or loss of data and tells you how to avoid

the problem.

CAUTION: A CAUTION indicates a potential for property damage, personal injury, or death.

____________________

Information in this document is subject to change without notice.

Reproduction in any manner whatsoever without the written permission of Dell Inc. is strictly forbidden.

Trademarks used in this text: Dell and the DELL logo are trademarks of Dell Inc.

Other trademarks and trade names may be used in this document to refer to either the entities claiming the marks and names

or their products. Dell Inc. disclaims any proprietary interest in trademarks and trade names other than its own.

July 2004 P/N F6590 Rev. A00

F6590bk0.book Page 2 Tuesday, July 6, 2004 4:33 PM

Installing the 1 x 2 SCSI Module 1-3

This document provides instructions for installing a 1 x 2 module kit to add support for up to

two additional 1-inch SCSI hard drives in your system’s peripheral bay. This kit contains the

following items:

• 1 x 2 SCSI module and backplane

• Power cable harness

• SCSI cable(s)

• Guide rails (2)

• 4 x 6-32 screws

CAUTION: Before you perform this procedure, read the safety instructions in your Product Information

Guide.

CAUTION: Only trained service technicians are authorized to remove the system cover and access any

of the components inside the system. See your Product Information Guide for complete information

about safety precautions, working inside the computer, and protecting against electrostatic discharge.

NOTICE: To avoid data loss, back up all data on the hard drives before installing the backplanes

and changing the drive configuration.

NOTE: See your Installation and Troubleshooting Guide for detailed instructions on removing or

replacing components.

Before You Begin

NOTICE: Before you install the backplane, update the BIOS to the latest version.

Before you shut down the system to install the backplane:

Record the system configuration settings.

View the system configuration screens in the System Setup program and make a record of

these settings. See your

User’s Guide

for instructions on using the System Setup program.

Update the BIOS.

See the Dell Support website at

support.dell.com

for the latest BIOS version for your system.

Installing the 1 x 2 Module

Remove the front bezel (if applicable).

Turn off the system, including any attached peripherals, and disconnect the system from

the electrical outlet.

If your system is installed in a rack, go to step 4.

If you have a standalone system, locate a flat, nonconductive surface, remove the stabilizers,

and lay the system on its side, as shown in Figure 1-1.

Open the system.

F6590bk0.book Page 3 Tuesday, July 6, 2004 4:33 PM

1-4 Installing the 1 x 2 SCSI Module

www.dell.com | support.dell.com

Slide the drive tray to the maintenance position.

Use a #2 Phillips screwdriver to loosen the captive screw that secures the drive tray

release handle to the chassis.

Rotate the drive tray release lever toward the front of the system.

Grasp both sides of the front panel and slide the drive tray towards the front of the

system until the tray is in the maintenance position.

Installing the Drive Cage

Locate the insert tab above the center filler plate. See Figure 1-1.

Press the insert tab and remove the center filler plate from the peripheral bay. See Figure 1-1.

NOTE: If a tape drive is not installed in your system, do not remove the top filler plate.

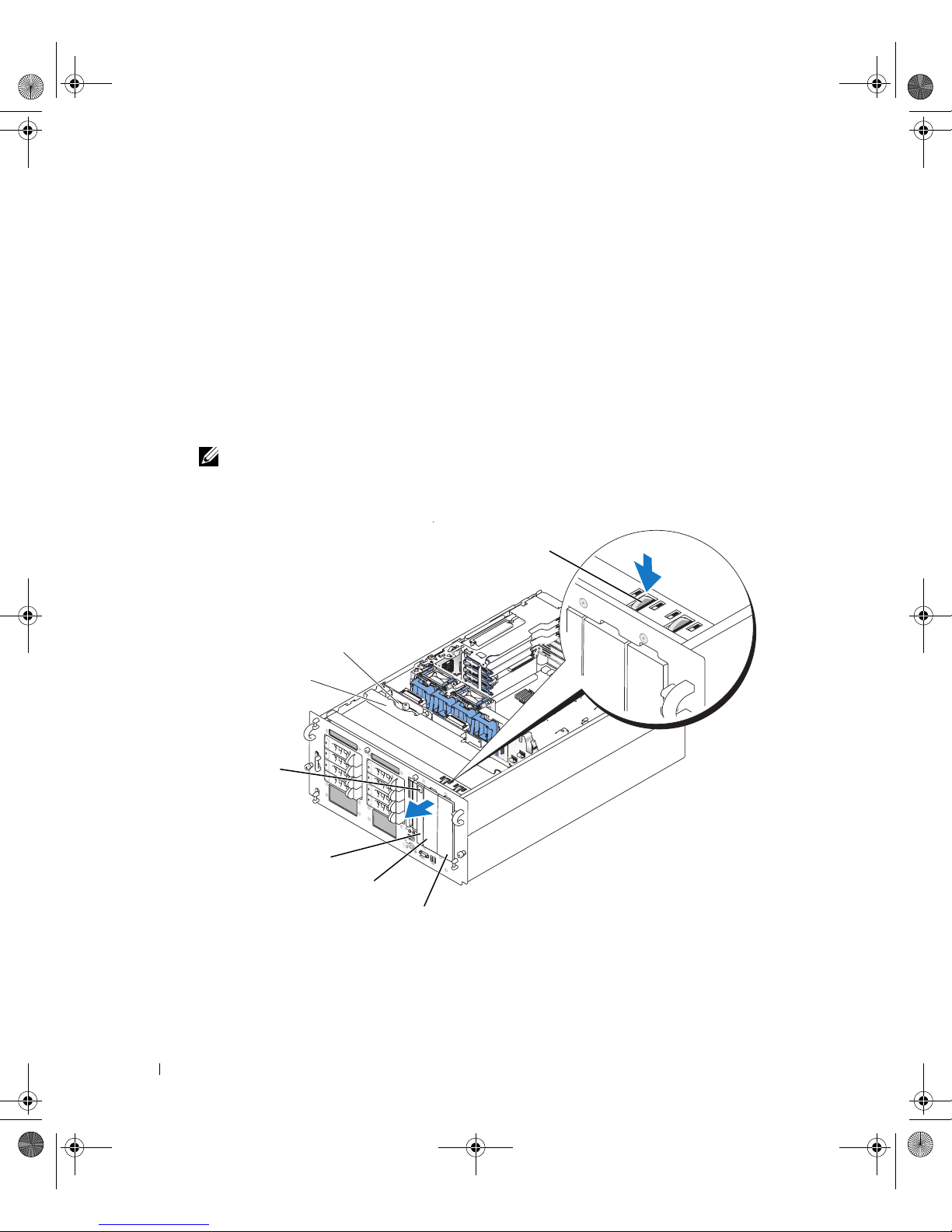

Figure 1-1. Peripheral Bay Filler Plates

Locate the black square on the lower filler plate. See Figure 1-1.

Place your right thumb on the black square, reach behind the lower filler plate, squeeze

the lower filler plate release lever, and remove the filler plate from the peripheral bay.

center filler plate

top filler plate

lower filler plate

insert tab

black square

thumbscrew

cam handle

F6590bk0.book Page 4 Tuesday, July 6, 2004 4:33 PM

Installing the 1 x 2 SCSI Module 1-5

Attach the drive rails to the drive cage.

Align the screw holes on the drive rails with the screw holes located near slot 1

on the drive cage.

Insert the 6 x 32 screws (4) into the drive rails and drive cage. See Figure 1-2.

Use a #2 Phillips screwdriver to tighten the screws on each rail. See Figure 1-2.

With the power connector pointing towards the top of the system, insert the drive cage

into the peripheral drive bay until it snaps into place. See Figure 1-3.

Figure 1-2. Installing the Drive Cage Rails

drive rails (2)

screws (4)

F6590bk0.book Page 5 Tuesday, July 6, 2004 4:33 PM

1-6 Installing the 1 x 2 SCSI Module

www.dell.com | support.dell.com

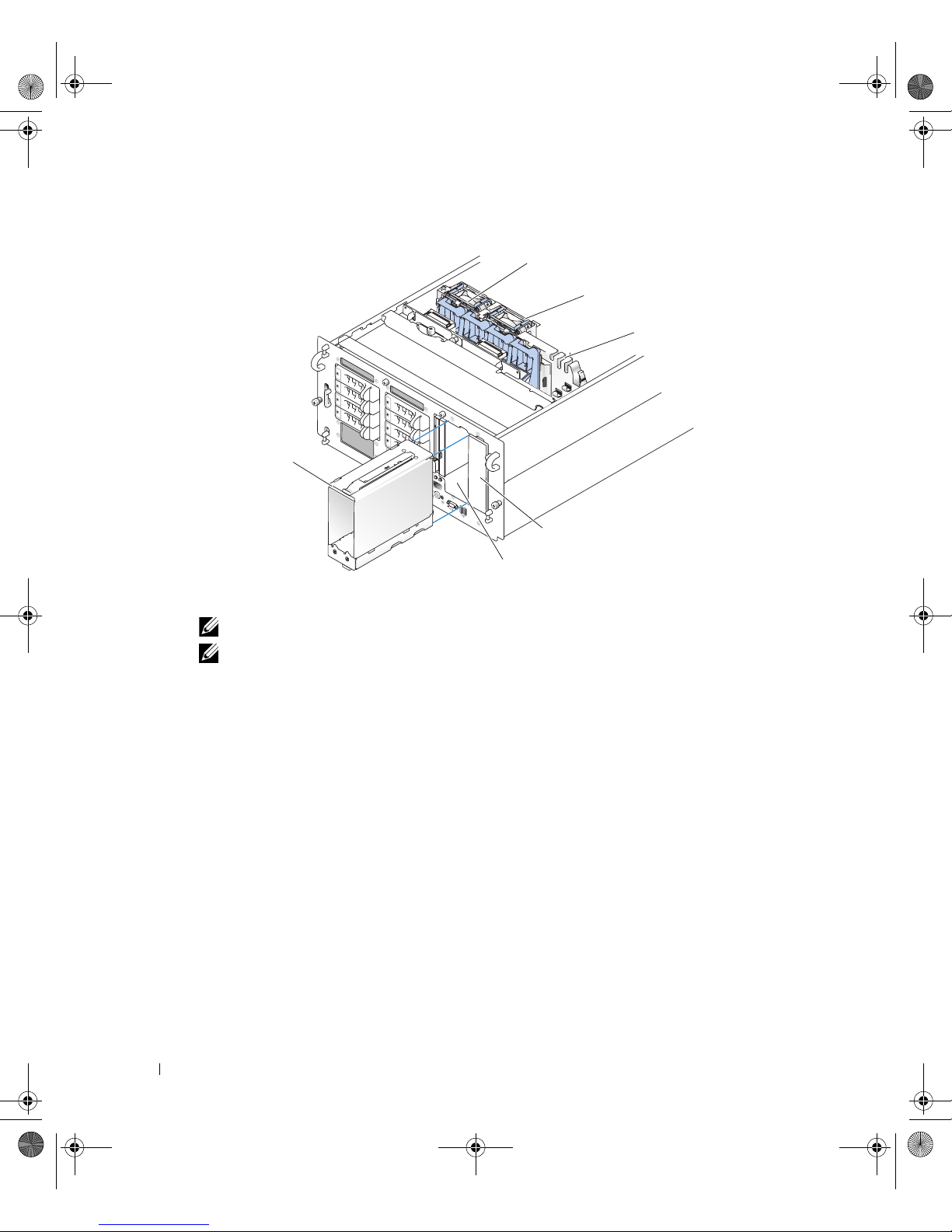

Figure 1-3. Installing the 1 x 2 Module Into the Peripheral Bay

Connecting the SCSI and Backplane Power Cables

NOTE: The 1 x 2 drive 0 functions as the boot drive.

NOTE: If your kit contains more than one SCSI cable, use the appropriate cable to connect the 1 x 2

backplane to the riser card or RAID controller. Depending on your particular configuration, the cable

length may vary.

Connect the power cable harness connectors to the 1 x 2 backplane.

If your system is not configured with a tape backup unit:

Connect the 14-pin connector on the power cable to the peripheral bay power connector

on the SCSI backplane. See Figure 1-4.

Connect one of the 4-pin connectors on the power cable to the power connector

on the 1 x 2 backplane. See Figure 1-4.

Connect the 6-pin connector on the power cable to the 6-pin connector

on the 1 x 2 backplane. See Figure 1-4.

If your system is already configured with a tape backup unit, use the existing power cable

and complete step b and step c.

1 x 2 module

peripheral drive bay

top filler plate

cable routing slot 2

cable routing slot 1

cooling fan 8

F6590bk0.book Page 6 Tuesday, July 6, 2004 4:33 PM

Installing the 1 x 2 SCSI Module 1-7

Connect the SCSI connector on the 1 x 2 backplane to the riser card or the optional RAID

controller card.

If your 1 x 2 module connects to the onboard riser card:

Connect the SCSI connector on the 1 x 2 backplane to SCSI channel A on the riser card.

See Figure 1-4.

Insert the SCSI cable harness into cable routing slot 1. See Figure 1-4.

If your 1 x 2 module connects to the optional RAID controller card:

Connect the SCSI connector on the 1 x 2 backplane to SCSI channel A (channel 0)

on the optional RAID controller card. See Figure 1-4.

Insert the SCSI cable into cable routing slot 2 and the cable routing slots located

at the bottom of cooling fan 8. See Figure 1-3.

Install the hard drives into the 1 x 2 module.

Figure 1-4. 1 x 2 Module and SCSI Backplane Connectors

peripheral bay

power connector

power

connector

6-pin

connector

SCSI

connector

1 x 2 module SCSI backplane

F6590bk0.book Page 7 Tuesday, July 6, 2004 4:33 PM

1-8 Installing the 1 x 2 SCSI Module

www.dell.com | support.dell.com

Completing the Installation

Check all cable connections that may have been loosened during the procedure.

Arrange the cables so that they do not catch on the system cover or block the airflow

of the fans or the cooling vents.

Slide the drive tray to the operating position.

Grasp both sides of the front panel and slide the drive tray towards the back of the system

until the tray is in the operating position.

Rotate the drive tray release lever toward the back of the system.

Use a #2 Phillips screwdriver to tighten the captive screw that secures the drive tray

release handle to the chassis.

Close the system.

If you have a standalone system, reinstall the stabilizers and place the system in the upright

position (if applicable).

Reconnect the system to its electrical outlet and turn the system on, including any attached

peripherals.

Enter System Setup to ensure that the RAID or SCSI controller card is configured correctly.

You may also need to verify the correct boot order.

See your system

User’s Guide

for more information.

Update the system firmware.

See the Dell Support website at

support.dell.com

for the latest firmware updates.

Replace the bezel (if applicable).

F6590bk0.book Page 8 Tuesday, July 6, 2004 4:33 PM
