Getting Started With Your System

Installation and Configuration

WARNING:

Before performing the following procedure, review the safety

instructions that came with the system.

Unpacking the System

Unpack your system and identify each item.

Assemble the rails and install the system in the rack following the safety

instructions and the rack installation instructions provided with your system.

Getting Started With Your System

Optional – Connecting the Keyboard, Mouse, and Monitor

Connect the keyboard, mouse, and monitor (optional).

The connectors on the back of your system have icons indicating which cable

to plug into each connector. Be sure to tighten the screws (if any) on the

monitor's cable connector.

Connecting the Power Cable(s)

Connect the system’s power cable(s) to the system and, if a monitor is used,

connect the monitor’s power cable to the monitor.

Getting Started With Your System

Securing the Power Cable(s)

Bend the system power cable into a loop as shown in the illustration and secure

the cable to the bracket using the provided strap. Plug the other end of the

power cable into a grounded electrical outlet or a separate power source such as

an uninterrupted power supply (UPS) or a power distribution unit (PDU).

Turning On the System

Press the power button on the system and the monitor. The power indicators

should light.

Getting Started With Your System

Installing the Optional Bezel

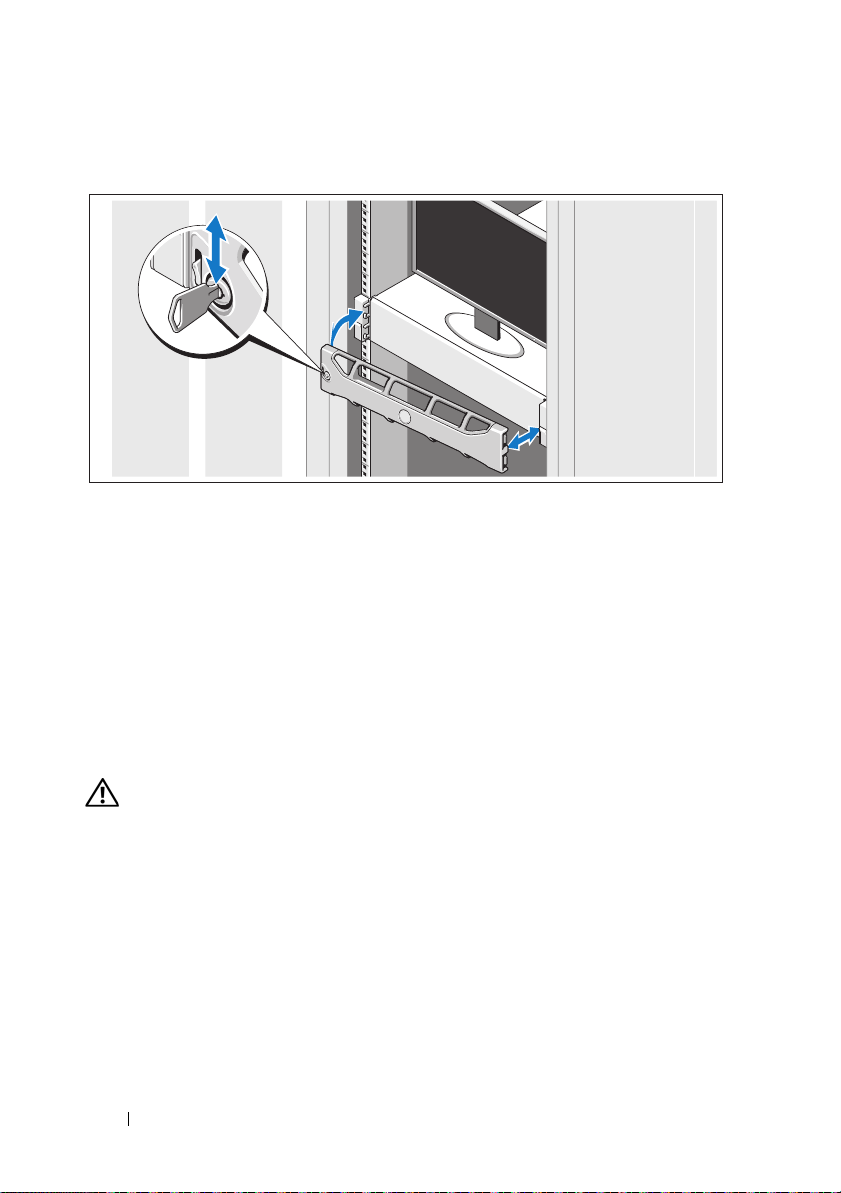

Install the bezel (optional).

Operating System Information

The operating system is preinstalled and configured to support the

preinstalled applications. See the operating system documentation that

shipped with your system for additional information about customizing

the operating system, only if required for your environment.

Other Information You May Need

WARNING:

See the safety and regulatory information that shipped with

your system. Warranty information may be included within this document or

as a separate document.

• The rack documentation included with your rack solution describes

how to install your system into a rack.

•The

Administrator’s Guide

provides information about what to do on first

boot during initial system setup.

Getting Started With Your System

• The

Owner’s Manual

provides information about system features and

describes how to troubleshoot the system and install or replace system

components. This document is available at

support.dell.com/manuals

• Any media that ships with your system that provides documentation

and tools for configuring and managing your system, including those

pertaining to the operating system, system management software,

system updates, and system components that you purchased

with your system.

NOTE:

Always check for updates on support.dell.com/manuals and read the

updates first because they often supersede information in other documents.

Obtaining Technical Assistance

If you do not understand a procedure in this guide or if the system does

not perform as expected, see your Owner’s Manual. Dell offers comprehensive

hardware training and certification. See dell.com/training for more

information. This service may not be offered in all locations.

NOM Information (Mexico Only)

The following information is provided on the device described in this

document in compliance with the requirements of the official Mexican

standards (NOM):

Importer:

Model number: E13S Series

Supply voltage: 100 V CA to 240 V CA

Frequency: 50/60 Hz

Current consumption: 7.5 A to 4.0 A

Getting Started With Your System

Technical Specifications

Processor

Processor type Two Intel Xeon processors E5645 series

Expansion Bus

Bus type PCI Express Generation 2

Riser card expansion slots Slot 1: PCIe x4, half-length, full-height

Slot 2: PCIe x4, full-length, full-height

Slot 3: PCIe x8, half-length, full-height

Slot 4 : PCIe x4, internal slot for integrated

storage card

Memory

Architecture 1333 MHz DDR3 RDIMMs

Memory module sockets Eight 240-pin

Memory module capacities 4 GB

Maximum RAM 32 GB

Drives

Hard drives Twelve 3.5" hot-swappable SAS or nearline-

SAS drives and two cabled 2.5" SAS drives

NOTE:

The operating system is installed on the

internal hard drives in a RAID 1 configuration.

Connectors

Back

NIC

Two RJ-45 (for integrated 1 GB NICs)

Serial

9-pin, DTE, 16550-compatible

USB

Two 4-pin, USB 2.0-compliant

Video

15-pin VGA

iDRAC Enterprise

One RJ-45
