Dell™ Ink-Free Printer PZ310

With ZINK™ Zero Ink™ Printing Technology

User’s Guide

Model PZ310

Notes, Notices, and Cautions

NOTE: A NOTE indicates important information that helps you make better use of

your printer.

NOTICE: A NOTICE indicates either potential damage to hardware or loss of data

and tells you how to avoid the problem.

CAUTION: A CAUTION indicates a potential for property damage, personal injury,

or death.

____________________

Information in this document is subject to change without notice.

Reproduction of these materials in any manner whatsoever without the written permission of Dell

Inc. is strictly forbidden.

Trademarks used in this text:

Dell

and the

DELL

logo are trademarks of Dell Inc.;

Microsoft

and

Windows

are registered trademarks of Microsoft Corporation;

Bluetooth

is a registered

trademark owned by Bluetooth SIG, Inc. and used by Dell Inc. under license;

ZINK

and

Zero Ink

are

trademarks of Zink Imaging, LLC.

Other trademarks and trade names may be used in this document to refer to either the entities claiming

the marks and names or their products. Dell Inc. disclaims any proprietary interest in trademarks and

trade names other than its own.

Model PZ310

September 2008 Rev. A00

Contents 3

Contents

1 Your Dell™ Mobile Printer . . . . . . . . . . . . 5

About Your Mobile Printer . . . . . . . . . . . . . . . . 6

2 Installing and Charging the Battery . . . . . 7

Installing the Battery . . . . . . . . . . . . . . . . . . . 7

Charging the Battery . . . . . . . . . . . . . . . . . . . 8

3 Loading the ZINK™ Photo Paper . . . . . . . 9

Important Information: ZINK Photo Paper . . . . . . . 10

4 Printing Photos . . . . . . . . . . . . . . . . . . . . 11

Turning On Your Printer . . . . . . . . . . . . . . . . . 11

Sending and Printing Photos

Using Bluetooth® Technology . . . . . . . . . . . . . 12

Sending and Printing Photos Using PictBridge . . . . 15

Reprinting a Photo . . . . . . . . . . . . . . . . . . . . 16

5 Status Indicator Information,

Troubleshooting, and Specifications . . . 17

Status Indicator Information . . . . . . . . . . . . . . 17

Power Status . . . . . . . . . . . . . . . . . . . . 17

Battery Status . . . . . . . . . . . . . . . . . . . 17

4Contents

Print Status . . . . . . . . . . . . . . . . . . . . . 18

Error Status . . . . . . . . . . . . . . . . . . . . . 18

Page Count Status . . . . . . . . . . . . . . . . . 19

Troubleshooting . . . . . . . . . . . . . . . . . . . . . 20

Specifications . . . . . . . . . . . . . . . . . . . . . . 21

6 Contacting Dell . . . . . . . . . . . . . . . . . . . . 22

Your Dell™ Mobile Printer 5

Your Dell™Mobile Printer

Unpack your printer and verify the contents of the package. If any of the items shown

below are missing, contact Dell (see "Contacting Dell" on page 22).

Package Contents

Dell Ink-Free Printer PZ310

Battery

AC adapter and power cord

NOTE: The power cord that shipped

with your printer may be different

depending on your country/region.

Quick Setup Guide and CD Media Pack

Contains 12 ZINK™ Photo Papers and

1 ZINK™ Smart Sheet

NOTE: It is recommended that you use

original Dell-branded ZINK Photo Paper

for optimal print quality.

Dell™ Ink-Free Mobile Printer

Contents:

User’s manual

Product Information Guide

Dell™ Ink-Free Mobile Printer PZ310

Information Disc

6Your Dell™ Mobile Printer

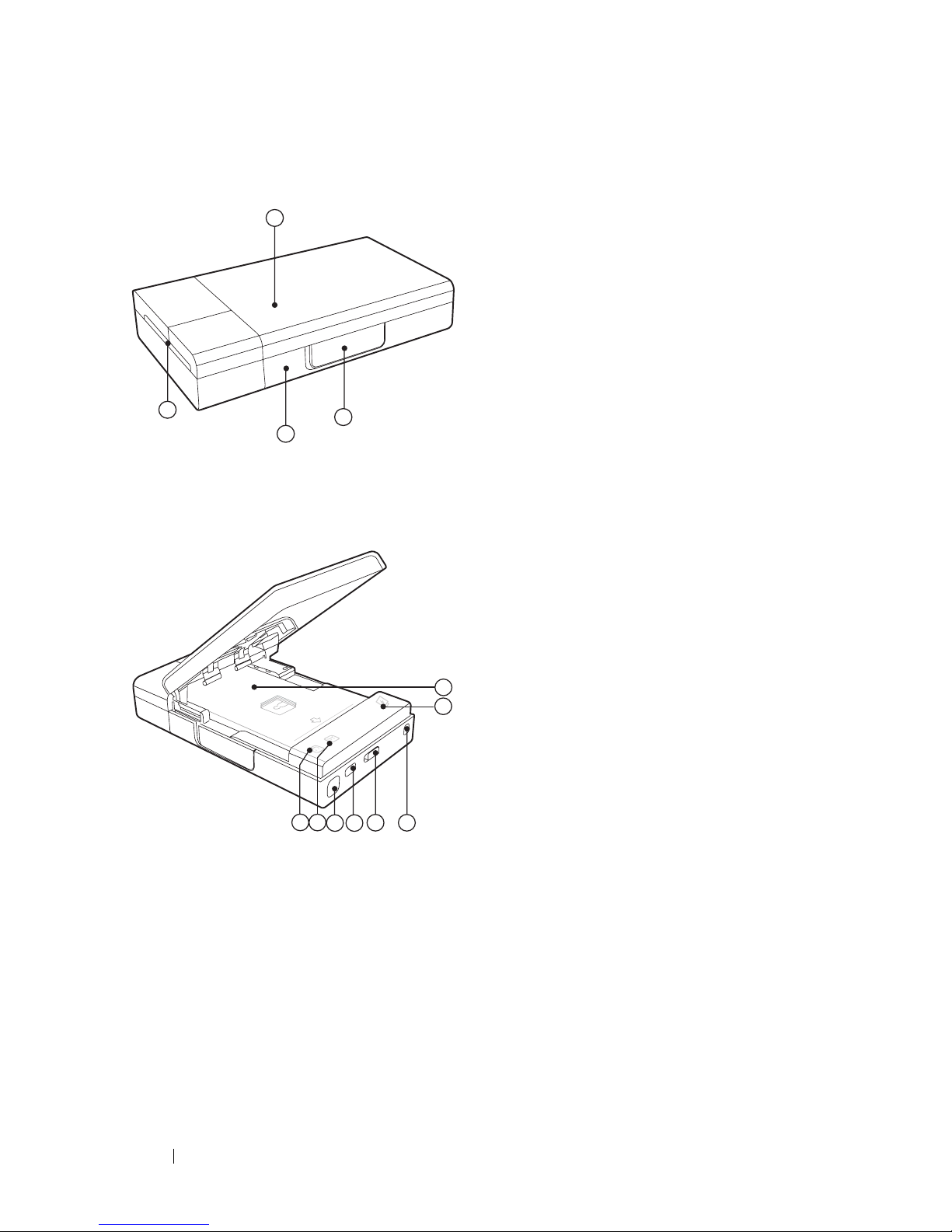

About Your Mobile Printer

1Media cover

2PictBridge & power

connector cover

3Battery cover

4Paper exit

1Media tray

2Battery indicator

3Lanyard hook

4Media cover latch

5Reprint button

6Power button

7Error indicator

8Ready indicator

Installing and Charging the Battery 7

Installing and Charging the Battery

Installing the Battery

CAUTION: Use only the battery that shipped with your printer. Using any other

batteries may result in product damage or malfunction.

Remove the battery cover.

Insert the battery. Ensure that the battery is inserted in the correct

orientation as shown above.

NOTICE: Inserting the battery incorrectly can result in potential loss of data or

damage to hardware.

Replace the battery cover.

8Installing and Charging the Battery

Charging the Battery

Connect the AC adapter to the printer and a power source.

NOTICE: Charge the battery for 1.5 hours in order to ensure that the battery is fully

charged before you use the printer. If the battery has not been fully charged,

potential damage to hardware or loss of data might happen.

1.5

hours

Loading the ZINK™ Photo Paper 9

Loading the ZINK™ Photo Paper

Slide the media cover latch to open the Media cover.

Load the Dell-branded

ZINK Photo Paper into the media tray. Ensure

that ZINK Smart Sheet is at the bottom of pack with the barcode facing

down when loading.

Close the media cover. The Smart Sheet is ejected automatically.

10 Loading the ZINK™ Photo Paper

NOTE: The ZINK Smart Sheet cleans and calibrates the print head, ensuring

optimal print quality.

NOTICE: Only use the Dell-branded ZINK Photo Paper on your mobile printer.

NOTICE: The media tray must be empty before you reload the photo paper. Do not

load the printer with more than 1 pack of ZINK Photo Paper (maximum tray capacity

is 12 photo papers and 1 Smart Sheet).

NOTE: Retain the ZINK Smart Sheet for use in calibrating and cleaning the print

head.

Important Information: ZINK Photo Paper

• Do not bend the

ZINK Photo Paper.

•Holdthe

ZINK Photo Paper only by its edges. Do not touch the printing surface.

•Storethe

ZINK Photo Paper in a cool and dry place. Do not expose the photo paper

to direct sunlight for prolonged periods.

• The ZINK Photo Paper should be stored in environments where temperature

ranges between 5

C to 32

C ( 41

F to 90

F) and humidity ranges between

20% to 80% RH.

• Ensure to use the media pack within its valid date.
