DELL™C 5100

TONER CARTRIDGE REMANUFACTURING INSTRUCTIONS

DELL C 5100

LASER PRINTER

TONER CARTRIDGE

UniNet Imaging does not warrant downloaded information. Summit Technologies is a division of UniNet Imaging Inc.

www.uninetimaging.com

USA •UK •EUROPE •AFRICA •JAPAN •CHINA •BRAZIL •MEXICO •COLOMBIA •ARGENTINA •VENEZUELA

11124 Washington Blvd., Culver City, CA, U.S.A. 90232 •Ph +1 310 280 9620 •Fx +1 310 838 7294 •[email protected]

DELL C 5100 TONER CARTRIDGE REMOVING THE GEARLESS END CAP

1. Remove the gearless end cap (shown) to access the toner

fill cap. Using a small flathead screwdriver, carefully push out

one side of the end cap (shown) to unlock it from the first set

of tabs.

2. Rotate the cartridge and disengage the third tab (shown) in

the same manner.

3. Disengage the fourth tab as shown.

UNINET IMAGING INC. •BROTHER 1240/1650 •ASSEMBLING THE TONER CARTRIDGEUNINET IMAGING INC. •BROTHER 1240/1650 •DISASSEMBLING THE TONER CARTRIDGE

UNINET IMAGING INC. •DELL C 5100 CARTRIDGE REMANUFACTURING INSTRUCTIONS

UniNet Imaging does not warrant downloaded information. Summit Technologies is a division of UniNet Imaging Inc.

www.uninetimaging.com

USA •UK •EUROPE •AFRICA •JAPAN •CHINA •BRAZIL •MEXICO •COLOMBIA •ARGENTINA •VENEZUELA

11124 Washington Blvd., Culver City, CA, U.S.A. 90232 •Ph +1 310 280 9620 •Fx +1 310 838 7294 •[email protected]

4. Carefully slide out the gearless end cap. NOTE: Note the

original positioning (shown) for reassembly.

REMOVING THE TONER FILL PLUG

5. Carefully insert a small flathead screwdriver between the

base of the toner fill plug and its housing as shown.

6. Carefully lift the toner fill plug out as shown. Be careful not

to damage the plastic housing.

UNINET IMAGING INC. •BROTHER 1240/1650 •ASSEMBLING THE TONER CARTRIDGEUNINET IMAGING INC. •BROTHER 1240/1650 •DISASSEMBLING THE TONER CARTRIDGE

UNINET IMAGING INC. •DELL C 5100 CARTRIDGE REMANUFACTURING INSTRUCTIONS

UniNet Imaging does not warrant downloaded information. Summit Technologies is a division of UniNet Imaging Inc.

www.uninetimaging.com

USA •UK •EUROPE •AFRICA •JAPAN •CHINA •BRAZIL •MEXICO •COLOMBIA •ARGENTINA •VENEZUELA

11124 Washington Blvd., Culver City, CA, U.S.A. 90232 •Ph +1 310 280 9620 •Fx +1 310 838 7294 •techsuppor[email protected]

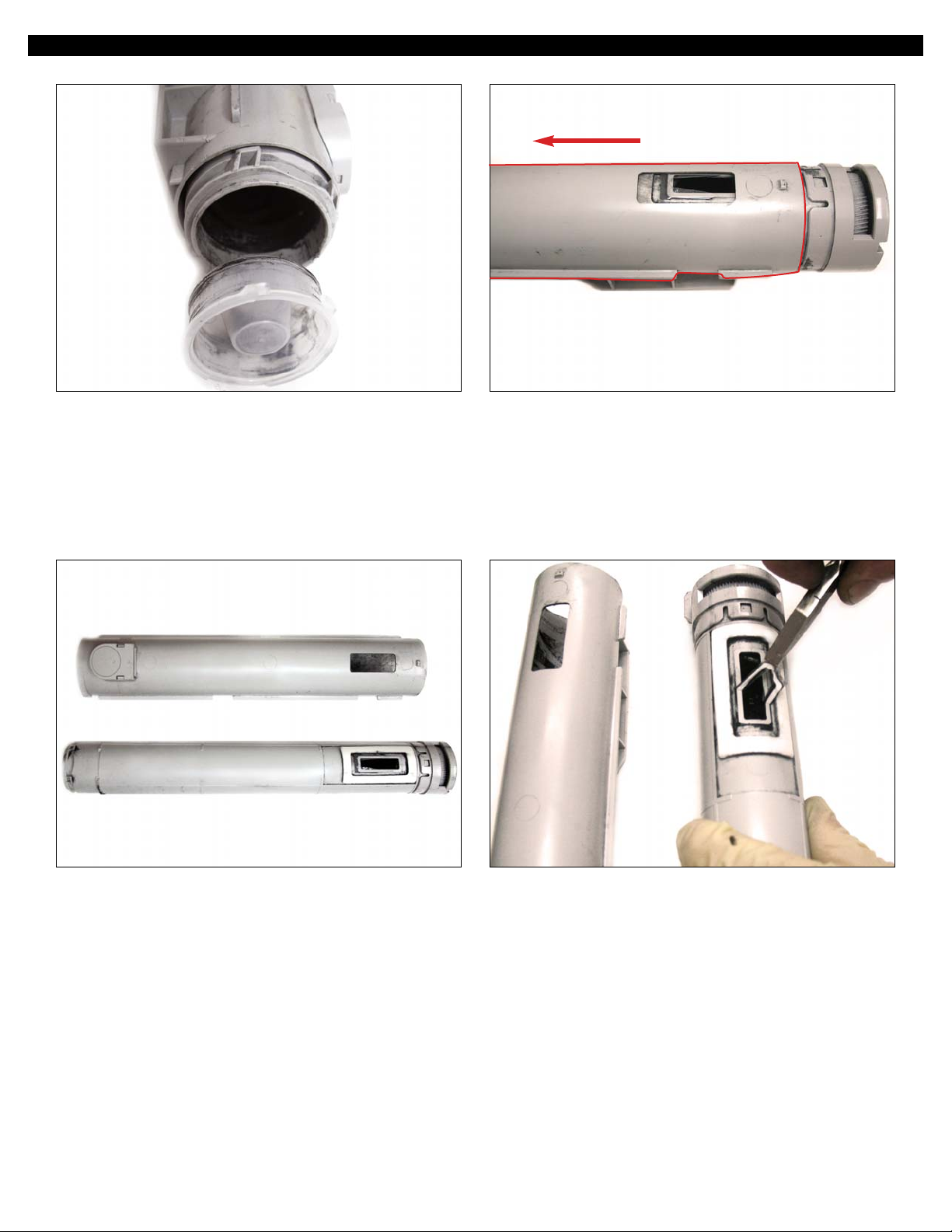

7. Toner fill plug removed. Note the original positioning of the

plug for reassembly.

SEPARATING THE TONER CARTRIDGE

8. Locate the gear side of the cartridge shown. Holding the

gear end cap, remove the outer jacket (highlighted) of the car-

tridge by sliding it out as shown.

9. Cartridge separated. Note the original positioning of the

outer container. Clean thoroughly using compressed air.

ALTERNATE CLEARSEAL™ASSEMBLY

10. First, using a pair of pliers, gently peel off the worn sealant

(shown) from the toner cartridge.

UNINET IMAGING INC. •BROTHER 1240/1650 •ASSEMBLING THE TONER CARTRIDGEUNINET IMAGING INC. •BROTHER 1240/1650 •DISASSEMBLING THE TONER CARTRIDGE

UNINET IMAGING INC. •DELL C 5100 CARTRIDGE REMANUFACTURING INSTRUCTIONS

UniNet Imaging does not warrant downloaded information. Summit Technologies is a division of UniNet Imaging Inc.

www.uninetimaging.com

USA •UK •EUROPE •AFRICA •JAPAN •CHINA •BRAZIL •MEXICO •COLOMBIA •ARGENTINA •VENEZUELA

11124 Washington Blvd., Culver City, CA, U.S.A. 90232 •Ph +1 310 280 9620 •Fx +1 310 838 7294 •techsuppor[email protected]

OUTER CONTAINER

(SLIDES OUT)

GEARSIDE

END CAP

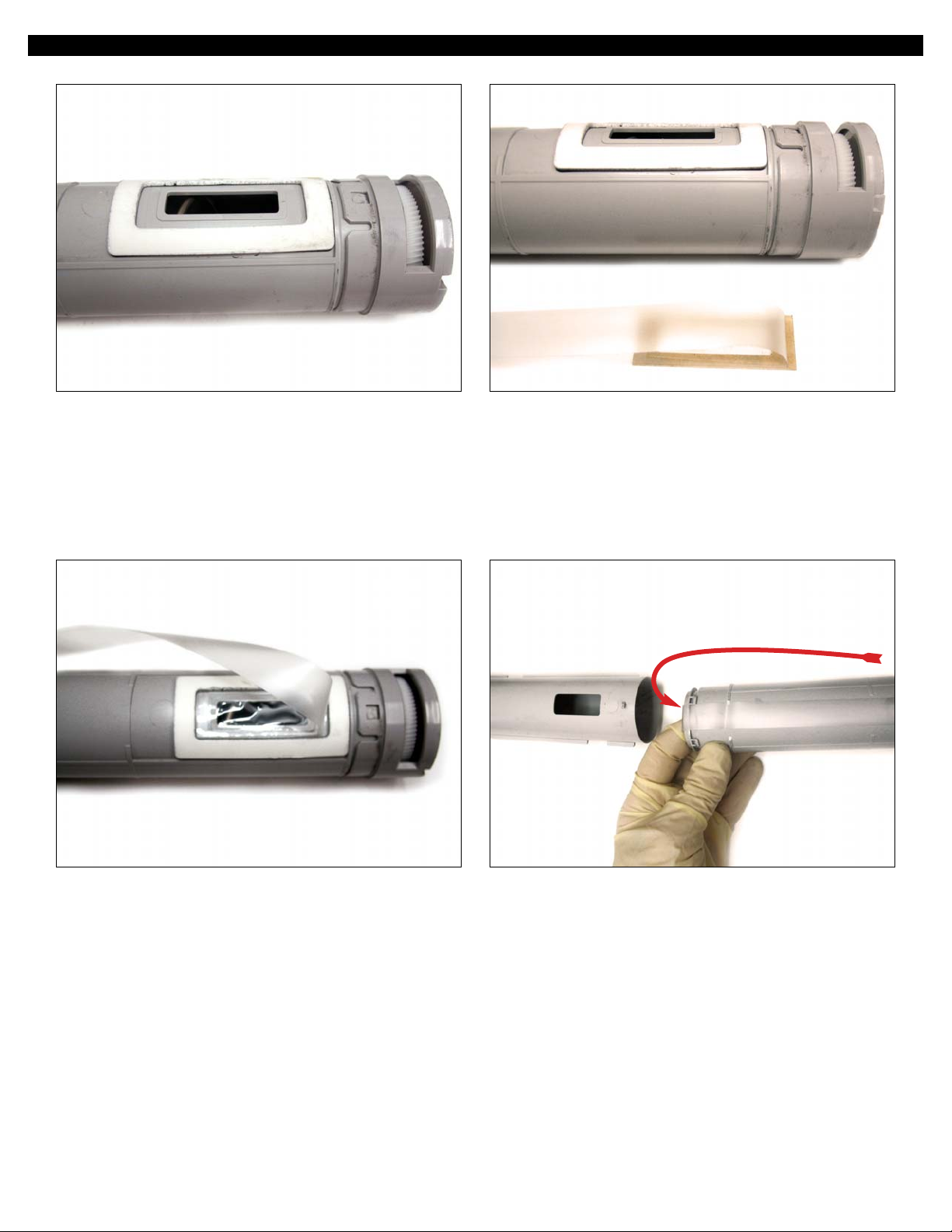

11. Wipe the seal opening and surroundings clean using iso-

propyl alcohol and a lint free cloth.

INSTALLING THE CLEARSEAL™ADHESIVE

12. Make sure that the new seal is being placed in its proper

position (shown) before applying.

NOTE: Optional UniNet Clear Seal™universal adhesive for use

in Dell C 5100 OEM BK/C/M/Y toner cartridges (UniNet part

#10353).

13. Remove the adhesive backing of the Clearseal™and care-

fully place over the opening as shown. Apply pressure using

your fingers to ensure a tight seal.

14. gently wrap the seal flap around the toner fill opening (as

shown) while you prepare to insert the cartridge. This will

ensure that the seal flap properly exits the opposite end of the

container.

UNINET IMAGING INC. •BROTHER 1240/1650 •ASSEMBLING THE TONER CARTRIDGEUNINET IMAGING INC. •BROTHER 1240/1650 •DISASSEMBLING THE TONER CARTRIDGE

UNINET IMAGING INC. •DELL C 5100 CARTRIDGE REMANUFACTURING INSTRUCTIONS

UniNet Imaging does not warrant downloaded information. Summit Technologies is a division of UniNet Imaging Inc.

www.uninetimaging.com

USA •UK •EUROPE •AFRICA •JAPAN •CHINA •BRAZIL •MEXICO •COLOMBIA •ARGENTINA •VENEZUELA

11124 Washington Blvd., Culver City, CA, U.S.A. 90232 •Ph +1 310 280 9620 •Fx +1 310 838 7294 •techsuppor[email protected]

INSTALLING THE CARTRIDGE

15. Slide the cartridge into the container as indicated.

16. Continue until it is completely inserted.

17. Final result. You are now ready to fill the cartridge. REFILLING THE TONER CARTRIDGE

18. Place the cartridge in a vertical position and refill with the

appropriate amount of toner and install the fill plug.

NOTE: Additional carrier may be required for this cartridge.

Consult your afermarket reseller for more details.

UNINET IMAGING INC. •BROTHER 1240/1650 •ASSEMBLING THE TONER CARTRIDGEUNINET IMAGING INC. •BROTHER 1240/1650 •DISASSEMBLING THE TONER CARTRIDGE

UNINET IMAGING INC. •DELL C 5100 CARTRIDGE REMANUFACTURING INSTRUCTIONS

UniNet Imaging does not warrant downloaded information. Summit Technologies is a division of UniNet Imaging Inc.

www.uninetimaging.com

USA •UK •EUROPE •AFRICA •JAPAN •CHINA •BRAZIL •MEXICO •COLOMBIA •ARGENTINA •VENEZUELA

11124 Washington Blvd., Culver City, CA, U.S.A. 90232 •Ph +1 310 280 9620 •Fx +1 310 838 7294 •techsuppor[email protected]

INSTALLING THE GEARLESS END CAP 19. First, wrap the remaining seal around the toner fill plug as

shown.

20. Place the gearless end cap, in its original positioning, over

the seal and toner fill plug as shown.

Make sure that the remaining seal flap is showing through as

shown.

21. Push the end cap inward until it latches onto the four lock-

ing tab mechanisms. Make sure all four tabs are properly

secured.

UNINET IMAGING INC. •BROTHER 1240/1650 •ASSEMBLING THE TONER CARTRIDGEUNINET IMAGING INC. •BROTHER 1240/1650 •DISASSEMBLING THE TONER CARTRIDGE

UNINET IMAGING INC. •DELL C 5100 CARTRIDGE REMANUFACTURING INSTRUCTIONS

UniNet Imaging does not warrant downloaded information. Summit Technologies is a division of UniNet Imaging Inc.

www.uninetimaging.com

USA •UK •EUROPE •AFRICA •JAPAN •CHINA •BRAZIL •MEXICO •COLOMBIA •ARGENTINA •VENEZUELA

11124 Washington Blvd., Culver City, CA, U.S.A. 90232 •Ph +1 310 280 9620 •Fx +1 310 838 7294 •techsuppor[email protected]

REPLACING THE OEM CHIP

22. Locate the OEM chip housing near the gearless side of the

cartridge.

23. Using a small flathead screwdriver, press down on the tabs

(shown on either side) to release the chip housing.

24. Always wear latex gloves when handing chips. 25. Unlock the actual chip from its housing by pressing the

tabs (shown) using an angled hook tool.

UNINET IMAGING INC. •BROTHER 1240/1650 •ASSEMBLING THE TONER CARTRIDGEUNINET IMAGING INC. •BROTHER 1240/1650 •DISASSEMBLING THE TONER CARTRIDGE

UNINET IMAGING INC. •DELL C 5100 CARTRIDGE REMANUFACTURING INSTRUCTIONS

UniNet Imaging does not warrant downloaded information. Summit Technologies is a division of UniNet Imaging Inc.

www.uninetimaging.com

USA •UK •EUROPE •AFRICA •JAPAN •CHINA •BRAZIL •MEXICO •COLOMBIA •ARGENTINA •VENEZUELA

11124 Washington Blvd., Culver City, CA, U.S.A. 90232 •Ph +1 310 280 9620 •Fx +1 310 838 7294 •techsuppor[email protected]

26. Carefully lift the chip from its housing. INSTALLING THE NEW CHIP

27. Place the new contact chip on the cartridge in the manner

shown.

28. Place the housing over the chip as shown. 29. Press down until the tabs lock it into place.

UNINET IMAGING INC. •BROTHER 1240/1650 •ASSEMBLING THE TONER CARTRIDGEUNINET IMAGING INC. •BROTHER 1240/1650 •DISASSEMBLING THE TONER CARTRIDGE

UNINET IMAGING INC. •DELL C 5100 CARTRIDGE REMANUFACTURING INSTRUCTIONS

UniNet Imaging does not warrant downloaded information. Summit Technologies is a division of UniNet Imaging Inc.

www.uninetimaging.com

USA •UK •EUROPE •AFRICA •JAPAN •CHINA •BRAZIL •MEXICO •COLOMBIA •ARGENTINA •VENEZUELA

11124 Washington Blvd., Culver City, CA, U.S.A. 90232 •Ph +1 310 280 9620 •Fx +1 310 838 7294 •techsuppor[email protected]
