Dell SE2419H Manual de usuario

Dell SE2419H/SE2419HX/

SE2719H/SE2719HX

User’s Guide

Monitor Model: SE2419H/SE2419HX/SE2719H/SE2719HX

Regulatory model: SE2419Hf, SE2719Hf

Notes, Cautions and Warnings

NOTE: A NOTE indicates important information that helps you make

better use of your computer.

CAUTION: A CAUTION indicates potential damage to hardware or loss

of data if instructions are not followed.

WARNING: A WARNING indicates a potential for property damage,

personal injury, or death.

are trademarks of Dell Inc. or its subsidiaries. Other trademarks may be trademarks of their respective

owners.

2018 – 09

Rev. A01

Contents

About your monitor 5

Identifying features and controls 7

Plug and play capability . . . . . . . . . . . . . . . . . .

LCD monitor quality and pixel policy

Setting up the monitor 18

Connecting the stand 18

Package contents

Removing the stand 21

Operating your monitor 23

Turning on the monitor 23

Using the front panel controls 23

Using the On-Screen Display (OSD) menu 25

........................ .

..................... .

.................... .

Product features . . . . . . . . . . . . . . . . . . . . . .

Using tilt . . . . . . . . . . . . . . . . . . . . . . . . . .

. . . . . . . . . . . . .

. . . . . . . . . . .

. . . . . . . .

. . . . . . . . . . . . . . . . . . . . .

. . . . . . . . . . . . . . . . . . .

Organizing cables . . . . . . . . . . . . . . . . . . . . .

. . . . . . . . . . . . . . . . . .

Setting up your monitor . . . . . . . . . . . . . . . . . .

Connecting your monitor . . . . . . . . . . . . . . . . .

. . . . . . . . . . . . . .

Maintenance guidelines . . . . . . . . . . . . . . . . . .

Monitor specifications

Troubleshooting 50

Self-test 50

Common problems 53

Appendix 56

FCC notices (U.S. Only) and

other regulatory information

Contacting Dell

.................................

...........................

. . . . . . . . . . . . . . . . . . . . . .

. . . . . . . . . . . . . . . . . . . . . . . . .

Built-in diagnostics . . . . . . . . . . . . . . . . . . . .

. . . . . . . . . . . . . . . . . . . .

. . . . . . . . . . . . . . . .

. . . . . . . . . . . .

Contents

Pin assignments . . . . . . . . . . . . . . . . . . . . . . 57

Product-specific problems

About your monitor | 5

About your monitor

Package contents

Your monitor ships with the components indicated in the table. Ensure that you

have received all the components and see Contacting Dell if anything is missing.

Monitor

Stand riser

Stand base

Power cable (varies by

country)

VGA cable

(SE2419H and SE2719H)

NOTE: Some items may be optional and may not ship with your

monitor. Some features may not be available in certain countries.

NOTE: To set up with any other stand, see the documentation that

shipped with the stand.

SE2419H/SE2419HX: 60.45 cm (23.8 inch) diagonal viewable

area display (measured diagonally). 1920 x 1080 resolution, with full-screen

support for lower resolutions.

SE2719H/SE2719HX: 68.58 cm (27 inch) diagonal viewable area display

(measured diagonally). 1920 x 1080 resolution, with full-screen support for lower

resolutions.

Wide viewing angles of 178 degrees in vertical and horizontal directions.

High dynamic contrast ratio (8,000,000:1).

HDMI connectivity makes it simple and easy to connect with legacy and new

systems.

Plug and play capable if supported by your computer

On-Screen Display (OSD) adjustments is to easy setup and optimize screen.

0.5 W standby power when in the sleep mode.

Optimize eye comfort with a flicker-free screen.

Possible long-term effects if blue light emission from the monitor may cause

damage to the eyes, including eye fatigue or digital eye strain. ComfortView

feature is designed to reduce the amount of blue light emitted from the monitor

to help optimize eye comfort.

Security-lock slot.

Arsenic-free glass and mercury-free panel.

BFR/PVC-Reduced (the circuit boards inside your monitor are made using BFR/

PVC-free laminates).

RoHS Compliant.

Energy Saver feature for Energy Star compliance.

6 | About your monitor

HDMI cable

(SE2419HX and SE2719HX)

Quick Setup Guide

Safety and Regulatory

Information

Product features

The Dell SE2419H/SE2419HX/SE2719H/SE2719HX at panel display has

an active matrix, Thin-Film Transistor (TFT), Liquid Crystal Display (LCD), anti-static,

and LED backlight. The monitor features include:

About your m | r otino 7

Identifying features and controls

Front view

Label Description Use

1 Function buttons To access the OSD menu and change

the settings if required. (For more

information, see Using the front panel

controls)

Power On/Off button

(with LED indicator)

To turn the monitor On or Off.

8 | About your monitor

Back view

Label Description Use

1 Security-lock slot To secure the monitor using a security

lock (purchased separately).

2 Regulatory label, barcode, serial

number, and Service Tag label

List the regulatory approvals. See this

label if you need to contact Dell for

technical support. The Service Tag is a

enables Dell service technicians to

identify the hardware components in

your computer and access warranty

information.

3 Regulatory information (engraved) List the regulatory approvals.

5 Stand release button Release stand from monitor.

4 Cable-management slot To organize the cables.

Side view

With monitor stand

Without monitor stand

321

About your monitor | 9

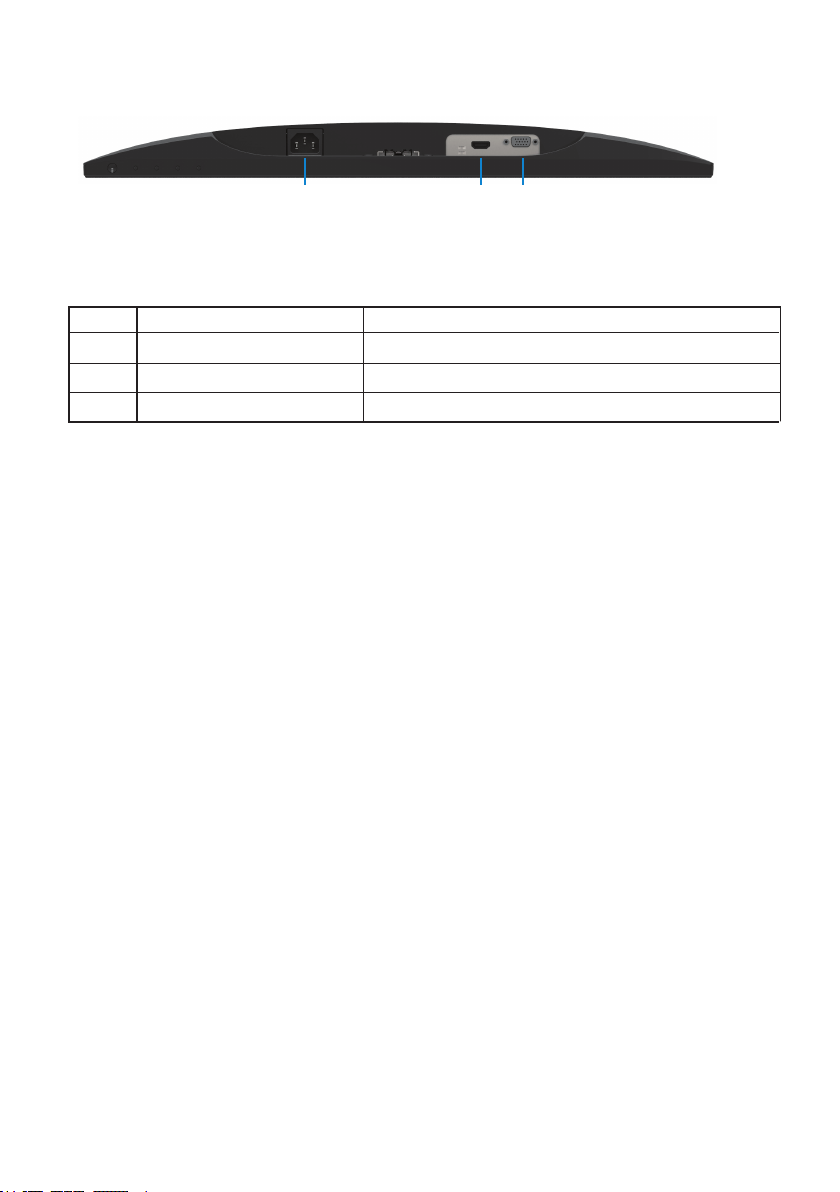

Bottom view, without monitor stand

Label Description Use

1 Power port To connect the monitor power cable.

VGA port

HDMI port

2 3

For connection to your computer using VGA cable.

For connection to your computer using HDMI cable.

SE2419H/SE2419HX/SE2719H/SE2719HX

527.04 mm (20.75 in.)

296.46 mm (11.67 in.)

1562.46 cm2(242.15 in.2

10 | About your monitor

Monitor specications

Model SE2419H/SE2419HX SE2719H/SE2719HX

Screen type Active matrix-TFT LCD

Panel type In-Plane Switching

Viewable area

Diagonal

Active area:

Horizontal

Vertical

Area

604.70 mm (23.81 in. )

)

686.00 mm (27 in. )

597.89 mm (23.54 in. )

336.31 mm (13.24 in.)

2010.76 cm2(311.67 in.2)

Pixel pitch 0.2745 mm 0.3114 mm

Pixel per inch (PPI) 92 81

Viewing angle:

Vertical

Horizontal

178° (typical)

Brightness 250 cd/m (typical) 300 cd/m (typical)

Contrast ratio 1,000 to 1 (typical)

8,000,000 to 1 (Dynamic Contrast)

Faceplate coating Anti-glare with 3H hardness

Backlight LED edgelight system

8 ms

5 ms

Color depth 16.7 million colors

Color gamut CIE 1931 (72%)

Dell display manager

compatibility

Yes

Connectivity One VGA port and one HDMI 1.4 (HDCP 1.4) port with

SE2419H/SE2419HX/SE2719H/SE2719HX monitors.

Bezel width (edge of

monitor to active area)

6.2 mm (Top)

6.2 mm (Left/Right)

20.5 mm (Bottom)

6.8 mm (Top)

6.8 mm (Left/Right)

21.1 mm (Bottom)

Security Security-lock slot for cable lock (optional purchase)

Tilt angle -5° to 21°

Response time (Gray to Gray):

Normal mode

Fast mode
