Dell 8DE210AZZE Manual de usuario

Monitor Model: S3422DWG

Regulatory Model: S3422DWGc

Dell S3422DWG

User’s Guide

2 │

NOTE: A NOTE indicates important information that helps you make

better use of your computer.

CAUTION: A CAUTION indicates potential damage to hardware or loss

of data if instructions are not followed.

WARNING: A WARNING indicates a potential for property damage,

personal injury, or death.

are trademarks of Dell Inc. or its subsidiaries. Other trademarks may be trademarks of their respective

owners.

2022 – 09

Rev. A04

│3

Contents

Safety instructions.......................... 6

About your monitor ..........................7

Package contents . . . . . . . . . . . . . . . . . . . . . . 7

Product features . . . . . . . . . . . . . . . . . . . . . . .8

Identifying parts and controls . . . . . . . . . . . . . . . 10

Front view . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10

Back view . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11

Side view. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12

Bottom view . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12

Monitor specifications . . . . . . . . . . . . . . . . . . . 15

Resolution specifications . . . . . . . . . . . . . . . . . . . . . . 17

Supported video modes . . . . . . . . . . . . . . . . . . . . . . . 17

Preset display modes . . . . . . . . . . . . . . . . . . . . . . . . 18

Electrical specifications. . . . . . . . . . . . . . . . . . . . . . . 26

Physical characteristics. . . . . . . . . . . . . . . . . . . . . . . 27

Environmental characteristics . . . . . . . . . . . . . . . . . . . 28

Plug and play capability . . . . . . . . . . . . . . . . . . . . . . .29

LCD monitor quality and pixel policy . . . . . . . . . . . 29

Ergonomics. . . . . . . . . . . . . . . . . . . . . . . . . 30

Handling and moving your display . . . . . . . . . . . . . 32

Maintenance guidelines . . . . . . . . . . . . . . . . . . 33

Cleaning your monitor. . . . . . . . . . . . . . . . . . . . . . . . 33

4 │

Setting up the monitor ...................... 34

Connecting the stand . . . . . . . . . . . . . . . . . . . 34

Connecting your monitor . . . . . . . . . . . . . . . . . 35

Connecting the HDMI, DP 1.4 and USB 3.0 cable . . . . . . . . . 36

Organizing cables . . . . . . . . . . . . . . . . . . . . . 36

Securing your monitor using Kensington (optional) . . . 37

Removing the stand . . . . . . . . . . . . . . . . . . . . 38

Wall mounting (optional) . . . . . . . . . . . . . . . . . 39

Operating your monitor ......................41

Power on the monitor . . . . . . . . . . . . . . . . . . . 41

Using the joystick control . . . . . . . . . . . . . . . . . 41

Joystick Description . . . . . . . . . . . . . . . . . . . . . . . . 42

Using the rear-panel controls . . . . . . . . . . . . . . . 42

Using the On-Screen Display (OSD) menu . . . . . . . . 44

Accessing the menu system . . . . . . . . . . . . . . . . . . . . 44

OSD warning messages . . . . . . . . . . . . . . . . . . . . . . . . .55

Setting up your monitor . . . . . . . . . . . . . . . . . . 58

Setting the maximum resolution . . . . . . . . . . . . . . . . . . 58

Using the tilt and vertical extension. . . . . . . . . . . . 59

Tilt Extension . . . . . . . . . . . . . . . . . . . . . . . . . . . . 59

Vertical Extension . . . . . . . . . . . . . . . . . . . . . . . . . .59

Troubleshooting ........................... 60

Self-Test . . . . . . . . . . . . . . . . . . . . . . . . . . 60

Built-in diagnostics . . . . . . . . . . . . . . . . . . . . 62

│5

Common problems . . . . . . . . . . . . . . . . . . . . . 64

Product-specific problems . . . . . . . . . . . . . . . . 67

Appendix................................. 68

Safety Instructions . . . . . . . . . . . . . . . . . . . . . . .68

FCC notices (U.S. Only) and other regulatory information68

Contacting Dell. . . . . . . . . . . . . . . . . . . . . . . 69

Stability Hazard. . . . . . . . . . . . . . . . . . . . . . . 70

6 │Safety instructions

Safety instructions

CAUTION: Use of controls, adjustments, or procedures other than

those specified in this documentation may result in exposure to shock,

electrical hazards, and/or mechanical hazards.

∞Place the monitor on a solid surface and handle it carefully. The screen is fragile

and can be damaged if dropped or hit sharply.

∞Always be sure that your monitor is electrically rated to operate with the AC

power available in your location.

∞Keep the monitor in room temperature. Excessive cold or hot conditions can have

an adverse effect on the liquid crystal of the display.

∞Do not subject the monitor to severe vibration or high impact conditions. For

example, do not place the monitor inside a car trunk.

∞Unplug the monitor when it is going to be left unused for an extended period of

time.

∞To avoid electric shock, do not attempt to remove any cover or touch the inside

of the monitor.

About your monitor │7

About your monitor

Package contents

Your monitor ships with the components shown below. Ensure that you have

received all the components and see Contacting Dell for more information if

something is missing.

NOTE: Some items may be optional and may not ship with your monitor.

Some features or media may not be available in certain countries.

Monitor

Stand riser

Stand base

Power cable (varies by

countries)

HDMI 2.0 cable

8 │About your monitor

USB 3.0 upstream cable

(enables the USB ports on the

monitor)

DP1.4 Cable

∞Quick Setup Guide

∞Safety and Regulatory

Information

Product features

The Dell S3422DWG monitor has an active matrix, Thin-Film Transistor (TFT),

Liquid Crystal Display (LCD), anti-static, and LED backlight. The monitor features

include:

∞86.42 cm (34.0 in.) viewable area display (measured diagonally). 3440 x 1440

resolution, with full-screen support for lower resolutions.

∞Supports the high refresh rates of 100 Hz and 144 Hz and a rapid response time

of 1 ms in MPRT mode.

NOTE: 1 ms is achievable in the MPRT mode to reduce visible motion blur and

increased image responsiveness. However, this may introduce some slight and

noticeable visual artifacts into the image. As every system setup and every

gamer’s needs are different, we recommend that users experiment with the

different modes to find the setting that is right for them.

∞AMD FreeSync™ Premium Pro for Tear free, stutter free, low latency HDR

gaming.

∞Color gamut of sRGB 99% and DCI-P3 90%.

∞VESA DisplayHDR™ 400.

About your monitor │9

∞Enabled with gaming console VRR supportability.

∞Digital connectivity with DP and HDMI.

∞Equipped with one SuperSpeed USB 5 Gbps (USB 3.2 Gen1) Type B upstream

port, one SuperSpeed USB 5 Gbps (USB 3.2 Gen1) Type-A downstream charging

port, and three SuperSpeed USB 5 Gbps (USB 3.2 Gen1) Type-A downstream

ports.

∞Plug and play capability if supported by your computer.

∞On-Screen Display (OSD) adjustments for ease of setup and screen optimization.

∞Removable stand and Video Electronics Standards Association (VESA™) 100 mm

mounting holes for flexible mounting solutions.

∞Tilt, swivel and height adjustment capabilities.

∞Security-lock slot.

∞≤0.3 W in the Standby Mode

∞Supports Dell Display Manager.

∞Optimize eye comfort with a flicker-free screen and Comfortview feature which

minimizes blue light emission.

WARNING:The possible long-term effects of blue light emission from

the monitor may cause damage to the eyes, including eye fatigue, digital

eye strain, and so on. ComfortView feature is designed to reduce the

amount of blue light emitted from the monitor to optimize eye comfort.

WARNING:If provided with a 3-pin attachment plug on the power

cord, plug the cord into a grounded (earthed) 3-pin outlet. Do not disable

the power cord grounding pin, for example, by attaching a 2-pin adapter.

The grounding pin is an important safety feature.

WARNING:Please confirm the distribution system in building

installation shall provide the circuit breaker rated 120/240V, 20A

(maximum).

10 │About your monitor

Identifying parts and controls

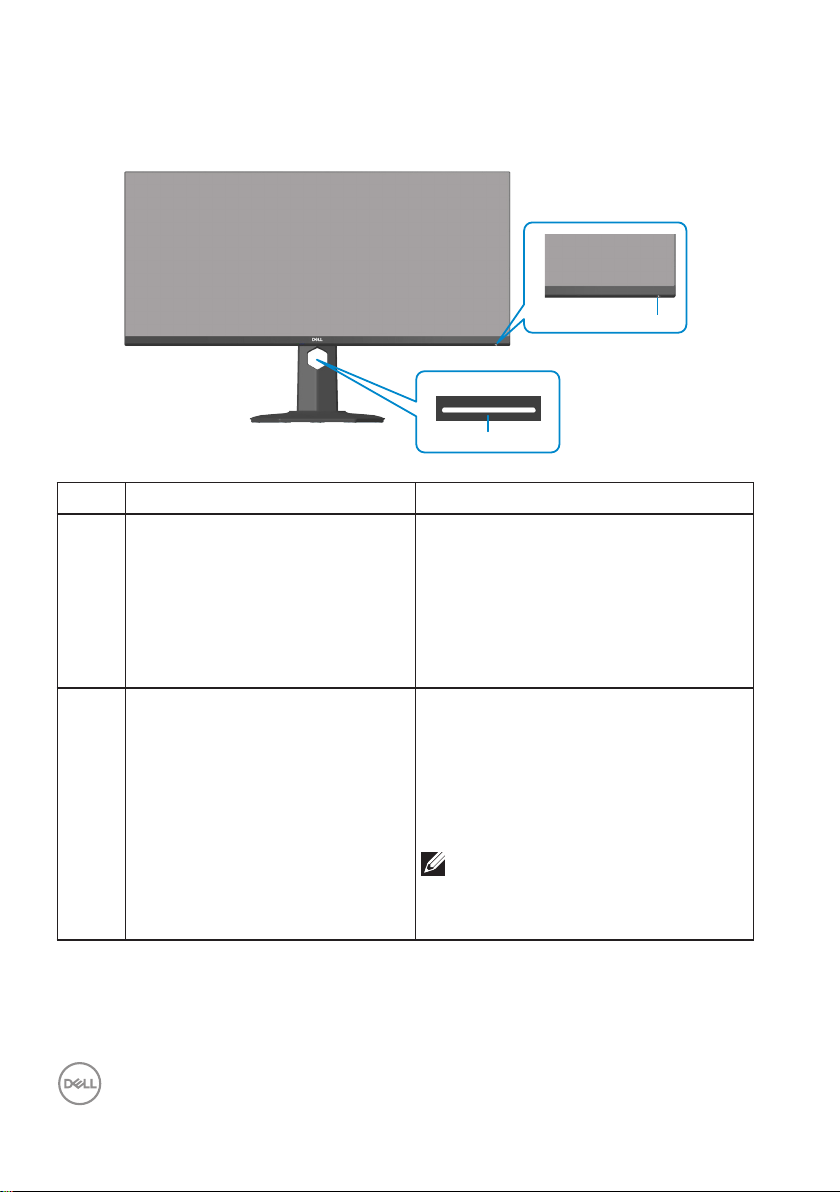

Front view

Label Description Use

1Power On/Off button Use the power button to turn the

monitor on and off.

Solid white light indicates the monitor

is turned on and functioning normally.

Blinking white light indicates the

monitor is in Standby Mode.

2 Downlights When the monitor is completely set

up, tap the touch sensor to turn the

downlights on or off. (see Downlights).

This feature can be activated or

deactivated via the OSD (see

Downlight).

NOTE: On monitors that are

manufactured from July 2021, the

downlights can be turned on or off

only using the OSD menu.
