Dell S2718H Manual de usuario

Model No.: S2718H/S2718HX

Regulatory model: S2718Hc

User’s Guide

Dell S2718H/S2718HX

Notes, cautions, and warnings

NOTE: A NOTE indicates important information that helps you make better

use of your computer.

CAUTION: A CAUTION indicates potential damage to hardware or loss of

data if instructions are not followed.

WARNING: A WARNING indicates a potential for property damage, personal

injury or death.

_________________________

Information in this document is subject to change without notice.

Reproduction of these materials in any manner whatsoever without the written permission

of Dell Inc. is strictly forbidden.

Trademarks used in this text: Dell and the DELL logo are trademarks of Dell Inc.; Microsoft

and Windows are either trademarks or registered trademarks of Microsoft. Corporation in

the United States and/or other countries, Intel is a registered trademark of Intel Corporation

in the U.S. and other countries; and ATI is a trademark of Advanced Micro Devices, Inc.

ENERGY STAR is a registered trademark of the U.S. Environmental Protection Agency. As an

ENERGY STAR partner, Dell Inc. has determined that this product meets the ENERGY STAR

guidelines for energy efficiency.

Other trademarks and trade names may be used in this document to refer to either the

entities claiming the marks and names or their products. Dell Inc. disclaims any proprietary

interest in trademarks and trade names other than its own.

2017 - 03 Rev. A01

Contents | 3

Contents

About your monitor ................................................................ 5

Package contents ..................................................................................5

Product features ....................................................................................6

Identifying parts and controls .............................................................8

Monitor specifications ........................................................................ 11

Plug and play capability......................................................................18

LCD monitor quality and pixel policy ..............................................19

Maintenance guidelines......................................................................19

Setting up the monitor .........................................................20

Connecting the stand ........................................................................ 20

Connecting your monitor ..................................................................22

Setting Up Your Speaker.....................................................................23

Organizing cables ................................................................................25

Removing the Speaker........................................................................25

Removing the stand ............................................................................27

Computer Playback Default Setting.................................................29

Speaker and Computer Volume Controls Setting .........................29

Operating your monitor.......................................................33

Power on the monitor.........................................................................33

Using the control buttons..................................................................33

Using the on-screen display (OSD) menu .......................................35

Setting up your monitor .................................................................... 48

Using tilt.................................................................................................50

Troubleshooting.................................................................... 51

Self-Test.................................................................................................51

Built-in diagnostics .............................................................................52

Common problems..............................................................................53

Quick Troubleshooting Guide...........................................................55

Product-specific problems ................................................................57

Appendix .................................................................................58

FCC notices (U.S. Only) and other regulatory information..........58

Contacting Dell ....................................................................................58

About your monitor | 5

About your monitor

Package contents

Your monitor ships with the components shown below. Ensure that you have

received all the components and see Contacting Dell for more information if

something is missing.

NOTE: Some items may be optional and may not ship with your monitor. Some

features or media may not be available in certain countries.

NOTE: To set up with any other stand, please refer to the respective stand setup

guide for setup instructions.

∞ Monitor

∞ Stand

∞ Power Cable (Varies by

Countries)

∞ Power Adapter

∞ Speaker with Cable Holder

6| About your monitor

∞ HDMI Cable

∞ VGA Cable (Optional)

Dell

SE2717H/SE2717HX Monitor

Drivers and Documentation

P/N 8CVKVRev. A00

P/N F70G27C1700XXA

February2017

Madein China

Dell ™

S2718H/S2718HXMonitor

8CVKVA00

Contents:

• Devicedrivers

• Quick Setup Guide

• User's Guide

• DellD isplayManager Software

∞ Drivers and Documentation

Media

∞ Quick Setup Guide

∞ Safety and Regulatory

Information

Product features

The Dell S2718H/S2718HX flat panel display has an active matrix, Thin-Film Transistor

(TFT), Liquid Crystal Display (LCD), anti-static, and LED backlight. The monitor

features include:

∞ S2718H/S2718HX: 68.6 cm (27 inch) viewable area display (measured

diagonally). 1920 x 1080 resolution, plus full-screen support for lower

resolutions.

∞ Borderless monitor.

∞ Adapted “High Dynamic Range” appropriate for monitor usage.

∞ Wide viewing angle to allow viewing from a sitting or standing position, or while

moving from side-to-side.

∞ VGA and HDMI connectivity makes it simple and easy to connect with legacy

and new systems.

∞ External Speaker (6W) x 1

∞ Plug and play capability if supported by your system.

∞ On-Screen Display (OSD) adjustments for ease of set-up and screen

optimization.

∞ Software and documentation media includes an Information File (INF), Image

Color Matching File (ICM), and product documentation.

∞ Dell Display Manager Software included (in the CD shipped with the monitor).

∞ Energy Saver feature for Energy Star compliance.

∞ Security-lock slot.

∞ BFR/PVC-Reduced (Its circuit boards are made from BFR/PVC-free laminates.)

∞ Arsenic-Free glass and Mercury-Free for the panel only.

About your monitor | 7

∞ High Dynamic Contrast Ratio (8,000,000:1).

∞ 0.3 W standby power when in the sleep mode.

∞ Energy Gauge shows the energy level being consumed by the monitor in real

time.

∞ Optimize eye comfort with a flicker-free screen and ComfortView feature which

minimizes blue light emission.

8| About your monitor

Identifying parts and controls

Front view

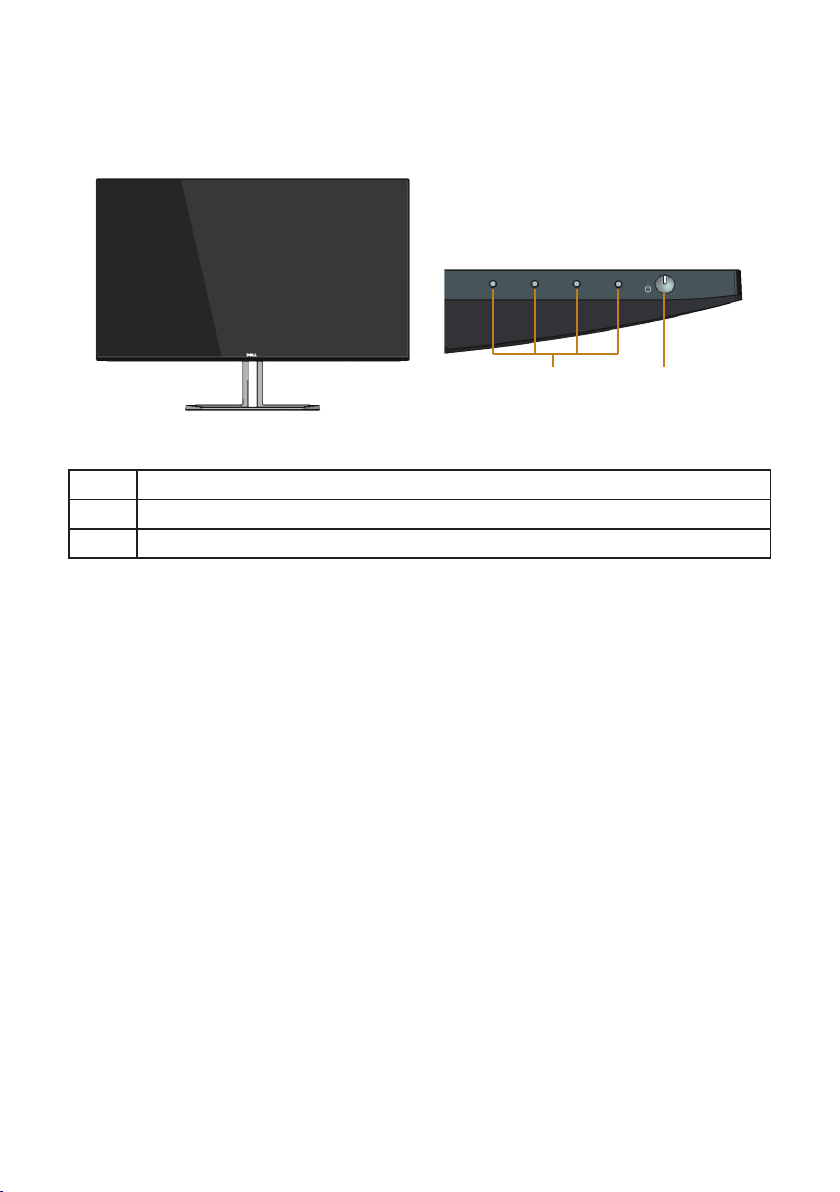

Control buttons

Label Description

1Function buttons (For more information, see Operating your monitor)

2Power On/Off button

About your monitor | 9

Back view

Back View with monitor stand

Label Description Use

1Security-lock slot Secures monitor with security lock

(security lock not included).

2Regulatory label (including

Barcode serial number and

Service Tag label)

Lists the regulatory approvals. Refer to

this label if you need to contact Dell for

technical support. The Dell service tag

is used for Dell warranty and customer

service management purposes and for

records of the base system.

3Regulatory information engraving. Lists the regulatory approvals.

4Stand release button Releases stand from monitor.

5Cable management slot Uses to organize cables by placing them

through the slot.

Side view

10 | About your monitor

Bottom view

2 31 5 6

Bottom view without monitor stand

Label Description Use

1Power-adapter port To connect the monitor power cable using a

19.5V DC adapter.

2Speaker port Connect the speaker cable.

3HDMI port Connect your computer with HDMI cable.

4VGA port Connect your computer with VGA cable

(Optional).

5Audio Line in port Connect the audio cable (Optional Purchase)

from the source device to the monitor.

6Audio Line out port Connect to either an external active speakers or

a sub-woofer (Optional Purchase).

Side view for speaker

1Volume - To decrease the volume of the speaker.

2Volume + To increase the volume of the speaker.
