Dell S2317HWI Manual de usuario

Dell S2317HWi Monitor

User’s Guide

Model: S2317HWi

Regulatory model: S2317HWib

Notes, cautions, and warnings

NOTE: A NOTE indicates important information that helps you make better

use of your computer.

CAUTION: A CAUTION indicates potential damage to hardware or loss of

data if instructions are not followed.

WARNING: A WARNING indicates a potential for property damage,

personal injury, or death.

____________________

This product is protected by U.S. and international copyright and intellectual property laws.

Dell™ and the Dell logo are trademarks of Dell Inc. in the United States and/or other

jurisdictions. Android, Google, Google Play and other marks are trademarks of Google Inc. All

other marks and names mentioned herein may be trademarks of their respective companies.

2016 - 07 Rev. A01

Contents | 3

Contents

About Your Monitor . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5

Introduction . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5

Package Contents . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5

Product Features . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .7

Identifying Parts and Controls . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .8

Monitor Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .12

Plug and Play Capability . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .17

Universal Serial Bus (USB) Interface. . . . . . . . . . . . . . . . . . . . . . . . . . . . 18

LCD Monitor Quality and Pixel Policy . . . . . . . . . . . . . . . . . . . . . . . . . . 18

Maintenance Guidelines. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19

Setting Up the Monitor . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20

Attaching the Stand. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20

Connecting Your Monitor . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .21

Organizing Your Cables . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22

Removing the Monitor Stand . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22

Operating the Monitor. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24

Power On the Monitor . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24

Power Off the Monitor . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24

Using the Front-Panel Controls . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25

4| Contents

Front-Panel Button . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26

Using the On-Screen Display (OSD) Menu . . . . . . . . . . . . . . . . . . . . . 27

Setting the Maximum Resolution . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 39

Using Tilt . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 40

Using the Wireless Charging Base . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 40

Mirroring Your Device's Screen on the Monitor . . . . . . . . . . 44

Setting Up Wireless Connection. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 44

Connecting the Monitor via Screencast or Screen Mirror . . . . . . . 46

Troubleshooting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 65

Self-Test . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 65

Built-in Diagnostics . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 66

Common Problems . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 67

Product Specific Problems . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 69

Universal Serial Bus (USB) Specific Problems . . . . . . . . . . . . . . . . . . . 69

Wireless Connection Problems . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 70

Wireless Charging Specific Problems . . . . . . . . . . . . . . . . . . . . . . . . . . 70

Appendix . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 71

FCC Notices (U.S. Only) and Other Regulatory Information . . . . . . .71

Contact Dell. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .71

About Your Monitor | 5

About Your Monitor

Introduction

The Dell Wireless Monitor enables your laptop computer, Tablet & Mobile Phone devices

to display your screen image via WiFi Direct interface. When you connect the Laptop,

Tablet & Mobile Phone to the Dell Wireless Monitor, you can access the mouse &

keyboard connected to the Monitor to control the Compute device (Laptop, Tablet or

Mobile Phone).

Dell Wireless Monitor also enables your Laptop & Mobile Phone to be connected

simultaneously via WiFi Direct interface. The Laptop displayed in full screen and the

Mobile Phone will be displayed as an overlay (PiP) image.

NOTE: The monitor is equipped with an antenna of the radio transmitter, so we

recommend that you keep a safe distance of 20 cm at least between the monitor

and you.

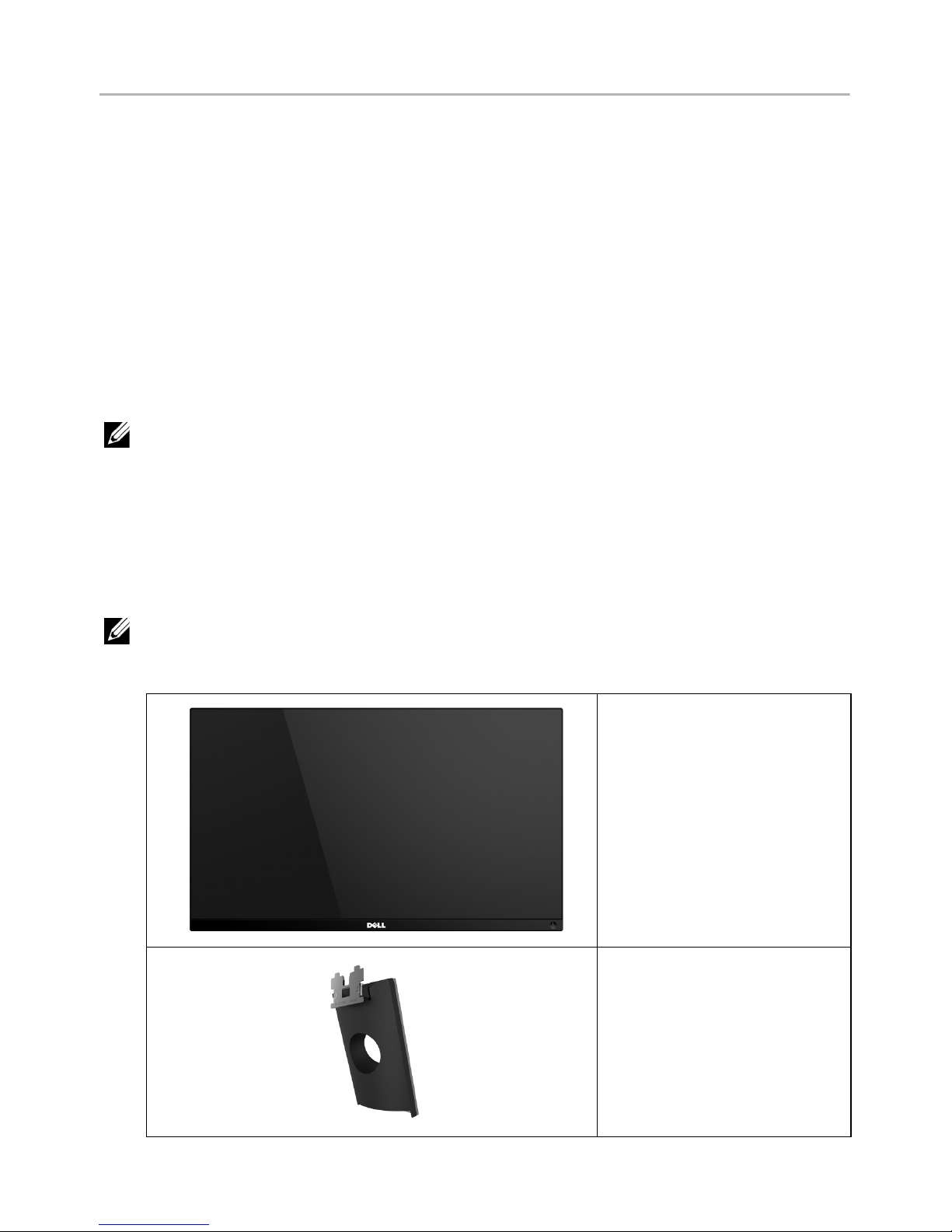

Package Contents

Your monitor ships with the components shown below. Ensure that you have received all

the components and

Contact Dell

if something is missing.

Monitor

Stand Arm

NOTE: Some items may be optional and may not ship with your monitor. Some

features or media may not be available in certain countries.

Wireless Charging Base

Power Adapter

Power Cable (Varies by

Country)

HDMI Cable

•Drivers and

Documentation Media

•Quick Setup Guide

•Safety, Environmental,

and Regulatory

Information

•Wireless Safety and

Regulatory Information

6| About Your Monitor

About Your Monitor | 7

Product Features

The Dell S2317HWi flat panel display has an active matrix, Thin-Film Transistor (TFT),

Liquid Crystal Display (LCD) and LED backlight. The monitor features include:

•58.42 cm (23-inch) viewable area display (measured diagonally).

1920 x 1080 resolution, plus full-screen support for lower resolutions.

•Wireless connectivity via IEEE 802.11 ac, bluetooth, and Screencast.

•Wide viewing angle to allow viewing from a sitting or standing position, or while

moving from side-to-side.

•Plug and play capability if supported by your system.

•HDMI connectivity makes it simple and easy to connect with legacy and new

systems.

•Built-in Speaker (3 W) x 2.

•On-Screen Display (OSD) adjustments for ease of set-up and screen optimization.

•Software and documentation media includes an Information File (INF), Image Color

Matching File (ICM), and product documentation.

•Dell Display Manager Software included (in the CD shipped with the monitor).

•Screenovate drivers/app to support additional/enhanced HID sharing features will

be included for Windows®7/8.x/10.

•Security-lock slot.

•Capability to switch from wide aspect to standard aspect ratio while maintaining

the image quality.

•TCO-Certified Displays.

•BFR/PVC- Reduced.

•High Dynamic Contrast Ratio (8,000,000:1).

•3 W standby power when in the Wireless Standby mode.

•Energy Gauge shows the energy level being consumed by the monitor in real time

(consumption from the wireless charging base is not included).

•Wireless charging stand base, designed for Qi/PMA compliance*, makes wireless

charging possible for your smartphones or mobile devices.

* The “Qi” symbol is a trademark of the Wireless Power Consortium; the PMA logo is a

property of Power Matters Alliance, Inc.

8| About Your Monitor

Identifying Parts and Controls

Front View

Front panel controls

Description

1Function buttons (For more information, see

Operating the Monitor

)

2Power On/Off button (with LED indicator)

Label

About Your Monitor | 9

Back View

Back view with monitor stand

Label Description Use

1Stand release latch Releases stand from monitor by using a long

screwdriver to push.

2Security-cable slot Secures monitor with security lock (optional

purchase).

3Barcode serial number

label

Refer to this label if you need to contact Dell for

technical support.

4Cable management slot Use to organize cables by placing them through

the slot.

5DC out cable Plugs to the power-adapter port on the monitor,

with a 19.5 V DC power supply.

6Power-adapter port Connect the power cable of the wireless charging

stand, with a 19.5 V DC power supply.

45-degree side view

Description Use

1Wireless charging LED Notifies the charging status of your Qi/PMA device.

(For more information, see

Charge Status LED

Behavior

)

2Wireless charging pad •Charge your Qi (WPC) or PMA compliance devices.

•Align your device to the pad to get max charging.

10 | About Your Monitor

Side View

Label
