Dell™ S2240M/S2340M Monitor User's Guide
About Your Monitor
Setting Up the Monitor
Operating the Monitor
Troubleshooting
Appendix
Notes, Cautions, Warnings
NOTE: A NOTE indicates important information that helps you make better use of your computer.
CAUTION: A CAUTION indicates potential damage to hardware or loss of data if instructions are not followed.
WARNING: A WARNING indicates a potential for property damage, personal injury, or death.
Information in this document is subject to change without notice.
© 2012 Dell Inc. All rights reserved.
Reproduction of these materials in any manner whatsoever without the written permission of Dell Inc. is strictly forbidden.
Trademarks used in this text: Dell and the DELL logo are trademarks of Dell Inc.; Microsoft and Windows are either trademarks or registered
trademarks of Microsoft Corporation in the United States and/or other countries. ENERGY STAR is a registered trademark of the U.S. Environmental
Protection Agency. As an ENERGY STAR partner, Dell Inc. has determined that this product meets the ENERGY STAR guidelines for energy efficiency.
Other trademarks and trade names may be used in this document to refer to either the entities claiming the marks and names or their products.
Dell Inc. disclaims any proprietary interest in trademarks and trade names other than its own.
Model S2240Mc/S2340Mc
November 2012 Rev. A01
Back to Contents Page
About Your Monitor
Dell™ S2240M/S2340M Monitor User's Guide
Package Contents
Product Features
Identifying Parts and Controls
Monitor Specifications
Plug and Play Capability
LCD Monitor Quality & Pixel Policy
Maintenance Guidelines
Package Contents
Your monitor ships with all the components shown below. Ensure that you have received all the components and Contacting Dell™if anything is missing.
NOTE: Some items may be optional and may not ship with your monitor. Some features or media may not be available in certain countries.
Monitor
Stand Riser
Stand Base
Velcro Strap
Power Cable
Adapter Cable
VGA Cable
DVI-HDMI Dongle (Optional)
Notes: The image is for illustration purpose only and
appearance of the actual dongle included may vary.
Drivers and Documentation media
Quick Setup Guide
Product Information Guide
Product Features
The Dell™S2240M/S2340M flat panel display has an active matrix, Thin-Film Transistor, Liquid Crystal Display. The monitor's features include:
S2240M: 54.61 cm (21.5 inches) viewable area display. 1,920 x 1,080 resolution, plus full-screen support for lower resolutions.
S2340M: 58.42 cm (23.0 inches) viewable area display. 1,920 x 1,080 resolution, plus full-screen support for lower resolutions.
Wide viewing angle to allow viewing from a sitting or standing position, or while moving from side-to-side.
Removable pedestal.
Plug and play capability if supported by your system.
On-Screen Display (OSD) adjustments for ease of set-up and screen optimization.
Software and documentation media which includes an information file (INF), Image Color Matching File (ICM), and product documentation.
Dell Display Manager included (comes in the CD attached with the monitor).
Security lock slot.
Dell Display Manager functionality.
ENERGY STAR compliant.
EPEAT™ Silver compliant.
RoHS compliant.
Identifying Parts and Controls
Front View
1. Function buttons (For more information, see Operating the Monitor)
2. Power On/Off button
3. Power LED indicator
Back View
Label Description Use
1Regulatory rating label Lists the regulatory approvals.
2DVI connector To connect your computer to the monitor using a DVI cable.
3VGA connector To connect your computer to the monitor using a VGA cable.
4Adapter connector To connect the monitor power cable using a 12V DC adapter for transition.
5Security lock slot Use a security lock with the slot to help secure your monitor.
6Barcode serial number label Refer to this label if you need to contact Dell for technical support.
7Cable clip For cable management.
8Stand release button To release stand from monitor.
Side View
Left view Right view
Bottom View
Monitor Specifications
The following sections give you information about the various power management modes and pin assignments for the various connectors of your monitor.
Power Management Modes
If you have VESA's DPM compliance display card or software installed in your PC, the monitor automatically reduces its power consumption when not in use.
This is referred to as Power Save Mode. If the computer detects input from keyboard, mouse, or other input devices, the monitor automatically resumes
functioning. The following table shows the power consumption and signaling of this automatic power saving feature:
VESA Modes Horizontal Sync Vertical Sync Video Power Indicator Power Consumption
Normal operation Active Active Active White 23 W (Maximum) for S2240M
18 W (Typical) for S2240M
24 W (Maximum) for S2340M
19 W (Typical) for S2340M
Active-off mode Inactive Inactive Blank Amber Less than 0.5 W
Switch off - - - Off Less than 0.5 W
The OSD will only function in the normal operation mode. When any button except power button is pressed in Active-off mode, the following messages will be
displayed:
Activate the computer and monitor to gain access to the OSD.
NOTE: Dell S2240M/S2340M monitor is ENERGY STAR®-compliance.
* Zero power consumption in OFF mode can only be achieved by disconnecting the main cable from the monitor.
** Maximum power consumption with max luminance and contrast.
Pin Assignments
15-pin D-Sub connector
Pin Number Monitor Side of the 15-pin Side Signal Cable
1 Video-Red
2 Video-Green
3 Video-Blue
4 GND
5 Self-test
6 GND-R
7 GND-G
8 GND-B
9DDC +5V
10 GND-sync
11 GND
12 DDC data
13 H-sync
14 V-sync
15 DDC clock
DVI Connector
Pin
Number 24-pin Side of the Connected Signal
Cable
1TMDS RX2-
2TMDS RX2+
3TMDS Ground
4 Floating
5 Floating
6DDC Clock
7DDC Data
8 Floating
9TMDS RX1-
10 TMDS RX1+
11 TMDS Ground
12 Floating
13 Floating
14 +5 V power
15 Self test
16 Hot Plug Detect
17 TMDS RX0-
18 TMDS RX0+
19 TMDS Ground
20 Floating
21 Floating
22 TMDS Ground
23 TMDS Clock+
24 TMDS Clock-
Plug and Play Capability
You can install the monitor in any Plug and Play compatible system. The monitor automatically provides the computer with its Extended Display Identification
Data (EDID) using Display Data Channel (DDC) protocols so that the system can configure itself and optimize the monitor settings. Most monitor installations
are automatic. You can select different settings if required.
Flat Panel Specifications
Model number Dell S2240M monitor Dell S2340M monitor
Screen type Active matrix - TFT LCD Active matrix - TFT LCD
Panel Type IPS IPS
Screen dimensions 54.61 cm (21.5 inches) (21.5-inch viewable
image size) 58.42 cm (23 inches) (23-inch wide viewable
image size)
Preset display area:
Horizontal
Vertical
476.06 mm (18.76 inches)
267.78 mm (11.85 inches)
509.18 mm (20.05 inches)
286.41 mm (11.28 inches)
Pixel pitch 0.248 mm 0.265 mm
Viewing angle
Horizontal
Vertical
178 ° typical
178 ° typical
178 ° typical
178 ° typical
Luminance output 250 cd/m² (typical) 250 cd/m² (typical)
Contrast ratio 1,000 to 1 (typical) 1,000 to 1 (typical)
Dynamic Contrast Ratio 8,000,000 to 1 (typical) * 8,000,000 to 1 (typical) *
Faceplate coating Glare with hard-coating 3H Glare with hard-coating 3H
Backlight LED light bar system LED light bar system
Response Time 14 ms(typical)
7 ms(typical) with Overdrive 14 ms(typical)
7 ms(typical) with Overdrive
Color Depth 16.7 mil colors 16.7 mil colors
Color Gamut 82 % (typical) ** 82 % (typical) **
* Based on estimation.
** [S2240M/S2340M] color gamut (typical) is based on CIE1976 (82 %) and CIE1931 (72 %) test standards.
Resolution Specifications
Model number Dell S2240M monitor Dell S2340M monitor
Scan range
Horizontal
Vertical
30 kHz to 83 kHz (automatic)
56 Hz to 76 Hz (automatic)
30 kHz to 83 kHz (automatic)
56 Hz to 76 Hz (automatic)
Maximum preset resolution 1,920 x 1,080 at 60 Hz 1,920 x 1,080 at 60 Hz

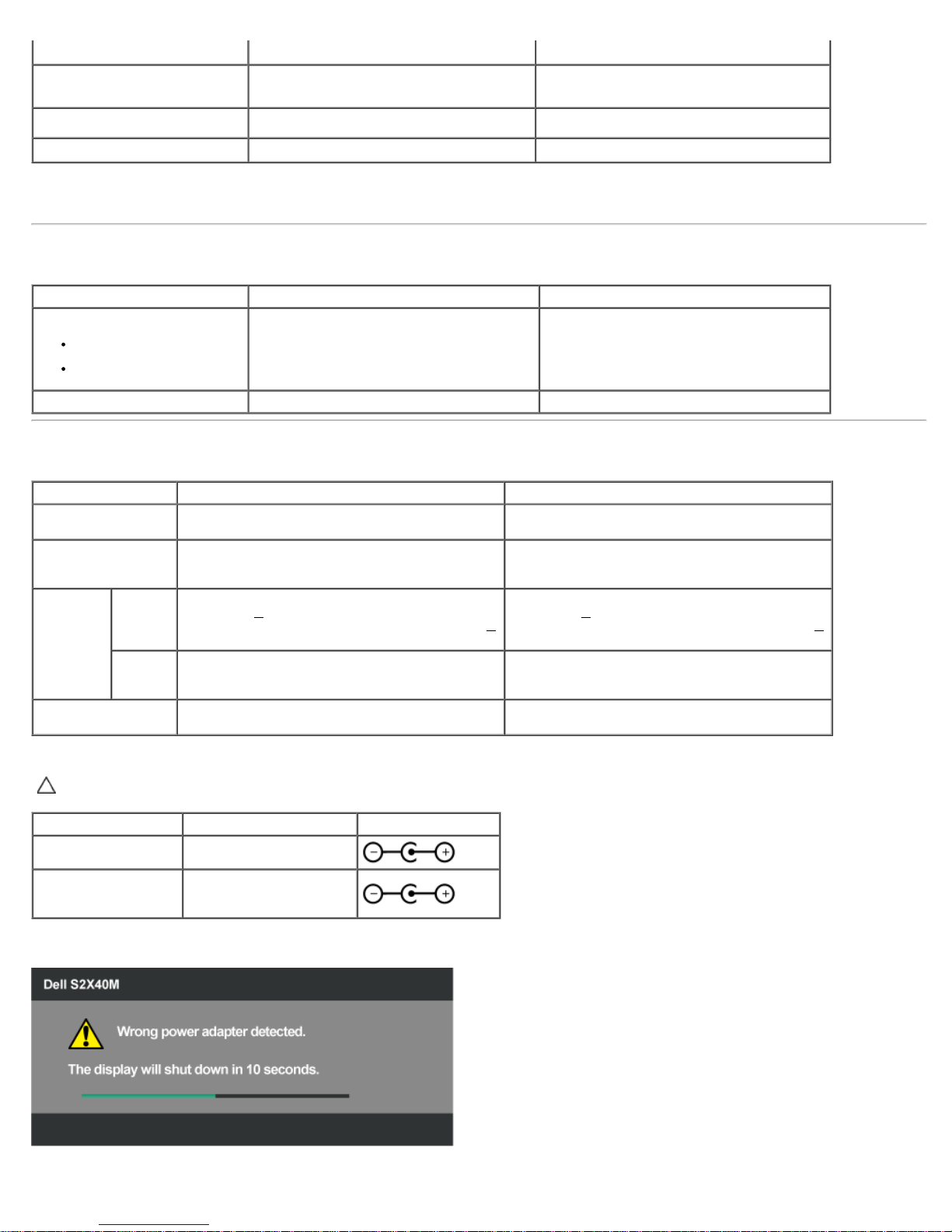

Electrical Specifications
Model number Dell S2240M monitor Dell S2340M monitor
Video input signals Analog RGB: 0.7 Volts +/- 5 %, 75 ohm input
impedance Analog RGB: 0.7 Volts +/- 5 %, 75 ohm input
impedance
Synchronization input
signals
Separate horizontal and vertical synchronizations,
polarity-free TTL level, SOG (Composite SYNC on
green)
Separate horizontal and vertical synchronizations,
polarity-free TTL level, SOG (Composite SYNC on
green)
AC/DC
Adapter*
input
voltage /
frequency
/ current
Delta adapter ADP-40DD B: 100 VAC to 240 VAC / 50
Hz to 60 Hz +3 Hz / 1.5 A (Max.), Lite-On adapter
PA-1041-71 : 100 VAC to 240 VAC / 50 Hz or 60 Hz +
3 Hz / 1.2 A (Max.)
Delta adapter ADP-40DD B: 100 VAC to 240 VAC / 50
Hz to 60 Hz +3 Hz / 1.5 A (Max.), Lite-On adapter
PA-1041-71 : 100 VAC to 240 VAC / 50 Hz or 60 Hz +
3 Hz / 1.2 A (Max.)
output
voltage /
current OUTPUT: 12 VDC / 3.33 A OUTPUT: 12 VDC / 3.33 A
Inrush current 120 V: 30 A (Max.)
240 V: 60 A (Max.) 120 V: 30 A (Max.)
240 V: 60 A (Max.)
* Qualified Compatible AC/DC adapters:
CAUTION: To avoid damage to the monitor, use only the adapter designed for this particular Dell monitor.
Manufacturer Model Polarity
Delta ADP-40DD BA
Lite-On PA-1041-71TP-LF
This monitor comes equipped with a failsafe mechanism to shut down the monitor when a non-compliant power adapter is plugged in the DC socket.
The following message will be displayed when the monitor has detected that a wrong power adapter is used.
To avoid damage to the unit, user is strongly advised to use the original power adapter that comes packaged together with the monitor.
Preset Display Modes
The following table lists the preset modes for which Dell guarantees image size and centering:
S2240M:
Display Mode Horizontal Frequency
(kHz) Vertical Frequency
(Hz) Pixel Clock (MHz) Sync Polarity
(Horizontal/Vertical)
VESA, 720 x 400 31.5 70.0 28.3 -/+
VESA, 640 x 480 31.5 60.0 25.2 -/-
VESA, 640 x 480 37.5 75.0 31.5 -/-
VESA, 800 x 600 37.9 60.0 40.0 +/+
VESA, 800 x 600 46.9 75.0 49.5 +/+
VESA, 1,024 x 768 48.4 60.0 65.0 -/-
VESA, 1,024 x 768 60.0 75.0 78.8 +/+
VESA, 1,152 x 864 67.5 75.0 108.0 +/+
VESA, 1,280 x 1,024 64.0 60.0 108.0 +/+
VESA, 1,280 x 1,024 80.0 75.0 135.0 +/+
VESA, 1,920 x 1,080 67.5 60.0 148.5 +/+
S2340M:
Display Mode Horizontal Frequency
(kHz) Vertical Frequency
(Hz) Pixel Clock (MHz) Sync Polarity
(Horizontal/Vertical)
VESA, 720 x 400 31.5 70.0 28.3 -/+
VESA, 640 x 480 31.5 60.0 25.2 -/-
VESA, 640 x 480 37.5 75.0 31.5 -/-
VESA, 800 x 600 37.9 60.0 40.0 +/+
VESA, 800 x 600 46.9 75.0 49.5 +/+
VESA, 1,024 x 768 48.4 60.0 65.0 -/-
VESA, 1,024 x 768 60.0 75.0 78.8 +/+
VESA, 1,152 x 864 67.5 75.0 108.0 +/+
VESA, 1,280 x 1,024 64.0 60.0 108.0 +/+
VESA, 1,280 x 1,024 80.0 75.0 135.0 +/+
VESA, 1,920 x 1,080 67.5 60.0 148.5 +/+
Physical Characteristics
The following table lists the monitor's physical characteristics:
Model Number Dell S2240M monitor Dell S2340M monitor
Connector type D-subminiature, blue connector;
DVI
D-subminiature, blue connector;
DVI
Signal cable type Analog: attachable, D-Sub, 15 pins, shipped
detached from the monitor Analog: attachable, D-Sub, 15 pins, shipped
detached from the monitor
Dimensions: (with stand)
Height
Width
Depth
380.28 mm (14.97 inches)
499.10 mm (19.65 inches)
175.80 mm (6.92 inches)
398.90 mm (15.70 inches)
532.20 mm (20.95 inches)
175.80 mm (6.92 inches)
Dimensions: (without stand)
Height
Width
Depth
297.60 mm (11.72 inches)
499.10 mm (19.65 inches)
37.80 mm (1.49 inches)
316.20 mm (12.45 inches)
532.20 mm (20.95 inches)
37.80 mm (1.49 inches)
Stand dimensions:
Height
Width
Depth
137.10 mm (5.40 inches)
175.80 mm (6.92 inches)
175.80 mm (6.92 inches)
137.10 mm (5.40 inches)
175.80 mm (6.92 inches)
175.80 mm (6.92 inches)
Weight:
Weight with packaging
4.60 kg (10.14 lb)
4.95 kg (10.91 lb)
Weight with stand assembly, cables,
adapter, and dongle 3.69 kg (8.14 lb) 3.91 kg (8.62 lb)
Weight of stand assembly 0.60 kg (1.32 lb) 0.60 kg (1.32 lb)
Environmental Characteristics
The following table lists the environmental conditions for your monitor:
Model Number Dell S2240M monitor Dell S2340M monitor
Temperature
Operating
Non-operating
0 ° C to 40 ° C (32 ° F to 104 ° F)
Storage: -20 ° C to 60 ° C (-4 ° F to 140 ° F)
Shipping: -20 ° C to 60 ° C (-4 ° F to 140 ° F)
0 ° C to 40 ° C (32 ° F to 104 ° F)
Storage: -20 ° C to 60 ° C (-4 ° F to 140 ° F)
Shipping: -20 ° C to 60 ° C (-4 ° F to 140 ° F)
Humidity
Operating
Non-operating
10 % to 80 % (non-condensing)
Storage: 5 % to 90 % (non-condensing)
Shipping: 5 % to 90 % (non-condensing)
10 % to 80 % (non-condensing)
Storage: 5 % to 90 % (non-condensing)
Shipping: 5 % to 90 % (non-condensing)
Altitude
Operating
Non-operating
5,000 m (16,405 ft) max
12,192 m (40,000 ft) max
5,000 m (16,405 ft) max
12,192 m (40,000 ft) max
Thermal dissipation 78.43 BTU/hour (maximum)
61.38 BTU/hour (typical)
81.84 BTU/hour (maximum)
64.79 BTU/hour (typical)
LCD Monitor Quality & Pixel Policy
During the LCD Monitor manufacturing process, it is not uncommon for one or more pixels to become fixed in an unchanging state. The visible result is a
fixed pixel that appears as an extremely tiny dark or bright discolored spot. When the pixel remains permanently lit, it is known as a "bright dot". Wh en the
pixel remains black, it is known as a "dark dot".
In almost every case, these fixed pixels are hard to see and do not detract from display quality or usability. A display with 1 to 5 fixed pixels is considered
normal and within competitive standards. For more information, see Dell Support site at: support.dell.com.
Maintenance Guidelines
Caring for Your Monitor
CAUTION: Read and follow the safety instructions before cleaning the monitor.
CAUTION: Before cleaning the monitor, unplug the monitor power cable from the electrical outlet.
For best practices, follow the instructions in the list below while unpacking, cleaning, or handling your monitor:
To clean your antistatic screen, slightly dampen a soft, clean cloth with water. If possible, use a special screen-cleaning tissue or solution suitable for
the antistatic coating. Do not use benzene, thinner, ammonia, abrasive cleaners, or compressed air.
Use a slightly dampened, warm cloth to clean the plastics. Avoid using detergent of any kind as some detergents leave a milky film on the plastics.
If you notice a white powder when you unpack your monitor, wipe it off with a cloth. This white powder occurs during the shipping of the monitor.
Handle your monitor with care as a darker-colored monitor may scratch and show white scuff marks more than a lighter-colored monitor.
To help maintain the best image quality on your monitor, use a dynamically changing screen saver and power off your monitor when not in use.
Back to Contents Page
Este manual sirve para los siguientes modelos
1
Tabla de contenidos
Otros manuales de Monitor de Dell
Dell
Dell Professional P2412H Manual de usuario
Dell
Dell P7524QT Manual de usuario
Dell
Dell UltraSharp U2917W Manual de usuario
Dell
Dell 1706FPVT - 17" - DVI/VGA TFT LCD Monitor Manual de usuario
Dell
Dell E2020HB Instrucciones de uso
Dell
Dell UltraSharp U2419H Manual de usuario
Dell
Dell E1910H - 19" LCD Monitor Manual de usuario
Dell
Dell UltraSharp 27 UP2715K Manual de usuario
Dell
Dell E1914H Manual de usuario
Dell
Dell E151FPb Manual de usuario
Dell
Dell SE2717H? SE2717HX Manual de usuario
Dell
Dell P2018H Manual de usuario
Dell
Dell OptiPlex 7090 Ultra Manual de usuario
Dell
Dell UltraSharp 1504FP Manual de usuario
Dell
Dell PowerEdge Rack Console 15FP Manual de usuario
Dell
Dell ST2210B Manual de usuario
Dell
Dell S2421Ho Manual de usuario
Dell
Dell D1918H Manual de usuario
Dell
Dell UltraSharp 27 Manual de usuario
Dell
Dell S2421HSX Manual de usuario
