Dell E2014T Manual de usuario

Regulatory model: E2014Tt

User’s Guide

Dell E2014T

NOTE: A NOTE indicates important information that helps you make better

use of your computer.

CAUTION: A CAUTION indicates potential damage to hardware or loss of

data if instructions are not followed.

WARNING: A WARNING indicates a potential for property damage, personal

injury, or death.

Information in this document is subject to change without notice.Reproduction of these

materials in any manner whatsoever without the written permission of Dell Inc. is strictly

forbidden. Trademarks used in this text: Dell™, the DELL logo are trademarks of Dell Inc.;

Microsoft®, Windows®, and the Windows start button logo are either trademarks or registered

trademarks of Microsoft Corporation in the United States and/or other countries; Other

trademarks and trade names may be used in this document to refer to either the entities

claiming the marks and names or their products. Dell Inc. disclaims any proprietary interest in

trademarks and trade names other than its own.

2014 – 03 Rev. A02

3

Contents

About Your Monitor .............................5

Package Contents . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5

Features . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7

Parts and Controls . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8

Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10

Plug-and-Play . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17

LCD Monitor Quality and Pixel Policy. . . . . . . . . . . . . . . . 17

Maintenance Guidelines. . . . . . . . . . . . . . . . . . . . . . . . 17

Setting Up the Monitor..........................18

Attaching the Stand . . . . . . . . . . . . . . . . . . . . . . . . . . 18

Connecting Your Monitor. . . . . . . . . . . . . . . . . . . . . . .19

Organizing Cables . . . . . . . . . . . . . . . . . . . . . . . . . . .20

Removing the Stand . . . . . . . . . . . . . . . . . . . . . . . . . . 20

Wall Mounting (Optional) . . . . . . . . . . . . . . . . . . . . . . . 21

Operating the Monitor ..........................22

Side-Panel Controls . . . . . . . . . . . . . . . . . . . . . . . . . . 22

Using the On-Screen Display (OSD) Menu . . . . . . . . . . . . .24

Setting the Maximum Resolution . . . . . . . . . . . . . . . . . . 35

Tilt . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 36

Troubleshooting ...............................36

Self-Test . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 36

Common Problems. . . . . . . . . . . . . . . . . . . . . . . . . . .39

Touchscreen Problems . . . . . . . . . . . . . . . . . . . . . . . . 42

Product Specific Problems . . . . . . . . . . . . . . . . . . . . . . 43

Universal Serial Bus (USB) Specific Problems . . . . . . . . . . . 44

4About Your Monitor

Appendix ......................................45

Safety Instructions . . . . . . . . . . . . . . . . . . . . . . . . . . . 45

FCC Notices (U.S. only) and Other Regulatory Information . . 45

Contacting Dell . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 45

Setting Display Resolution to 1600x900 (maximum) . . . . . .46

Downloading Latest Video Drivers . . . . . . . . . . . . . . . . . 46

Setting up Dual Monitors . . . . . . . . . . . . . . . . . . . . . . . 47

Display Styles For Multiple Monitors . . . . . . . . . . . . . . . . 52

About Your Monitor 5

About Your Monitor

Package Contents

Your monitor ships with the components shown below. Make sure that you have

received all the components and contact Dell if something is missing.

NOTE: Some items may be optional and may not ship with your monitor.

Some features or media may not be available in certain countries.

NOTE: To set up with any other stand, see the documentation for the stand.

Monitor

Stand

Power cable (varies by country)

HDMI cable

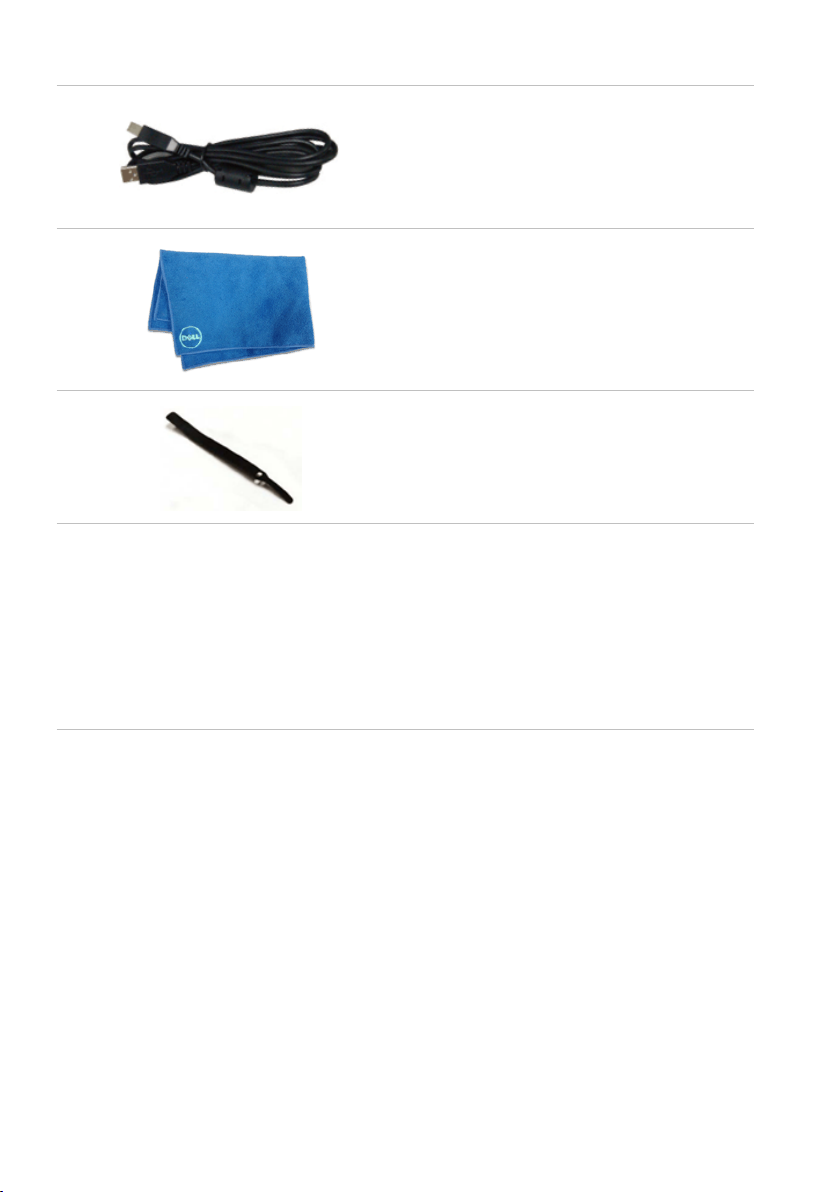

6About Your Monitor

USB cable (enables touch screen

function on the monitor)

Screen cleaning cloth

Velcro strap

• Quick Setup Guide

• Drivers and Documentation Media

• Product and Safety Information

Guide

About Your Monitor 7

Features

Your monitor features the following:

• 49.41 cm (19.5 inch) diagonal display area.

• Resolution of 1600 x 900.

• Tilt adjustment (5.5 degrees up and 31 degrees down).

• Removable stand.

• 100 mm x 100 mm Video Electronics Standards Association (VESA) compliant

mounting holes.

• Plug-and-play support.

• On-Screen Display (OSD) controls for easy setup and screen optimization.

• Security cable slot.

• Stand lock.

• INF ﬁle, Image and color matching (ICM) ﬁle, Dell Display Manager software, and

product documentation included in the media shipped with your monitor.

• Asset management capability.

• Energy Star compliant.

• EPEAT Gold compliant.

• BFR/PVC-reduced.

• Arsenic-free glass and mercury-free panel.

• Real-time energy gauge to check the energy being used by the monitor.

• TCO certiﬁed.

8About Your Monitor

Parts and Controls

Front View ew Side-panel controls

Label Description

1 Function buttons (For more information, see Operating the Monitor)

2 Power On/O button (with indicator light)

Back View

Label Description Use

100 mm x 100 mm

VESA mounting holes

(under VESA cover)

Wall mount monitor using

100 mm x 100 mm VESA-compatible

wall-mount kit.

2 Regulatory label Lists the regulatory approvals.

3Stand release button Releases the stand from the monitor.

About Your Monitor 9

4Barcode serial

number label

Refer to this label if you need to

contact Dell for technical support.

5Dell soundbar

mounting slots

Attaches the Dell Soundbar (optional).

6Cable management

slot

Organize cables by placing them through the slot.

Side View

Bottom View

Label Description Use

1 Stand lock Use a M3 x 6 mm screw to lock the stand to the

monitor. (screw not included)

2 AC power cord port Connect the power cable.

3 DisplayPort port Connect a DisplayPort cable from your computer to

the monitor.

4 HDMI (MHL)1 port Connect your computer with HDMI cable or

portable device with MHL cable (optional).

5 HDMI (MHL)2 port Connect your computer with HDMI cable or

portable device with MHL cable (optional).

6 VGA port To connect your computer to the monitor using a

VGA cable (optional).

10 About Your Monitor

7 Audio line-out port

Connect speakers to playback audio coming

through HDMI or DisplayPort audio channels.

Only supports 2-channel audio.

NOTE: The audio line-out port does not support

headphones.

8 USB upstream port

Connect the USB cable from the monitor to the

computer to allow you to use the USB ports and

touch screen function on the monitor.

9USB 2.0 downstream

ports

Connect your USB device. You must connect the

USB upstream cable to your monitor and computer

before you can use these ports.

10 Security cable slot

Use a security cable to prevent unauthorized

removal of the monitor. (security cable sold

separately)

Specifications

Panel

Screen type Active matrix - TFT LCD

Panel type TN

Viewable image

Diagonal

Horizontal Active Area

Vertical Active Area

Area

49.41 cm (19.5 inches)

432.00 mm (17.01 inches)

239.76 mm (9.44 inches)

103576.32 mm2(160.54 inch2)

Pixel pitch 0.27 mm (H) x 0.27 mm (W)

Viewing angle

Horizontal

Vertical

170 degrees (typical)

160 degrees (typical)

Luminance

Panel

Monitor

250 cd/m2(typical)

225 cd/m2 (typical)

Contrast ratio 1000:1 (typical)

Dynamic contrast ratio 8,000,000 : 1

Faceplate coating Anti-glare with hard coating 3H

Bezel gloss 3~5 gloss units

Touch glass gloss >30 gloss units

NOTE: The user should consider the placement of

the display as the reﬂection of surrounding light and

bright surfaces from the glass may cause

disturbances to users.

Backlight LED edgelight system
