Dell E1920H Manual de usuario

Dell E1920H/E2020H/E2220H/

E2420H/E2420HS/E2720H/E2720HS

User’s Guide

Monitor model: E1920H/E2020H/E2220H/E2420H/E2420HS/E2720H/E2720HS

Regulatory model: E1920Hf, E2020Hb,E2220Hf, E2220Ho, E2420Hf, E2420Ho, E2420HSf, E2720Hb, E2720HSb

Notes, Cautions and Warnings

NOTE: A NOTE indicates important information that helps you make

better use of your computer.

CAUTION: A CAUTION indicates potential damage to hardware or loss of

data if instructions are not followed.

WARNING: A WARNING indicates a potential for property damage, personal

injury, or death.

of Dell Inc. or its subsidiaries. Other trademarks may be trademarks of their respective owners.

2020 - 01

Rev. A00

Contents │ 3

About your monitor..............................................5

Package contents.........................................................5

Product features..........................................................6

Identifying features and controls....................................7

Monitor specifications.................................................12

Plug and play capability................................................28

LCD monitor quality and pixel policy..............................28

Maintenance guidelines...............................................28

Setting up the monitor........................................29

Connecting the stand..................................................29

Connecting your monitor..............................................34

Organizing cables........................................................35

Removing the stand.....................................................35

Operating your monitor.......................................41

Turning on the monitor.................................................41

Using the front panel controls......................................41

Using the On-Screen Display (OSD) menu.....................44

Setting up your monitor...............................................63

Using tilt....................................................................69

Contents

4 │ Contents

Troubleshooting................................................70

Self-test.................................................................70

Built-indiagnostics......................................................72

Common problems......................................................73

Product-specific problems...........................................75

Appendix.......................................................76

FCC notices (U.S. Only) and

Other regulatory information........................................76

Contact Dell................................................................76

Pin assignments..........................................................77

About your monitor │ 5

About your monitor

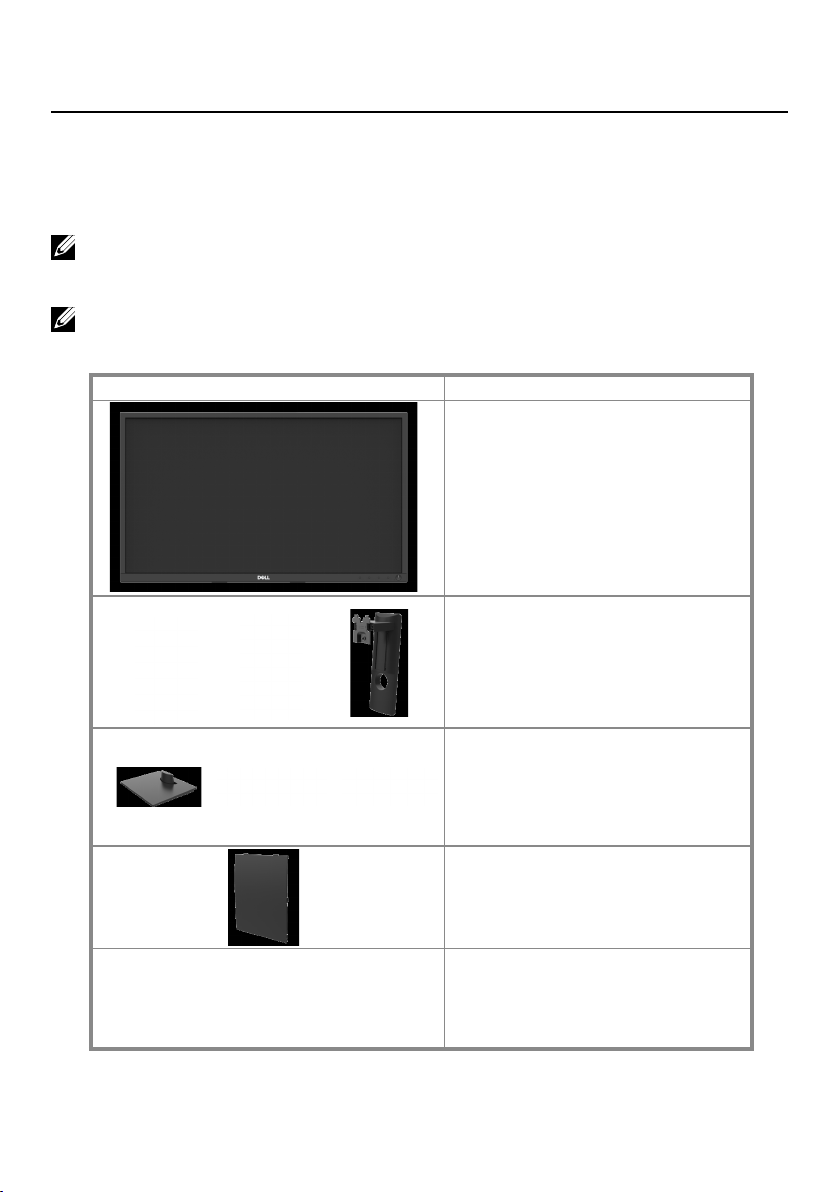

Package contents

Your monitor ships with the components indicated in the table. Ensure that you have received

all the components and see Contact Dell if anything is missing.

NOTE: Some items may be optional and may not ship with your monitor.

Some features may not be available in certain countries.

NOTE: To set up Stand from any other source, refer to the documentation

comes with the Stand for instruction.

Component image Component description

Monitor

Stand riser:

a. E1920H/E2020H

b. E2220H/E2420H/E2720H

c. E2420HS/E2720HS

bStand base:

E1920H/E2020H/E2220H/E2420H

b. E2720H

c. E2420HS/E2720HS

VESA™ Screw Cover

Power cable (varies by country)

a b c

6 │ About your monitor

Product features

The Dell E1920H/E2020H/E2220H/E2420H/E2420HS/E2720H/E2720HS at panel

monitor has an active matrix, Thin-Film Transistor (TFT), Liquid Crystal Display (LCD)

Panel with LED backlight. The monitor features include :

DP cable

(E1920H/E2020H/E2220H/

E2420H and E2720H)

HDMI cable

(E2420HS and E2720HS)

Quick Setup Guide

Safety, Environmental, and

Regulatory Information

•

E1920H: 47.02 cm (18.5 in.) diagonal viewable area display (measured diagonally).

1366 x 768 resolution, with full-screen support for lower resolutions.

E2020H: 49.53 cm (19.5 in.) diagonal viewable area display (measured diagonally).

1600 x 900 resolution, with full-screen support for lower resolutions.

E2220H: 54.68 cm (21.5 in.) diagonal viewable area display (measured diagonally).

1920 x 1080 resolution, with full-screen support for lower resolutions.

E2420H/HS: 60.47 cm (23.8 in.) diagonal viewable area display (measured

diagonally). 1920 x 1080 resolution, with full-screen support for lower resolutions.

E2720H/HS: 68.59 cm (27 in.) diagonal viewable area display (measured diagonally).

1920 x 1080 resolution, with full-screen support for lower resolutions.

E1920H: Viewing angles of 90 degrees in vertical and 65 degrees in horizontal

directions.

E2020H/E2220H: Viewing angles of 170 degrees in vertical and 160 degrees in

horizontal directions.

E2420H/E2420HS/E2720H/E2720HS: Wide viewing angles of 178 degrees in

vertical and horizontal directions.

E1920H: Dynamic contrast ratio (600:1).

E2020H/E2220H/E2420H/E2420HS/E2720H/E2720HS: Dynamic contrast ratio

(1,000:1).

Digital connectivity with DisplayPort or HDMI.

Height adjustment capability for E2420HS and E2720HS.

Dual built-in speakers for E2420HS and E2720HS.

VGA cable

(EMEA and Japan region)

About your monitor │ 7

Identifying features and controls

Front view

E1920H/E2020H/E2220H/E2420H/E2720H

Plug and play capable if supported by your computer.

On-Screen Display (OSD) adjustments for easy setup and screen optimization.

0.3 W standby power when in the sleep mode.

Optimize eye comfort with a icker-free screen.

Possible long-term eects if blue light emission from the monitor may cause

damage to the eyes, including eye fatigue or digital eye strain. ComfortView feature

to reduce risk of eye strain from high blue light emission.

Security-lock slot.

Arsenic-free glass and Mercury-free for panel only.

BFR/PVC-Reduced (Its circuit boards are made from BFR/PVC-free laminates).

Meets NFPA 99 leakage current requirement.

TCO-certied display.

EPEAT registered where applicable. EPEAT registration varies by country. See www.

epeat.net for registration status by country.

RoHS Compliant.

Energy Star®Certied.

Description

Label Use

To access the OSD menu and

change the settings if required. (For

more information, see Using the

front panel controls)

To turn the monitor On or O.

Function buttons

Power On/O button

(with LED indicator)

8 │ About your monitor

Back view

Side view

Description

Label Use

To secure the monitor using a

security lock (purchased

separately).

See this label if you need to contact

Dell for technical support. The

Service Tag is a enables Dell service

technicians to identify the hardware

components in your computer and

access warranty information.

List the regulatory approvals.

To organize the cables.

Release stand from monitor.

Security-lock slot

Without monitor stand With monitor stand

Barcode, serial number, and

service tag label

Regulatory information

Cable-management slot

Stand release button

1 32

About your monitor │ 9

Identifying features and controls

Front view

E2420HS/E2720HS

1 2

Description

Label Use

To access the OSD menu and

change the settings if required. (For

more information, see Using the

front panel controls)

To turn the monitor On or O.

Function buttons

Power On/O button

(with LED indicator)

Back view

Without monitor stand With monitor stand

1 32

10 │ About your monitor

Description

Label Use

To secure the monitor using

a security lock (purchased

separately).

List the regulatory approvals.

To organize the cables.

Release stand from monitor.

Security-lock slot

Regulatory information

Cable-management slot

Stand thumbscrew

See this label if you need to contact

Dell for technical support. The

Service Tag is a enables Dell service

technicians to identify the hardware

components in your computer and

access warranty information.

Barcode, serial number, and

service tag label

Side view
