Dell E1715S Instrucciones de instalación

E1715S 1

1. Disassembly Procedures:

Step Figure Remark

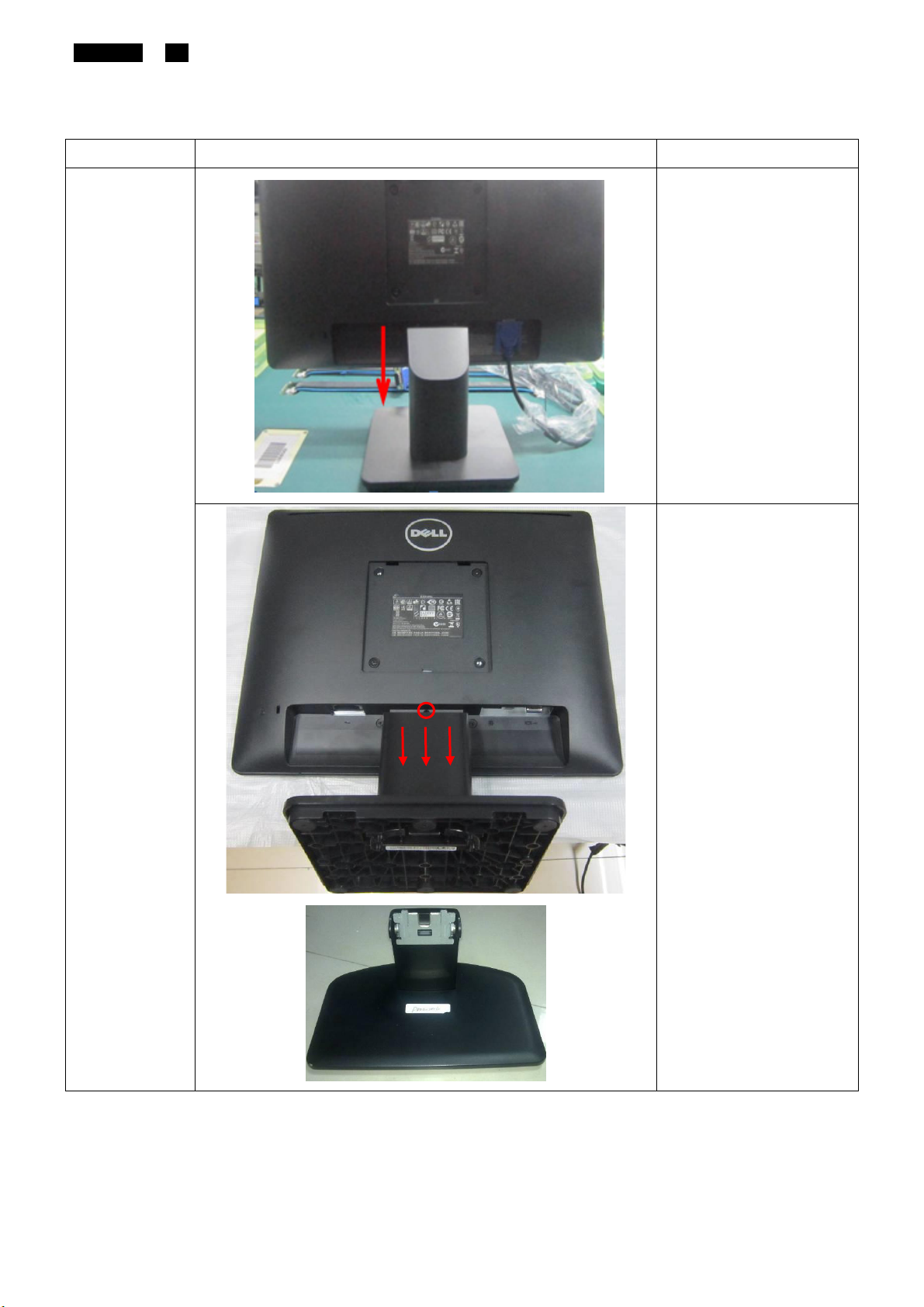

S1. Remove

the STAND

BASE ASS'Y.

Turnoffpower,

Unplugexternalcables

fromproduct 

Note:

Put the monitor on a flat, soft

and clean surface.

Press the button on the red

circle then pull out the

stand follow the arrow,

stand-base assy will be

remove.

E1715S 2

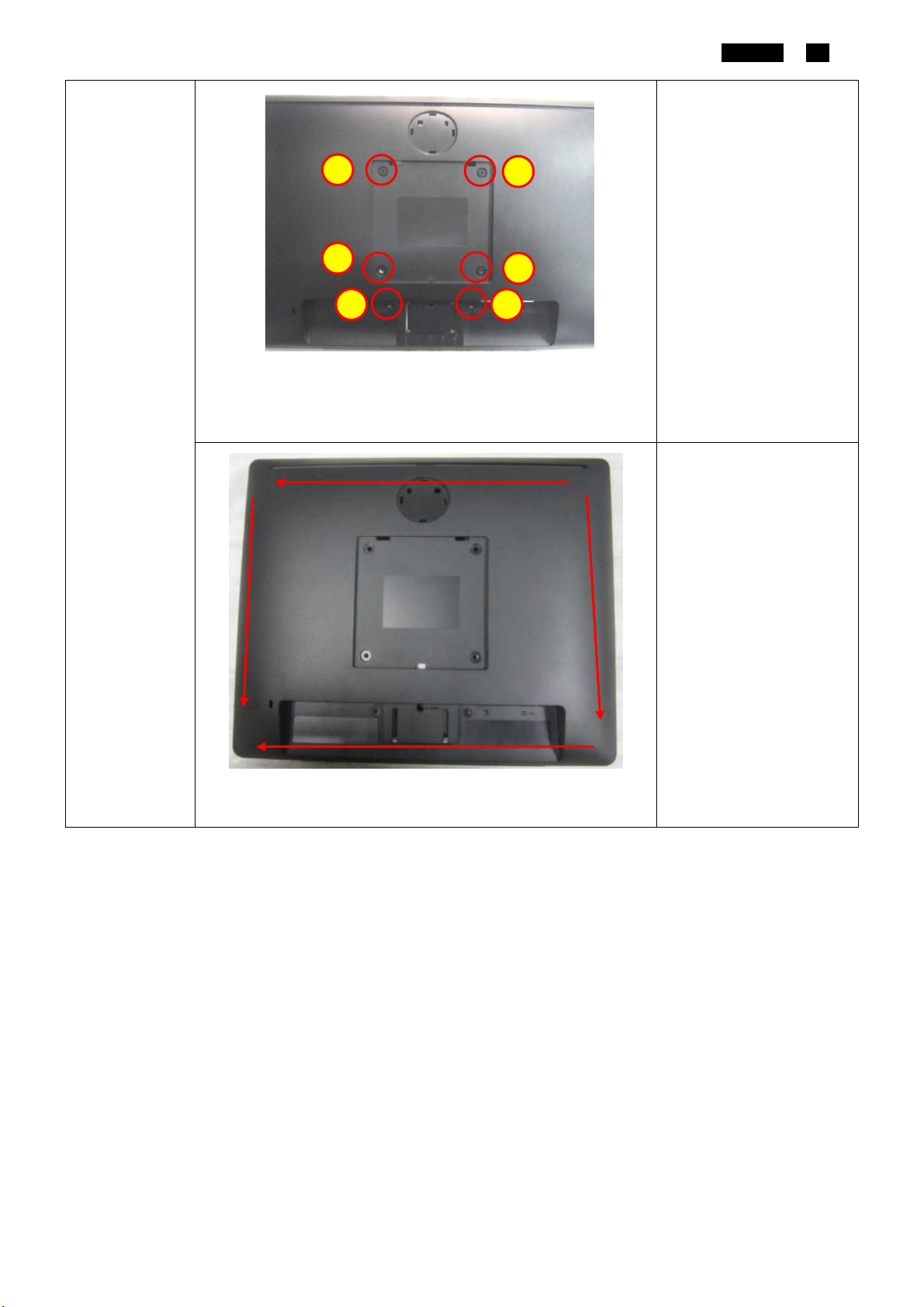

S2. Remove

the REAR

COVER.

Use a Philips-head

screwdriver to remove 6

screws for unlocking

mechanisms.

(No.1~2 screw

size=M4x10;

Torque=12±2kgf.cm

No.5~6 screw

size=P3x4;

Torque=6±1kgf.cm)

Use Penknife to separate

the bezel and rear cove

follow the arrows in

sequence, then you can

take out rear cover.

1 2

3 4

5 6

E1715S 3

S3. Remove

the Cable.

Disconnect the key board

harness.

S4. Disconnect

the LED

HARNESS and

FFC CABLE.

Push

E1715S 4

S5. Remove

the MAIN and

POWER

BOARD.

1. Turn over the main

frame.

2. Remove the Insulating

sheet.

Use a Philips-head

screwdriver to remove 4

screws for unlocking Main

board and Power board

(No.1~3 screw

size=M3x6;

Torque=6±1kgf.cm

No.4 screw

size=M4x6;

Torque=6±1kgf.cm）

Use a Philips-head

screwdriver to remove 1

screws for unlocking Main

board

（No.1 screw

size=M3x5;

Torque=6±1kgf.cm）

Use a hex screwdriver to

remove 2 screws for

unlocking mainboard

（No.2~3 Hex screw

Torque= 4.5±0.5kgf.cm）

3 4

1 2 3

E1715S 5

S6. Disconnect

the HARNESS.

S7. Remove

the MAIN

FRAME

S8. Remove

the PANEL

from Bezel

E1715S 6

S9. Remove

the KEY

BOARD.

Use a Philips-head

screwdriver to remove 4

screws for unlocking Key

board

(No.1~4 screw

size=M2x2.5;

Torque=0.7±0.2kgf.cm)

S10.Remove

capacitors

Remove electrolyte

capacitors (red mark)

from printed circuit

boards

Take out bulk cap. pin

solder with soldering

iron and absorber

1 2 3 4

E1715S 7

Lift the bulk cap. up and

away from the PCB

E1715S 8

2. Product material information

The following substances, preparations, or components should be disposed of or recovered

separately from other WEEE in compliance with Article 4 of EU Council Directive 75/442/EEC.

Capacitors / condensers (containing

PCB/PCT)

No used

Mercury containing components No used

Batteries No used

Printed circuit boards (with a surface

greater than 10 square cm)

Product has printed circuit boards (with a

surface greater than 10 square cm)

Component contain toner, ink and liquids No used

Plastic containing BFR No used

Component and waste contain asbestos No used

CRT No used

Component contain CFC, HCFC, HFC

and HC

No used

Gas discharge lamps No used

LCD display > 100 cm2 Product has an LCD greater than 100 cm2

External electric cable Product has external cables

Component contain refractory ceramic

fibers

No used

Component contain radio-active

substances

No used

Electrolyte capacitors (height

> 25mm, diameter > 25mm)

Product has electrolyte capacitors

(height > 25mm, diameter > 25mm)

3. Tools Required

Listthetypeandsizeofthetoolsthatwouldtypicallycanbeusedtodisassembletheproducttoapoint

wherecomponentsandmaterialsrequiringselectivetreatmentcanberemoved.

ToolDescription:

‐Phillip head Screwdriver

‐HexScrewdriver

‐Penknife

‐Solderingironandabsorber
