TV Antenna Connector

Dell™XPS™L701XServiceManual

Removing the TV Antenna Connector

Replacing the TV Antenna Connector



Removing the TV Antenna Connector



1. Follow the instructions in Before You Begin.



2. Remove the battery (see Removing the Battery).



3. Remove the module cover (see Removing the Module Cover).



4. Remove the memory module(s) (see Removing the Memory Module(s)).



5. Follow the instructions in step 5 in Removing the Hard Drive(s).



6. Remove the optical drive (see Removing the Optical Drive).



7. Remove the palm-rest assembly (see Removing the Palm-Rest Assembly).



8. Remove the keyboard (see Removing the Keyboard).



9. Remove the display assembly (see Removing the Display Assembly).



10. Remove the Mini-Card(s) (see Removing the Mini-Card(s)).



11. Remove the bluetooth card (see Removing the Bluetooth Card).



12. Follow the instructions from step 13 to step 18 in Removing the Top Cover.



13. Disconnect the speaker cable from the connector on the I/O board.

WARNING: Before working inside your computer, read the safety information that shipped with your computer. For additional safety best

practices information, see the Regulatory Compliance Homepage at www.dell.com/regulatory_compliance.

CAUTION: Onlyacertifiedservicetechnicianshouldperformrepairsonyourcomputer.DamageduetoservicingthatisnotauthorizedbyDell™

is not covered by your warranty.

CAUTION: To avoid electrostatic discharge, ground yourself by using a wrist grounding strap or by periodically touching an unpainted metal

surface (such as a connector on your computer).

CAUTION: To help prevent damage to the system board, remove the main battery (see Removing the Battery) before working inside the

computer.

Great user manuals database on UserManuals.info



14. Turn the top-cover assembly over.



15. Remove the I/O board (see Removing the I/O Board).



16. Make note of the TV antenna connector cable routing and remove the cable from the routing guides.



17. Remove the two screws that secure the TV antenna connector to the top cover.



18. Carefully ease the TV antenna connector off the slot in the top cover and lift it off the top cover.

Replacing the TV Antenna Connector



1. Follow the instructions in Before You Begin.



2. Align the TV antenna connector with the slot on the top cover and place the TV antenna connector on the top cover.



3. Replace the two screws that secure the TV antenna connector to the top cover.



4. Route the TV antenna connector cable through the routing guides.



5. Replace the I/O board (see Replacing the I/O Board).



6. Connect the speaker cable to the connector on the I/O board.



7. Follow the instructions from step 11 to step 15 in Replacing the Top Cover.



8. Replace the bluetooth card (see Replacing the Bluetooth Card).



9. Replace the Mini-Card(s) (see Replacing the Mini-Card(s)).



10. Replace the display assembly (see Replacing the Display Assembly).



11. Replace the keyboard (see Replacing the Keyboard).



12. Replace the palm-rest assembly (see Replacing the Palm-Rest Assembly).



13. Replace the optical drive (see Replacing the Optical Drive).



14. Follow the instructions in step 5 in Replacing the Hard Drive(s).



15. Replace the memory module(s) (see Replacing the Memory Module(s)).



speaker cable

TV antenna connector

TV antenna connector cable

top cover

Great user manuals database on UserManuals.info



16. Replace the module cover (see Replacing the Module Cover).



17. Replace the battery (see Replacing the Battery).



Back to Contents Page



CAUTION: Before turning on the computer, replace all screws and ensure that no stray screws remain inside the computer. Failure to do so may

result in damage to the computer.

Great user manuals database on UserManuals.info

Back to Contents Page

Audio Video Board

Dell™Inspiron™One2305/2310ServiceManual

Removing the Audio Video (AV) Board

Replacing the Audio Video (AV) Board



Removing the Audio Video (AV) Board



1. Follow the instructions in Before You Begin.



2. Remove the back cover (see Removing the Back Cover).



3. Follow the instructions from step 2 to step 5 in Removing the Front Stand.



4. Remove the AV board shield (see Removing the Audio Video (AV) Board Shield).



5. Disconnect the AV board cables from the connectors on the AV board.



6. Remove the five screws that secure the AV board to the chassis.



7. Lift the AV board away from the chassis.

Replacing the Audio Video (AV) Board



1. Follow the instructions in Before You Begin.



2. Align the screw holes on the AV board with the screw holes on the chassis.



3. Replace the five screws that secure the AV board to the chassis.



4. Connect the AV board cables to the connectors on the AV board.



5. Replace the AV board shield (see Replacing the Audio Video (AV) Board Shield).



6. Follow the instructions from step 4 to step 5 in Replacing the Front Stand.



7. Replace the back cover (see Replacing the Back Cover).

WARNING: Before working inside your computer, read the safety information that shipped with your computer. For additional safety best

practices information, see the Regulatory Compliance Homepage at www.dell.com/regulatory_compliance.

CAUTION: Onlyacertifiedservicetechnicianshouldperformrepairsonyourcomputer.DamageduetoservicingthatisnotauthorizedbyDell™

is not covered by your warranty.

CAUTION: To avoid electrostatic discharge, ground yourself by using a wrist grounding strap or by periodically touching an unpainted metal

surface (such as a connector on your computer).

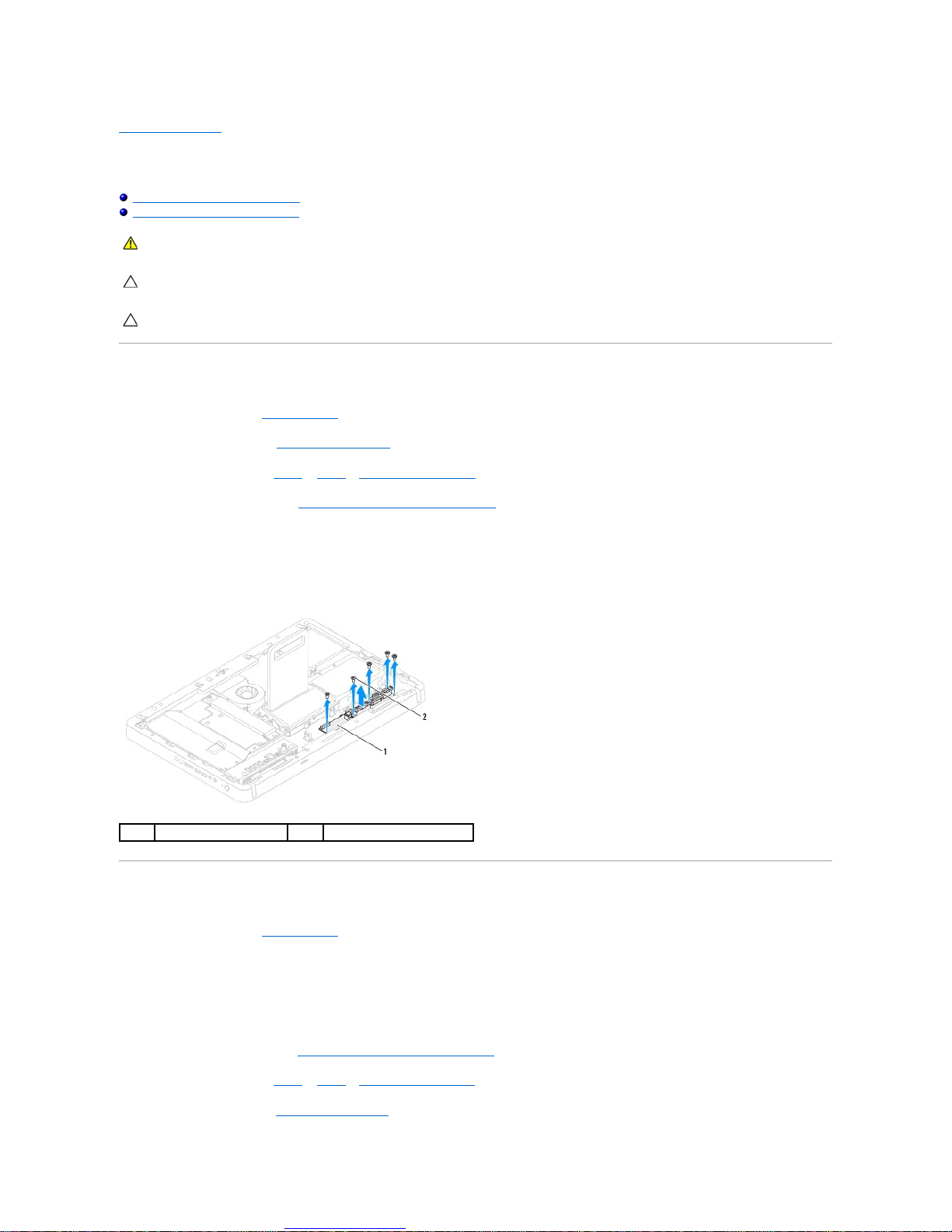

AV board

screws (5)

Great user manuals database on UserManuals.info



8. Connect your computer and all attached devices to electrical outlets, and turn them on.

Back to Contents Page



CAUTION: Before turning on the computer, replace all screws and ensure that no stray screws remain inside the computer. Failure to do so may

result in damage to the computer.

Great user manuals database on UserManuals.info

Back to Contents Page

Audio Video Board Shield

Dell™Inspiron™One2305/2310ServiceManual

Removing the Audio Video (AV) Board Shield

Replacing the Audio Video (AV) Board Shield



Removing the Audio Video (AV) Board Shield



1. Follow the instructions in Before You Begin.



2. Remove the back cover (see Removing the Back Cover).



3. Follow the instructions from step 2 to step 5 in Removing the Front Stand.



4. Remove the three screws that secure the AV board shield to the chassis.



5. Lift the AV board shield away from the chassis.

Replacing the Audio Video (AV) Board Shield



1. Follow the instructions in Before You Begin.



2. Align the screw holes on the AV board shield with the screw holes on the chassis.



3. Replace the three screws that secure the AV board shield to the chassis.



4. Follow the instructions from step 4 to step 5 in Replacing the Front Stand.



5. Replace the back cover (see Replacing the Back Cover).



6. Connect your computer and all attached devices to electrical outlets, and turn them on.

WARNING: Before working inside your computer, read the safety information that shipped with your computer. For additional safety best

practices information, see the Regulatory Compliance Homepage at www.dell.com/regulatory_compliance.

CAUTION: Onlyacertifiedservicetechnicianshouldperformrepairsonyourcomputer.DamageduetoservicingthatisnotauthorizedbyDell™

is not covered by your warranty.

CAUTION: To avoid electrostatic discharge, ground yourself by using a wrist grounding strap or by periodically touching an unpainted metal

surface (such as a connector on your computer).

AV-board shield

screws (3)

CAUTION: Before turning on the computer, replace all screws and ensure that no stray screws remain inside the computer. Failure to do so may

result in damage to the computer.

Great user manuals database on UserManuals.info

Back to Contents Page



Great user manuals database on UserManuals.info

Back to Contents Page

Audio Video Board Cable

Dell™Inspiron™One2305/2310ServiceManual

Removing the Audio Video (AV) Board Cable

Replacing the Audio Video (AV) Board Cable



Removing the Audio Video (AV) Board Cable



1. Follow the instructions in Before You Begin.



2. Remove the back cover (see Removing the Back Cover).



3. Follow the instructions from step 2 to step 5 in Removing the Front Stand.



4. Remove the AV board shield (see Removing the Audio Video (AV) Board Shield).



5. Disconnect the AV board cable from the connector on the AV Board.



6. Remove the AV board (see Removing the Audio Video (AV) Board).



7. Remove the system board (see Removing the System Board).



8. Remove the display panel (see Removing the Display Panel).



9. Make note of the AV board cable routing and release the cable from the securing tapes.



10. Remove the AV board cable from the routing guide.

Replacing the Audio Video (AV) Board Cable



1. Follow the instructions in Before You Begin.



2. Route the AV board cable through the routing guide and secure it with the tapes.



3. Replace the system board (see Replacing the System Board).



4. Replace the display panel (see Replacing the Display Panel).

WARNING: Before working inside your computer, read the safety information that shipped with your computer. For additional safety best

practices information, see the Regulatory Compliance Homepage at www.dell.com/regulatory_compliance.

CAUTION: Onlyacertifiedservicetechnicianshouldperformrepairsonyourcomputer.DamageduetoservicingthatisnotauthorizedbyDell™

is not covered by your warranty.

CAUTION: To avoid electrostatic discharge, ground yourself by using a wrist grounding strap or by periodically touching an unpainted metal

surface (such as a connector on your computer).

AV board cable

Great user manuals database on UserManuals.info



5. Replace the AV board (see Replacing the Audio Video (AV) Board).



6. Connect the AV board cable to the connector on the AV board.



7. Replace the AV board shield (see Replacing the Audio Video (AV) Board Shield).



8. Follow the instructions from step 4 to step 5 in Replacing the Front Stand.



9. Replace the back cover (see Replacing the Back Cover).



10. Connect your computer and all attached devices to electrical outlets, and turn them on.

Back to Contents Page



CAUTION: Before turning on the computer, replace all screws and ensure that no stray screws remain inside the computer. Failure to do so may

result in damage to the computer.

Otros manuales para XPS L701X

Este manual sirve para los siguientes modelos

Tabla de contenidos

Otros manuales de Computadora portátil de Dell

Dell

Dell m15 Ryzen Edition R5 Manual de usuario

Dell

Dell Vostro 3400 Manual de usuario

Dell

Dell Inspiron 3800 Manual de usuario

Dell

Dell XPS 13 9310 Manual de operación y mantenimiento

Dell

Dell Inspiron 0R891KA01 Manual de usuario

Dell

Dell Latitude 5401 766J8 Guía del usuario

Dell

Dell Latitude E6400 ATG Manual de usuario

Dell

Dell XPS 13 Manual de operación y mantenimiento

Dell

Dell Inspiron 16 7610 Manual de operación y mantenimiento

Dell

Dell INSPIRON 15 5500 Manual de usuario

Dell

Dell Latitude D505 Series Guía del usuario

Dell

Dell Precision 7530 Manual de usuario

Dell

Dell Inspiron 14 7420 2-in-1 Manual de operación y mantenimiento

Dell

Dell Inspiron One 2310 Manual de usuario

Dell

Dell Latitude 5320 Guía del usuario

Dell

Dell Vostro 5630 Manual de usuario

Dell

Dell Inspiron 11 3000 Series Manual de usuario

Dell

Dell Inspiron 2000 Manual de usuario

Dell

Dell XPS 15-9570 Manual de usuario

Dell

Dell Inspiron 3700 Hoja de especificaciones

Dell

Dell Latitude 5320 Manual de operación y mantenimiento

Dell

Dell Inspiron 14 Plus 7420 Manual de operación y mantenimiento

Dell

Dell Inspiron 15R N5010 Manual de usuario

Dell

Dell Inspiron 8200 Manual de instrucciones

Manuales populares de Computadora portátil de otras marcas

HP ze2401xt - Pavilion Notebook PC Manual de usuario

Velocity

Velocity NoteMagix M10 Manual de usuario

Toshiba

Toshiba A105-S2236 Manual de usuario

HP ENVY 17 Manual

Winbook

Winbook LM Manual de usuario

HP PROBOOK 4520S Manual

Sony

Sony VAIO PCG-FX270 Manual de usuario

Sony

Sony VAIO PCG-R505JLK Manual de usuario

Lenovo

Lenovo THINKPAD X32 Manual de usuario

HP Compaq tc4200 Guía de inicio rápido

Toshiba

Toshiba mini NB300 Manual de usuario

Lenovo

Lenovo ThinkPad X201 Tablet Manual

Lenovo

Lenovo THINKPAD X31 Manual

Sony

Sony VGN-T240P VAIO Manual de usuario

Compaq

Compaq Armada E700 Series Manual de usuario

Fujitsu

Fujitsu Lifebook A6230 Manual de usuario

Acer

Acer Aspire ONE 722 Manual de usuario

Toshiba

Toshiba L300-EZ1524 Manual de usuario
