Dell Vostro 3350 Manual del propietario

Dell Vostro 3350/3450/3550/3750/3555

Setup And Features Information

About Warnings

WARNING: A WARNING indicates a potential for property damage, personal injury,

or death.

Front and Back View — Vostro 3350

Figure 1. Vostro 3350 — Front View

1. microphones (2)

2. camera

3. camera LED

4. display

5. Windows Mobility Center

6. Dell Support Center

7. Dell Instant Launch Manager

8. security slot

Regulatory Model : P13S, P19G, P16F, P13E,

P16F

Regulatory Type : P13S001, P19G001,

P16F001, P13E001, P16F002

2011 — 05

9. cooling vents

10. VGA connector

11. HDMI connector

12. eSATA/USB combo connector with

USB PowerShare

13. audio connectors

14. fingerprint reader

15. 8-in-1 Secure Digital (SD) memory

card reader

16. touchpad

17. touchpad buttons (2)

18. device status lights

19. touchpad disable LED

20. keyboard

21. power button

Figure 2. Vostro 3350 – Back view

1. cooling vents

2. battery

3. AC adapter connector

4. USB 3.0 connectors (2)

5. network connector

6. optical drive/bay

7. optical drive eject button

WARNING: Do not block, push objects into, or allow dust to accumulate in the air

vents. Do not store your Dell computer in a low-airflow environment, such as a

closed briefcase, while it is running. Restricting the airflow can damage the

computer or cause a fire. The computer turns on the fan when the computer gets

hot. Fan noise is normal and does not indicate a problem with the fan or the

computer.

Front and Back View — Vostro 3450

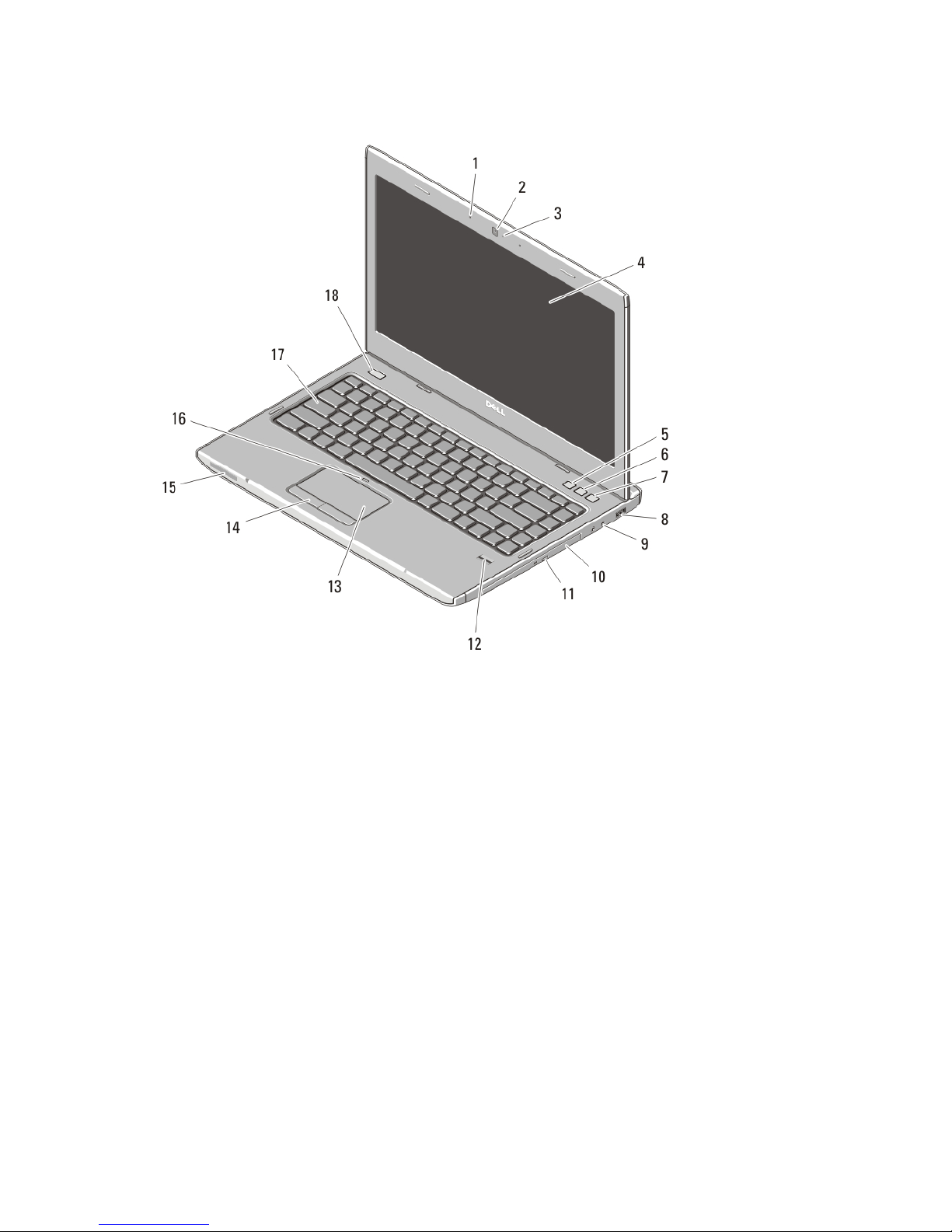

Figure 3. Vostro 3450 — Front view

1. microphones (2)

2. camera

3. camera LED

4. display

5. Windows Mobility Center

6. Dell Support Center

7. Dell Instant Launch Manager

8. USB 3.0 connector

9. audio connectors

10. optical drive/bay

11. optical drive eject button

12. fingerprint reader

13. touchpad

14. touchpad buttons (2)

15. device status lights

16. touchpad disable LED

17. keyboard

18. power button

Figure 4. Vostro 3450 — Back view

1. network connector

2. USB 2.0 connector

3. battery

4. security cable slot

5. AC adapter connector

6. VGA connector

7. cooling vents

8. HDMI connector

9. e-SATA connector

10. USB 2.0 connector

11. 8-in-1 Secure Digital (SD) memory

card reader

12. ExpressCard reader

WARNING: Do not block, push objects into, or allow dust to accumulate in the air

vents. Do not store your Dell computer in a low-airflow environment, such as a

closed briefcase, while it is running. Restricting the airflow can damage the

computer or cause a fire. The computer turns on the fan when the computer gets

hot. Fan noise is normal and does not indicate a problem with the fan or the

computer.

Front and Back View

Figure 5. Vostro 3550/3555 — Front View

1. microphones (2)

2. camera

3. camera LED

4. display

5. Windows Mobility Center

6. Dell Support Center

7. Dell Instant Launch Manager

8. USB 3.0 connector

9. audio connectors

10. optical drive/bay

11. optical-drive eject button

12. fingerprint reader

13. ExpressCard reader

14. touchpad

15. touchpad buttons (2)

16. device status lights

17. touchpad disable LED

18. keyboard

19. power button

Figure 6. Vostro 3550/3555 — Back View

1. security cable slot

2. network connector

3. USB 2.0 connector

4. battery

5. VGA connector

6. AC adapter connector

7. USB 2.0 connector

8. cooling vents

9. HDMI connector

10. e-SATA connector

11. 8-in-1 Secure Digital (SD) memory

card reader

WARNING: Do not block, push objects into, or allow dust to accumulate in the air

vents. Do not store your Dell computer in a low-airflow environment, such as a

closed briefcase, while it is running. Restricting the airflow can damage the

computer or cause a fire. The computer turns on the fan when the computer gets

hot. Fan noise is normal and does not indicate a problem with the fan or the

computer.

Front and Back View

Figure 7. Vostro 3750 — Front View

1. microphones (2)

2. camera

3. camera LED

4. display

5. Windows Mobility Center

6. Dell Support Center

7. Dell Instant Launch Manager

8. USB 2.0 connector

9. USB 3.0 connectors (2)

10. optical drive/bay

11. optical-drive eject button

12. fingerprint reader

13. ExpressCard reader

14. touchpad

15. touchpad buttons (2)

16. device status lights

17. touchpad disable LED

18. keyboard

19. power button

Figure 8. Vostro 3750 — Back View

1. network connector

2. USB 2.0 connector

3. battery

4. security cable slot

5. AC adapter connector

6. cooling vents

7. e-SATA connector

8. HDMI connector

9. audio connectors

10. 8-in-1 Secure Digital (SD) memory

card reader

WARNING: Do not block, push objects into, or allow dust to accumulate in the air

vents. Do not store your Dell computer in a low-airflow environment, such as a

closed briefcase, while it is running. Restricting the airflow can damage the

computer or cause a fire. The computer turns on the fan when the computer gets

hot. Fan noise is normal and does not indicate a problem with the fan or the

computer.

Quick Setup

WARNING: Before you begin any of the procedures in this section, read the safety

information that shipped with your computer. For additional best practices

information, see www.dell.com/regulatory_compliance.

WARNING: The AC adapter works with electrical outlets worldwide. However,

power connectors and power strips vary among countries. Using an incompatible

cable or improperly connecting the cable to the power strip or electrical outlet may

cause fire or equipment damage.

CAUTION: When you disconnect the AC adapter cable from the computer, grasp

the connector, not the cable itself, and pull firmly but gently to avoid damaging the

cable. When you wrap the AC adapter cable, ensure that you follow the angle of the

connector on the AC adapter to avoid damaging the cable.

NOTE: Some devices may not be included if you did not order them.

1. Connect the AC adapter to the AC adapter connector on the computer

and to the electrical outlet.

Figure 9. AC Adapter

2. Connect the network cable (optional).

Figure 10. Network Connector

3. Connect USB devices, such as a mouse or keyboard (optional).

Figure 11. USB Connector

4. Connect IEEE 1394 devices, such as a 1394 hard drive (optional).

Figure 12. 1394 Connector

5. Open the computer display and press the power button to turn on the

computer.

Figure 13. Power Button

NOTE: It is recommended that you turn on and shut down your computer at least

once before you install any cards or connect the computer to a docking device or

other external device, such as a printer.

Specifications

NOTE: Offerings may vary by region. The following specifications are only those

required by law to ship with your computer. For more information regarding the

configuration of your computer, click Start → Help and Support and select the

option to view information about your computer.

System Information

Chipset:

Vostro 3350 / Vostro 3450 /

Vostro 3550 / Vostro 3750

Intel HM67

Vostro 3555 AMD A70M

Processor:

Vostro 3350 / Vostro 3450 /

Vostro 3550 / Vostro 3750 • Intel Core i3

• Intel Core i5
