Access Panel

Dell™Vostro™1088ServiceManual

Removing the Access Panel

1. Follow the procedures in Before Working Inside Your Computer.

2. Remove the battery from the computer.

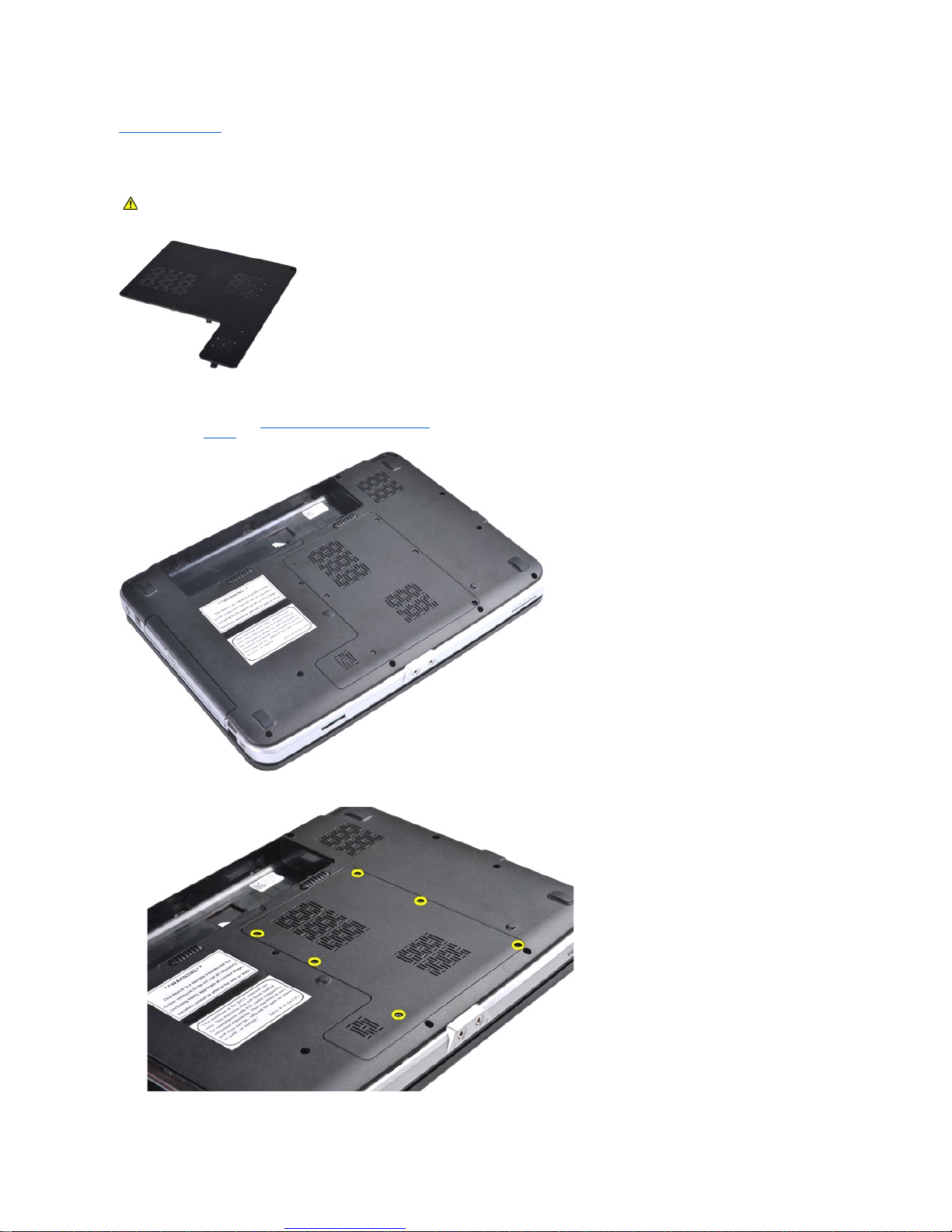

3. Remove the six screws that secure the access panel to the computer.

4. Remove the access panel from the computer.

WARNING: Before working inside your computer, read the safety information that shipped with your computer. For additional safety best

practices information, see the Regulatory Compliance Homepage at www.dell.com/regulatory_compliance.

Great user manuals database on UserManuals.info

Replacing the Access Panel

Perform the steps described above in reverse order to replace the access panel on your computer.
