Dell™ LOB™ Latitude XT2

Setup and Features Information

1 grip 2 display

3 ambient light sensor (with

Dual-bulb CCFL LCD option

only)

4 device status lights

1 2

Month 2008

0XXXXXAXX

Model PP12S

AMG-Setup and Features Tech Sheet_IR.fm Page 9 Friday, October 17, 2008 10:22 AM

FILE LOCATION: N:\systems\amg\SFITS\Source\AMG-Setup and Features Tech Sheet_IR.fm

DELL CONFIDENTIAL – PRELIMINARY 10/17/08 – FOR PROOF ONLY

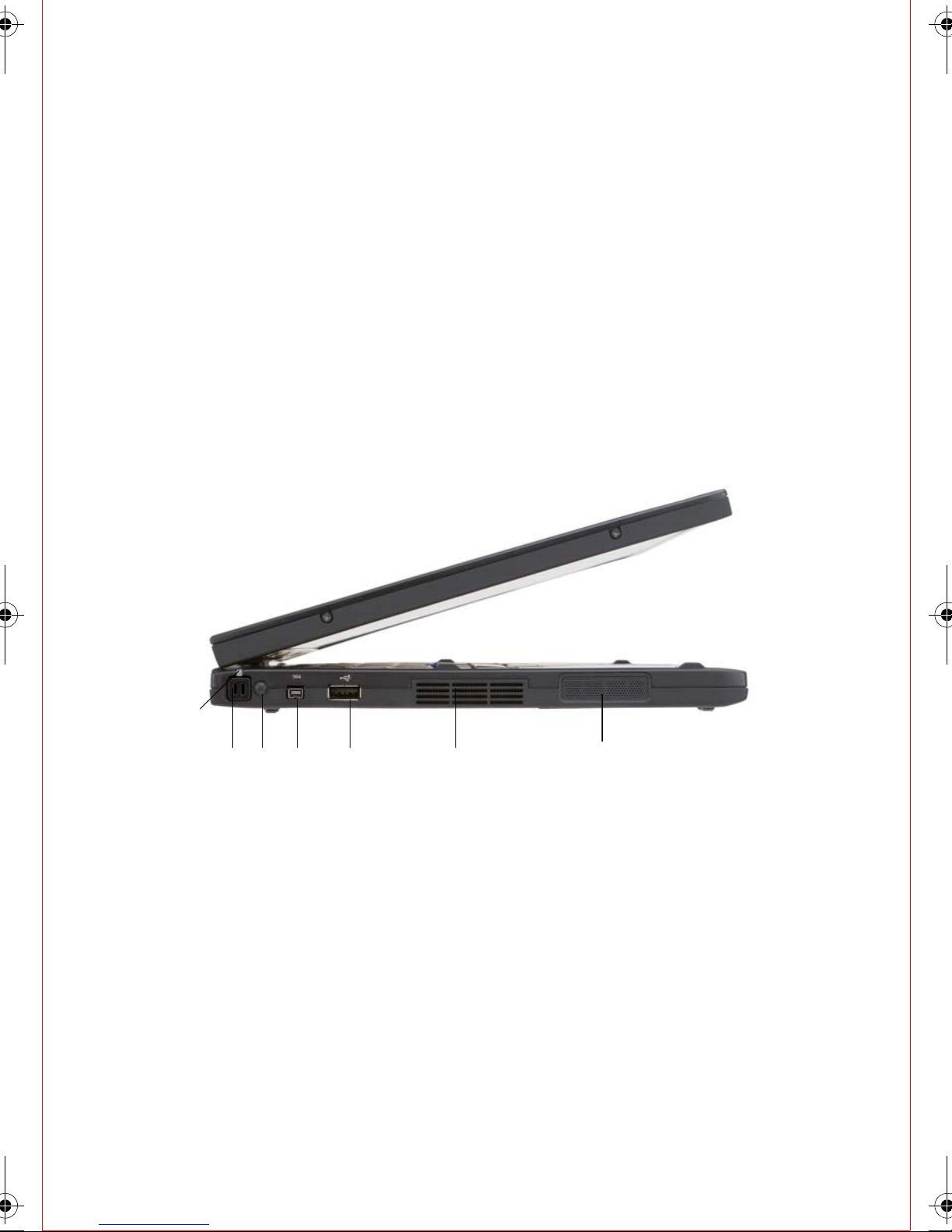

Left Side View

5 digital array microphone 6 keyboard

7 AC adapter connector 8 USB connectors (2)

9 track stick buttons 10 keyboard

11 track stick 12 rotating hinge

13 digital array microphone 14 power button

15 Windows®security button 16 screen rotate button

17 QuickSet tablet settings button 18 e-mail application shortcut

button

1 pen indicator LED 2 pen

3 external wireless WAN

antenna

NOTE: The external antenna

is provided with WWAN cards

only and is not included in the

standard computer

configuration. The computer

comes with a plug that you

need to remove prior to

installing the antenna and

WWAN card.

4 IEEE 1394 connector

23 4 5 6 7

AMG-Setup and Features Tech Sheet_IR.fm Page 10 Friday, October 17, 2008 10:22 AM

FILE LOCATION: N:\systems\amg\SFITS\Source\AMG-Setup and Features Tech Sheet_IR.fm

DELL CONFIDENTIAL – PRELIMINARY 10/17/08 – FOR PROOF ONLY

Right Side View

Back View

5 USB connector 6 air vent

7 speaker

1 wireless radio on/off switch 2 Wi-Fi Catcher™ button

3 USB connector 4 ExpressCard slot

5 Secure Digital (SD) card slot 6 headphones connector

7 microphone connector 8 security cable slot

1 AC adapter connector 2 video connector

3 tablet back button 4 scroll control button

134 6 78

134 6 7 852 9

AMG-Setup and Features Tech Sheet_IR.fm Page 11 Friday, October 17, 2008 10:22 AM

FILE LOCATION: N:\systems\amg\SFITS\Source\AMG-Setup and Features Tech Sheet_IR.fm

DELL CONFIDENTIAL – PRELIMINARY 10/17/08 – FOR PROOF ONLY

WARNING: Do not block, push objects into, or allow dust to accumulate in the air

vents. Do not store your Dell™ computer in a low-airflow environment, such as a

closed briefcase, while it is running. Restricting the airflow can damage the computer

or cause a fire. The computer turns on the fan when the computer gets hot. Fan noise is

normal and does not indicate a problem with the fan or the computer.

Quick Setup

WARNING: Before you begin any of the procedures in this section, read the safety information

that shipped with your computer. For additional best practices information see

www.dell.com/regulatory_compliance.

WARNING: The AC adapter works with electrical outlets worldwide. However, power

connectors and power strips vary among countries. Using an incompatible cable or improperly

connecting the cable to the power strip or electrical outlet may cause fire or equipment damage.

CAUTION: When you disconnect the AC adapter cable from the computer, grasp the connector,

not the cable itself, and pull firmly but gently to avoid damaging the cable. When you wrap the AC

adapter cable, ensure that you follow the angle of the connector on the AC adapter to avoid

damaging the cable.

NOTE: Some devices may not be included if you did not order them.

Connect the AC adapter to the AC adapter connector on the computer and to the electrical

outlet.

Connect the network cable.

5 network connector 6 powered USB connector

7 rotating hinge 8 tablet grip

9 pen tether slot

AMG-Setup and Features Tech Sheet_IR.fm Page 12 Friday, October 17, 2008 10:22 AM

FILE LOCATION: N:\systems\amg\SFITS\Source\AMG-Setup and Features Tech Sheet_IR.fm

DELL CONFIDENTIAL – PRELIMINARY 10/17/08 – FOR PROOF ONLY

Connect USB devices, such as a mouse or keyboard.

Connect IEEE 1394 devices, such as a DVD player.

Open the computer display and press the power button to turn on the computer.

AMG-Setup and Features Tech Sheet_IR.fm Page 13 Friday, October 17, 2008 10:22 AM

FILE LOCATION: N:\systems\amg\SFITS\Source\AMG-Setup and Features Tech Sheet_IR.fm

DELL CONFIDENTIAL – PRELIMINARY 10/17/08 – FOR PROOF ONLY

NOTE: It is recommended that you turn on and shut down your computer at least once before you

install any cards or connect the computer to a docking device or other external device, such as a

printer.

Power button

Battery charge indicator.

AMG-Setup and Features Tech Sheet_IR.fm Page 14 Friday, October 17, 2008 10:22 AM

FILE LOCATION: N:\systems\amg\SFITS\Source\AMG-Setup and Features Tech Sheet_IR.fm

DELL CONFIDENTIAL – PRELIMINARY 10/17/08 – FOR PROOF ONLY

Specifications

NOTE: Offerings may vary by region. For more information regarding the configuration of your

computer, click Start→Help and Support and select the option to view information about your

computer.

Video

Video type: integrated on system board, hardware accelerated

Data bus

integrated video

Video controller

Intel Integrated "Cantiga" UMA Graphics

Video memory up to 256 MB shared video memory

Battery

Type 4-cell "smart" lithium ion (28 WHr)

6-cell "smart" lithium ion (42 WHr)

Dimensions:

Depth

96.84 mm (3.81 inches)

Height

13.7 mm (0.54 inch)

Weight 0.26 kg (0.57 lb) (4 cell)

0.34 kg (0.74 lb) (6 cell)

Voltage 11.1 VDC

Temperature range:

Operating

0° to 35°C (32° to 95°F)

Storage

–40° to 65°C (–40° to 149°F)

Coin-cell battery CR-2032

AC Adapter

Input voltage 90–264 VAC

Input current (maximum) 1.1 A

Input frequency 47–63 Hz

Output current 3.3 A (maximum at 4-second pulse);

2.3 A (continuous)

Output power 45 W, 65W(optional) or 90W(optional)

Rated output voltage 19.5 VDC

AMG-Setup and Features Tech Sheet_IR.fm Page 15 Friday, October 17, 2008 10:22 AM

FILE LOCATION: N:\systems\amg\SFITS\Source\AMG-Setup and Features Tech Sheet_IR.fm

DELL CONFIDENTIAL – PRELIMINARY 10/17/08 – FOR PROOF ONLY

Finding Information

NOTE: Some features or media may be optional and may not ship with your computer.

Some features or media may not be available in certain countries.

Dimensions:

Height

16.0 mm (0.63 inches)

Width

63.0mm (2.48 inches)

Depth

88.0 mm (3.46 inches)

Temperature range:

Operating

0° to 40°C (32° to 1.04°F)

Storage

–10° to 70°C (–50° to 158°F)

Physical

Height 25.4 mm (1.0 inch)

Width 297.0 mm (11.7 inches)

Depth 218.6 mm (8.6 inches)

Weight 1.62 kg (3.57 lb) (with 4-cell battery/LED

standard configuration)

1.93 kg (4.25 lb) (with 6-cell battery/DLV

standard configuration)

Environmental

Temperature range:

Operating

0° to 35°C (32° to 95°F)

Storage

–40° to 65°C (–40° to 149°F)

Relative humidity (maximum):

Operating

10% to 90% (noncondensing)

Storage

5% to 95% (noncondensing)

Altitude (maximum):

Operating

–15.2 to 3048 m (–50 to 10,000 ft)

Storage

–15.2 to 10,668 m (–50 to 35,000 ft)

AC Adapter (continued)

AMG-Setup and Features Tech Sheet_IR.fm Page 16 Friday, October 17, 2008 10:22 AM

FILE LOCATION: N:\systems\amg\SFITS\Source\AMG-Setup and Features Tech Sheet_IR.fm

DELL CONFIDENTIAL – PRELIMINARY 10/17/08 – FOR PROOF ONLY

NOTE: Additional information may ship with your computer.

Document/Media/Label Contents

Service Tag/Express Service Code

The Service Tag/Express Service Code is

located on your computer.

• Use the Service Tag to identify your

computer when you use

support.dell.com

or contact support.

• Enter the Express Service Code to direct

your call when contacting support

NOTE: Your Service Tag/Express Service

Code is located on your computer.

Drivers and Utilities Media

The Drivers and Utilities media is a CD or

DVD that may have shipped with your

computer.

• A diagnostic program for your computer

• Drivers for your computer

NOTE: Drivers and documentation updates

can be found at support.dell.com.

• Notebook System Software (NSS)

NOTE: Readme files may be included on

your media to provide last-minute updates

about technical changes to your computer

or advanced technical-reference material

for technicians or experienced users.

Operating System Media

The Operating System media is a CD or

DVD that may have shipped with your

computer.

Reinstall your operating system

Safety, Regulatory, Warranty, and Support

Documentation

This type of information may have

shipped with your computer. For

additional regulatory information, see the

Regulatory Compliance Homepage on

www.dell.com at the following location:

www.dell.com/regulatory_compliance.

• Warranty information

• Terms and Conditions (U.S. only)

• Safety instructions

• Regulatory information

• Ergonomics information

• End User License Agreement

Service Manual

The Service Manual for your computer

can be found at support.dell.com.

• How to remove and replace parts

• How to configure system settings

• How to troubleshoot and solve problems

AMG-Setup and Features Tech Sheet_IR.fm Page 17 Friday, October 17, 2008 10:22 AM

FILE LOCATION: N:\systems\amg\SFITS\Source\AMG-Setup and Features Tech Sheet_IR.fm

DELL CONFIDENTIAL – PRELIMINARY 10/17/08 – FOR PROOF ONLY

WARNING: A WARNING indicates a potential for property damage, personal injury, or

death.

CAUTION: A CAUTION indicates potential damage to hardware or loss of data if

instructions are not followed.

Dell Technology Guide

The Dell Technology Guide is available at

support.dell.com.

• About your operating system

• Using and maintaining devices

• Understanding technologies such as

RAID, Internet, Bluetooth

wireless

technology, e-mail, networking, and

more.

Microsoft®Windows®License Labe

Your Microsoft Windows License is

located on your computer.

• Provides your operating system product

key.

Document/Media/Label Contents

AMG-Setup and Features Tech Sheet_IR.fm Page 18 Friday, October 17, 2008 10:22 AM
