Dell Latitude E5510 Manual de usuario

Dell™Latitude™E5510DiscreteServiceManual

Notes, Cautions, and Warnings

IfyoupurchasedaDell™nSeriescomputer,anyreferencesinthisdocumenttoMicrosoft®Windows®operating systems are not applicable.

Information in this document is subject to change without notice.

©2010DellInc.Allrightsreserved.

Reproduction of this material in any manner whatsoever without the written permission of Dell Inc. is strictly forbidden.

Trademarks used in this text: Dell, the DELL logo, Latitude, Wi-Fi Catcher, and ExpressCharge are trademarks of Dell Inc.; Intel, Pentium, Celeron, and Core are either trademarks or

registered trademarks of Intel Corporation; Bluetooth is a registered trademark owned by Bluetooth SIG, Inc. and is used by Dell under license; TouchStrip is a trademark of Zvetco

Biometrics, LLC; Blu-ray Disc is a trademark of the Blu-ray Disc Association; Microsoft, Windows,Windows Server,MS-DOS, Aero, Windows Vista,Windows XP, Windows 7 and the

Windows Vista, Windows 7 and the Windows Vista start button are either trademarks or registered trademarks of Microsoft Corporation in the United States and/or other countries.

Other trademarks and trade names may be used in this document to refer to either the entities claiming the marks and names or their products. Dell Inc. disclaims any

proprietary interest in trademarks and trade names other than its own.

June2010Rev.A00

Working on Your Computer

Adding and Replacing Parts

Specifications

Diagnostics

System Setup





NOTE: A NOTE indicates important information that helps you make better use of your computer.

CAUTION: A CAUTION indicates potential damage to hardware or loss of data if instructions are not followed.

WARNING: A WARNING indicates a potential for property damage, personal injury, or death.

Back to Contents Page

Access Panel

Dell™Latitude™E5510DiscreteServiceManual

Removing the Access Panel

1. Follow the procedures in Before Working Inside Your Computer.

2. Remove the battery.

3. Loosen the screw that secures the access panel to the computer.

4. Slide out the access panel away from the computer and remove it.

WARNING: Before working inside your computer, read the safety information that shipped with your computer. For additional safety best

practices information, see the Regulatory Compliance Homepage at www.dell.com/regulatory_compliance.

Replacing the Access Panel

To replace the access panel, perform the above steps in reverse order.

Back to Contents Page

Display Assembly

Dell™Latitude™E5510DiscreteServiceManual

Removing the Display Assembly

1. Follow the procedures in Before Working Inside Your Computer.

2. Remove the battery from the computer.

3. Remove the access panel from the computer.

4. Remove the WLAN card from the computer.

5. Remove the LED cover from the computer.

6. Remove the keyboard from the computer.

7. Disconnect the wireless antennas and remove them from their routing paths.

8. Remove the screws securing the bottom of the display assembly to the computer.

WARNING: Before working inside your computer, read the safety information that shipped with your computer. For additional safety best

practices information, see the Regulatory Compliance Homepage at www.dell.com/regulatory_compliance.

9. Disconnect the display data cable from the system board.

10. Disconnect the camera cable from the system board.

11. Release the cables from the routing path.

12. Remove the screws that secure the display assembly to the computer chassis.

13. Lift up the display assembly from the computer and remove.

Replacing the Display Assembly

To replace the display assembly, perform the above steps in reverse order.

Back to Contents Page

Battery

Dell™Latitude™E5510DiscreteServiceManual

Removing the Battery

1. Follow the procedures in Before Working Inside Your Computer.

2. Slide the battery release latch into the unlocked position.

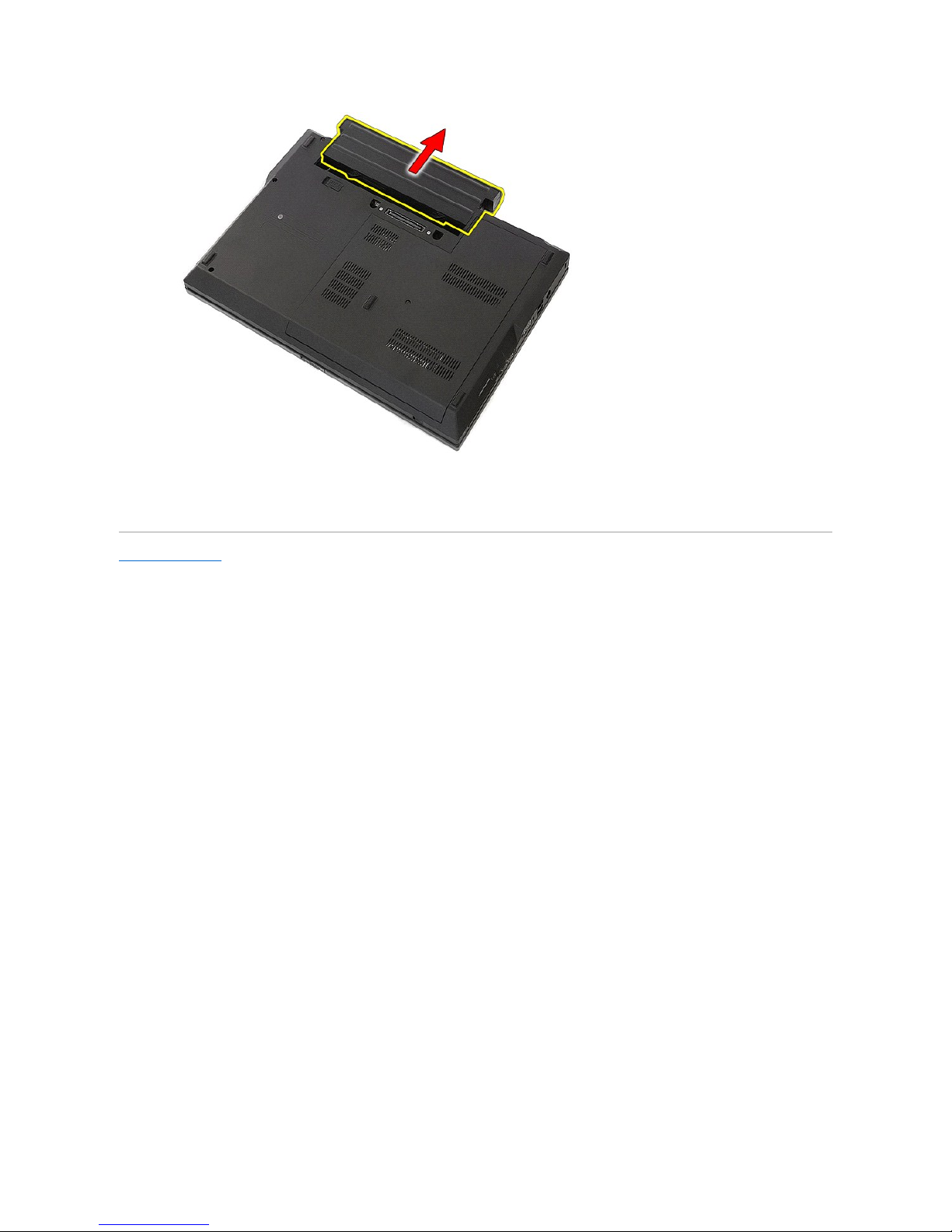

3. Remove the battery from the computer.

WARNING: Before working inside your computer, read the safety information that shipped with your computer. For additional safety best

practices information, see the Regulatory Compliance Homepage at www.dell.com/regulatory_compliance.

Replacing the Battery

To replace the battery, perform the above steps in reverse order.

Back to Contents Page

Bluetooth Board

Dell™Latitude™E5510DiscreteServiceManual

Removing the Bluetooth Board

1. Follow the procedures in Before Working Inside Your Computer.

2. Remove the battery from the computer.

3. Remove the access panel from the computer.

4. Remove the optical drive from the computer.

5. Remove the LED cover from the computer.

6. Remove the keyboard from the computer.

7. Remove the display assembly from the computer.

8. Remove the LED board from the computer.

9. Remove the palm rest from the computer.

10. Disconnect the Bluetooth board cable.

11. Release the Bluetooth board from the latches and remove it.

WARNING: Before working inside your computer, read the safety information that shipped with your computer. For additional safety best

practices information, see the Regulatory Compliance Homepage at www.dell.com/regulatory_compliance.
