Dell™ Latitude™ X200 Service Manual

Before You Begin

Preparing to Work Inside the Computer

Recommended Tools

Computer Orientation

Screw Identification

System Components

Battery

Memory Module and Mini PCI Card

Memory Module

Mini PCI Card

Keyboard

Palm Rest

Hard Drive

Hinge Covers and Display Assembly

Hinge Covers

Display Assembly

Keyboard Tray

Reserve Battery

Speakers

Cooling Fan

System Board

Modem Daughter Card

Battery Latches

Flashing the BIOS

Pin Assignments for I/O Connectors

Pin Assignments for the Computer

Pin Assignments for the Media Base

Notes, Notices, and Cautions

file:///F|/Service%20Manuals/Dell/Latitude/x200/index.htm (1 of 2) [2/28/2004 8:23:48 AM]

Dell Latitude X200 Service Manual

NOTE: A NOTE indicates important information that helps you make better use

of your computer.

NOTICE: A NOTICE indicates either potential damage to hardware or loss of

data and tells you how to avoid the problem.

CAUTION: A CAUTION indicates a potential for property damage,

personal injury, or death.

Trademarks used in this text: Dell, the DELL logo, AccessDirect, and Latitude are trademarks of Dell

Computer Corporation.

Other trademarks and trade names may be used in this document to refer to either the entities

claiming the marks and names or their products. Dell Computer Corporation disclaims any proprietary

interest in trademarks and trade names other than its own.

April 2002 Rev. A00

file:///F|/Service%20Manuals/Dell/Latitude/x200/index.htm (2 of 2) [2/28/2004 8:23:48 AM]

Before You Begin: Dell Latitude X200 Service Manual

Back to Contents Page

Before You Begin

Dell™ Latitude™ X200 Service Manual

Preparing to Work Inside the Computer

Recommended Tools

Computer Orientation

Screw Identification

Preparing to Work Inside the Computer

CAUTION: Before working inside your computer, read "Safety and EMC

Instructions: Portable Computers" in your System Information Guide.

NOTICE: Only a certified service technician should perform repairs on your

computer. Damage due to servicing that is not authorized by Dell is not covered

by your warranty.

NOTICE: To avoid damaging the computer, perform the following steps before

you begin working inside the computer.

1. Ensure that the work surface is flat and clean to prevent scratching the

computer cover.

2. Save any work in progress and exit all open programs.

3. Turn off the computer and all attached devices.

NOTE: Ensure that the computer is turned off and not in suspend or hibernate

mode. If you cannot shut down the computer using the computer operating

system, press and hold the power button for 4 seconds.

4. Ensure that the computer is undocked.

file:///F|/Service%20Manuals/Dell/Latitude/x200/begin.htm (1 of 6) [2/28/2004 8:23:54 AM]

Before You Begin: Dell Latitude X200 Service Manual

5. Disconnect the computer from the electrical outlet.

6. To avoid possible damage to the system board, wait 10 to 20 seconds and then

disconnect any attached devices.

7. Disconnect all other external cables from the computer.

8. Remove any installed PC Cards or plastic blanks from the PC Card slot.

9. Close the display and turn the computer upside down on a flat work surface.

NOTICE: To avoid damaging the system board, you must remove the battery

before you service the computer.

10. Remove the battery from the battery bay.

11. To dissipate any static electricity while you work, use a wrist grounding strap or

periodically touch an unpainted metal surface.

12. Handle components and cards with care. Do not touch the components or

contacts on a card. Hold a card by it edges or by its metal mounting bracket.

Hold a component such as a microprocessor by its edges, not by its pins.

Recommended Tools

The procedures in this manual require the following tools:

●#1 magnetized Phillips screwdriver

●¼-inch flat-blade screwdriver

●Small plastic scribe

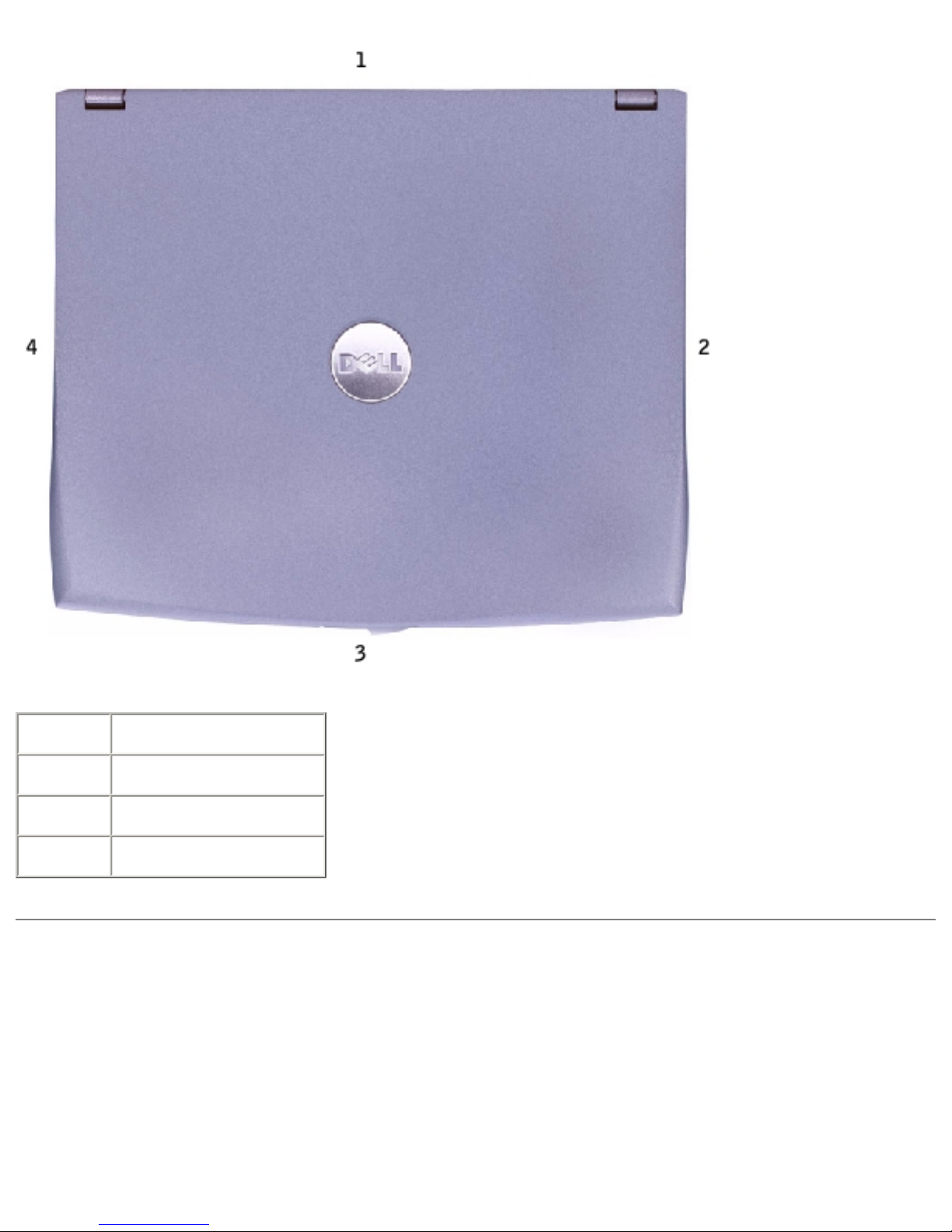

Computer Orientation

file:///F|/Service%20Manuals/Dell/Latitude/x200/begin.htm (2 of 6) [2/28/2004 8:23:54 AM]

Before You Begin: Dell Latitude X200 Service Manual

1 back

2 right

3 front

4 left

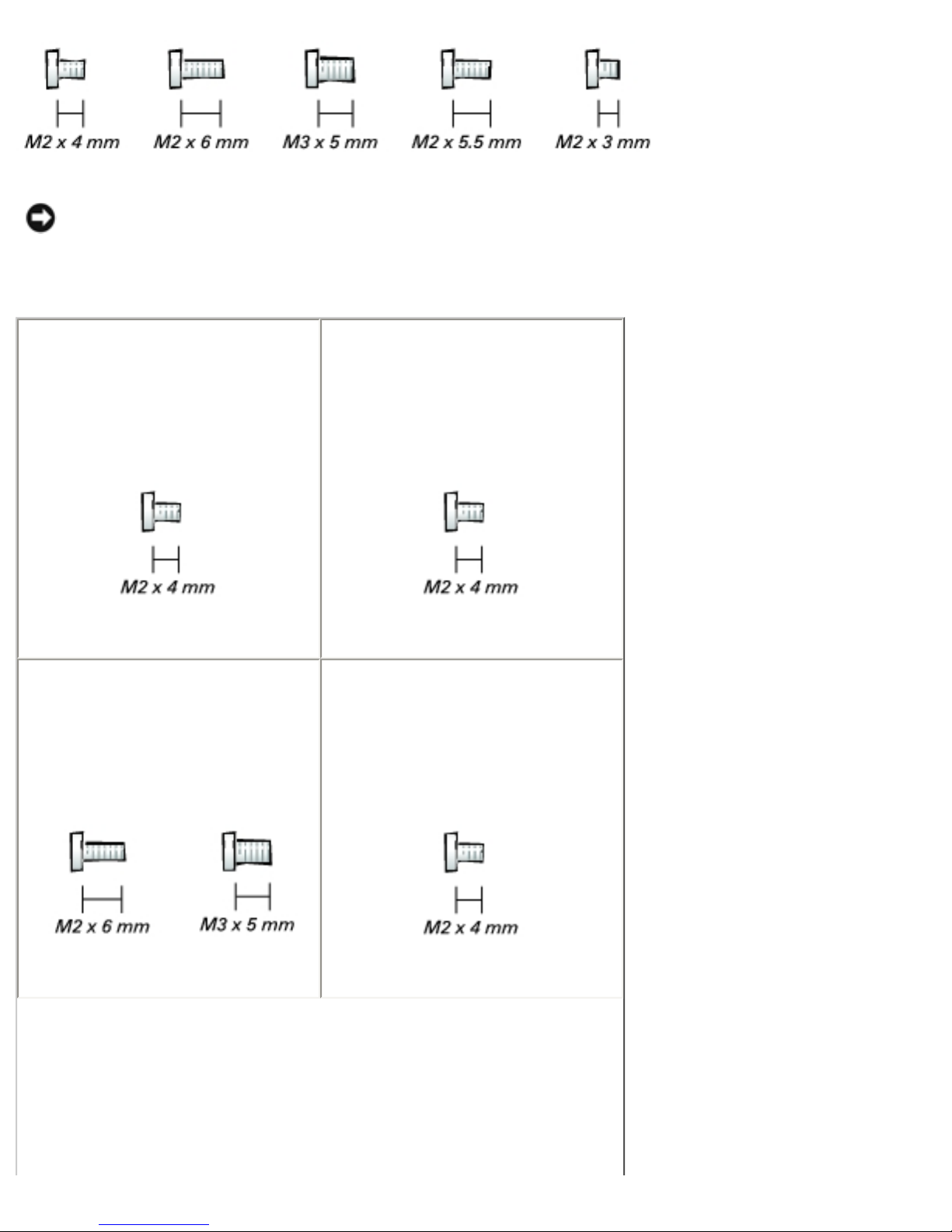

Screw Identification

When you are removing and replacing components, photocopy the placemat as a tool

to lay out and keep track of the screws. The placemat provides the number of screws

and their sizes.

file:///F|/Service%20Manuals/Dell/Latitude/x200/begin.htm (3 of 6) [2/28/2004 8:23:54 AM]

Before You Begin: Dell Latitude X200 Service Manual

NOTICE: When reinstalling a screw, you must use a screw of the correct

diameter and length. Ensure that the screw is properly aligned with its

corresponding hole, and avoid overtightening.

Keyboard:

(6 each)

Palm Rest:

(4 each)

Display Assembly:

(2 each)

Keyboard Tray:

(7 each)

file:///F|/Service%20Manuals/Dell/Latitude/x200/begin.htm (4 of 6) [2/28/2004 8:23:54 AM]

Before You Begin: Dell Latitude X200 Service Manual

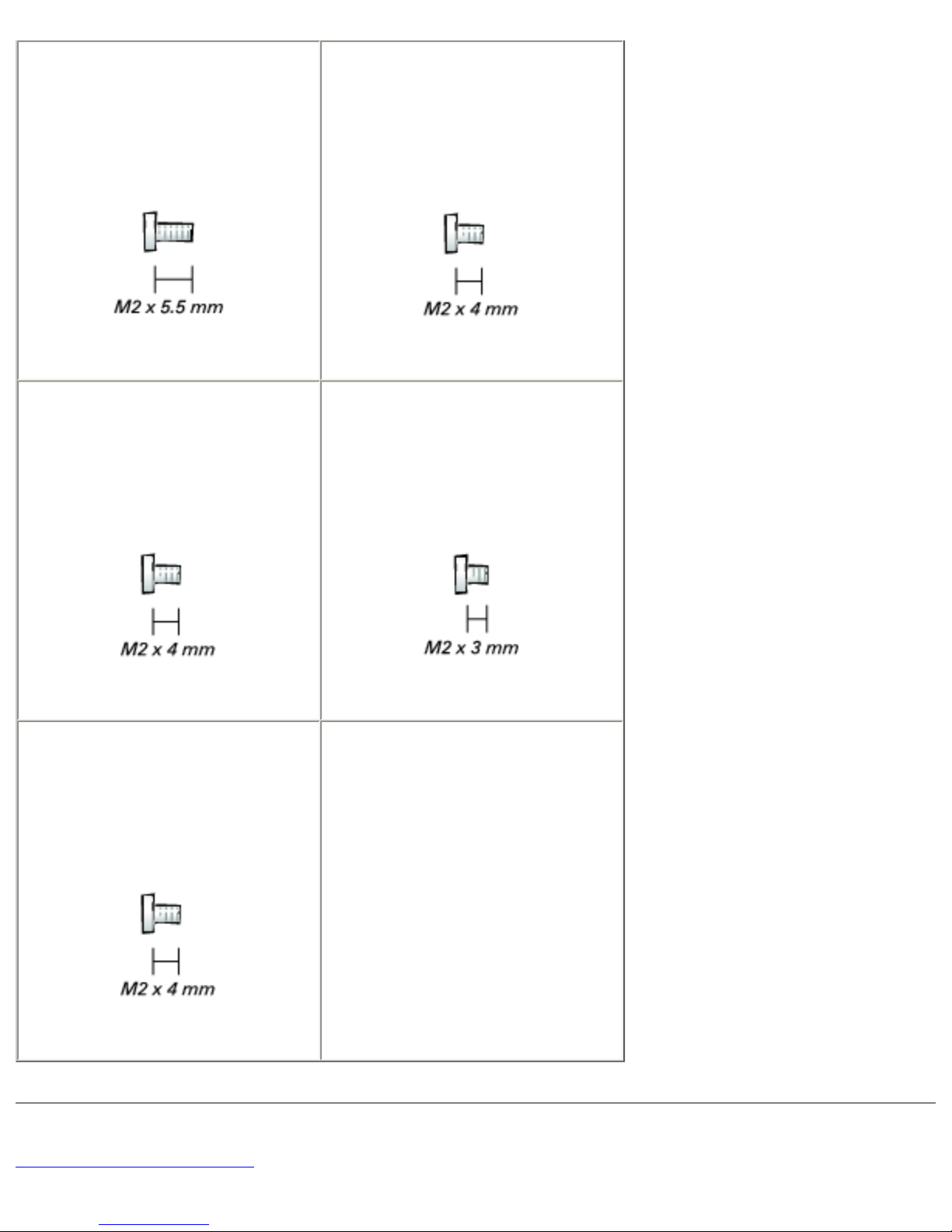

Hard Drive:

(3 each)

System Board:

(4 each)

Modem Daughter Card:

(1 each)

Cooling Fan:

(4 each)

Speaker:

(1 each)

Back to Contents Page

file:///F|/Service%20Manuals/Dell/Latitude/x200/begin.htm (5 of 6) [2/28/2004 8:23:54 AM]

Before You Begin: Dell Latitude X200 Service Manual

file:///F|/Service%20Manuals/Dell/Latitude/x200/begin.htm (6 of 6) [2/28/2004 8:23:54 AM]

System Components: Dell Latitude X200 Service Manual

Back to Contents Page

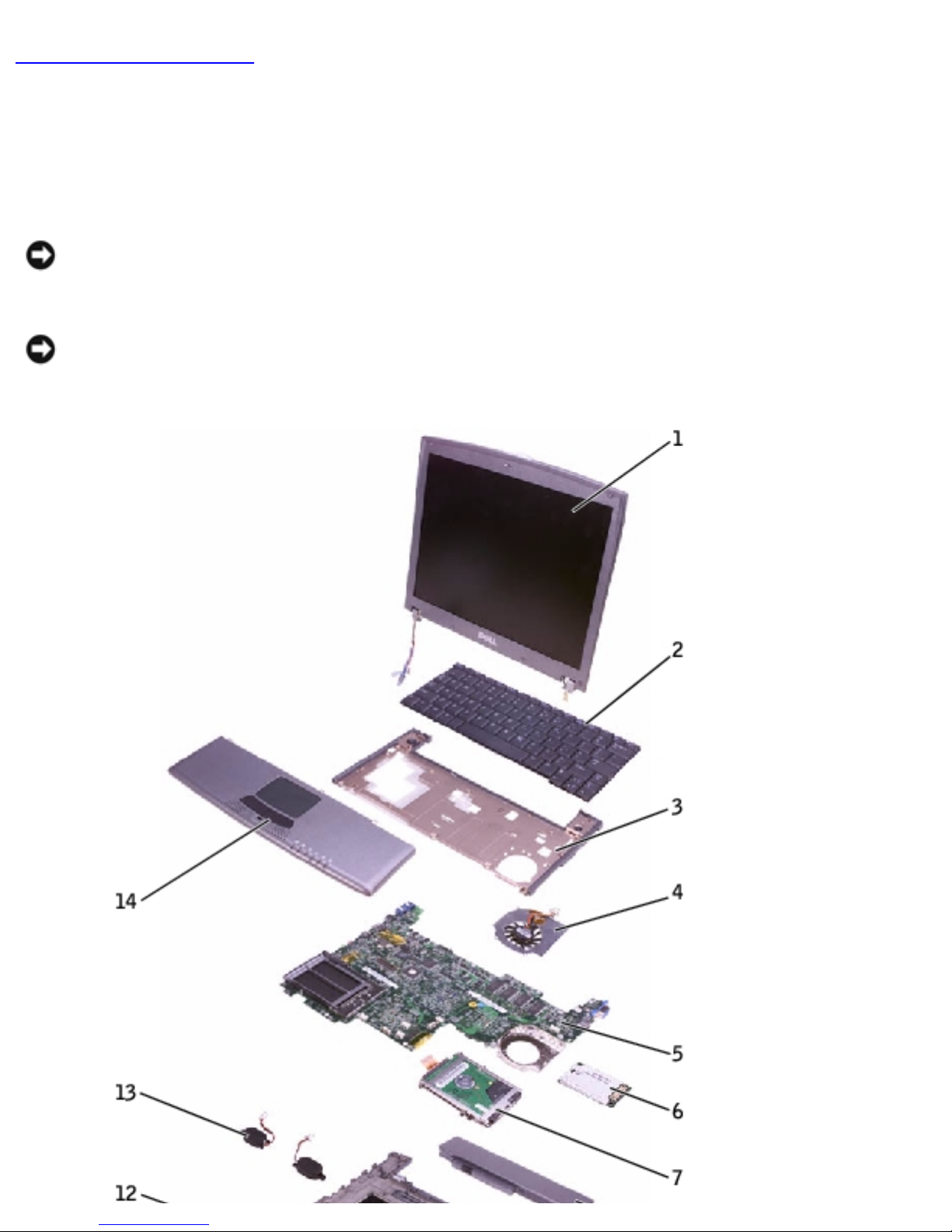

System Components

Dell™ Latitude™ X200 Service Manual

NOTICE: Only a certified service technician should perform repairs on your

computer. Damage due to servicing that is not authorized by Dell is not covered

by your warranty.

NOTICE: Unless otherwise noted, each procedure in this manual assumes that

a part can be replaced by performing the removal procedure in reverse order.

file:///F|/Service%20Manuals/Dell/Latitude/x200/system.htm (1 of 2) [2/28/2004 8:23:55 AM]

System Components: Dell Latitude X200 Service Manual

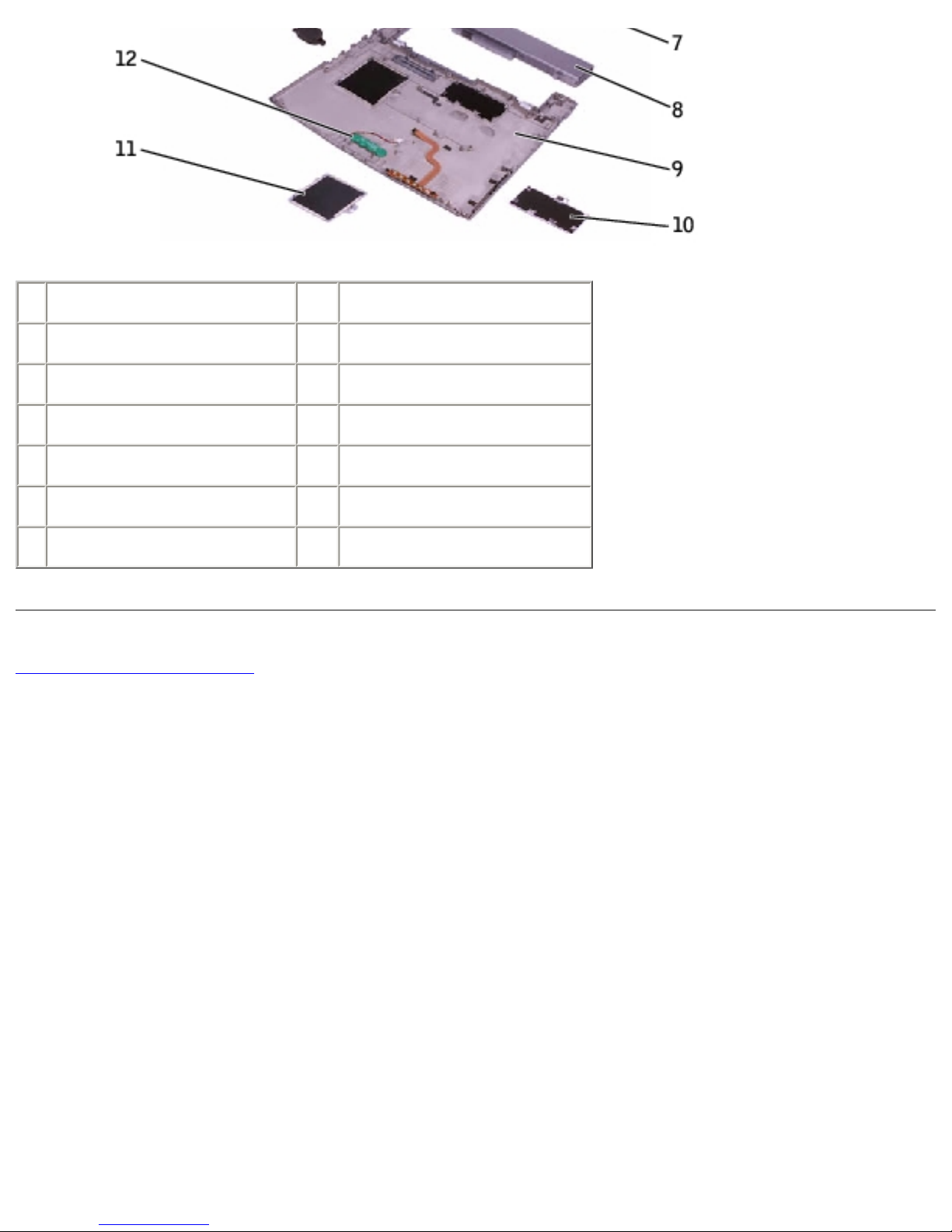

1 display 8 battery

2 keyboard 9 bottom case

3 keyboard tray 10 memory module cover

4 cooling fan 11 Mini PCI card cover

5 system board 12 reserve battery

6 modem daughter card 13 speakers (2)

7 hard drive 14 palm rest

Back to Contents Page

file:///F|/Service%20Manuals/Dell/Latitude/x200/system.htm (2 of 2) [2/28/2004 8:23:55 AM]
