OPERATOR'S MANUAL
TDU 107
Touch Display Unit
4189341218F
1. Introduction
1.1 About the Operator's manual.............................................................................................................................................................................................. 4
1.1.1 Intended users of the Operator's manual.................................................................................................................................................................4
1.1.2 Software versions...............................................................................................................................................................................................................4
1.1.3 List of technical documentation....................................................................................................................................................................................4
1.1.4 Technical support ..............................................................................................................................................................................................................4
1.1.5 Symbols for hazard statements....................................................................................................................................................................................5
1.1.6 Symbols for notes.............................................................................................................................................................................................................. 5
1.2 Warnings and safety.................................................................................................................................................................................................................6
1.3 Legal information.......................................................................................................................................................................................................................6
1.3.1 Trademarks...........................................................................................................................................................................................................................6
1.3.2 Third party equipment...................................................................................................................................................................................................... 6
1.3.3 Disclaimer..............................................................................................................................................................................................................................7
1.3.4 Copyright................................................................................................................................................................................................................................7
2. Overview of the unit
2.1 Introduction ................................................................................................................................................................................................................................. 8
2.2 Layout...............................................................................................................................................................................................................................................9
2.2.1 Unit........................................................................................................................................................................................................................................... 9
2.2.2 Status bar............................................................................................................................................................................................................................10
2.2.3 Core connections............................................................................................................................................................................................................. 11
2.2.4 Extended connections....................................................................................................................................................................................................11
3. Operating the system
3.1 Menus.............................................................................................................................................................................................................................................13
3.1.1 Return (back) navigation.............................................................................................................................................................................................. 13
3.2 Keyboards............................................................................................................................................................................................................................14
3.2.1 Text keyboard....................................................................................................................................................................................................................14
3.2.2 Value keyboard.................................................................................................................................................................................................................15
3.3 Software update using USB....................................................................................................................................................................................... 16
3.3.1 Before you begin..............................................................................................................................................................................................................16
3.3.2 Download and update software.................................................................................................................................................................................16
4. Features
4.1 Home : Control panel..................................................................................................................................................................................................... 17
4.1.1 Change instrument..........................................................................................................................................................................................................18
4.1.2 Instrument property.........................................................................................................................................................................................................19
4.2 Supervision......................................................................................................................................................................................................................... 20
4.3 Controller settings...........................................................................................................................................................................................................21
4.3.1 Edit settings................................................................................................................................................................................................................ 22
4.3.2 Filter groups................................................................................................................................................................................................................23
4.4 Alarms.................................................................................................................................................................................................................................... 24
4.4.1 Alarms popup.................................................................................................................................................................................................................... 25
4.5 Logs.........................................................................................................................................................................................................................................26
4.6 Exhaust After-Treatment Dashboard (Tier4)..................................................................................................................................................... 27
4.7 Alternator curve................................................................................................................................................................................................................ 28
OPERATORS MANUAL 4189341218F EN Page 2 of 40
4.8 Additional Operator Panel (AOP)............................................................................................................................................................................ 29
4.9 Language..............................................................................................................................................................................................................................30
4.10 User permissions.......................................................................................................................................................................................................... 31
4.10.1 Password levels.............................................................................................................................................................................................................31
4.10.2 User permissions.......................................................................................................................................................................................................... 31
4.11 Display Config................................................................................................................................................................................................................. 32
4.11.1 More settings...................................................................................................................................................................................................................33
4.12 Language Mgt..................................................................................................................................................................................................................34
4.13 Language translations....................................................................................................................................................................................................... 35
4.13.1 Introduction......................................................................................................................................................................................................................35
4.13.2 Before you begin........................................................................................................................................................................................................... 35
4.13.3 Create or edit language translation....................................................................................................................................................................... 36
4.14 Export or import settings................................................................................................................................................................................................. 37
4.14.1 Introduction......................................................................................................................................................................................................................37
4.14.2 Before you begin........................................................................................................................................................................................................... 37
4.14.3 Export or import configuration file.......................................................................................................................................................................... 37
4.15 Access lock..............................................................................................................................................................................................................................39
5. End-of-life
5.1 Disposal of waste electrical and electronic equipment..................................................................................................................................... 40
OPERATORS MANUAL 4189341218F EN Page 3 of 40
1. Introduction
1.1 About the Operator's manual
1.1.1 Intended users of the Operator's manual
This is the operator's manual for DEIF's Touch Display Unit, TDU 107 controlling the AGC-4 Mk II or AGC-4 genset or mains
controller.
The manual is for the operator who uses the TDU 107. The manual includes an introduction to the unit, basic operator tasks, alarms,
logs, and more advanced operator tasks.
NOTE The manual does not describe self-explanatory functions that the operator can easily explore. For example, the Service
menu and its Live Data and Service Timers pages.
1.1.2 Software versions
The information in this document corresponds to the following software versions.
Table 1.1 Software versions
Software Details Version
AGC-4 Mk II Controller application 6.00.x or later
AGC-4 Controller application 4.76.x or later
• TDU 107 Core
• TDU 107 Extended Display unit application 1.3.7.x or later
1.1.3 List of technical documentation
Document Contents
Data sheet
• System description
• Technical specifications
• Ordering information
Installation instructions • Mounting
• Default wiring
Operator's manual • Operating the unit
• Alarms and log
1.1.4 Technical support
You can read about service and support options on the DEIF website, http://www.deif.com. You can also find contact details on the
DEIF website.
You have the following options if you need technical support:
• Technical documentation: Download all the product technical documentation from the DEIF website: http://www.deif.com/
documentation
• Support: DEIF offers 24-hour support. See http://www.deif.com/support for contact details. There may be a DEIF subsidiary
located near you. See http://www.deif.com/support/local-office
OPERATORS MANUAL 4189341218F EN Page 4 of 40
1.1.5 Symbols for hazard statements
DANGER!
This highlights dangerous situations.
If the guidelines are not followed, these situations will result in death, serious personal injury, and equipment damage or
destruction.
WARNING
This highlights potentially dangerous situations.
If the guidelines are not followed, these situations could result in death, serious personal injury, and equipment damage
or destruction.
CAUTION
This highlights low level risk situation.
If the guidelines are not followed, these situations could result in minor or moderate injury.
NOTICE
This highlights an important notice
Make sure to read this information.
1.1.6 Symbols for notes
More information
This highlights where to find more information.
NOTE * This highlights a referenced note.
Example heading
This highlights an example.
This highlights tapping or pressing the screen area.
This highlights pressing and holding the screen area for an amount of seconds.
This highlights swiping the screen area, up or down.
This highlights swiping the screen area, left or right.
OPERATORS MANUAL 4189341218F EN Page 5 of 40
1.2 Warnings and safety
DANGER!
Hazardous live currents and voltages
Risk of electrical shock
Switchboard access must only be carried out by authorised personnel who understand the risks involved in working with
electrical equipment. Do not touch any terminals, especially the AGC AC measurement inputs and the relay terminals.
Touching the terminals could lead to injury or death.
WARNING
Possible automatic genset starts
Risk of personal injury
The power management system automatically starts gensets when more power is needed. It can be difficult for an
inexperienced operator to predict which gensets will start. In addition, gensets can be started remotely (for example, by
using an Ethernet connection, or a digital input). To avoid personal injury, the genset design, the layout, and
maintenance procedures must take this into account.
NOTICE
Manually overriding alarm actions
Risk of damage to genset or equipment
Manually overriding alarm actions could cause damage to the genset or equipment. Do not use manual control to override the
alarm action of an active alarm.
NOTICE
Manual control
Limited automatic protection actions
Under Manual control, the operator controls and operates the equipment from the switchboard. The controller does not; respond to
blackouts, provide any power management, accept operator commands, and/or prevent any manual operator actions. The
switchboard design must therefore ensure that the system is sufficiently protected when the controller is under Manual control.
1.3 Legal information
1.3.1 Trademarks
DEIF is a trademark of DEIF A/S.
All trademarks are the properties of their respective owners.
1.3.2 Third party equipment
DEIF takes no responsibility for the installation or operation of any third party equipment, including the genset. Contact the genset
company if you have any doubt about how to install or operate the genset.
OPERATORS MANUAL 4189341218F EN Page 6 of 40
1.3.3 Disclaimer
DEIF A/S reserves the right to change any of the contents of this document without prior notice.
The English version of this document always contains the most recent and up-to-date information about the product. DEIF does not
take responsibility for the accuracy of translations, and translations might not be updated at the same time as the English document.
If there is a discrepancy, the English version prevails.
1.3.4 Copyright
© Copyright DEIF A/S. All rights reserved.
OPERATORS MANUAL 4189341218F EN Page 7 of 40
2. Overview of the unit
2.1 Introduction
NOTICE
Software features described
This manual applies to both TDU 107 Core and TDU 107 Extended. The software features are the same.
The Touch Display Unit, TDU 107, is a touch screen solution for controlling an AGC-4 Mk II or AGC-4 genset or mains controller
using the Ethernet port. *
Figure 2.1 Example connection
Ethernet
787776757473 96 979594929190 93
89888785 8683 8482818079
727169 70686765 66
62 6359 60 615856 575553 54 645251504947464443 45 4841403837 39 42
Service port Display
Ethernet
PMS CAN
Engine CAN
Power
Self check ok
Alarm inhibit
USB
USB Memory
Ethernet connection
NOTE * The AGC-4 requires the Ethernet option N for connection.
The display gives user-friendly touch screen control, visualisation, and graphic displays from the AGC.
Simply operate the controller and access any feature by touching the screen.
NOTICE
Bridged Ethernet ports
The TDU 107 Extended has two Ethernet that are bridged, ETH0 and ETH1.
OPERATORS MANUAL 4189341218F EN Page 8 of 40
2.2 Layout
2.2.1 Unit
Figure 2.2 TDU 107 layout
No. Item Notes
1 Touch screen area Operate the controller by touching the screen.
2 Frame
OPERATORS MANUAL 4189341218F EN Page 9 of 40

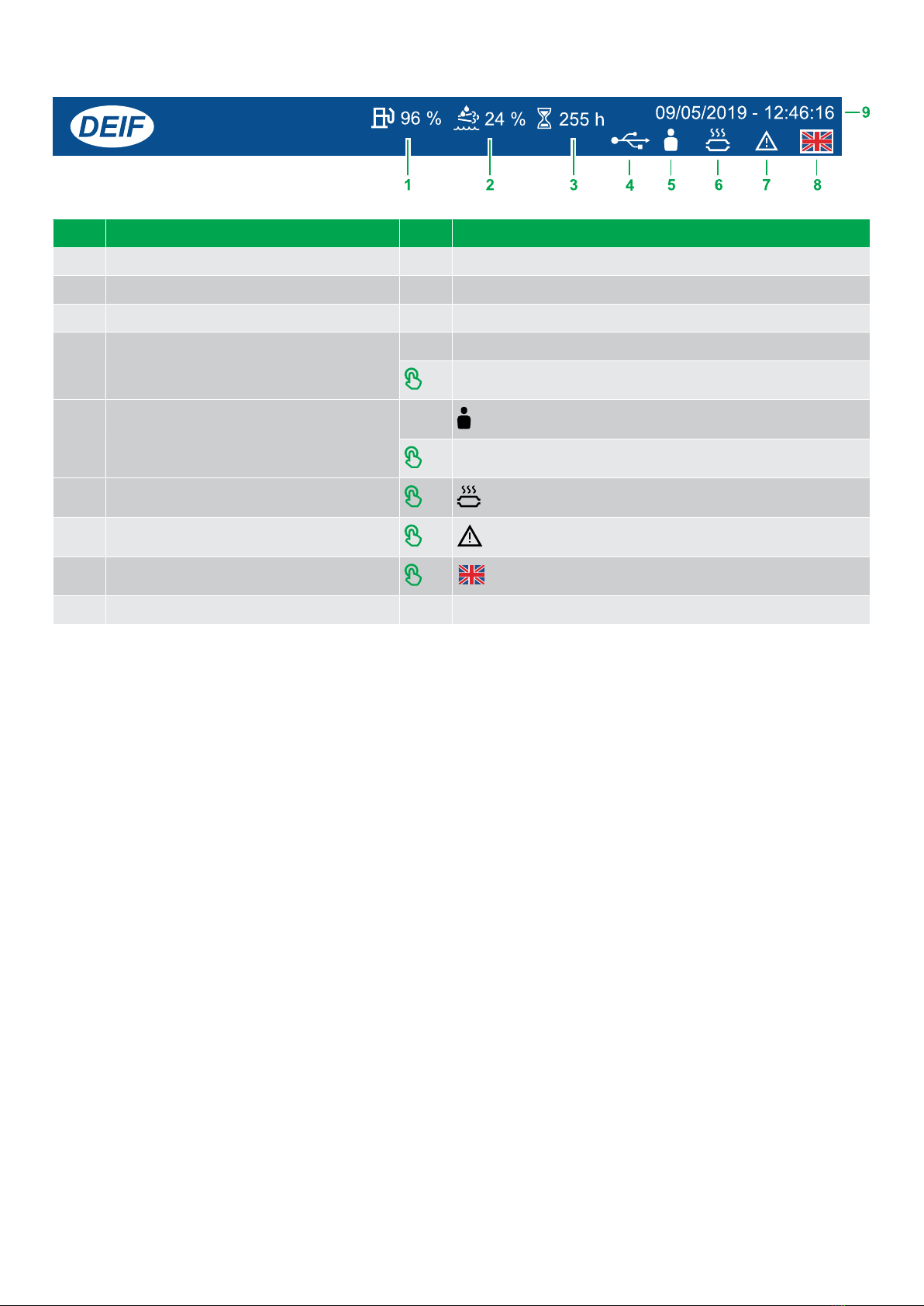

2.2.2 Status bar
No. Item Use Notes
1 Fuel level * - Shows the fuel level.
2 Diesel Exhaust Fluid (DEF) percentage ** - Shows the DEF percentage.
3 Running hours *** - Shows the total of running hours.
4 USB drive
- Shows a USB drive was detected.
Prompts to remove the USB drive safely.
5 User logged on
Shows a user is logged on.
Displays prompt to logout.
6 Exhaust After-Treatment Dashboard Opens Exhaust After-Treatment Dashboard (Shortcut). *
7 Alarm(s) Opens Alarms (Shortcut).
8 Language Opens Language (Shortcut).
9 Date and Time - Shows the controller Date and Time.
NOTE * Only shown if the fuel level is configured with a multi-input. Use either multi-input 102 parameter 10980, multi-input 105
parameter 10990, or multi-input 108 parameter 11000 with RMI fuel level.
NOTE ** Only shown if the Engine communication is configured.
NOTE *** Only shown for genset controllers and not on mains controllers.
OPERATORS MANUAL 4189341218F EN Page 10 of 40
