OPERATOR'S MANUAL

AGC 150

Generator marine

Stand-alone

4189341314A

1. Introduction

1.1 Symbols for hazard statements......................................................................................................................................................................................... 3

1.2 About the operator's manual...............................................................................................................................................................................................3

1.3 Warnings and safety.................................................................................................................................................................................................................4

1.4 Legal information.......................................................................................................................................................................................................................4

2. About the AGC 150 Stand-alone marine

2.1 Stand-alone (island mode)....................................................................................................................................................................................................5

2.1.1 Display, buttons and LEDs............................................................................................................................................................................................. 5

2.2 Emergency genset.....................................................................................................................................................................................................................6

2.2.1 Display, buttons and LEDs............................................................................................................................................................................................. 7

2.3 Display settings.......................................................................................................................................................................................................................... 8

2.4 Mimic function............................................................................................................................................................................................................................. 8

2.5 Running modes...........................................................................................................................................................................................................................9

3. Menus

3.1 Menu structure..........................................................................................................................................................................................................................10

3.2 Settings menu........................................................................................................................................................................................................................... 10

3.2.1 Menu numbers.................................................................................................................................................................................................................. 11

3.2.2 The jump to parameter function.................................................................................................................................................................................11

3.3 View menu................................................................................................................................................................................................................................... 11

3.3.1 Display views.....................................................................................................................................................................................................................12

3.3.2 Display text.........................................................................................................................................................................................................................13

3.4 Status texts.................................................................................................................................................................................................................................14

3.5 Service view............................................................................................................................................................................................................................... 15

3.6 Engine drive shortcut menu..............................................................................................................................................................................................15

3.7 Exhaust after-treatment (Tier 4/Stage V).................................................................................................................................................................... 16

4. Alarm handling and log list

4.1 Alarm handling......................................................................................................................................................................................................................... 18

4.2 Logs menu.................................................................................................................................................................................................................................. 19

OPERATOR'S MANUAL 4189341314A EN Page 2 of 19

1. Introduction

1.1 Symbols for hazard statements

DANGER!

This shows dangerous situations.

If the guidelines are not followed, these situations will result in death, serious personal injury, and equipment damage or

destruction.

WARNING

This shows potentially dangerous situations.

If the guidelines are not followed, these situations could result in death, serious personal injury, and equipment damage

or destruction.

CAUTION

This shows low level risk situation.

If the guidelines are not followed, these situations could result in minor or moderate injury.

NOTICE

This shows an important notice

Make sure to read this information.

1.2 About the operator's manual

This document gives the necessary information to operate the controller.

CAUTION

Installation errors

Read this document before working with the AGC 150 controller. Failure to do this may result in human injury or damage

to the equipment.

Intended users of the operator's manual

The operator's manual is for the operator that uses the controller regularly.

The manual describes the LEDs, buttons and screens on the controller, alarm handling, and the logs menu.

OPERATOR'S MANUAL 4189341314A EN Page 3 of 19

1.3 Warnings and safety

Factory settings

The controller is delivered pre-programmed from the factory with a set of default settings. These settings are based on typical values

and may not be correct for your system. You must therefore check all parameters before using the controller.

Data security

To minimise the risk of data security breaches:

• As far as possible, avoid exposing controllers and controller networks to public networks and the Internet.

• Use additional security layers like a VPN for remote access, and install firewall mechanisms.

• Restrict access to authorised persons.

1.4 Legal information

Third party equipment

DEIF takes no responsibility for the installation or operation of any third party equipment, including the genset. Contact the genset

company if you have any doubt about how to install or operate the genset.

Warranty

NOTICE

Warranty

The controller is not to be opened by unauthorised personnel. If opened anyway, the warranty will be lost.

Disclaimer

DEIF A/S reserves the right to change any of the contents of this document without prior notice.

The English version of this document always contains the most recent and up-to-date information about the product. DEIF does not

take responsibility for the accuracy of translations, and translations might not be updated at the same time as the English document.

If there is a discrepancy, the English version prevails.

Software version

This document is based on the AGC 150 software version 1.10.0.

OPERATOR'S MANUAL 4189341314A EN Page 4 of 19

2. About the AGC 150 Stand-alone marine

2.1 Stand-alone (island mode)

Stand-alone (island mode)

Stand-alone (island mode operation) is typically used in power

plants that are isolated from other power generation systems.

NOTE For the AGC 150 Stand-alone controller, you can

disable breaker control.

2.1.1 Display, buttons and LEDs

15 14 11 1112 12

2 3 3

1013

No. Name Function

1 Power Green: The controller power is ON.

OFF: The controller power is OFF.

2 Display screen

Resolution: 240 x 128 px.

Viewing area: 88.50 x 51.40 mm.

Six lines, each with 25 characters.

3 Navigation Move the selector up, down, left and right on the screen.

4 OK Go to the Menu system.

Confirm the selection on the screen.

5 Back Go to the previous page.

6 Remote mode Remote equipment (digital inputs, Modbus commands, AOP-2 commands) controls the AGC 150.

OPERATOR'S MANUAL 4189341314A EN Page 5 of 19

No. Name Function

7 Silence horn Turns off an alarm horn (if configured) and enters the Alarm menu.

8 Shortcut menu Access the Jump menu, Mode selection, Test, Lamp test

9 Local mode The operator can use the display unit push buttons to start, stop, connect or disconnect the genset.

10 Main busbar This AGC does not use this. It is only lit during a lamp test.

11 Close breaker Push to close the breaker.

12 Open breaker Push to open the breaker.

13 Breaker symbols

Green: Breaker is closed.

Red: Breaker failure.

OFF: The breaker is open.

14 Generator

Green: Generator voltage and frequency are OK. The controller can close the breaker.

Green flashing: The generator voltage and frequency are OK, but the V&Hz OK timer is still running.

The controller cannot close the breaker.

Red: The generator voltage is too low to measure.

15 Engine

Green: There is running feedback.

Green flashing: The engine is getting ready.

Red: The engine is not running, or there is no running feedback.

16 Stop Stops the genset if Local or Semi-auto is selected.

17 Start Starts the genset if Local or Semi-auto is selected.

18 Load symbol Green: The supply voltage and frequency are OK.

Red: Supply voltage/frequency failure.

2.2 Emergency genset

Emergency genset

If there is a significant loss of power or a total blackout in the

main power generation system, the controller automatically

changes the supply to the emergency generator. This makes

sure that there is power during a failure and prevents damage to

electrical equipment.

OPERATOR'S MANUAL 4189341314A EN Page 6 of 19

2.2.1 Display, buttons and LEDs

15 14 11 1112 12

2 3 3

1013

No. Name Function

1 Power Green: The controller power is ON.

OFF: The controller power is OFF.

2 Display screen

Resolution: 240 x 128 px.

Viewing area: 88.50 x 51.40 mm.

Six lines, each with 25 characters.

3 Navigation Move the selector up, down, left and right on the screen.

4 OK Go to the Menu system.

Confirm the selection on the screen.

5 Back Go to the previous page.

6 Auto mode

If there is a blackout, the controller automatically starts and connects the genset. No operator actions

are needed. The controller also automatically opens and closes the tie breaker (open transitions, since

there is no synchronisation).

7 Silence horn Turns off an alarm horn (if configured) and enters the Alarm menu.

8 Shortcut menu Access the Jump menu, Mode selection, Test, Lamp test

9 Semi-auto mode Remote equipment (digital inputs, Modbus commands, AOP-2 commands) controls the AGC 150. The

operator can also use the display unit push buttons.

10 Main busbar This AGC does not use this. It is only lit during a lamp test.

11 Close breaker Push to close the breaker.

12 Open breaker Push to open the breaker.

13 Breaker symbols

Green: Breaker is closed.

Red: Breaker failure.

OFF: The breaker is open.

14 Generator

Green: Generator voltage and frequency are OK. The controller can close the breaker.

Green flashing: The generator voltage and frequency are OK, but the V&Hz OK timer is still running.

The controller cannot close the breaker.

Red: The generator voltage is too low to measure.

OPERATOR'S MANUAL 4189341314A EN Page 7 of 19

No. Name Function

15 Engine

Green: There is running feedback.

Green flashing: The engine is getting ready.

Red: The engine is not running, or there is no running feedback.

16 Stop Stops the genset if Local or Semi-auto is selected.

17 Start Starts the genset if Local or Semi-auto is selected.

18 Load symbol Green: The supply voltage and frequency are OK.

Red: Supply voltage/frequency failure.

2.3 Display settings

To adjust for ambient lighting, configure the display settings.

Settings > Basic settings > Controller settings > Display > Display control

Parameter Text Range Default

9151 Backlight dimmer 0 to 15 * 12

9152 Green LEDs dimmer 1 to 15 * 15

9153 Red LEDs dimmer 1 to 15 * 15

9154 Contrast level -20 to +20 0

9155 Sleep mode timer 1 to 1800 s 60 s

9156 Enable (Sleep mode timer) OFF

ON ON

9157 Alarm Jump OFF

ON ON

9158 Engineering units Bar/Celcius

PSI/Fahrenheit Bar/Celcius

NOTE * Low numbers are minimum brightness and high numbers are maximum brightness.

2.4 Mimic function

With the mimic function you can select how the control buttons and LEDs are shown on the controller's display.

Settings > Basic settings > Controller settings > Display > LED mimic

Parameter no. Item Range

6082 LED mimic

Standard with genset

Standard

Guided with genset

Guided

OPERATOR'S MANUAL 4189341314A EN Page 8 of 19

Standard

The control buttons and LEDs are shown.

If you stop the genset, the engine/generator symbols are not shown.

Standard with genset

The control buttons and LEDs are shown.

If you the stop the genset, the engine/generator symbols are shown in

red.

Guided

Active control buttons and LEDs are shown inactive are not shown.

Example: The controller is in semi-auto mode, and the genset is not

operating. Only the start button and the open breaker symbol is shown,

as these are the only possible actions.

Guided with genset

Active control buttons, LEDs and the engine/generator symbols are

shown, inactive are not shown.

Example: The controller is in semi-auto mode, and the genset is not

operating. The only possible actions are to start the genset, and to open

the breaker, so only these symbols and the red engine/generator

symbols are shown.

All Mimic settings

Red breaker symbol:

• Breaker position failure

• Breaker close failure

2.5 Running modes

To configure the running modes, push the Shortcut button and use the display buttons to select Running Modes.

You can select Locale mode or Remote mode, when zero or one breaker is configured. If two or more breakers are configured, you

can select Auto mode or Semi-auto mode.

More information

See Display, buttons and LEDs for a description of the different running modes.

To configure the test mode go to Settings > Test. To select the test mode push the Shortcut button and select Start Test.

OPERATOR'S MANUAL 4189341314A EN Page 9 of 19

3. Menus

3.1 Menu structure

The controller has two menu systems, which can be used without password entry:

•The View menu system: Shows the operating status and values. The system has 20 configurable windows, that can be entered

with the arrow buttons.

•The Settings menu system: The operator can see the controller's parameters. A password is necessary to change the

parameter settings.

3.2 Settings menu

You can configure the controller in the settings menu and you can also find information, which is not available in the view menu.

From the view menu, push the button to find the settings menu. Use the and buttons to find the different settings

parameter and select with the button.

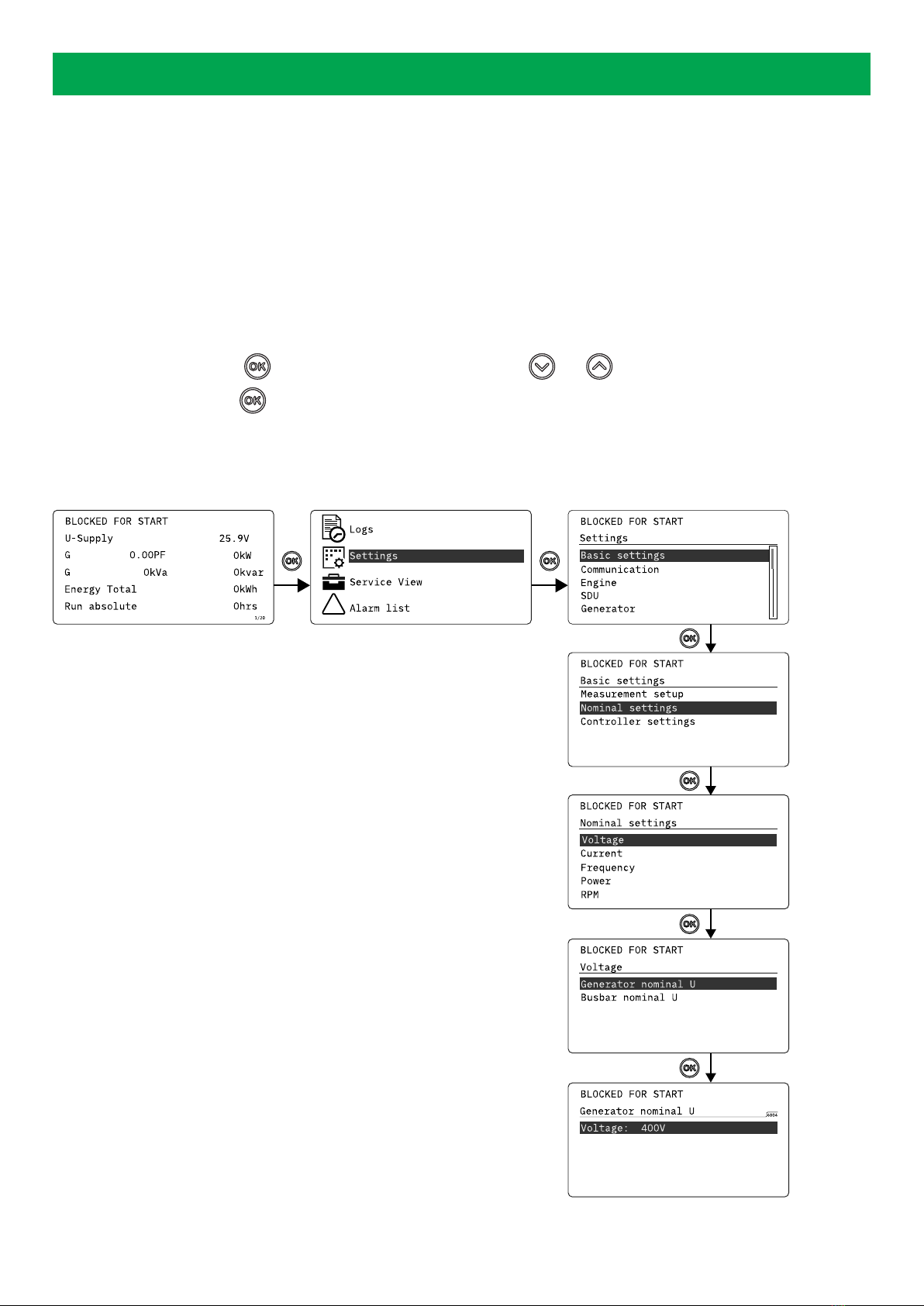

Settings menu example

This is an example of how to change the nominal voltage settings.

Push

OPERATOR'S MANUAL 4189341314A EN Page 10 of 19

Otros manuales para AGC 150

Tabla de contenidos

Otros manuales de Equipos marinos de Deif

Deif

Deif AGC 150 Manual de usuario

Deif

Deif AGC 150 Manual de usuario

Manuales populares de Equipos marinos de otras marcas

Clarion

Clarion CMS2 Manual de reparación

EBS

EBS M7000 Manual de usuario

Kongsberg

Kongsberg M3 Bathy Manual de usuario

NPK

NPK SCS-1002 Manual de usuario

Furuno

Furuno FE-800 Manual de usuario

Harken

Harken 1561 Manual de usuario

Simrad

Simrad DD15 Manual de usuario

Notifier

Notifier FS-BSO Manual de usuario

Raymarine

Raymarine ST40 Manual de usuario

E2S

E2S E2XS112UL Manual de usuario

R2Sonic

R2Sonic 2026 Manual de usuario

COBHAM

COBHAM SAILOR 6000 Manual de usuario

Clarion

Clarion GR10BT Manual de reparación

Raymarine

Raymarine Maxiview ST80 Guía del usuario

GUIDANCE MARINE

GUIDANCE MARINE 20- Series Instrucciones de montaje

Raymarine

Raymarine ST60 Tridata Guía del usuario

olympia electronics

olympia electronics ΒS-531/1/MAR Manual de usuario

Sonic

Sonic 2024 Manual de usuario
