Defender Security SR10369 Manual de usuario

SR10369 and SR10370

DOME SECURITY CAMERAS

INSTALLATION GUIDE

INSTALLATION

SAFETY INSTRUCTIONS

• Before using the camera, please read this manual carefully and keep it

for future use.

• Installation should be completed by a qualied installer or experienced

person with good knowledge of networking installation.

• Do not expose the lens to intense light source for long periods.

• Do not touch the sensor directly.

• Ensure the power supply used to operate the camera is of the correct

specication.

• Operating temperature range is -30oC to +60oC.

• Do not mount the camera directly above a heat source.

• Do not install the camera below an air curtain or air conditioning unit or

the lens may be affected by condensation.

• There are no serviceable parts inside - do not disassemble.

• It is advisable to install lightning protection if the camera or any wiring is

to be installed in a vulnerable position.

TROUBLESHOOTING

FEATURES

MAINTENANCE

Auto Gain Control (AGC)

• Built-in auto gain control (AGC) circuit. The colour camera can produce

high quality pictures in low light condition.

Auto Electronic Shutter (AES)

• Built-in auto electronic shutter function. The colour camera’s AES

speed is up to 1/100,000s.

Gamma Characteristic

• Camera Gamma characteristic is 0.45.

Scanning Mode

• NTSC or PAL mode.

• Use a soft cloth to wipe off any dust. If the camera is very dirty, use a

damp cloth with a mild detergent and wipe dry.

• Do not use any chemicals, abrasives or solvents that could damage the

camera.

• Clean the lens and sensor with a soft dry cloth.

No picture after connecting to the recorder and power supply.

• Check the power supply is suitable and connected correctly and that the

network cable is correct and installed properly.

The picture has owing interference ripples or generally poor.

• May be caused by uctuations in the AC mains power supply.

Check the monitor and peripheral equipments used to determine if the

problem is with the camera feed or another component in the network.

• Ensure the power supply is stable and of sufcient power and all

connections are clean with low impedance.

The picture colour changes continuously

• Installation close to uorescent lighting can cause this. Try to keep a

reasonable distance from the uorescent tting.

• Interference from an electromagnetic source close to the camera or the

supply wiring.

INFORMATION ON WASTE DISPOSAL FOR CONSUMERS OF ELECTRICAL &

ELECTRONIC EQUIPMENT.

When this product has reached the end of its life it must be treated as Waste Electrical

& Electronic Equipment (WEEE). Any WEEE marked products must not be mixed with

general household waste, but kept separate for the treatment, recovery and recycling

of the materials used. Contact your local authority for details of recycling schemes in

your area. Made in China. PR2 9PP

Man Rev 1.0

SPECIFICATION

SR10369 SR10370

Image Sensor 1/2.7” 2MP CMOS Sensor

Resolution 1080P

Output PAL/NTSC

Minimum light level 0.01lux/F1.2

S/N ratio >45dB

Synchronisation Internal

IR Range 30 meters

IR power Auto Photodiode control

Video output CVBS / CVI / TVI / AHD

Power 12V DC 700mA (Min)

Lens 2.8-12mm Manual Zoom Lens

IP Rating IP66

Dimensions

Ø131 x 93mm

Weight 0.8kg

Operating Temp -10oC~+50oC 95% humidity (Max)

Este manual sirve para los siguientes modelos

Otros manuales de Cámara de seguridad de Defender Security

Defender Security

Defender Security DFR32 Manual de usuario

Defender Security

Defender Security LIZM40SM Manual de usuario

Defender Security

Defender Security 82-13285 Manual de usuario

Defender Security

Defender Security 82-22590 Manual de usuario

Defender Security

Defender Security LIP40SHD Manual de usuario

Defender Security

Defender Security 82-18295 Manual de usuario

Defender Security

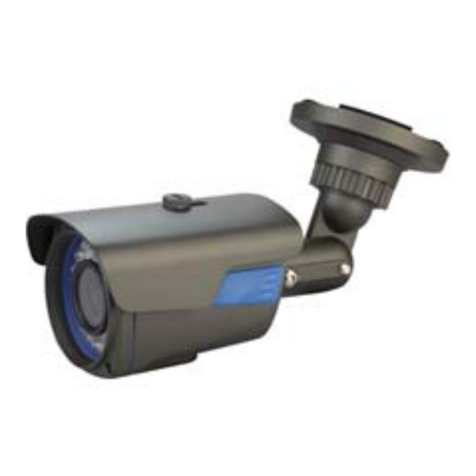

Defender Security LBB40SM Manual de usuario
