DeeZee DZ 99600 Manual de usuario

1-800-779-2102(

(

Mon!–!Thurs:!8:00am!-!5:00pm!|!!Friday:!8:00am!-!4:00pm!CST!

INSPECT(YOUR(PRODUCT(FOR(DAMAGE(&(MISSING((

PARTS(BEFORE(PROCEEDING(TO(INSTALLATION(

PROCEDURE(FOR(RETURNS(OR(MISSING(HARDWARE!

-PLEASE!CONTACT!THE!ORIGINAL!POINT!OF!PURCHASE!FOR:!

SHIPPING!DAMAGE,!RETURNS,!OR!WARRANTY!CLAIMS!

-CONTACT!DEE!ZEE!DIRECTLY!FOR!MISSING!PARTS!OR!HARDWARE!

WWW.DEEZEE.COM(

!!!!!!!!!!VIEW!INSTRUCTIONS!ONLINE:!www.deezee.com/instructions(

(

Operating,!servicing,!and!maintaining!a!passenger!vehicle!can!expose!you!to!chemicals!such!as!lead,!!

phthalates,!engine!exhaust,!and!carbon!monoxide!that!are!known!to!the!State!of!California!cause!cancer!!

and!birth!defects!or!other!reproductive!harm.!To!minimize!exposure,!service!your!vehicle!and!its!!

accessories!in!a!well-vented!area!and!wear!gloves!or!wash!your!hands!frequently.!

! !

(

DEE(ZEE,(INC.(WARRANTY(AGREEMENT(

(

Dee!Zee,!Inc.!guarantees!the!original!purchaser!a!limited!lifetime!warranty!against!manufacturer!defects!in!materials,!

workmanship,!and!design!under!normal!use,!excluding!damage!resulting!from!road!hazards!such!as!gravel!or!other!debris,!

product!misuse,!improper!installation,!impairments!from!accidents,!product!modifications,!improper!repairs,!spills,!vandalism,!

product!neglect,!or!acts!of!God.!!

This!warranty!applies!only!to!the!original!purchaser!of!new!product(s)!and!is!limited!to!the!replacement!of!genuine!Dee!Zee!

products.!Modification!of!any!kind!to!Dee!Zee!products!voids!all!warranty!coverage.!Warranty!does!not!include!electrical!

components,!installation,!cost!of!removal,!labor,!transportation!costs,!loss!of!use,!inconvenience,!or!consequential!damages.!!

WARRANTY(COVERAGE(-(MATERIALS(&(WORKMANSHIP(

LIMITED'LIFETIME'WARRANTY:((

•

STAINLESS(STEEL:!Side!Steps,!Grill!Guards,!Bull!Bars,!Bed!Caps,!and!Side!Rails!

•

ALUMINUM:!Side!Steps,!Running!Boards,!Storage!Boxes,!Transfer!Tanks,!Bed!Protection,!Side!Rails,!Invis-A-Racks,!and!

Cab!Racks!!

•

PLASTIC:!Storage!Boxes!

•

OTHER:!Front!and!Rear!Bumpers!

THREE-YEAR'WARRANTY:((

•

POWDER-COATED(/(E-COATED(STEEL:!Side!Steps,!Running!Boards,!Storage!Boxes,!Transfer!Tanks,!Cab!Racks,!Sport!Bar!

Ladder!Racks,!Cargo!Carriers,!Mounting!Brackets!(NX,!Rough!Step,!and!Bumper!Guards!only)!

•

OTHER:!Tailgate!Assist,!Bed!Mats,!Floor!Mats,!Auxiliary!Fuel!Connection!Kits,!and!All!Products!Not!Otherwise!Listed!

Individually!

WARRANTY(COVERAGE(–(FINISH(PROTECTION(!

The!finish!of!all!Dee!Zee!products!is!covered!for!one-year!(1)!from!the!date!of!purchase.!Dee!Zee!products!have!a!high!quality!

finish!that!must!be!cared!for!and!maintained!like!any!other!exposed!finish!on!the!vehicle.!Protect!the!finish!with!non-abrasive!

automotive!wax!(e.g.!Pure!Carnauba)!on!a!regular!basis.!Applying!soaps,!polishes,!or!waxes!that!contain!an!abrasive!compound!

may!scratch!the!finish!and!leave!the!exposed!material!susceptible!to!corrosion.'

WARRANTY(COVERAGE(–(COMPONENT(PARTS!

Operational!items!such!as!shocks,!latches,!hinges,!and!wear!items!including,!but!not!limited!to,!mud!flaps,!step!pads,!toolbox!

tray,!end!caps,!hardware,!seals,!etc.!have!a!one-year!(1)!warranty.!Replacement!component!parts!can!be!ordered!via!credit!card!

(MasterCard!or!VISA)!by!calling!1-800-779-2102.!All!replacement!parts!are!non-returnable!and!non-refundable.!!

GPI®(FUEL(PUMPS(&(ACCESSORIES(

(

All!Great!Plains!Industries!(GPI)!products,!including!transfer!tank!pumps!and!fuel!meters!are!covered!by!GPI’s!warranty!policies.!

Dee!Zee’s!warranty!terms!do!not!apply!to!GPI!products.!To!submit!a!warranty!claim,!please!contact!GPI!at!1-800-835-0113!or!

visit!www.gpi.net.!!

(

WARRANTY(SUBMISSION(PROCEDURE!

All!warranty!claims!will!be!initiated!at!the!place!of!purchase.!The!original!purchaser!will!be!required!to!present!the!original!sales!

receipt!with!purchase!date!shown!and!provide!photographs!of!the!defect.!!

In!the!event!the!originally!purchased!product!style!is!no!longer!available,!Dee!Zee!will!warranty!the!defective!part!with!a!current!

equivalent.!If!a!comparable!product!is!no!longer!available,!the!product!would!be!returned!to!the!store!of!purchase!for!a!refund!

or!the!applicable!cost!difference!can!be!paid!to!choose!an!alternate!style.!

DISCLAIMER(

All!products!are!sold!as!appearance!accessories!and!should!not!be!relied!upon!as!protection!for!the!vehicle!or!its!occupants!in!

the!event!of!an!accident.!Vehicles!equipped!with!a!supplemental!restraints!system!(air!bags)!deployed!by!impact!and!collision!

avoidance!systems!should!not!be!modified!in!any!way.!Always!consult(the(vehicle(manufacturer(if(you(have(any(questions(

regarding(supplemental(restraint(systems(and!sensors.!!

Buyer!must!accommodate!front!and!rear!sensors!during!product!installation!and!assumes!all!risk!should!these!be!tampered,!

rerouted,!severed,!or!disconnected.!This!includes!disabling!visual,!audio,!or!vibration!alerts!into!the!cab.!Buyer!assumes!all!risk!

and!responsibility!for!wiring!any!supplemental!auxiliary!lights.!

Buyer!assumes!all!risk,!liability,!and!cost!for!the!installation!and!use!of!Dee!Zee!products.!Dee!Zee,!Inc.!assumes!no!liability!for!

injury,!loss,!incidental!or!consequential!damages!in!the!event!of!an!accident.!

(

Side Bed Rails

For an electronic version of these instructions visit: www.deezee.com/instructions

Thank you for choosing Dee Zee to add function and accessorize your vehicle. Dee Zee has been a staple

brand in the truck accessory market since 1977 and we hold a reputation of quality manufacturing

based in America’s Heartland. Our products are born through careful engineering and backed by industry

leading warranty programs. We appreciate the opportunity to serve you and your vehicle!

Review the instruction pages in their entirety to prepare the required tools

Warning: Test fit truck bed rails to obtain proper placement before installing this product.

Dee Zee bed rails should never be used to secure cargo or used as weight bearing rails. Please refer to your

truck owner’s manual for cargo placement and tie down ratings of the truck bed.

Cleaning: To be entitled to all warranty rights offered with the product, Dee Zee side rails need to be cleaned

regularly with a mild detergent. Do NOT use abrasive cleaners. For stainless steel products, the application of a

high grade automotive wax is recommended.

(W)

INSTALLATION INSTRUCTIONS

BOLT-ON BED RAIL

PART# DZ 99600/DZ 99601/DZ 99602/DZ 99603/ DZ 99606/ DZ 99607/DZ

99608/DZ 99609/DZ 99610/

BOLT-ON BED RAIL

Page 1 of 3 1/20/11 Rev1(DP)

PARTS LIST:

Bed Rails

Allen Wrench

80mm Rectangular Threaded Plates

10-1.50mm x 50mm Allen Head Bolts

50mm Parallelogram Threaded Plates

10mm x 20mm OD x 2mm Stainless Steel

Flat Washers

PROCEDURE:

1. REMOVE CONTENTS FROM BOX. VERIFY ALL PARTS ARE PRESENT. READ

INSTRUCTIONS CAREFULLY BEFORE STARTING INSTALLATION. CUTTING MAY BE

REQUIRED. VERIFY BEDRAIL IS CORRECT LENGTH TO COVER STAKE POCKETS

BEFORE CUTTING!

2. On models with factory equipped plastic bedside covers, determine if there is a separate

removable cover over each of the stake pockets.

a. On vehicles with removable covers: Remove the small plastic cover over each stake

pocket, (Figure 1).

b. On vehicles without removable covers: Locate the center of the stake pocket.

Carefully cut or drill a small opening in the plastic cover in the center of the stake

pocket. WARNING, verify exact location of stake pocket before drilling/cutting plastic

cover or damage to top of bedside may result. Gradually enlarge the opening to the size

of the stake pocket only, (Figure 2). IMPORTANT, DO NOT cut along factory lines

molded into the plastic cover as these lines may not represent the correct location or

size of the stake pocket and may be larger than the actual stake pocket opening.

3. Attach (1) 10mm Bolt, (1) 10mm Flat Washer, and (1) Threaded Plate to each end of Bed Rail

as shown in Figure 3. NOTE: Depending upon your vehicle, use the correct size Threaded

Plate. For small stake pockets, use the parallelogram-shaped plate, (Figure 4A). For larger

stake pockets, use the rectangular-shaped plate, (Figure 4B). Leave hardware loose.

4. Position the Bed Rail onto the top of the bed. Attach the front of the Bed Rail by tilting the Bolt

and/or Bedrail until one side of the Plate engages the lip on the pocket, (Figure 4A & 4B).

Once one side of the Threaded Plate is in place under the lip, slide the Plate completely into

the stake pocket until the opposite end of the Plate is clear and is in place across the pocket.

Repeat this Step to install the remaining end of the Bed Rail.

5. To tighten the Threaded Plates, start at the front and pull up on the Bed Rail to hold the plate

in place and centered across the pocket. Keep pulling up on the Bed Rail to prevent the Plate

from moving/rotating while tightening the Mounting Bolt. Tighten the Bolt until it is snug but do

not fully tighten at this time, (Figure 5A & 5B). Repeat this Step to tighten the rear Bolt on the

Bedrail. Once properly centered and aligned, fully tighten both Mounting Bolts.

6. Repeat Steps 2 –5 for opposite side Bed Rail installation.

7. Do periodic inspections to the installation to make sure that all hardware is secure and tight.

To protect your investment, wax this product after installing. Regular waxing is recommended to

add a protective layer over the finish. Do not use any type of polish or wax that may contain abrasives

that could damage the finish.

For stainless steel: Aluminum polish may be used to polish small scratches and scuffs on the finish.

Mild soap may be used also to clean the Bedrails.

BOLT-ON BED RAIL

Page 2 of 3 1/20/11 Rev1(DP)

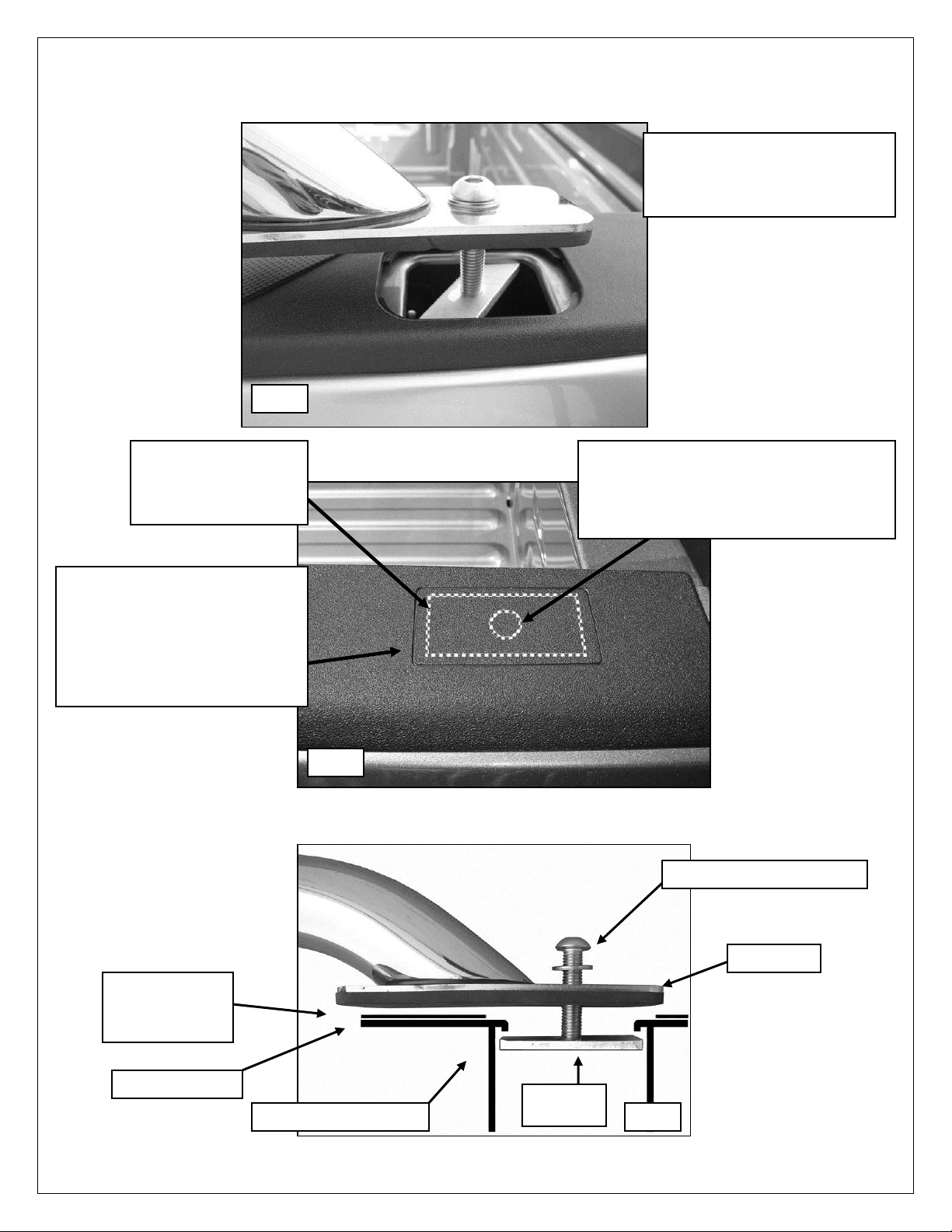

Top Plate

10mm x 50mm Allen Bolt

Side of Stake Pocket

Thin black line

represents

plastic bed cap

Bed Rail

Top of bedside

Fig 3

Note that size of stake pocket

may be smaller than line

molded into cover by factory.

Determine location of stake

pocket before cutting cover.

Picture for example only, actual

vehicle may be different.

Dotted line represents

approximate size of

stake pocket hidden

under plastic cover

Determine location of center of stake

pocket before cutting cover. Start with a

small hole and gradually enlarge the

hole to the size of the stake pocket only.

Do not follow lines molded into cover!

Fig 2

Fig 1

Remove cover if equipped.

Note, on some vehicles, size of

opening in cover may be larger

than actual stake pocket

Threaded

Plate

BOLT-ON BED RAIL

Page 3 of 3 1/20/11 Rev1(DP)

Oversized Stake Pocket Pictured

Small Stake Pocket Pictured

Engage one

side first

Pull up on Bedrail as you tighten the

mounting screw to hold the threaded plate

in place against inside of stake pocket

Fig 4A

Fig 4B

Fig 5A

Fig 5B

Oversized Stake Pocket Pictured

Small Stake Pocket Pictured

Complete Installation
