ddtop ULG Manual de usuario
1/ 16
WWW.DDTOP.COM
ULG
ULG-S BI-COLOR GLASS TUBE LEBEL GAUGE
ULG 型玻璃管液位计
使用说明书
Operation Manual
ULG-DT-JS-1010-2018(
A)
2/ 16
WWW.DDTOP.COM
前言
Preface
感谢您选择丹东通博电器（集团）有限公司的产品。
Thank you for choosing the products of Dandong Top Electronics Instrument (Group)Co.,Ltd.
本使用说明书给您提供有关安装、连接和调试以及针对维护、故障排除和贮存方面的重要信息。请
在安装调试前仔细阅读并将它作为产品的组成部分保存在仪表的近旁，供随时翻阅。
This operation manual provides you with important information on installation, connection and
commissioning as well as on maintenance, troubleshooting and storage. Please read it carefully
before installation and commissioning and keep it as part of the product near the meter for easy
reading.
并可通过 www.ddtop.com 输入版本号下载本说明书。
This manual can be downloaded by entering the version number at www.ddtop.com .
如未遵照本说明书进行操作，则本仪表所提供的防护可能会被破坏。
If the instructions are not followed, the protection provided by the meter may be destroyed.
商标、版权和限制说明
Trademark, Copyright and Restriction Instructions
通博、通博电器、通博泵业、DDTOP、均为公司的注册商标。
Dandong Top Electronics Instrument (Group) Co.,Ltd.®, Dandong Top Pump Co., Ltd.®, DDTOP®
are registered trademarks of the company.
本仪表的性能规格自发布之日起生效，如有更改，恕不另行通知。丹东通博电器（集团）有限公司
有权在任何时候对本说明书所述的产品进行修改，恕不另行通知。
The performance specifications of the meter are effective as of the date of publication and are
subject to change without notice. Dandong Top Electronics Instrument (Group)Co.,Ltd. reserves the
right to modify the products described in this manual at any time without prior notice.
质保
Quality Assurance
丹东通博电器（集团）有限公司保证所有刮板流量计自出厂之日起，一年之内无材料和制造工艺方
面的缺陷。
Dandong Top Electronics Instrument (Group) Co.,Ltd. guarantees that all glass plate level gauge
have no defects in materials and manufacturing processes within one year from the date of delivery.
在质保期内，如产品出现质量问题而返回，提出的索赔要求经制造厂检验后确定属于质保范围内，
则丹东通博电器（集团）有限公司负责免费为买方（或业主）维修或更换。
During the warranty period, if the product returns with quality problems and the claim is
3/ 16
WWW.DDTOP.COM
determined by the manufacturer to be within the scope of warranty, Dandong Top Electronics
Instrument (Group) Co.,Ltd. is responsible for repair or replacement of the buyer (or owner) free of
charge.
丹东通博电器（集团）有限公司对因设备使用不当，劳动力索赔、直接或后续损伤以及安装和使用
设备所引起的费用概不负责。除了关于丹东通博电器（集团）有限公司某些产品的特殊书面保修证
明，丹东通博电器（集团）有限公司不提供任何明示或暗示的质量保证。
Dandong Top Electronics Instrument (Group) Co.,Ltd. is not responsible for the costs caused by
improper use of equipment, labor claims, direct or subsequent damage and installation and use of
equipment. In addition to the special written warranty certificate for certain products of Dandong
Top Electronics Instrument (Group) Co.,Ltd., Dandong Top Electronics Instrument (Group) Co.,Ltd.
does not provide any express or implied warranty.
质量
Quality
丹东通博电器（集团）有限公司通过了 ISO9001 质量体系认证，产品生产的全过程均严格依照质
量体系的规定范围执行，对产品和服务质量提供最强有力的保证。
Dandong Top Electronics Instrument (Group) Co.,Ltd. has passed the ISO9001 quality system
certification. The whole process of product production is strictly in accordance with the scope of the
quality system, providing the strongest guarantee for product and service quality.
目录
CONTENTS
1安全提示 ...........................................................................................................................................................................5
1 Safety Tips ........................................................................................................................................................................5
1.1 爆炸可能会导致死亡或严重伤害。 ................................................................................................................5
1.1 Explosion may result in death or serious injury...........................................................................................5
1.2 过程泄漏可能导致严重伤害或死亡。............................................................................................................5
1.2 Process leaks can cause serious injury or death. ........................................................................................5
1.3 不遵守安全安装准则可能导致死亡或严重受伤。.....................................................................................5
1.3 Failure to follow safe installation guidelines may result in death or serious injury.........................5
2产品说明 ...........................................................................................................................................................................5
2 Product Manual..............................................................................................................................................................6
2.1 产品主要结构.........................................................................................................................................................6
2.1 Main Structure of Product ..................................................................................................................................6
2.2 工作原理...................................................................................................................................................................6
2.2 Operating Principle...............................................................................................................................................6
2.3 包装............................................................................................................................................................................7
2.3 Packing......................................................................................................................................................................7
4/ 16
WWW.DDTOP.COM
2.4 吊装运输时..............................................................................................................................................................7
2.4 Hoisting and Transporting .................................................................................................................................7
2.5 仓储............................................................................................................................................................................7
2.5 Warehousing...........................................................................................................................................................7
3技术特性...........................................................................................................................................................................7
3 Technical Characteristics .............................................................................................................................................7
3.1 主要性能...................................................................................................................................................................7
3.1 Main Performance.................................................................................................................................................7
3.2 主要参数...................................................................................................................................................................7
3.2 Main Parameters....................................................................................................................................................7
4外形尺寸示意图.............................................................................................................................................................7
4 Dimensional Schematic .............................................................................................................................................7
5开箱及检查 ......................................................................................................................................................................9
5 Unpacking and Inspection..........................................................................................................................................9
5.1 开箱验货注意事项 ................................................................................................................................................9
5.1 Unpacking Inspection Notice ............................................................................................................................9
5.2 检查内容................................................................................................................................................................ 11
5.2 Check Content..................................................................................................................................................... 11
6安装................................................................................................................................................................................. 11
6 Installation..................................................................................................................................................................... 11
6.1 安装工具................................................................................................................................................................ 11
6.1 Installation Tool................................................................................................................................................... 11
6.2 安装技术要求 ...................................................................................................................................................... 11
6.2 Installation Technical Requirements ............................................................................................................ 11
7 调试................................................................................................................................................................................ 11
7 Debugging.................................................................................................................................................................... 11
8故障分析与排除.......................................................................................................................................................... 13
8 Failure Analysis and Elimination ............................................................................................................................ 13
9维修................................................................................................................................................................................. 13
9 Maintenance................................................................................................................................................................. 13
9.1 警告......................................................................................................................................................................... 13
9.1 Warning ................................................................................................................................................................. 13
9.2 拆卸......................................................................................................................................................................... 14
9.2 Disassembly.......................................................................................................................................................... 14
9.3 清洗......................................................................................................................................................................... 15
9.3 Cleaning................................................................................................................................................................. 15
9.4 组装......................................................................................................................................................................... 15
5/ 16
WWW.DDTOP.COM
9.4 Assembly................................................................................................................................................................ 15
10 产品认证..................................................................................................................................................................... 15
10 Product Certification................................................................................................................................................ 15
1安全提示
1 Safety Tips
出于安全的原因，明确禁止擅自改装或改变产品，维修或替换只允许使用由制造商指定的配件。
It is expressly prohibited to modify or change products for safety reasons，repair or
replacement only allows the use of accessories specified by the manufacturer.
1.1 爆炸可能会导致死亡或严重伤害。
1.1 Explosion may result in death or serious injury.
在有爆炸危险的环境中安装设备时，请务必遵守适用当地、国家和国际标准、规范和规程。应
确保按照本安或非易燃现场作业规程安装设备。
When installing equipment in an explosive atmosphere, be sure to follow applicable local,
national, international standards, codes, and procedures. Be sure to install the equipment in
Intrinsically safe or non-flammable site operating procedures.
1.2 过程泄漏可能导致严重伤害或死亡。
1.2 Process leaks can cause serious injury or death.
如果过程密封件损坏，介质可能在连接处发生泄漏。
Care should be taken to lift the transmitter. If the process seal is damaged, the medium may
leak at the joint.
1.3 不遵守安全安装准则可能导致死亡或严重受伤。
1.3 Failure to follow safe installation guidelines may result in death or serious injury.
此说明书中所描述的各项操作需由受过专业培训并取得相应资质或终端用户特约的专业人员
来完成。
The operations described in this manual are performed by professionally trained and qualified
professionals or end-user specialized professionals to complete.
2产品说明
6/ 16
WWW.DDTOP.COM
2 Product Manual
2.1 产品主要结构-图1
2.1 Main Structure of Product-Figure 1
图1 产
品主要
结构
Figure 1
Main
Structur
e of the
Product
1. 安全阀
1. Safety Valve
2. 压紧体
2. Compression Body
3. 内六角螺钉
3. Socket Head Cap Screws
4. 石墨填料
4. Graphite Filler
5. 石英玻璃管
5. Quartz Glass Tube
6. 标尺
6. Ruler
2.2 工作原理
2.2 Operating Principle
根据连通器原理，将容器内介质液位引至外部玻璃管液位计内，并从透明玻璃表面读得液位实
际高度。
According to the principle of the connector, the level in the container is led to the
external glass tube level gauge, and the actual height of the level is read from the
surface of the transparent glass.
7/ 16
WWW.DDTOP.COM
2.3 包装
2.3 Packing
请将包装废物送到专门的回收机构。
Please send the packaging waste to a special recycling agency.
2.4 吊装运输时
2.4 Hoisting and Transporting
请选用质量合格的吊装设备及吊装绑带，并注意安全。
Please select qualified hoisting equipment and lifting straps, and pay attention to safety.
2.5 仓储
2.5 Warehousing
贮存温度-20℃~40℃；贮存湿度≤20% 。
Storage temperature -20℃~40℃; storage humidity≤20%.
3技术特性
3 Technical Characteristics
3.1 主要性能
3.1 Main Performance
3.1.1 产品执行标准：JB/T9243 玻璃管液位计。
3.1.1 Product Performance Standards：JB/T9243 glass tube level gauge.
3.2 主要参数
3.2 Main Parameters
3.2.1 针阀自动关闭压力：≥0.3MPa；
3.2.1 Needle valve automatically closes pressure：≥0.3MPa；
3.2.2 伴热蒸汽夹套接头： R1/2 或按用户要求；
3.2.2 Heat-storing steam jacket joint：R1/2 or according to user requirements；
3.2.3 连接法兰：HG/T20592-2009，HG/T20615-2009 或按用户要求；
3.2.3 Connection flange ：HG/T20592-2009 ，HG/T20615-2009 or according to user
requirements；
4外形尺寸示意图-图2
4 Dimensional Schematic -Figure 2
若订货时要求为特殊尺寸，以实际尺寸为准。
8/ 16
WWW.DDTOP.COM
If the order is required to be a special size, the actual size will prevail.
图2-1-外形尺寸-SI 型玻璃管液位计
Figure 2-1-Dimensional Schematic-S1 Glass Tube Level Gauge
图2-2-外形尺寸-S2 型玻璃管液位计
Figure 2-2-Dimensional Schematic-S2 Glass Tube Level Gauge
图2-3-外形尺寸-S4 型玻璃管液位计
Figure 2-3-Dimensional Schematic-S4 Glass Tube Level Gauge
图2-4-外形尺寸-S5 型玻璃管液位计
Figure 2-4-Dimensional Schematic-S5 Glass Tube Level Gauge
图2-1 S1 型玻璃管液位计
Figure 2-1 S1 Glass Tube Level Gauge
图2-2 S2 型玻璃管液位计
Figure 2-2 S2 Glass Tube Level Gauge
9/ 16
WWW.DDTOP.COM

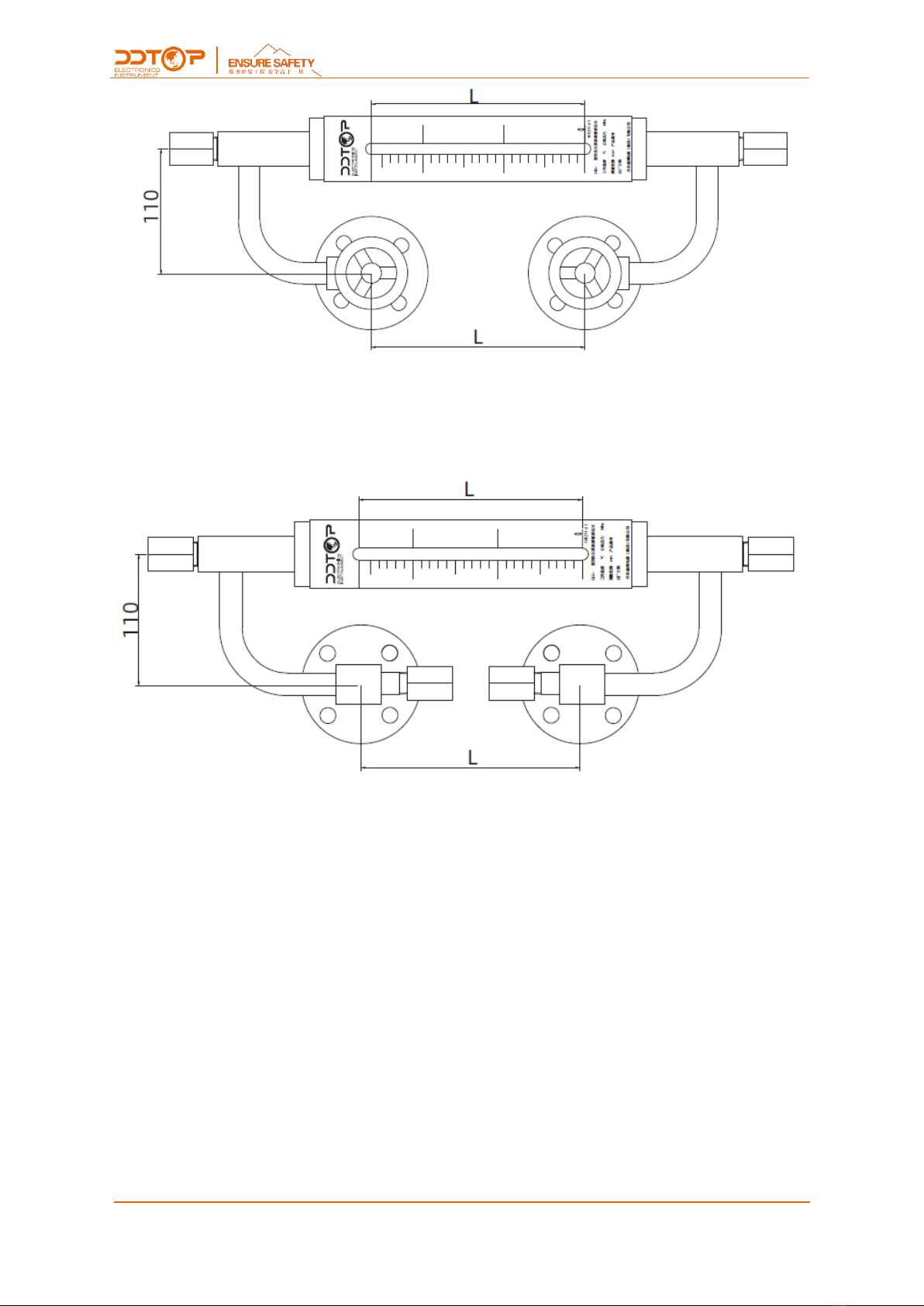

图2-3 S4 型玻璃管液位计
Figure 2-3 S4 Glass Tube Level Gauge
图2-4 S5 型玻璃管液位计
Figure 2-4 S5 Glass Tube Level Gauge
5开箱及检查
5 Unpacking and Inspection
5.1 开箱验货注意事项
5.1 Unpacking Inspection Notice
5.1.1 对照产品铭牌(图3)与供货清单信息是否一致。
10 / 16
WWW.DDTOP.COM
5.1.1 Check whether the product nameplate (Figure 3) is consistent with the supply list information.
图3 产品铭牌
Figure Product Nameplate
5.1.2 对照装箱清单，检查各零件数量，材质是否正确。
5.1.2 According to the packing list, check the quantity of each part and the material is correct.
