A cold swimming pool is an unused swimming pool and in many upcountry areas swimming pools are too cold to use throughout the year and heating is required. There are a number of options available, but a particularly effective solution is the Dayliff Heat Pump. Heat Pumps utilise energy from two sources, heat from the ambient air and electrical power to run a compressor in a reverse refrigeration cycle, the compression process extracting heat from the ambient air for transfer to the pool water. The heaters are highly efficient operating at a Coefficient of Performance (COP), which is the ratio of energy output to direct energy input, of up to 6 times depending upon the environmental conditions. They are therefore very economical to run compared with fossil fuel alternatives though a pool cover must be used to ensure maximum heat retention. Heat Pumps are simply installed in-line on the filter return to pool pipe and include an integral controller and a durable housing suitable for outdoor installation. Particular features include:- • Low energy consumption for low running cost and low emissions for heating and cooling applications. • SPS-190 fitted with a plastic casing, larger sizes with a powder coated galvanised steel casing for long life • High efficiency compressor that uses environmentally friendly R410A refrigerant. • Advanced dual coil titanium heat exchanger for long corrosion free life • Built-in protection for the compressor, low water flow, high/low pressure and electrical overload • Fully automatic and simple to install with minimal plumbing and electric connections. Congratulations on selecting a Dayliff Heat Pump. They are manufactured to the highest standards and if installed and operated correctly will give many years of efcient and trouble free service. Careful reading of this Installation Manual is therefore important, though should there be any queries they should be referred to the equipment supplier.1. SPECIFICATIONS

0 • Remote controller to set temperature up to 40 C with digital system setting and fault indicators.Dayliff Heat Pumps are robust and efficient units that are the ideal solution for cost effective pool heating in a variety of conditions. OPERATING CONDITIONS0Ambient Temperature: 10-60 C Humidity: 0-95%PUMP DATA AND DIMENSIONSPool ReturnFilterPumpFrom PoolHeat Pump Outside Plant Room2. SYMBOLS & WARNINGSThe installation shall be done by professional person, to prevent leaking, electric shock, or re disaster.WARNINGEnsure ground connection is properly done, else may cause electric shock.WARNINGWhen installed in a small room, ensure there is sufcient ventilation.WARNING3.124198854.21225101208.4245020250ModelPowerInput (kW)Dimensions (mm)Weight(kg)60-8080-120120-200PoolVolume3m448691752W7041055HSPS-190SPS-500SPS-250Current(A)PowerOutput (kW)Flow3m/hrDIN(”)1.5210837651416LElectrical installation must comply with the relevant local technical standards.

Don't put nger or sticker into the air inlet or air outlet. As the internal rotor high-speed operation may cause injury.WARNINGWhen a burning smell is detected, turn off the manual power switch immediately, stop operating, and contact Dayliff retailer.WARNINGWhen the unit needs to be removed, re-installed or repaired, contact Dayliff retailer or have a qualied person to do it. If the installation is not well done, it may cause failure, electric shock, re, leaking, etc.WARNINGThe heat pump must not be modied for other uses as it may cause electric shock or re.WARNINGThe installation base must be strong enough to support the weight else may damage the equipment.WARNINGBefore cleaning the unit, the operation should be stopped, and power switch turned off.WARNINGAvoid installations in such locations with mineral oil, air containing salty or corrosive gases, ammable compounds, strong electromagnetic waves or harsh environmental conditions.WARNINGEnsure there is enough space for installation and maintenance.WARNINGMake sure the air inlet and outlet are unobstructed for ease of maintenance.WARNINGRecheck the model, number, name etc, to avoid incorrect installation.WARNINGAvoid installation in an unstable place, such as car or cabinWARNING

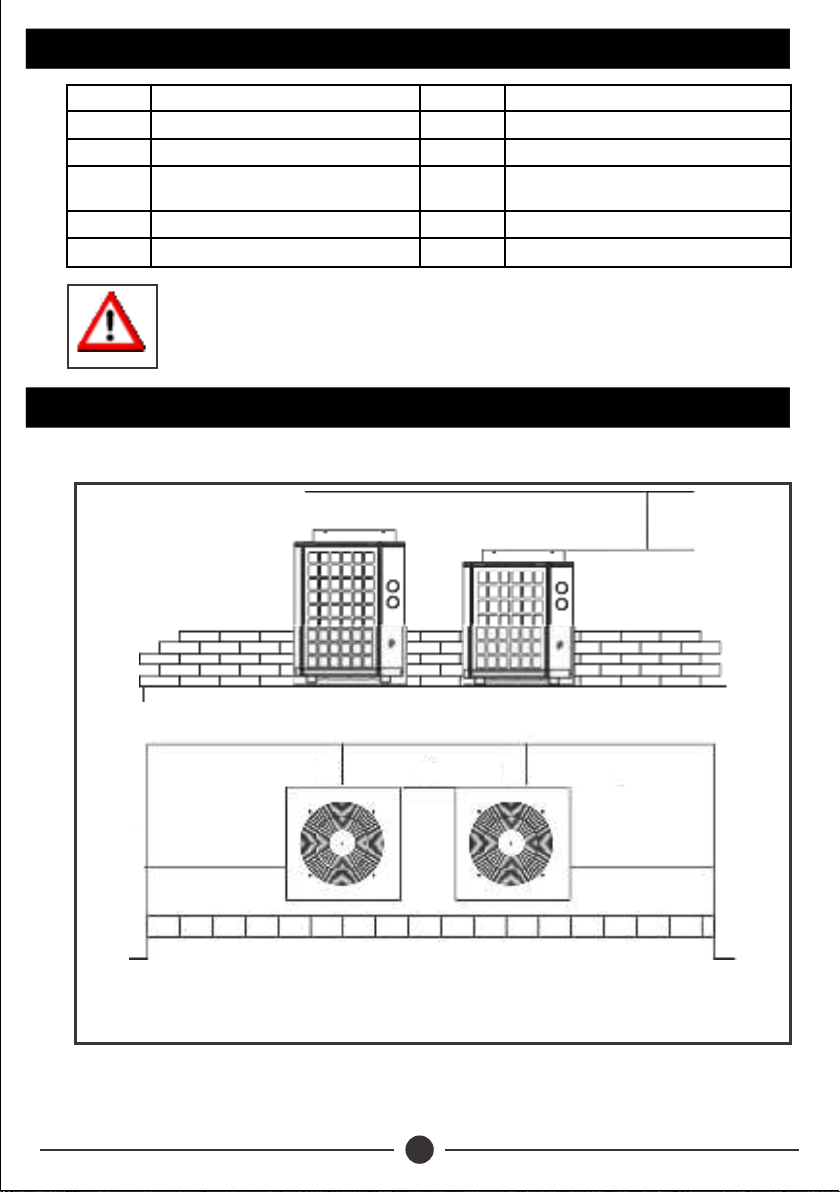

3. EQUIPMENT CONTENTSItem No.DescriptionQuantityUse123Installation manual11111Guidance on proper installationTo automate control of the heat pumpTo protect heat pump against running under flow conditionController with connecting lineWater flow switch45Certificate of approvalWarranty CardProof of product qualityWarranty Certificate4. INSTALLATIONFig 1:Vertical obstacle distance4.1 Installation Space Requirement

1200 1200

2000

Fig 2:Horizontal obstacle distance

600600

500All dimensions in mm4Water pump is purchased separately and must be properly sized. NOTE

4.2 Installation base for the heat pumpFig 3: Firm Installation BaseAnchor BoltDrainage TrayHeat PumpHeat PumpInstallation BaseDrainage TrayConcreteAnchor BoltScrew nut/washerShock absorb1. When moving use four or more soft lifting belts to move the equipment.2. Use protective plate on the surface of the unit to avoid scratching and deformation.3. Recheck whether the foundation is level before hoisting the unit.4. The heat pump will produce condensation water, provide a drainage channel in the installation base during construction. 5. Include shock absorbers on the base surface to prevent vibration.4.3 Installation of the Pipeline1. Prevent air, dust and other debris from going into the water pipes and fix the whole system before installing the water pipe.2. Water inlet and outlet pipes should be insulated to prevent heat loss.3. Stable water flow should be maintained at all times.4. When moving the equipment water inlet and outlet pipe should not be used for carrying else will damage the equipment. Instead use holes provided on the base of the equipment.5. When connecting the water inlet and outlet pipes, two pipe wrenches shall be used to ensure the pipes do not turn around unnecessarily.5

ValveFilterPumpFlexible ConnectionCheck ValveAir ValvePressureGaugeFlow SwitchFeeding TankFlaredJointHairCollector Sand FilterChemicalDosingSystemWash OutletFilterFilterWater Pump Power LineWater Temperature SensorSwimming PoolWireControllerHeat pumpunitsDedicated Pump for Swimming Pool FilterFig 4: Single Pump Layout6

ControllerControllerController

Swimming Pool

Drain Side

Main UnitAuxili-aryunitAuxili-aryunitWater PumpPower LineDedicate Pumpfor Swimming PoolWash outletFig 5: Multiple Pumps LayoutŸThe non-return valve is recommended for each unit to prevent the water back flow.ŸThe system can be combined with multiple units, but should be controlled independently.ŸRegarding the installation of backup pump, maintenance valve and temperature measuring point, a separate design may be considered if necessary.ŸAll pipes and valves of the unit must have heat insulation.

ŸPoor quality water will produce more scale and sand, this kind should be filtered before putting through the heat pumps.The demand quality of waterŸThe acceptable water quality standard is shown in below table.The water quality should be analyzed before system running, to measure the pH value, conductivity, Chloride ion concentration and sulphate ion concentration.WARNING7ŸThe non-return valve is recommended for each unit to prevent the water back flow.ŸThe system can be combined with multiple units, but should be controlled independently.ŸRegarding the installation of backup pump, maintenance valve and temperature measuring point, a separate design may be considered if necessary.ŸAll pipes and valves of the unit must have heat insulation.The swimming pool heat pump uses titanium heat ex-changer and may be connected to the swimming pool directly. A water ltration unit must be installed before water goes into the heat pump, minimum size about 40mic.WARNINGŸThe circulation pump should be correctly sized to pump water through the pool circulation and filtration system.Selection of the water pump4.4 Installation of Water Pump and Flow SwitchWhen the heat pumps are connected in multiples pump head is subjected to the worst working condition loop.NOTEpH ValueTotal HardnessConductivityChlorine IonAmmonia Ion7~8.5Sulphate Ion<50ppm<50ppmSilicon<50ppm0<200V/cm(25C)Iron Content<0.3ppm<50ppmCa<50ppmNoneThe flow switch is provided together with the heat pump and meets the following criteria;ŸThe temperature of fluid should be between 0 and120 °C , max working pressure of 13.5 bar.ŸThe flow switch can be installed on the horizontal pipeline or the vertical pipeline with the water flow direction upward, it should not be installed on the vertical pipeline which the water flow is downward.Flow switch
