Quick Start Guide
VSN400 Series of Wall Controllers
WELCOME
Thank you for purchasing the Datapath
VSN400 Wall Controller. The aim of this
document is to quickly guide you through
the process of initial setup.
For detailed information, the User
Guide can be downloaded from
www.datapath.co.uk
CONTENTS
Main System
VSN400 Main chassis
Mouse/Keyboard
Accessories Pack
Mains Cable
Build Log
In addition, if any optional cards are installed:
PCIe card product leaets
Cables/Adapters as specied in the
product leaets
Each Datapath system is custom built, therefore
the number and type of input and output cards
will dier from system to system.
Accompanying this Quick Start Guide are PCIe
card product leaets which give details on
how the cards are installed and any accessories
supplied with them.
2
VSN400 Quick Start Guide
STEP 1 KEYBOARD AND MOUSE
Connect Keyboard and Mouse to USB Ports.
USB ports can be found on the front and rear
of the chassis.
STEP 2 CONNECT TO A NETWORK OPTIONAL
If the VSN400 is to be used over a network, connect it to a network point
(cables not supplied) using one of the LAN connectors on the rear panel.
Network Cable not supplied.
3
VSN400 Quick Start Guide
STEP 3 CONNECT INPUT SOURCE
Each Datapath system is custom built. The number and type of inputs will dier
from system to system.
Contained within the documentation pack are PCIe card product leaets which
give details on how the cards are connected.
The I/O panel on your system may dier from the below illustration depending
on which motherboard option you have purchased.
To enable you to complete the initial setup of the system, displays must be
connected to the rst and second output as shown below.
Input Connectors
1
2
4
VSN400 Quick Start Guide
STEP 4 POWERING UP THE SYSTEM
2 2
3
1
1
RPSU System ATX System
1 Connect power cables then plug into a mains supply.
2 Switch on the power supply units.
3 Switch on the system.
5
VSN400 Quick Start Guide
STEP 5 WINDOWS 10 SETUP
Once the system has been congured in our factory the operating system is resealed,
meaning that when switching on the system for the rst time the operating system
setup commences.
You will be prompted to enter information to set up your wall controller.
There is no requirement for users to enter a product key to activate Windows 10,
activation is done automatically when connected to the internet.
You are strongly recommended to create a Restore USB Flash Drive. (See Step 8).
STEP 6 DISPLAY CONFIGURATION
Once the Windows setup is complete, the Display Driver Conguration Tool (DDCT) is
displayed. The DDCT will guide you, step by step, through the conguration of the graphics
outputs, enabling you to quickly create one or more video walls.
On the nal stage of the conguration, the (DDCT) will recommend the optimum way
to connect your VSN400 to your video wall displays.
You can access the conguration tool at anytime should you wish to make changes.
Right click on the desktop and select Display Driver Conguration Tool from the menu.
A full description of the Display Driver Conguration Tool can be found in the User Guide
located in the system support folder.
6
VSN400 Quick Start Guide

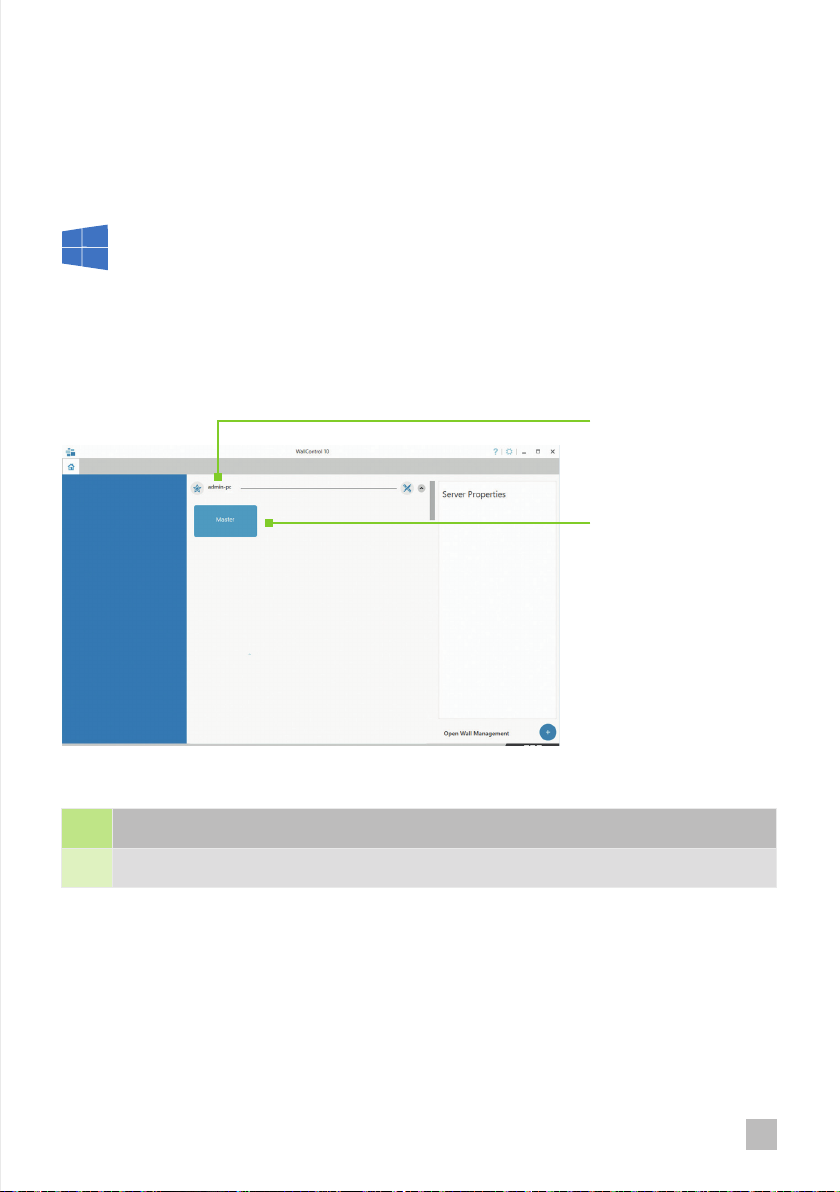

1 Indicates the servers you are able to connect to.
2 A representation of the display wall associated with the server.
2
1
STEP 7 WALLCONTROL 10 OPTIONAL
Before opening the Client interface you may need to start the Server by clicking on it in
the Programs menu. The WallControl 10 Client will only detect servers that are running.
When WallControl 10 is opened for the rst time it is strongly recommended that you
take a look through the help les prior to using the application.
Click on the display wall representation (2) to open the display wall tab.
Start | All Programs | WallControl 10 - Server
The WallControl 10 - Client
7
VSN400 Quick Start Guide
Sources
Display Wall
Display Wall Tab
When opened, the display wall tab shows a live representation of the physical wall and
the sources available to display on it. To place a source on the video wall, simply click on
the required source in the sources tab and drag it onto the display wall representation.
(Note: It is not possible to drag Application sources, double click to open).
The application help le contains information explaining how multiple sources can be
selected, how to use and create templates and how to save, recall and share layout les.
The WallControl 10 - Security Administration Client (Pro Version Only)
The WallControl 10 - Security Administration Client allows Administrators to assign
specic users to roles on a wall-by-wall basis. For example, a user can be assigned a role
allowing unrestricted access on one wall but assigned a role on another wall which only
allows the opening of pre-determined layouts.
Prior to the Security Client being used for the rst time, the SecurityOnO.exe program
must be run to enable security protection for the application. To run the SecurityOnO.
exe, ensure you are logged into Windows® with Administrator Rights.
Locate and double click on the SecurityOnO.exe le:
Program Files \WallControl 10\ Security Server\SecurityOnO
8
VSN400 Quick Start Guide
A WallControl 10 Pro serial dongle must be inserted into a vacant USB port. If the
dongle is removed or swapped, the Security Administration Client will not open
and an error message is displayed, therefore it is important the dongle is not
removed.
The WallControl 10 Security Application help le contains information on how to:
Import users from the Windows Active Directory into the database.
Create and edit roles.
Assign permissions to providers, layouts and sources giving specic roles
access to them.
Assign roles to walls.
Start | All Programs | WallControl 10 - Security Administration Client
9
VSN400 Quick Start Guide
STEP 8 CREATE A RESTORE USB FLASH DRIVE
To create your Restore USB Flash Drive you will need a USB memory stick with a
minimum capacity of 16GB. It is recommended that once your Restore USB Flash
Drive has been created, it is stored in a safe place accessible to personnel who may
be required to restore the system.
You will need to boot into the Windows Restore portal to begin the process of creating
your Restore USB Flash Drive.

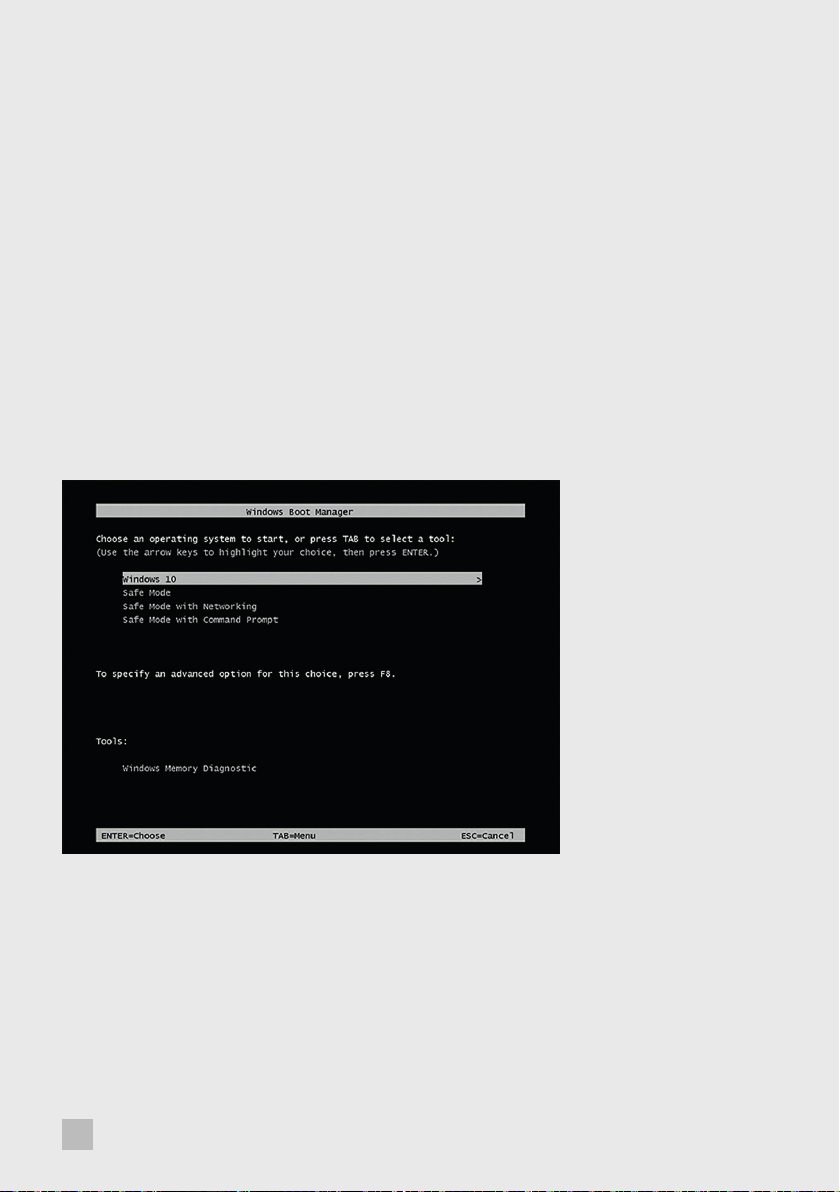

Switch on your machine and when the boot messages display the Choose an
operating system screen, use the cursor keys to select Windows Restore as shown in
the following dialogue.
It should be noted that the dialogue is only displayed briey, approximately 3 seconds.
10
VSN400 Quick Start Guide
