Data Video VP-781 Manual de usuario
VP-781
HD/SD SDI AND INTERCOM
REPEATER BOX
Instruction Manual
2
Table of Contents
FCC COMPLIANCE STATEMENT ................................................ 3
WARNINGS AND PRECAUTIONS .............................................. 3
WARRANTY ............................................................................. 5
STANDARD WARRANTY ................................................................. 5
THREE YEAR WARRANTY ............................................................... 5
DISPOSAL ................................................................................ 6
INTRODUCTION....................................................................... 7
FEATURES................................................................................ 7
SYSTEM DIAGRAM .................................................................. 8
CONNECTIONS & CONTROLS ................................................... 9
FRONT PANEL.............................................................................. 9
REAR PANEL.............................................................................. 10
SPECIFICATIONS .................................................................... 11
SERVICE & SUPPORT.............................................................. 13
Disclaimer of Product and Services
The information offered in this instruction manual is intended as a guide only. At all times,
Datavideo Technologies will try to give correct, complete and suitable information. However,
Datavideo Technologies cannot exclude that some information in this manual, from time to time,
may not be correct or may be incomplete. This manual may contain typing errors, omissions or
incorrect information. Datavideo Technologies always recommend that you double check the
information in this document for accuracy before making any purchase decision or using the
product. Datavideo Technologies is not responsible for any omissions or errors, or for any
subsequent loss or damage caused by using the information contained within this manual. Further
advice on the content of this manual or on the product can be obtained by contacting your local
Datavideo Office or dealer.
3
FCC Compliance Statement
This device complies with part 15 of the FCC rules. Operation is subject to the
following two conditions:
(1) This device may not cause harmful interference, and
(2) This device must accept any interference received, including
interference that may cause undesired operation.
Warnings and Precautions
1. Read all of these warnings and save them for later reference.
2. Follow all warnings and instructions marked on this unit.
3. Unplug this unit from the wall outlet before cleaning. Do not use liquid or
aerosol cleaners. Use a damp cloth for cleaning.
4. Do not use this unit in or near water.
5. Do not place this unit on an unstable cart, stand, or table. The unit may fall,
causing serious damage.
6. Slots and openings on the cabinet top, back, and bottom are provided for
ventilation. To ensure safe and reliable operation of this unit, and to protect it
from overheating, do not block or cover these openings. Do not place this unit
on a bed, sofa, rug, or similar surface, as the ventilation openings on the
bottom of the cabinet will be blocked. This unit should never be placed near or
over a heat register or radiator. This unit should not be placed in a built-in
installation unless proper ventilation is provided.
7. This product should only be operated from the type of power source indicated
on the marking label of the AC adapter. If you are not sure of the type of
power available, consult your Datavideo dealer or your local power company.
8. Do not allow anything to rest on the power cord. Do not locate this unit where
the power cord will be walked on, rolled over, or otherwise stressed.
9. If an extension cord must be used with this unit, make sure that the total of
the ampere ratings on the products plugged into the extension cord do not
exceed the extension cord’s rating.
10. Make sure that the total amperes of all the units that are plugged into a single
wall outlet do not exceed 15 amperes.
11. Never push objects of any kind into this unit through the cabinet ventilation
slots, as they may touch dangerous voltage points or short out parts that
could result in risk of fire or electric shock. Never spill liquid of any kind onto
4
or into this unit.
12. Except as specifically explained elsewhere in this manual, do not attempt to
service this product yourself. Opening or removing covers that are marked
“Do Not Remove” may expose you to dangerous voltage points or other risks,
and will void your warranty. Refer all service issues to qualified service
personnel.
13. Unplug this product from the wall outlet and refer to qualified service
personnel under the following conditions:
a. When the power cord is damaged or frayed;
b. When liquid has spilled into the unit;
c. When the product has been exposed to rain or water;
d. When the product does not operate normally under
normal operating conditions. Adjust only those controls
that are covered by the operating instructions in this
manual; improper adjustment of other controls may result
in damage to the unit and may often require extensive
work by a qualified technician to restore the unit to normal
operation;
e. When the product has been dropped or the cabinet has
been damaged;
f. When the product exhibits a distinct change in
performance, indicating a need for service.
5
Warranty
Standard Warranty
•Datavideo equipment are guaranteed against any manufacturing defects for
one year from the date of purchase.
•The original purchase invoice or other documentary evidence should be
supplied at the time of any request for repair under warranty.
•The product warranty period beings on the purchase date. If the purchase
date is unknown, the product warranty period begins on the thirtieth day after
shipment from a Datavideo office.
•Damage caused by accident, misuse, unauthorized repairs, sand, grit or
water is not covered under warranty.
•Viruses and malware infections on the computer systems are not covered
under warranty.
•Any errors that are caused by unauthorized third-party software installations,
which are not required by our computer systems, are not covered under warranty.
•All mail or transportation costs including insurance are at the expense of the
owner.
•All other claims of any nature are not covered.
•Cables and batteries are not covered under warranty.
•Warranty only valid in the country or region of purchase.
•Your statutory rights are not affected.
Three Year Warranty
•All Datavideo products purchased after July 1st, 2017 are qualified for a free
two years extension to the standard warranty, providing the product is registered
with Datavideo within 30 days of purchase.
•Certain parts with limited lifetime expectancy such as LCD panels, DVD
drives, Hard Drive, Solid State Drive, SD Card, USB Thumb Drive, Lighting,
Camera module, PCIe Card are covered for 1 year.
•The three-year warranty must be registered on Datavideo's official website or
with your local Datavideo office or one of its authorized distributors within 30
days of purchase.
6
Disposal For EU Customers only - WEEE Marking
This symbol on the product indicates that it should not be
treated as household waste. It must be handed over to the
applicable take-back scheme for the recycling of Waste
Electrical and Electronic Equipment. For more detailed
information about the recycling of this product, please
contact your local Datavideo office.
CE Marking is the symbol as shown on the left of this page.
The letters "CE" are the abbreviation of French phrase
"Conformité Européene" which literally means "European
Conformity". The term initially used was "EC Mark" and it was
officially replaced by "CE Marking" in the Directive 93/68/EEC
in 1993. "CE Marking" is now used in all EU official documents.
7
•
Introduction
The VP-781 HD/SD-SDI Repeater with Intercom transmission is designed to
cascade CB-50 cables which are connected between the Switcher and
Cameras. The device’s built-in HD/SD-SDI Repeater and the Intercom audio
pass-through are for signal transmission. Pairing VP-781 with VP-633 is able
to extend video transmission to 200 meters.
Features
•Extension of HD/SD-SDI, Intercom and Tally signal transmission to 200M
•Cascade of CB-50 All-In-One Cables for extension of signal transmission
•Built-in HD/SD SDI Repeater and 5-PIN XLR Intercom pass-through
8
System Diagram
9
Connections & Controls
Front Panel

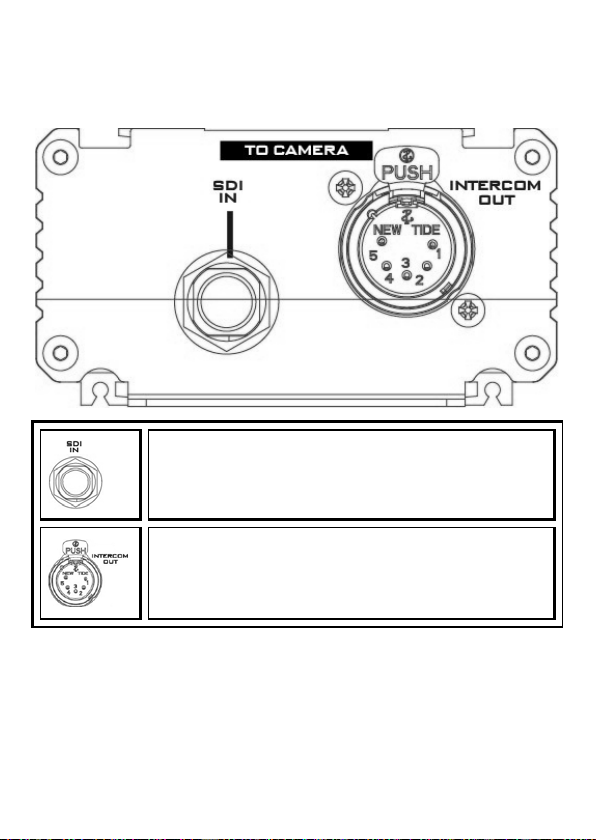

SDI IN
SDI input for video and audio
Intercom Out
Intercom and Tally signal output
10
Rear Panel
SDI OUT
SDI output for video and audio
Intercom IN
Intercom and Tally signal input
