Electrical Installation

M46 Pumps

HC EDC

powersolutions.danfoss.com

Revision history Table of revisions

Date Changed Rev

September 2015 Minor layout revision AB

June 2014 First edition AA

Electrical Installation M46 Pumps HC EDC

2L1427804 • Rev AB • September 2015

Literature references Literature references.......................................................................................................................................................................4

Latest version of technical literature.........................................................................................................................................4

Product overview Image....................................................................................................................................................................................................5

Control options model code........................................................................................................................................................ 5

M46 Pumps.........................................................................................................................................................................................5

System Circuit Diagram..................................................................................................................................................................6

Schematic diagram..........................................................................................................................................................................6

Electrical specifications.................................................................................................................................................................. 7

Electrical installation Pinout....................................................................................................................................................................................................8

Pin compatibility...............................................................................................................................................................................8

Input/output matrix........................................................................................................................................................................ 8

Mating connector.............................................................................................................................................................................9

Electrical Installation M46 Pumps HC EDC

Contents

L1427804 • Rev AB • September 2015 3

Literature references

References

Literature ID number Title Description

L1001029 Series 40 M46 Pumps Technical Information Complete product electrical and

mechanical specifications

Latest version of technical literature

Danfoss product literature is online at: http://powersolutions.danfoss.com/literature/

Electrical Installation M46 Pumps HC EDC

Literature references

4L1427804 • Rev AB • September 2015


M46 Pump

Control options model code

M46 model code

P200148

C D E F G J RNH K L SP

M ZT

M P V C

046

N—control options

Code Description

HA EDC, high current, 12 volt, Deutsch®connector, 2-pin

HB EDC, high current, 24 volt, Deutsch®connector, 2-pin

M46 Pumps

M46 pumps are designed for medium power applications with maximum loads of 345 bar [5000 psi].

These pumps can be combined with other products in a system to transfer and control hydraulic power.

M46 pumps provide an infinitely variable speed range between zero and maximum in both forward and

reverse modes of operation.

M46 pumps are compact, high power density units. All models use the parallel axial piston / slipper

concept in conjunction with a tiltable swashplate to vary the pump’s displacement. Reversing the angle

of the swashplate reverses the flow of fluid from the pump, reversing the direction of rotation of the

motor output.

M46 pumps may include an integral charge pump to provide system replenishing and cooling fluid flow,

as well as servo control fluid flow. M46 pumps feature a range of auxiliary mounting pads to accept

auxiliary hydraulic pumps for use in complementary hydraulic systems.

M46 pumps offer proportional controls with either manual, hydraulic, or electronic actuation. An electric

three-position control is also available.

Electrical Installation M46 Pumps HC EDC

Product overview

L1427804 • Rev AB • September 2015 5

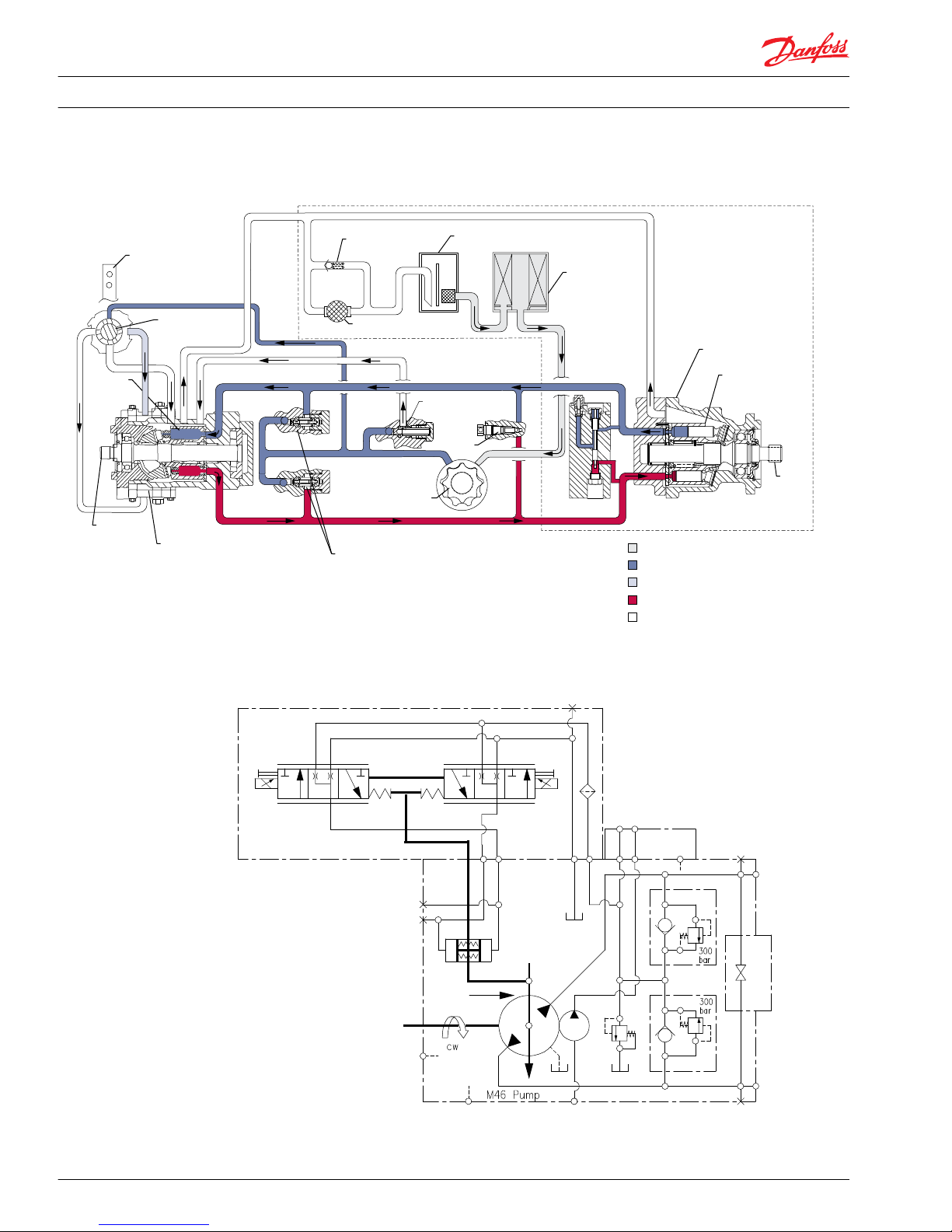

System Circuit Diagram

Input

shaft

Suction flow

Servo pressure

High pressure

Case flow

Charge pressure

Output

shaft

Cylinder

block

assembly

Filter

Charge

pump

Reservoir

Fixed displacement

motor

Cylinder

block

assembly

Heat

exchanger

Check valves

w/ high pressure

relief valve

Variable

displacement

pump

Heat exchanger

bypass

Charge relief

valve

Displacement

control

valve

Control

handle

Bypass

valve

Loop flushing

module

P100586

Schematic diagram

P109759

C2 C1

L1 S M2

flow out B

Electrical Installation M46 Pumps HC EDC

Product overview

6L1427804 • Rev AB • September 2015

Electrical specifications

Pump displacement vs. control current

P003479E

"0"

-b -a

100 %

Displacement

Current mA

Solenoid electrical specifications

Voltage 12V 24V

Maximum current 1800 mA 920 mA

Coil resistance @ 20 °C [70 °F] 3.66 Ω 14.20 Ω

Coil resistance @ 80 °C [176 °F] 4.52 Ω 17.52 Ω

PWM Range 70-200 Hz

PWM Frequency (preferred)**100 Hz

Inductance 33 mH 140 mH

*PWM signal required for optimum control performance.

Electrical Installation M46 Pumps HC EDC

Product overview

L1427804 • Rev AB • September 2015 7

Pinout

Pin location

1 2

P003480

Pinout

Pin Description

1 PWM signal/voltage input

2 Ground

Pin compatibility

PLUS+1®module pin type

Pin Function

1, 2 PWMOUT/DOUT/PVG Power supply

1, 2 PWMOUT/DOUT/PVGOUT

1, 2 Power ground -

Input/output matrix

EDC/C1 and C2 location

P003 191

Electrical Installation M46 Pumps HC EDC

Electrical installation

8L1427804 • Rev AB • September 2015

Pump output flow direction versus control signal

Shaft rotation CW CCW

Coil energized*C2 C1 C2 C1

Port A in out out in

Port B out in in out

Servo port pressurized M5 M4 M5 M4

*For coil location see installation drawings in the Series 40 M46 Pumps Technical Information, L1001029..

Mating connector

Parts list

Description Quantity Ordering number

Mating connector 1 Deutsch®DT06-2S

Wedge lock 1 Deutsch®W2S

Socket contact (16 and 18 AWG) 2 Deutsch®0462-201-16141

Danfoss mating connector kit 1 K29657

Electrical Installation M46 Pumps HC EDC

Electrical installation

L1427804 • Rev AB • September 2015 9

Electrical Installation M46 Pumps HC EDC

10 L1427804 • Rev AB • September 2015
