Danfoss FC 300 Instrucciones de funcionamiento

Contents

1. Introduction

Approvals 3

Symbols 3

Abbreviations 4

Definitions 4

2. How to Programme

The Graphical and Numerical Local Control Panels 11

How to Programme on the Graphical LCP 11

The LCD-Display 12

Quick Transfer of Parameter Settings between Multiple Frequency Converters 14

Display Mode 16

Display Mode - Selection of Read-Outs 16

Parameter Set-Up 17

Quick Menu Key Functions 17

Main Menu Mode 20

Parameter Selection 20

Changing Data 20

Changing a Text Value 20

Changing a Group of Numeric Data Values 21

Infinitely Variable Change of Numeric Data Value 21

Changing a Data Value,Step-by-Step 22

Read-out and Programming of Indexed Parameters 22

How to Programme on the Numerical Local Control Panel 23

Local Control Keys 24

Initialisation to Default Settings 25

Parameters: Operation and Display 27

Parameters: Load and Motor 42

Parameters: Brakes 63

Parameters: Reference/Ramps 70

Parameters: Limits/Warnings 86

Parameters: Digital In/Out 94

Parameters: Analog In/Out 112

Parameters: Controllers 121

Parameters: Communications and Options 127

Parameters: Profibus 134

Parameters: DeviceNet CAN Fieldbus 145

Parameters: Smart Logic Control 153

Parameters: Special Functions 171

FC 300 Programming Guide Contents

MG.33.M2.02 - VLT ®is a registered Danfoss trademark

Parameters: Drive Information 181

Parameters: Data Read-outs 190

Parameters: Encoder Input 198

Parameter Lists 202

Index

229

Contents FC 300 Programming Guide

MG.33.M2.02 - VLT ®is a registered Danfoss trademark

1. Introduction

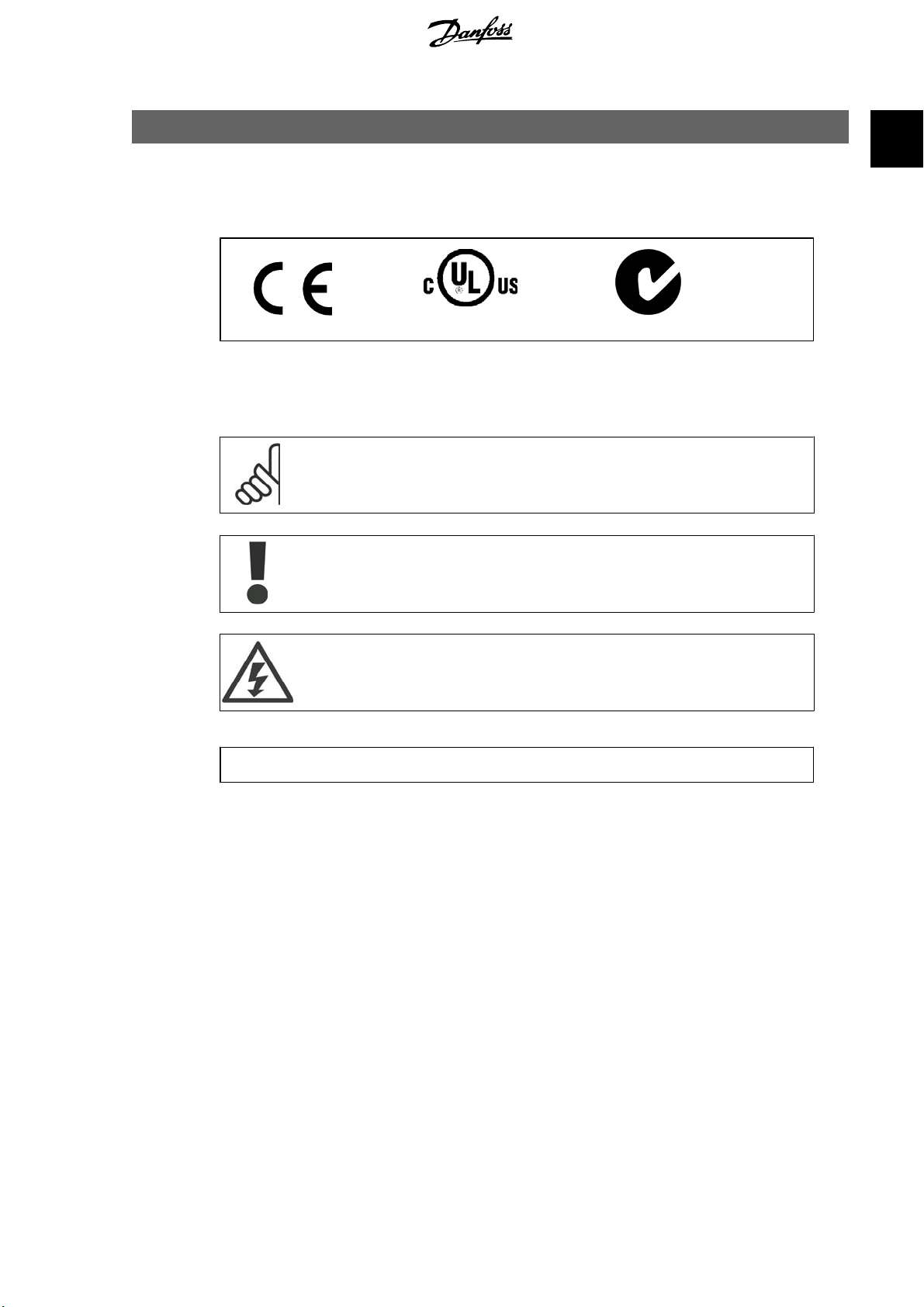

1.1.1. Approvals

1.1.2. Symbols

Symbols used in this guide.

NB!

Indicates something to be noted by the reader.

Indicates a general warning.

Indicates a high-voltage warning.

*Indicates default setting

FC 300 Programming Guide 1. Introduction

MG.33.M2.02 - VLT ®is a registered Danfoss trademark

1.1.3. Abbreviations

Alternating current AC

American wire gauge AWG

Ampere/AMP A

Automatic Motor Adaptation AMA

Current limit ILIM

Degrees Celsius °C

Direct current DC

Drive Dependent D-TYPE

Electro Magnetic Compatibility EMC

Electronic Thermal Relay ETR

drive FC

Gram g

Hertz Hz

Kilohertz kHz

Local Control Panel LCP

Meter m

Millihenry Inductance mH

Milliampere mA

Millisecond ms

Minute min

Motion Control Tool MCT

Nanofarad nF

Newton Meters Nm

Nominal motor current IM,N

Nominal motor frequency fM,N

Nominal motor power PM,N

Nominal motor voltage UM,N

Parameter par.

Protective Extra Low Voltage PELV

Printed Circuit Board PCB

Rated Inverter Output Current IINV

Revolutions Per Minute RPM

Second s

Torque limit TLIM

Volts V

1.1.4. Definitions

Drive:

D-TYPE

Size and type of the connected drive (dependencies).

VLT,MAX

The maximum output current.

VLT,N

The rated output current supplied by the frequency converter.

VLT, MAX

The maximum output voltage.

Input:

Control command

You can start and stop the connected motor

by means of LCP and the digital inputs.

Functions are divided into two groups.

Functions in group 1 have higher priority than

functions in group 2.

Group 1 Reset, Coasting stop, Reset

and Coasting stop, Quick-stop,

DC braking, Stop and the "Off"

key.

Group 2 Start, Pulse start, Reversing,

Start reversing, Jog and

Freeze output

1. Introduction FC 300 Programming Guide

MG.33.M2.02 - VLT ®is a registered Danfoss trademark

Motor:

JOG

The motor frequency when the jog function is activated (via digital terminals).

The motor frequency.

MAX

The maximum motor frequency.

MIN

The minimum motor frequency.

M,N

The rated motor frequency (nameplate data).

The motor current.

M,N

The rated motor current (nameplate data).

M-TYPE

Size and type of the connected motor (dependencies).

M,N

The rated motor speed (nameplate data).

M,N

The rated motor power (nameplate data).

M,N

The rated torque (motor).

The instantaneous motor voltage.

M,N

The rated motor voltage (nameplate data).

Break-away torque

FC 300 Programming Guide 1. Introduction

MG.33.M2.02 - VLT ®is a registered Danfoss trademark

VLT

The efficiency of the frequency converter is defined as the ratio between the power output and

the power input.

Start-disable command

A stop command belonging to the group 1 control commands - see this group.

Stop command

See Control commands.

References:

Analog Reference

A signal transmitted to the analog inputs 53 or 54, can be voltage or current.

Binary Reference

A signal transmitted to the serial communication port.

Preset Reference

A defined preset reference to be set from -100% to +100% of the reference range. Selection of

eight preset references via the digital terminals.

Pulse Reference

A pulse frequency signal transmitted to the digital inputs (terminal 29 or 33).

Ref

MAX

Determines the relationship between the reference input at 100% full scale value (typically 10 V,

20mA) and the resulting reference. The maximum reference value set in par. 3-03.

Ref

MIN

Determines the relationship between the reference input at 0% value (typically 0V, 0mA, 4mA)

and the resulting reference. The minimum reference value set in par. 3-02.

Miscellaneous:

Analog Inputs

The analog inputs are used for controlling various functions of the frequency converter.

There are two types of analog inputs:

Current input, 0-20 mA and 4-20 mA

Voltage input, 0-10 V DC (FC 301)

Voltage input, -10 - +10 V DC (FC 302).

Analog Outputs

The analog outputs can supply a signal of 0-20 mA, 4-20 mA, or a digital signal.

Automatic Motor Adaptation, AMA

AMA algorithm determines the electrical parameters for the connected motor at standstill.

Brake Resistor

The brake resistor is a module capable of absorbing the brake power generated in regenerative

braking. This regenerative braking power increases the intermediate circuit voltage and a brake

chopper ensures that the power is transmitted to the brake resistor.

CT Characteristics

Constant torque characteristics used for all applications such as conveyor belts, displacement

pumps and cranes.

1. Introduction FC 300 Programming Guide

MG.33.M2.02 - VLT ®is a registered Danfoss trademark

Digital Inputs

The digital inputs can be used for controlling various functions of the frequency converter.

Digital Outputs

The drive features two Solid State outputs that can supply a 24 V DC (max. 40 mA) signal.

DSP

Digital Signal Processor.

ETR

Electronic Thermal Relay is a thermal load calculation based on present load and time. Its purpose

is to estimate the motor temperature.

Hiperface

is a registered trademark by Stegmann.

Initialising

If initialising is carried out (par. 14-22), the frequency converter returns to the default setting.

Intermittent Duty C ycle

An intermittent duty rating refers to a sequence of duty cycles. Each cycle consists of an on-load

and an off-load period. The operation can be either periodic duty or non-periodic duty.

LCP

The Local Control Panel (LCP) makes up a complete interface for control and programming of the

FC 300 Series. The control panel is detachable and can be installed up to 3 metres from the

frequency converter, i.e. in a front panel by means of the installation kit option.

lsb

Least significant bit.

msb

Most significant bit.

MCM

Short for Mille Circular Mil, an American measuring unit for cable cross-section. 1 MCM = 0.5067

On-line/Off-line Parameters

Changes to on-line parameters are activated immediately after the data value is changed. Changes

to off-line parameters are not activated until you enter [OK] on the LCP.

Process PID

The PID regulator maintains the desired speed, pressure, temperature, etc. by adjusting the out-

put frequency to match the varying load.

Pulse Input/Incremental Encoder

An external, digital pulse transmitter used for feeding back information on motor speed. The en-

coder is used in applications where great accuracy in speed control is required.

RCD

Residual Current Device.

FC 300 Programming Guide 1. Introduction

MG.33.M2.02 - VLT ®is a registered Danfoss trademark

Set-up

You can save parameter settings in four Set-ups. Change between the four parameter Set-ups

and edit one Set-up, while another Set-up is active.

SFAVM

Switching pattern called Stator Flux oriented Asynchronous Vector Modulation (par. 14-00).

Slip Compensation

The frequency converter compensates for the motor slip by giving the frequency a supplement

that follows the measured motor load keeping the motor speed almost constant..

Smart Logic Control (SLC)

The SLC is a sequence of user defined actions executed when the associated user defined events

are evaluated as true by the SLC. (Parameter group 13-xx).

FC Standard Bus

Includes RS 485 bus with FC protocol or MC protocol. See parameter 8-30.

Thermistor:

A temperature-dependent resistor placed where the temperature is to be monitored (frequency

converter or motor).

Trip

A state entered in fault situations, e.g. if the frequency converter is subject to an over-temperature

or when the frequency converter is protecting the motor, process or mechanism. Restart is pre-

vented until the cause of the fault has disappeared and the trip state is cancelled by activating

reset or, in some cases, by being programmed to reset automatically. Trip may not be used for

personal safety.

Trip Locked

A state entered in fault situations when the frequency converter is protecting itself and requiring

physical intervention, e.g. if the frequency converter is subject to a short circuit on the output. A

locked trip can only be cancelled by cutting off mains, removing the cause of the fault, and re-

connecting the frequency converter. Restart is prevented until the trip state is cancelled by

activating reset or, in some cases, by being programmed to reset automatically. Trip may not be

used for personal safety.

VT Characteristics

Variable torque characteristics used for pumps and fans.

VVCplus

If compared with standard voltage/frequency ratio control, Voltage Vector Control (VVC

plus

) im-

proves the dynamics and the stability, both when the speed reference is changed and in relation

to the load torque.

60° AVM

Switching pattern called 60°Asynchronous Vector Modulation (par. 14-00).

Power Factor

The power factor is the relation between I

and I

RMS

Power factor

xU xI

xcos

xU xI

RMS

The power factor for 3-phase control:

xcos

ϕ1

RMS

since cos

ϕ1=1

1. Introduction FC 300 Programming Guide

MG.33.M2.02 - VLT ®is a registered Danfoss trademark

The power factor indicates to which extent the

frequency converter imposes a load on the

mains supply.

The lower the power factor, the higher the

RMS

for the same kW performance.

RMS

+.. +

In addition, a high power factor indicates that the different harmonic currents are low.

The FC 300 frequency converters' built-in DC coils produce a high power factor, which minimizes

the imposed load on the mains supply.

The voltage of the frequency converter is dangerous whenever connected to mains.

Incorrect installation of the motor, frequency converter or fieldbus may cause dam-

age to the equipment, serious personal injury or death. Consequently, the instruc-

tions in this manual, as well as national and local rules and safety regulations, must

be complied with.

Safety Regulations

1. The frequency converter must be disconnected from mains if repair work is to be carried

out. Check that the mains supply has been disconnected and that the necessary time has

passed before removing motor and mains plugs.

2. The [STOP/RESET] key on the control panel of the frequency converter does not dis-

connect the equipment from mains and is thus not to be used as a safety switch.

3. Correct protective earthing of the equipment must be established, the user must be pro-

tected against supply voltage, and the motor must be protected against overload in

accordance with applicable national and local regulations.

4. The earth leakage currents are higher than 3.5 mA.

5. Protection against motor overload is not included in the factory setting. If this function

is desired, set par. 1-90 to data value ETR trip or data value ETR warning.

6. Do not remove the plugs for the motor and mains supply while the frequency converter

is connected to mains. Check that the mains supply has been disconnected and that the

necessary time has passed before removing motor and mains plugs.

7. Please note that the frequency converter has more voltage inputs than L1, L2 and L3,

when load sharing (linking of DC intermediate circuit) and external 24 V DC have been

installed. Check that all voltage inputs have been disconnected and that the necessary

time has passed before commencing repair work.

FC 300 Programming Guide 1. Introduction

MG.33.M2.02 - VLT ®is a registered Danfoss trademark

2. How to Programme FC 300 Programming Guide

MG.33.M2.02 - VLT ®is a registered Danfoss trademark

Otros manuales para FC 300

Tabla de contenidos

Otros manuales de Accionamiento de CC de Danfoss

Danfoss

Danfoss VLT AutomationDrive FC 360 Guía del usuario

Danfoss

Danfoss VLT HVAC Basic Drive FC 101 Guía

Danfoss

Danfoss FC 100 Series Instrucciones de funcionamiento

Danfoss

Danfoss VLT 6000 HVAC Manual de usuario

Danfoss

Danfoss VACON 20 X Manual de usuario

Danfoss

Danfoss VLT PROFINET MCA 120 Manual de usuario

Danfoss

Danfoss VLT DriveMotor FCP 106 Manual de usuario

Danfoss

Danfoss VLT 5000 Series Manual de usuario

Danfoss

Danfoss VLT AutomationDrive FC 301 Instrucciones de funcionamiento

Danfoss

Danfoss FCM 300 Series Hoja de especificaciones

Danfoss

Danfoss 176F3167 Guía del usuario

Danfoss

Danfoss FC 100 Series Manual de usuario

Danfoss

Danfoss vlt aqua Manual de usuario

Danfoss

Danfoss VLT AQUA Drive FC 202 Guía

Danfoss

Danfoss VLT AutomationDrive FC 300 Instrucciones de funcionamiento

Danfoss

Danfoss 73691290 Manual de usuario

Danfoss

Danfoss VLT 6000 HVAC Series Guía

Danfoss

Danfoss VLT HVAC Manual de usuario

Danfoss

Danfoss FC 300 Instrucciones de funcionamiento

Danfoss

Danfoss VLT FC 300 Manual de usuario

Danfoss

Danfoss VLT CDS 302 Instrucciones de funcionamiento

Danfoss

Danfoss HDU-SF Manual de usuario

Danfoss

Danfoss Vacon NXS Series Manual de usuario

Danfoss

Danfoss VLT CDS 803 Manual de usuario

Manuales populares de Accionamiento de CC de otras marcas

Vincent Associates

Vincent Associates UNIBLITZ ED12DSS Manual de usuario

EKSMA OPTICS

EKSMA OPTICS DQ-100-4 Manual de lista de piezas

Chamberlain Garog

Chamberlain Garog D Series Manual de usuario

Parker

Parker PDS Series Manual de usuario

Festo

Festo DGC G Series Guía de configuración

Binks

Binks QS-5012-1-CE Manual de usuario

ABB

ABB ACQ580-01 Series Manual de instalación

YASKAWA

YASKAWA CANopen SI-S3 Manual de usuario

GE D20A6 Manual de usuario

Unex

Unex MC-D-250-1000-050W-TW Manual de usuario

Geckodrive

Geckodrive G213V Manual de usuario

ABB

ABB RSYC-01 Manual de usuario

Rockwell Automation

Rockwell Automation PowerFlex 700S Manual del propietario

WEG

WEG DeviceNet CFW500 Manual de usuario

Siemens

Siemens SINAMICS G Hoja de datos

Siemens

Siemens SINAMICS SM150 6SL3815-7NP41-0AA1 Instrucciones de funcionamiento

SOMFY

SOMFY JR RU 30 Manual de usuario

Beckhoff

Beckhoff AX8911 Manual del operador
