Danfoss ECdry Touch Kit

Installation Guide

AN324050550815en-000201 | 3Danfoss © | 2020.07

Installation Guide Danfoss ECdry Touch Kit

Table of Contents

1 ECdry � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � 4

2 General information � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � 5

3 Product overview� � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � 7

4 Technical Details � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � 9

5 Designing the layout � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � 11

1.1 Preparing the base . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13

1.1 Calculating current limitations. . . . . . . . . . . . . . . . . . . . . . . 14

1.1 Connecting the ECdry elements . . . . . . . . . . . . . . . . . . . . . 15

1.1 Cutting the ECdry oor heating element to size. . . . . . . . . . . . 16

1.1 Filling up the remaining space. . . . . . . . . . . . . . . . . . . . . . . 17

1.1 Mounting the ECtemp Thermostat . . . . . . . . . . . . . . . . . . . . 18

1.1 Checking the ECdry oor heating system. . . . . . . . . . . . . . . . 18

1.1 Laying the top oor . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19

1.1 Warning label . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19

6 Layout paper� � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � 20

7 Safety Precautions � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � 22

8 The 5 Year Danfoss Warranty: � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � 24

4 | Danfoss © | 2020.07 AN324050550815en-000201

Installation Guide Danfoss ECdry Touch Kit

1 ECdry

Congratulations with your new Danfoss oor heating system.

We are condent that you will be satised with your new system. Danfoss brings you optimum

comfort with the luxury and comfort of a warm oor as well as a pleasant room temperature.

Floor heating is the most comfortable type of heating because it is based on the fact that

warmth travels upwards; pleasant warmth for your feet, body and head.

AN324050550815en-000201 | 5Danfoss © | 2020.07

Installation Guide Danfoss ECdry Touch Kit

2 General information

The ECdry oor heating system consists of a

foam/carpet heating element with heating

mats inside. The system must always be con-

trolled with a ECtemp, as it is an important

part of the safety and overheating protections

system.

The ECdry oor heating system can be used

under wooden oors such as parquet and

laminate. Please check the specications

with your supplier of these products.

ECdry has been tested and approved with

ooring materials with insulation values

from 0,07 to 0,18 m² K/W.

For best performance of the oor heating sys-

tem, keep the insulation value from the ECdry

heating unit to oor surface as low as possible.

The ECdry oor heating system has been

developed to the dry application area for

underoor heating.

It is applicable for wooden and concrete

oor constructions with the two output

ranges 55 W/m² and 100 W/m².

Flooring

ECdry 55

Wooden oor construction

Flooring

ECdry 55 or 100

Concrete oor construction

Parquet/laminate

ECdry

Vapour barrier Vapour barrier

Existing

wooden suboor

Parquet/laminate

ECdry

Existing

concrete suboor

6 | Danfoss © | 2020.07 AN324050550815en-000201

Installation Guide Danfoss ECdry Touch Kit

The maximum thermal resistance be-

tween the ECdry element and the room is

0,18 m² K/W as shown in the table below.

The ECdry oor heating system is for indoor ap-

plications in dry rooms only. As with any other

underoor heating system, it will be most

eective if the underoor is well insulated.

The following directions will guide you step-

by-step through the installation process. Please

read the directions and the safety precautions

before you start the installation process.

Thermal

resistance Examples of Flooring Density

0,07 m² K/W 11 mm HDF based laminate >800 kg/m³

0,10 m² K/W 14 mm beech parquet 650-800 kg/m³

0,13 m² K/W 22 mm solid oak plank >800 kg/m³

0,18 m² K/W 22 mm solid r planks 450-650 kg/m³

AN324050550815en-000201 | 7Danfoss © | 2020.07

Installation Guide Danfoss ECdry Touch Kit

3 Product overview

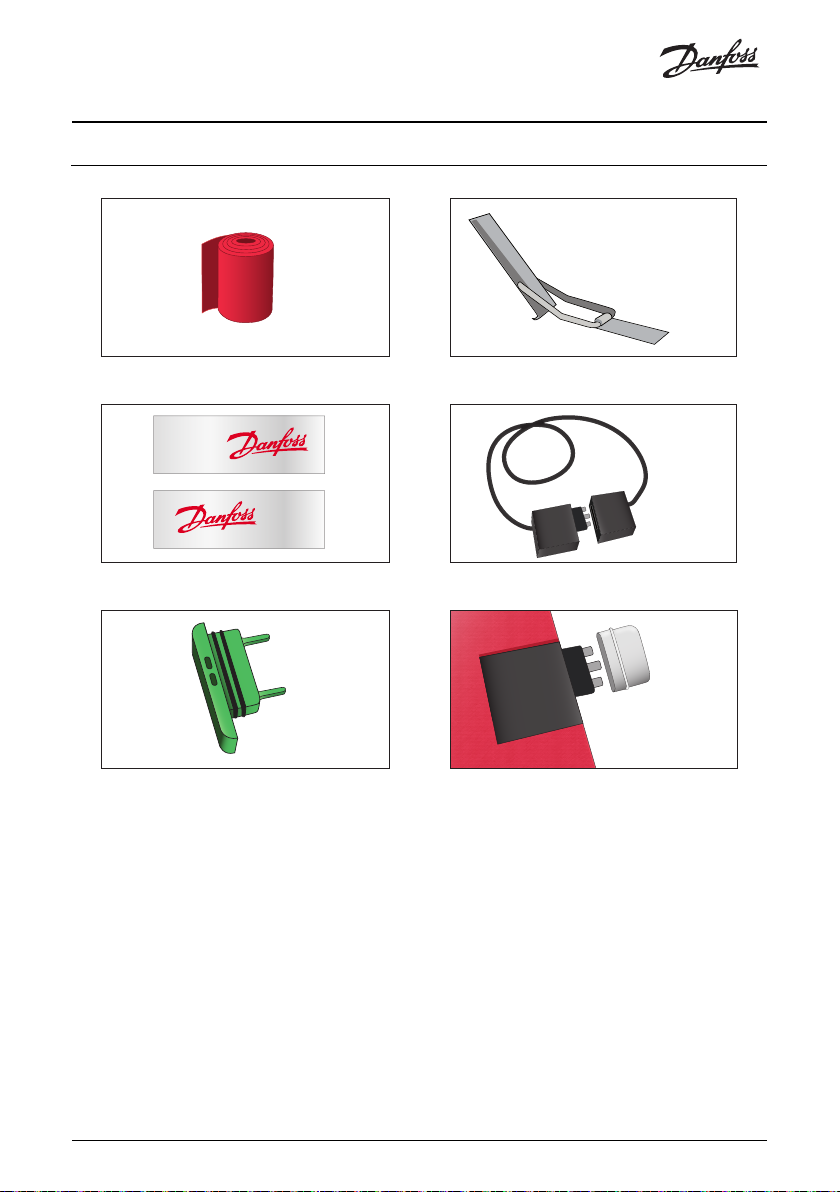

ECdry FM ECdry Connection Tool

ECdry Tape ECdry X

ECdry End Stop ECdry Protection Cap

8 | Danfoss © | 2020.07 AN324050550815en-000201

Installation Guide Danfoss ECdry Touch Kit

Products supplied for wooden oor constructions

ECdry Name Description

ECdry 55 ECdry Element, 1-5 m²

Products supplied for concrete oor constructions

ECdry Name Description

ECdry 55 ECdry Element, 1-5 m²

Or:

ECdry 100 ECdry Element, 1-5 m²

Accessories

ECdry Name Description

ECdry Touch Kit

ECdry Touch Kit:

• ECtemp Touch Electronic Intelligent

Timer Thermostat

• ECtemp NTC Floor Sensor

• ECdry Connection Tool

• ECdry Supply cord 3 m

• ECdry and ECtemp Instructions

• ECdry Warning Label

ECdry X-25 ECdry Extension Cord, 25 cm

ECdry X-100 ECdry Extension Cord, 100 cm

ECdry X-200 ECdry Extension Cord, 200 cm

ECdry FM-1 ECdry Filler Material, 1 m²

ECdry FM-2 ECdry Filler Material, 2 m²

ECdry FM-4 ECdry Filler Material, 4 m²

AN324050550815en-000201 | 9Danfoss © | 2020.07

Installation Guide Danfoss ECdry Touch Kit

4 Technical Details

Installation must be carried out in accordance with the national regulation and

wiring rules for installation

Technical details of ECdry

Height 8 mm

Mains voltage 230 V (50 Hz)

Maximum Ampere per ECdry System 10 A

IP rating for ECdry Element IP X7

Output 55 W/m² or 100 W/m²

Sound reduction value 17 dB

Insulation value μ 8 W/m²K

Maximum heated surface per ECdry Touch Kit

(Maximum current limit is 10 Ampere)

Product Max heated surface

ECdry 55 42 m²

ECdry 100 23 m²

For ECdry 55

Floor area Heated surface Total power output Ampere

1 m² 0,4 m² 22 Watt 0,10 A

2 m² 1,4 m² 77 Watt 0,33 A

3 m² 2,4 m² 132 Watt 0,57 A

4 m² 3,4 m² 187 Watt 0,81 A

5 m² 4,4 m² 242 Watt 1,05 A

For ECdry 100

Floor area Heated surface Total power output Ampere

1 m² 0,4 m² 40 Watt 0,17 A

2 m² 1,4 m² 140 Watt 0,61 A

3 m² 2,4 m² 240 Watt 1,04 A

4 m² 3,4 m² 340 Watt 1,48 A

5 m² 4,4 m² 440 Watt 1,91 A

10 | Danfoss © | 2020.07 AN324050550815en-000201

Installation Guide Danfoss ECdry Touch Kit

This side up

Heating element must only be installed on top of concrete oor construc-

tions (never on wooden oor construction), never inbedded in concrete.

Direct oor heating

The ECdry element may be cut here to t the actual area, as there are no

electrical parts in this area

The ECdry element can NOT be cut here as there are electrical parts in this

area

For indoor use only

Read the instruction manual before installation

Double insulated

This symbol indicates that this product must not be disposed of with your

other household waste.

Danfoss declares that ECdry is tested according to the standard

EN/IEC 60335-2-96. Household and similar electrical appliances. Safety. Part 2-96.

Particular requirements for exible sheet heating mats for room heating.
