BD Controller 101N07xx Series 24 V DC

with Tool4Cool® LabEdition software and

Danfoss One Wire/LIN gateway

Quick Start Guide

Quick Start Guide BD Controller 101N07xx Series 24 V DC

DEHC.PS.100.J1.02

Quick Start Guide 1. Checklist ..........................................................................................................................4

2. Connect cables ..............................................................................................................5

3. Install software ..............................................................................................................6

4. Install product key .......................................................................................................8

5. Connect network ..........................................................................................................9

6. Ready to operate ....................................................................................................... 11

7. Ordering ....................................................................................................................... 12

8. Further information .................................................................................................. 13

Quick Start Guide BD Controller 101N07xx Series 24 V DC

4DEHC.PS.100.J1.02

1. Checklist

Check that you have the following:

BD electronic controller

101N07xx Series 48V DC

101N0715 or•

101N0710 (discontinued)•

Tool4Cool® LabEdition software

installation CD

NTC temperature sensor

(alternative: mechanical thermostat)

DC line cords

Product key for BD compressor controller

(not necessary with Tool4Cool® Version 1.02) DH3TT6RBAD1GW8G68ZM1N8G62ZMCOO916IER6GH2YZEIR

Danfoss One Wire/LIN gateway with

connection cables

Gateway•

One Wire/LIN gateway•

Communication cable

USB port connector to PC•

USB 2.0 A/B cable•

Ordering: See section 7.0

Quick Start Guide BD Controller 101N07xx Series 24 V DC

DEHC.PS.100.J1.02

2. Connect cables

8633

Main switch

Fuse

Power supply

Fan

NTC resistor

– t°

option 1option 2

optional

mech. Thermostat

One Wire

LIN Gateway

Te rminal plug

USB

(only for supply)

COM

USB Danfoss One Wire

LIN GatewayOneWire

/ LIN

USB Code no.: 105N9501

RS232/485

USB 2.0

Electronics

(One Wire / LIN)

RS232

RS485

Tx Rx

option 2

option 1

USB 2.0 A/B Cable

COM port connector to PC

NTC temperature sensor

Electronic Unit

One Wire/LIN Gateway Communication Cable

USB port connector to PC

Gateway

Power supply cableSerial RS232 Cable with USB Voltage Supply

Quick Start Guide BD Controller 101N07xx Series 24 V DC

6DEHC.PS.100.J1.02

3. Install software

1. Check that you have the latest update of .NET Framework from www.windowsupdate.com.

2. Insert the Tool4Cool® installation CD.

This view will appear:

Quick Start Guide BD Controller 101N07xx Series 24 V DC

DEHC.PS.100.J1.02

3. Double-click on Tool4Cool® Software Installation. Run the ﬁle setup.exe. Then follow the instructions

in the Setup Wizard.

Quick Start Guide BD Controller 101N07xx Series 24 V DC

8DEHC.PS.100.J1.02

4. Install Product Key

1. Start Tool4Cool® LabEditon by double clicking on the icon on the desktop:

2. Select Help in the menu bar.

3. Select Product Keys from the drop-down menu:

4. This dialog box will open:

In the Add Product Key ﬁeld, type the Product Key shown in Section 1: Checklist.

Click on the Add Key button. The Product Key is now active.

Quick Start Guide BD Controller 101N07xx Series 24 V DC

DEHC.PS.100.J1.02

5. Connect network

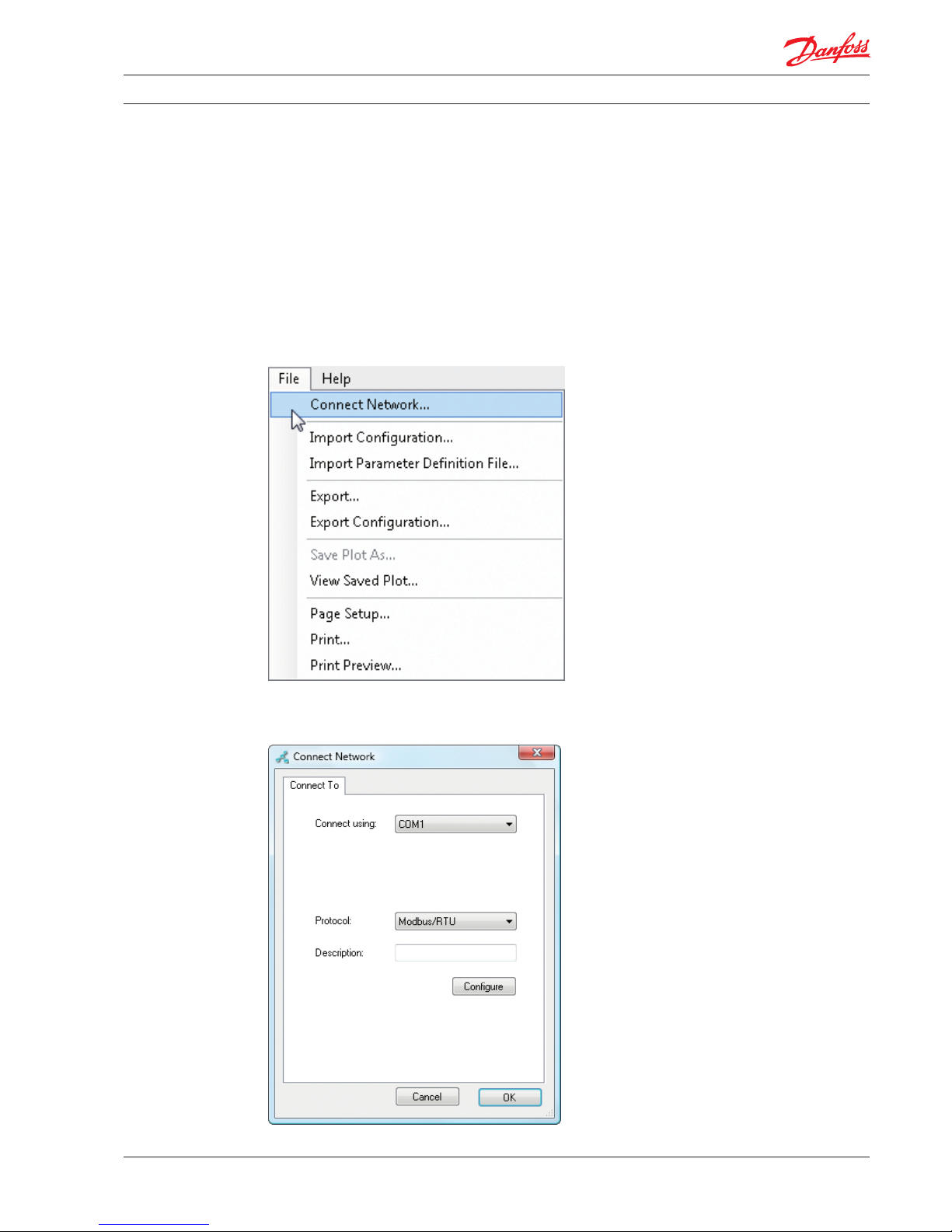

1. Select File in the menu bar.

2. Select Connect Network in the drop-down menu:

3. This dialog box will open:

Quick Start Guide BD Controller 101N07xx Series 24 V DC

10 DEHC.PS.100.J1.02

In the Connect using ﬁeld, select the COM port to which the gateway is connected.

Fill in Description (optional).

Press OK.

Wait a short time. The LEDs on the gateway will ﬂicker, then a red arrow will appear in front of the

description (COM/USB network).

The controller is now accessible via Tool4Cool®.
