1.1 Description

The inrush card kit includes all parts required to install the

inrush card in D1h–D8h drives.

1.1.1 Kit Ordering Numbers

Number Kit description

176F3159 Inrush card NO 110–315 kW 400 V (T5)

176F3417 Inrush card NO 75–400 kW 690 V (T7)

176F3517 Inrush card rugged NO 110–315 kW 400 V (T5)

176F3518 Inrush card rugged NO 75–400 kW 690 V (T7)

Table 1.1 Ordering Numbers for Inrush Card Kits

1.1.2 Items Supplied

The following items are included with the inrush card kits for

D1h–D8h drives.

Item Quantity

Inrush card 1

Stando (for D1h/D3h/D5h/D6h drives only) 3

Installation instructions 1

Table 1.2 Items Supplied with Inrush Card Kit

1.2 Safety Information

Only qualied, Danfoss-authorized personnel are allowed to

install the parts described in these installation instructions.

Disassembly and reassembly of the drive must be done in

accordance with the corresponding service guide.

WARNING

ELECTRICAL SHOCK HAZARD

VLT

FC series drives contain dangerous voltages when

connected to mains voltage. Improper installation, and

installing or servicing with power connected, can cause

death, serious injury, or equipment failure.

To avoid death, serious injury, or equipment failure:

•

Only use qualied electricians for the installation.

•

Disconnect the drive from all power sources before

installation or service.

•

Treat the drive as live whenever the mains voltage

is connected.

•

Follow the guidelines in these instructions and local

electrical safety codes.

WARNING

DISCHARGE TIME

The drive contains DC-link capacitors, which can remain

charged even when the drive is not powered. High voltage

can be present even when the warning LED indicator lights

are o. Failure to wait the specied time after power has

been removed before performing service or repair work can

result in death or serious injury.

•

Stop the motor.

•

Disconnect AC mains and remote DC-link power

supplies, including battery back-ups, UPS, and DC-

link connections to other drives.

•

Disconnect or lock PM motor.

•

Wait for the capacitors to discharge fully. The

minimum waiting time is 20 minutes.

•

Before performing any service or repair work, use

an appropriate voltage measuring device to make

sure that the capacitors are fully discharged.

NOTICE

ELECTROSTATIC DISCHARGE

Follow proper ESD precautions to prevent damage to

sensitive components.

Installation Instructions

Inrush Card Kit for D1h–D8h Drives

VLT®FC Series FC 102, FC 103, FC 202, FC 302

1.3 Installation Instructions for D1h/D3h/D5h/D6h Drives

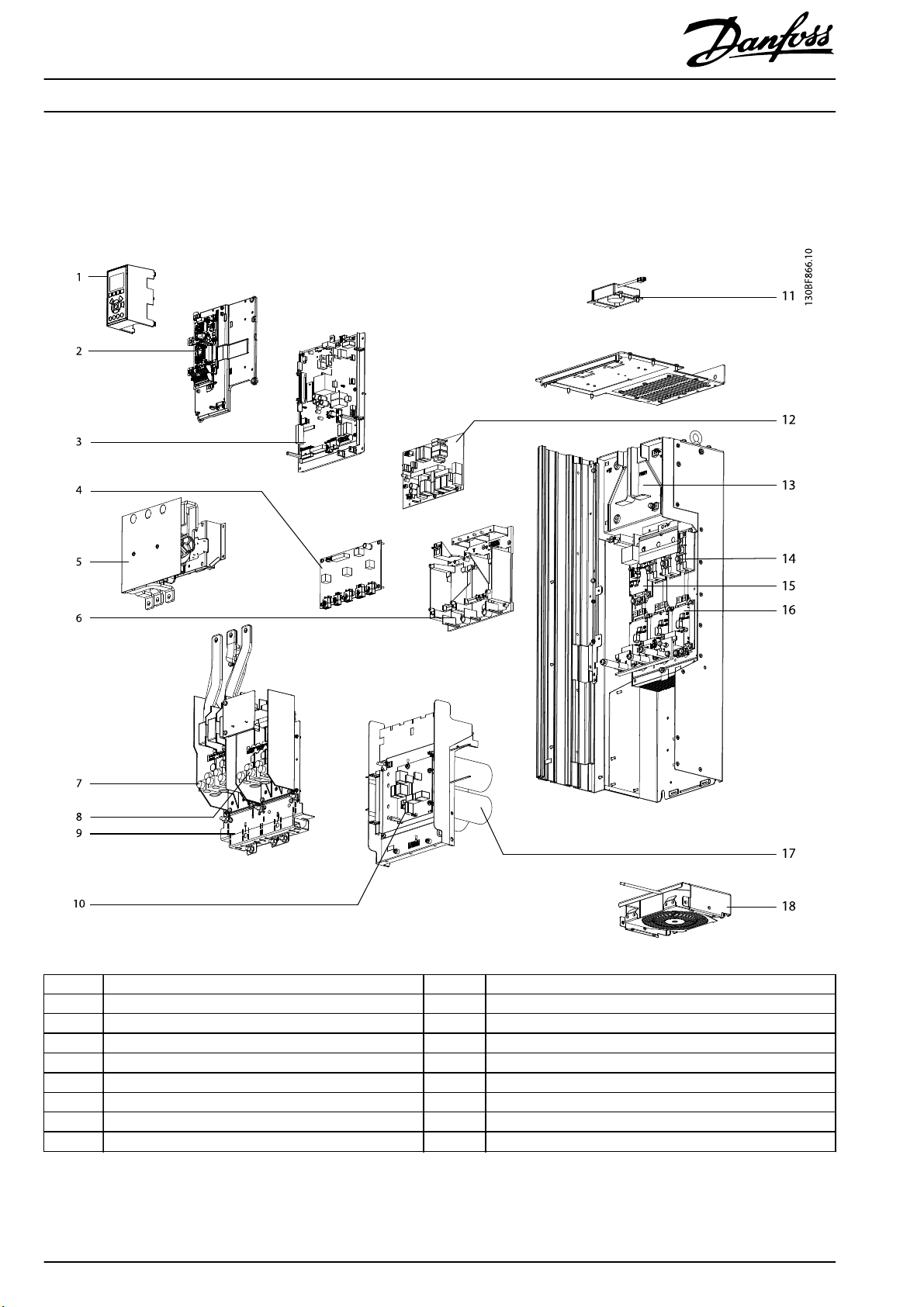

Illustration 1.1 shows an exploded view of the main components of the D3h drive. The components of the D1h/D5h/D6h drives are

similar.

1 Local control panel (LCP) and LCP cradle 10 Balance/high frequency card

2 Control card mounting plate 11 Top fan (IP20 only)

3 Power card mounting plate 12 Inrush card

4 Gatedrive card 13 DC inductor

5 RFI lter (optional) 14 SCR/diode modules

6 Gatedrive card support bracket 15 Brake IGBT module (optional)

7 Mains input terminal block 16 IGBT modules

8 Motor terminal block 17 Capacitor bank

9 Power terminal mounting plate 18 Heat sink fan

Illustration 1.1 Exploded View of D3h Drive

Installation Instructions Inrush Card Kit for D1h–D8h Drives

VLT

FC Series FC 102, FC 103, FC 202, FC 302

1.3.1 Accessing the Inrush Card in D1h/D3h/Dh5/D6h Drives

To access the inrush card, remove the following components from the drive. Refer to Illustration 1.1 and Illustration 1.2. See the

service guide for detailed instructions for each component.

1. Remove the control card mounting plate.

2. Remove the power card mounting plate.

3. Remove the AC input busbars and any input options present, such as RFI lter or mains fuses.

4. Remove the mains input terminal block and EMC shield.

5. Remove the brake terminals, if present.

6. Remove the motor terminal block.

7. Remove the power terminal mounting plate.

8. Remove the DC bus rails.

1Screw(T30) 7 Nut(10mm)

2 Inrush card 8 Screw (T30)

3DC(+)busbar 9 Screw(T30)

4 Inrush support bracket 10 DC(+) busbar

5 Stando (11 mm) 11 DC(-) busbar DC coil to capacitor bank

6 DC coil to capacitor bank DC(-) busbar – –

Illustration 1.2 Inrush Card and DC Bus Rails

Installation Instructions Inrush Card Kit for D1h–D8h Drives

VLT

FC Series FC 102, FC 103, FC 202, FC 302

1.3.2 Removing the Inrush Card in D1h/D3h/D5h/D6h Drives

To remove the inrush card, use the following steps. Refer to Illustration 1.2.

1. Unplug the cables from the following connectors on the inrush card:

•

MK1800

•

MK1802

2. Remove 5 screws (T20) from the inrush card.

3. Remove the inrush card from the drive, and discard it.

1.3.3 Replacing the Standos in D1h/D3h/D5h/D6h Drives

NOTICE

STANDOFF REPLACEMENT

Only D1h/D3h/D5h/D6h drives require replacement of the standos. For all other drives, use the installed standos.

After removing the inrush card, compare the standos installed in the drive to the standos in Illustration 1.3. If the drive contains

old standos, replace them with the new standos included in the kit. To replace the standos, use the following steps. Refer to

Illustration 1.2 and Illustration 1.3.

1. Remove 3 standos (11 mm), 1 from each SCR input busbar.

2. Fasten 3 new standos (11 mm), 1 in each SCR busbar. Torque to 2.3 Nm (20 in-lb).

1 Old stando

2 New stando (included in kit)

Illustration 1.3 Stando Replacement

Installation Instructions Inrush Card Kit for D1h–D8h Drives

VLT

FC Series FC 102, FC 103, FC 202, FC 302

1.3.4 Installing the Inrush Card in D1h/D3h/Dh5/D6h Drives

To install the new inrush card, use the following steps. Refer to Illustration 1.2.

1. Place the new inrush card in the drive.

2. Fasten 5 screws (T20) in the inrush card.

3. Plug the cables to the following connectors on the inrush card:

•

MK1800

•

MK1802

1.3.5 Reassembling D1h/D3h/D5h/D6h Drives

After installing the new inrush card and standos, replace the following components in the drive. Refer to Illustration 1.1. See the

service guide for detailed instructions for each step.

1. Replace the DC bus rails.

2. Replace the power terminal mounting plate.

3. Replace the motor terminal block.

4. Replace the optional brake terminals, if present.

5. Replace the mains input terminal block and EMC shield.

6. Replace the AC input busbars and any power options, such as RFI lter or mains fuses.

7. Replace the power card mounting plate.

8. Replace the control card mounting plate.

Installation Instructions Inrush Card Kit for D1h–D8h Drives

VLT

FC Series FC 102, FC 103, FC 202, FC 302

1.4 Installation Instructions for D2h/D4h/D7h/D8h Drives

Illustration 1.4 shows the control card mounting plate and power card mounting plate in a D-sized drive. The location of these

components is similar in D2h/D4h/D7h/D8h drives.

1 LCP (Local control panel) 4 Screw (T20)

2 LCP cradle 5 Power card

3 Control card mounting plate 6 Power card mounting plate

Illustration 1.4 Control Card Mounting Plate and Power Card Mounting Plate

1.4.1 Accessing the Inrush Card in D2h/D4h/Dh7/D8h Drives

To access the inrush card, remove the following components from the drive. Refer to Illustration 1.4. See the service guide for

detailed instructions for each component.

1. Remove the control card mounting plate.

2. Remove the power card mounting plate.

Installation Instructions Inrush Card Kit for D1h–D8h Drives

VLT

FC Series FC 102, FC 103, FC 202, FC 302

1.4.2 Removing the Inrush Card in D2h/D4h/D7h/D8h Drives

To remove the inrush card, use the following steps. Refer to Illustration 1.5.

1. Unplug the cable from the inrush card connector MK1802.

2. Remove 2 thread-forming screws (T20).

3. Remove 5 screws (T20) from the inrush card.

4. Remove the inrush card from the drive, and discard it.

1MK1802 7 Inrushcard

2MK1800 8 Screw(T20)

3 Screw (T20) 9 MK101

4MK102 10 Gatedrivecard

5 MK100 11 MK701

6 MK501 12 MK601

Illustration 1.5 Inrush Card and Gatedrive Card

Installation Instructions Inrush Card Kit for D1h–D8h Drives

VLT

FC Series FC 102, FC 103, FC 202, FC 302

1.4.3 Installing the Inrush Card in D2h/D4h/D7h/D8h Drives

To install the new inrush card, use the following steps. Refer to Illustration 1.5.

1. Position the inrush card in the drive.

2. Secure 5 screws (T20) in the inrush card.

3. Secure 2 thread-forming screws (T20).

4. Connect the cable to the inrush card connector MK1802.

1.4.4 Reassembling D2h/D4h/D7h/D8h Drives

After installing the new inrush card, replace the following components in the drive. Refer to Illustration 1.4. See the service guide for

detailed instructions for each component.

1. Replace the power card mounting plate.

2. Replace the control card mounting plate.

Danfoss can accept no responsibility for possible errors in catalogues, brochures and other printed material. Danfoss reserves the right to alter its products without notice. This also applies to products already on

order provided that such alterations can be made without subsequential changes being necessary in specifications already agreed. All trademarks in this material are property of the respective companies. Danfoss

Danfoss A/S

Ulsnaes 1

DK-6300 Graasten

vlt-drives.danfoss.com

*MI39A102*

MI39A102130R0846 05/2018
