Dancing Wings Hobby T30 Manual de usuario

T30 Trainer Airplane Instruction Manual

工具 Tools Needed

爪牙螺母

Claw nut

F7-3

F7-2

F7-1

F21

F5 F6

F13

F14

F14-1

F15

F15-1

F21

F11

F12

F10 F16

F12-1

F22

F17

F27

F28

F29

F18 F19 F20

F38

F40

F23

F30

F25

F26 F24

F23-1

F32

F33 F34

F35

F36

F32-1

F37 F37-1

F31

F14

F14-1

F14-2

背面装爪牙螺母

打磨成机身一体弧度

螺丝固定

碳杆

carbon rod

磁铁magnet

E10

R11

R10

R1x2

R12

W14 W14-1

W3 W4 W6

W16

W16-1

W7 W8

W18

W18-1

W9 W10

W11

W21 W22

W4-1

W23

W16

W17 W17-1

W19

W20

W13x2

W38x3

W20-1x3

W16-1

W24 W25

W26 W28

W27 W29

2,尾翼组装 Assemble the Tail Wing

机翼和尾翼请在平整的工作台上进行拼装，拼装时保持机翼平直。

3,机翼组装 Assemble the Wing

1,机身组装 Assemble the Fuselage

Claw nut

爪牙螺母

Claw nut

爪牙螺母

Claw nut

爪牙螺母

F30 F40粘贴时用

水湿润后再进行

蒙板粘贴

Soak the F30 and

F40,and paste the

cover board.

Firm with screws

螺丝固定

Firm with screws

install the claw nut at the back.

Polish it with same radian as fuselage

Assemble the wing and tail on the smooth desk,make sure the wing is straight.

轻木条P6 P6-1交错拼接

Install the balsawood strips

P6 and P6-1 in cross.

参数

翼展：1400mm

机长：1070mm

起飞重量：≈2000-2500g

推荐配置

马达：2814-3520 600-1000KV

电调：40A

电池：4S 3600-5000mAh

舵机：17g*4

引擎：2C36 / 4C56

桨叶：10-12inch

通道：≥4CH

Speci�ication

Wingspan: 1400mm

Length: 1070mm

Flying Weight≈2000-2500g

Suggested Equipment

Electric powered: 2814-3520 600-1000kv

ESC: 40A

Battery: 4S 3600-5000mAh

Servos: 17g*4

Gas engine class: 2C36 / 4C56

Propeller: 10-12inch

Radio≥4CH

W32

W30

W30-1

W36

W15x2

W32-1

W12

W35-1 W35

W37

W21x3

（按机翼弧度打磨成弧形）

W33

W33-1

W34

W31-1

W31

D3x2

D2 D2 D4

螺丝

screw

插入

Insert

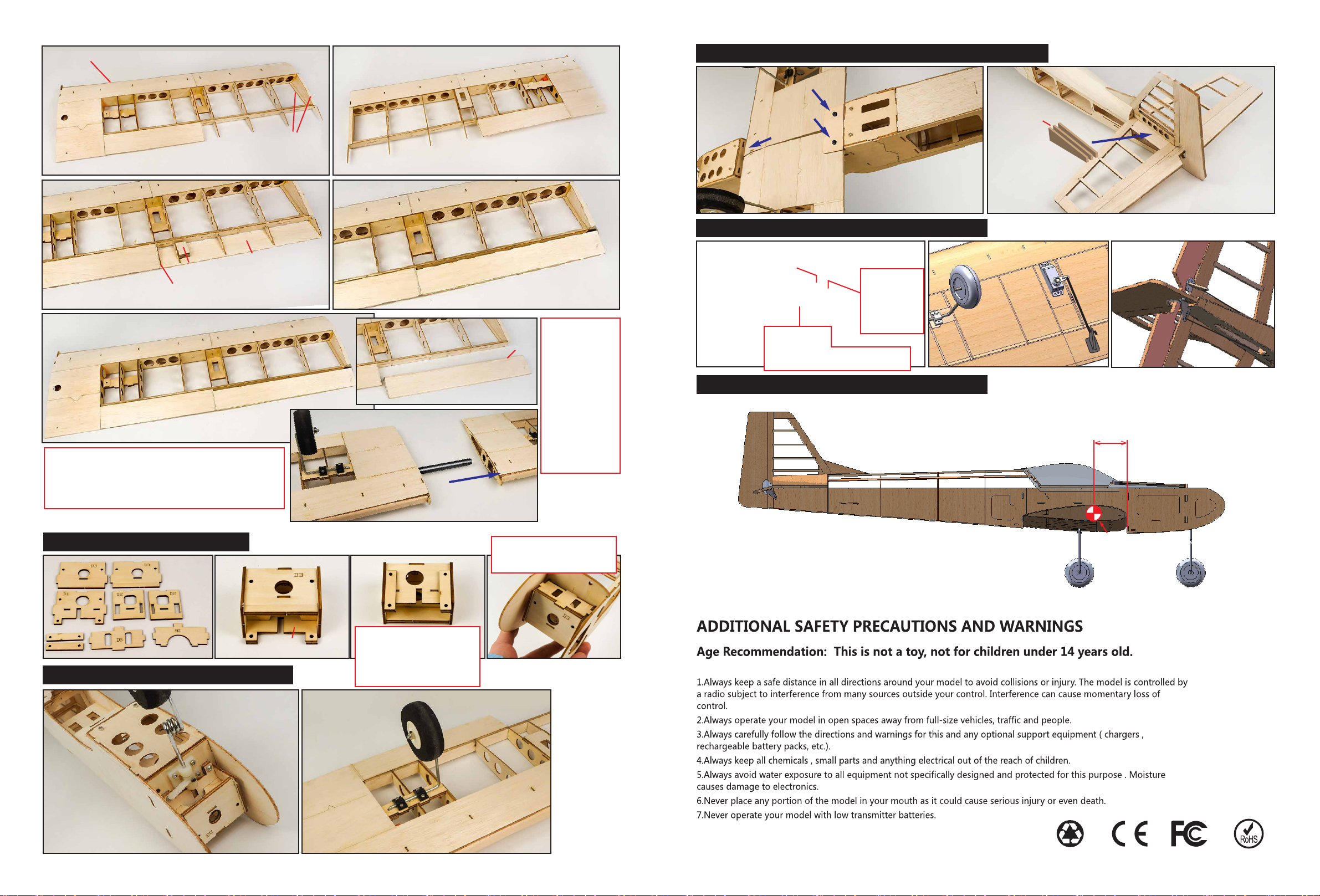

4,马达座组装 Install the Motor Mount

5,起落架安装图示 Assemble the Landing Gear

7,舵机，舵角安装图示 Install the servo and servo horn

8,重心调试位置图示 Adjust the C.G.

6,机翼及尾翼安装到机身图示 Assemble the wing onto the fuselage

升降舵舵机副翼舵机

X1*2X2X3

垫入X1-3并打磨

C.G

≈80mm

(Polish as per the radian of the wing)

(Paste the W12 only with W35)

（W12只与W35粘贴）

机翼组装完成后切

下副翼，按图示粘

贴W37并打磨，

再用纸合页把副翼

连接到机翼。

Cut off the aileron

once the wing is

built up,paste the

W37 as picture

shown,then polish

;and connect the

aileron with the

wing by the paper

hinges.

Assemble the other wing same as the above

steps,connect the two wings together with the carbon

tube,and firm with glue.

另一边机翼参考以上步骤拼装，两边机翼组装完成后通过碳

管对插在一起，连接处用胶水粘合。

D4可根据选用的马达长度

进行增加或减少。

The length of D4 could be

increased or lessened as per

the motor length.

Firm the motor mount onto

the head with screws.

马达座用螺丝固定到机头

Elevator servo 转向舵舵机

Connect the

rudder servo

with the front

steering wheel.

When it's powered by gasoline,this

servo controls the throttle.

连接前转向轮

使用油动马达时，

此舵机控制油门

Aileron servo
