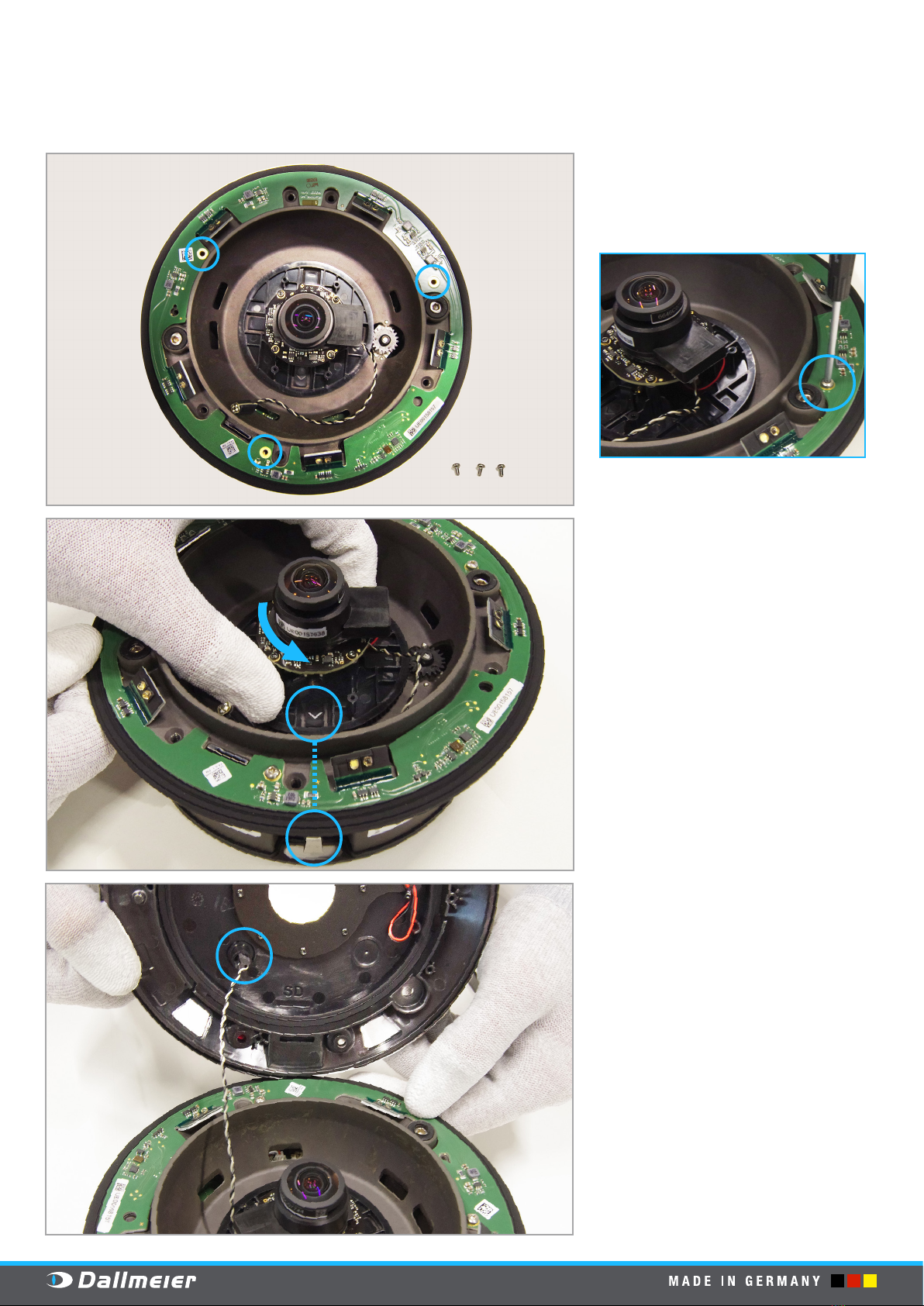

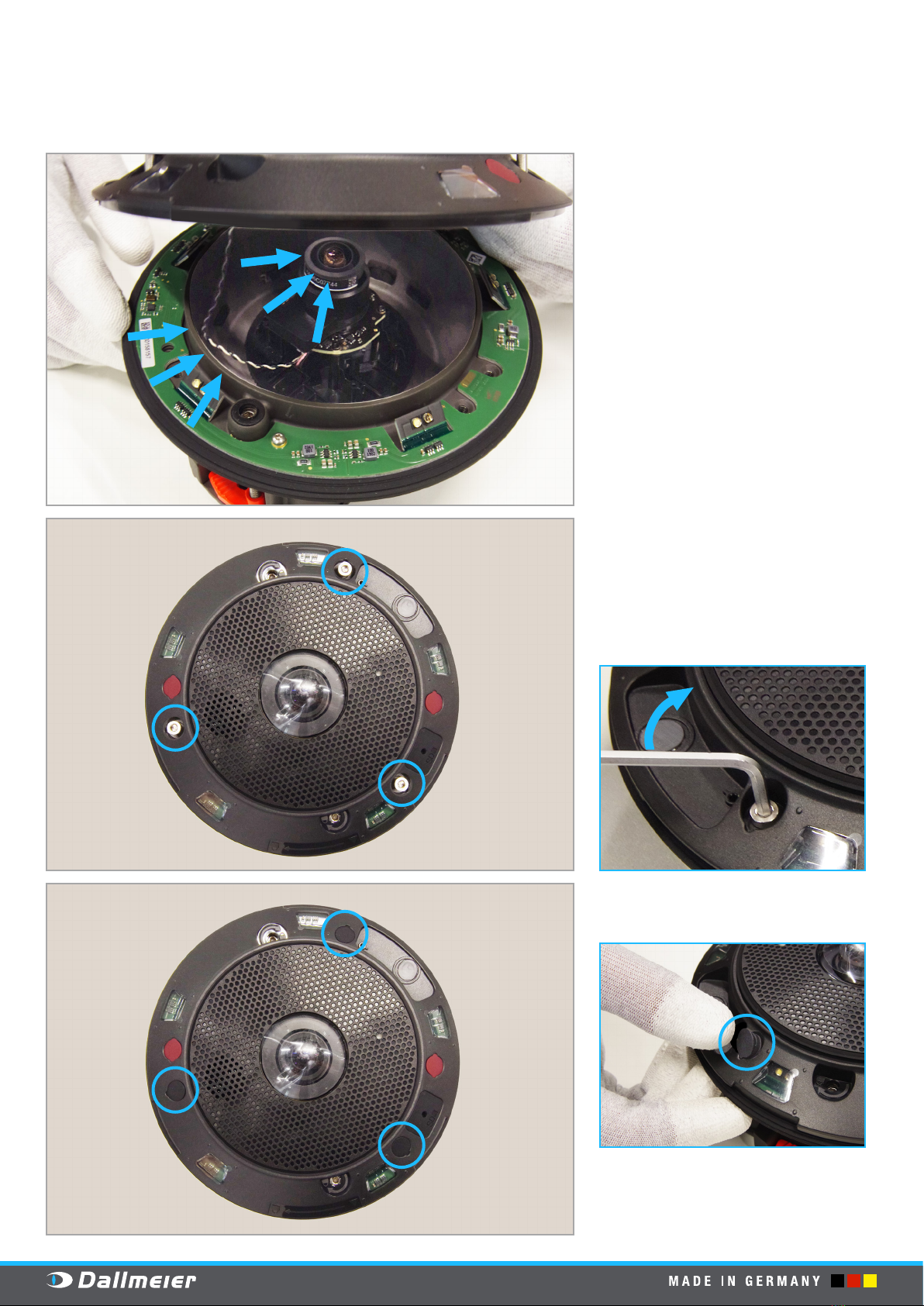

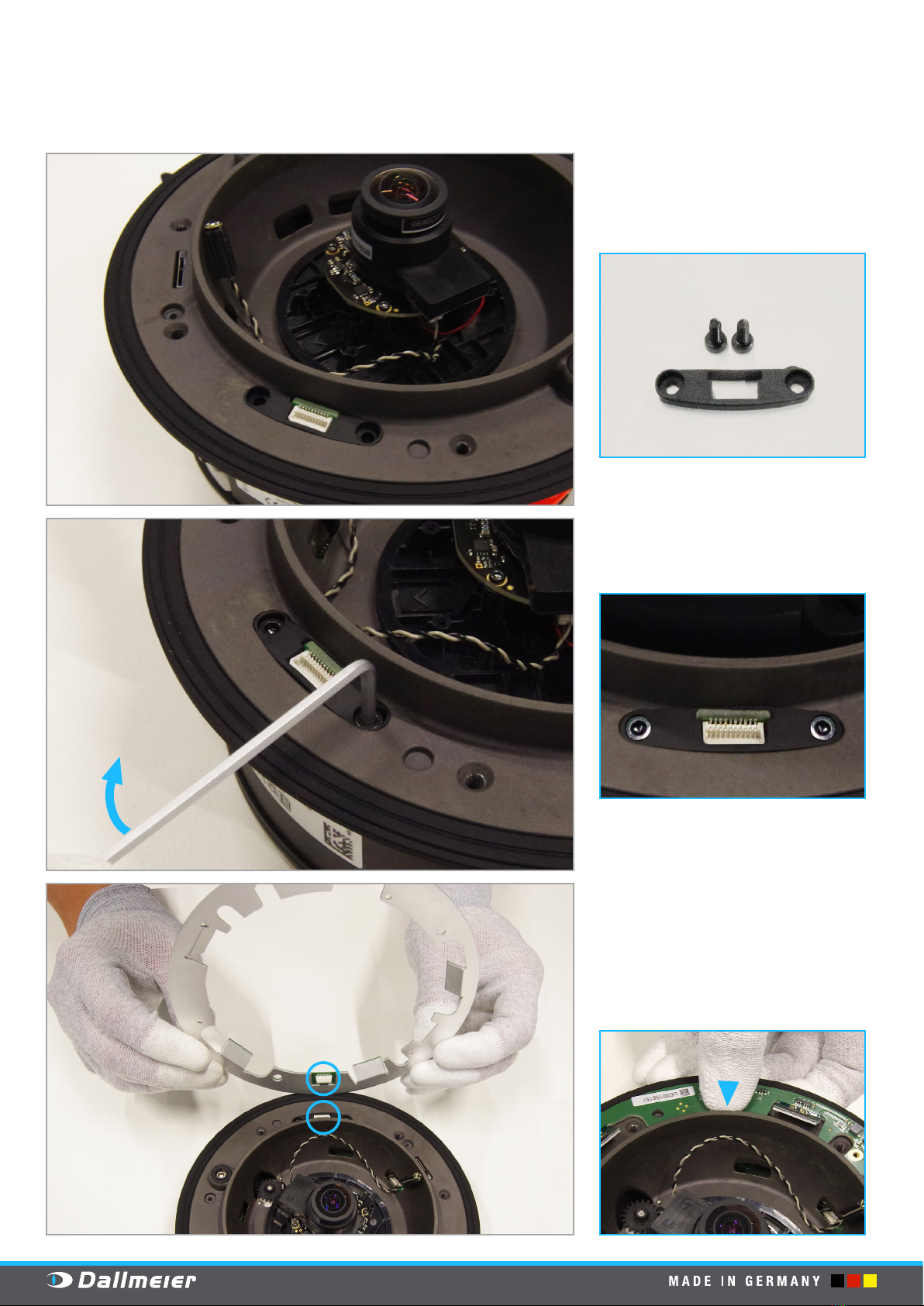

Installation Camera series SDF6000DN

INSTALLATION AND CONNECTION OF A DOMERA® DUAL MATRIX LED RING

▶ Carefully remove the three rubber

covers from the screws.

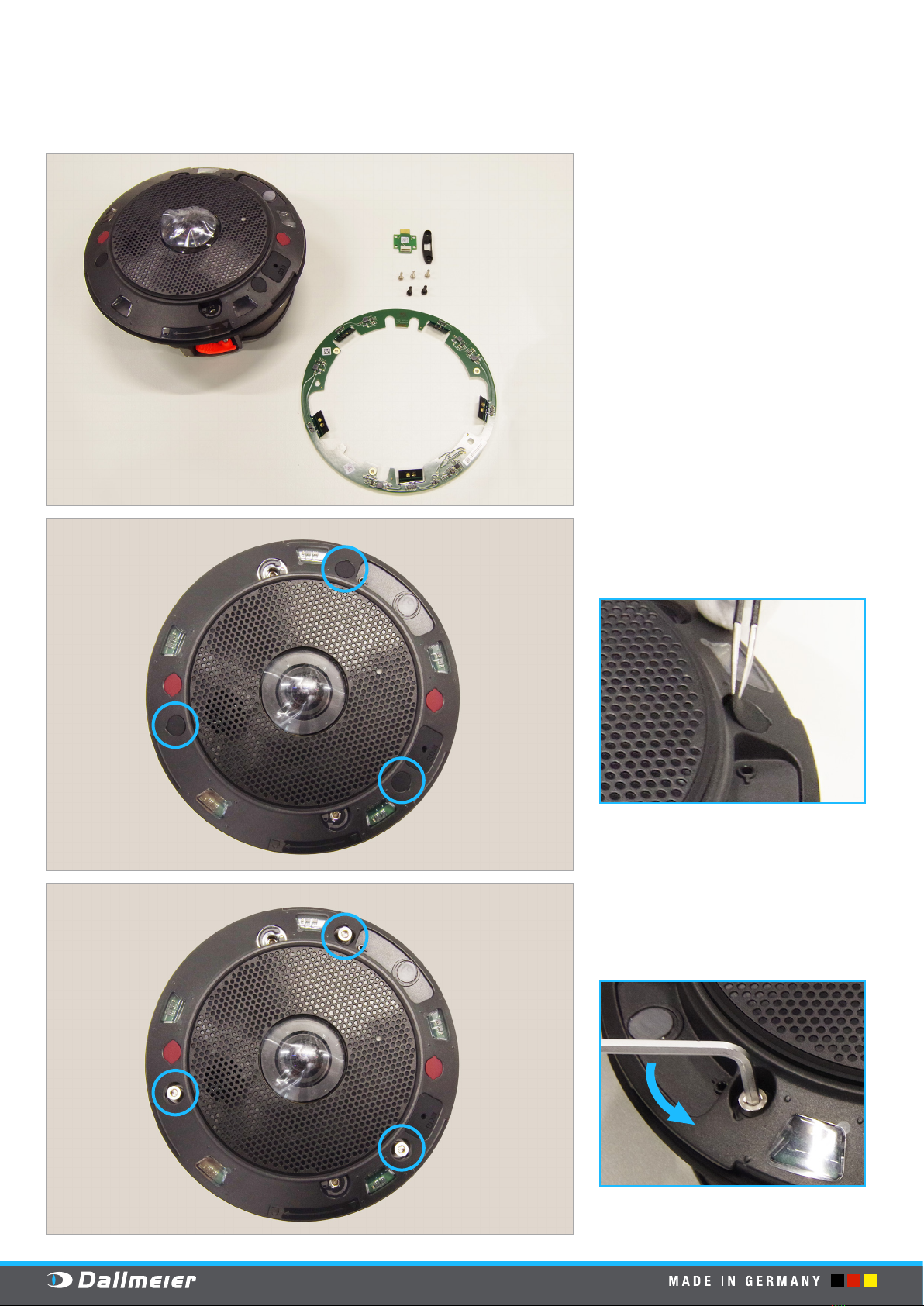

Preparing the Camera

▶ Required for mounting:

1 x DOMERA® SDF6000DN

1 x DOMERA® Dual Matrix LED Ring

Retrot Kit

1 x Allen key (3)

1 x Tweezers

1 x Torx screwdriver (TX 8)

▶ Open the three screws of the cover ring

counterclockwise using an Allen key (3).

Installation Camera series SDF6000DN

INSTALLATION AND CONNECTION OF A DOMERA® DUAL MATRIX LED RING

▶ Carefully remove the rubber seal

from the camera housing, ideally

with a pair of tweezers.

▶ Lift the camera‘s cover ring slightly

and disconnect the sensor plug.

▶ Insert the circuit board into the

corresponding opening and press

it carefully with light pressure.

Installation Camera series SDF6000DN

INSTALLATION AND CONNECTION OF A DOMERA® DUAL MATRIX LED RING

▶ Insert the screws and tighten them

clockwise with an Allen key (3).

▶ Insert the new gasket into the

board slot and press rmly until it

rests evenly on the surface.

Installing the Dual Matrix LED Ring

▶ Place the Dual Matrix LED Ring on

the camera. Make sure that the

connector snaps into the socket of

the board and press the ring rmly

with light pressure.

Installation Camera series SDF6000DN

INSTALLATION AND CONNECTION OF A DOMERA® DUAL MATRIX LED RING

▶NOTE

Before assembling, pay attention to

the alignment of the camera lens.

If necessary, rotate the lens until the

arrow mark points to the position of the

clip for the safety rope.

▶ Insert the three screws into the

LED ring and tighten them.

▶ Afterwards, reconnect the sensor plug.

Installation Camera series SDF6000DN

INSTALLATION AND CONNECTION OF A DOMERA® DUAL MATRIX LED RING

▶ Place the cover ring on the LED ring

of the camera.

▶ Then tighten the screws clockwise

using the Allen key.

▶NOTE

Make sure that the sensor cable

does not hang over the edge of the

camera and over the lens, so that it

cannot be pinched.

▶ Replace the rubber covers over the

three screws.
