VHX-68C-CVL

Dakota Digital VHX Instrument Installation

For 1968 Chevelle/El Camino Systems

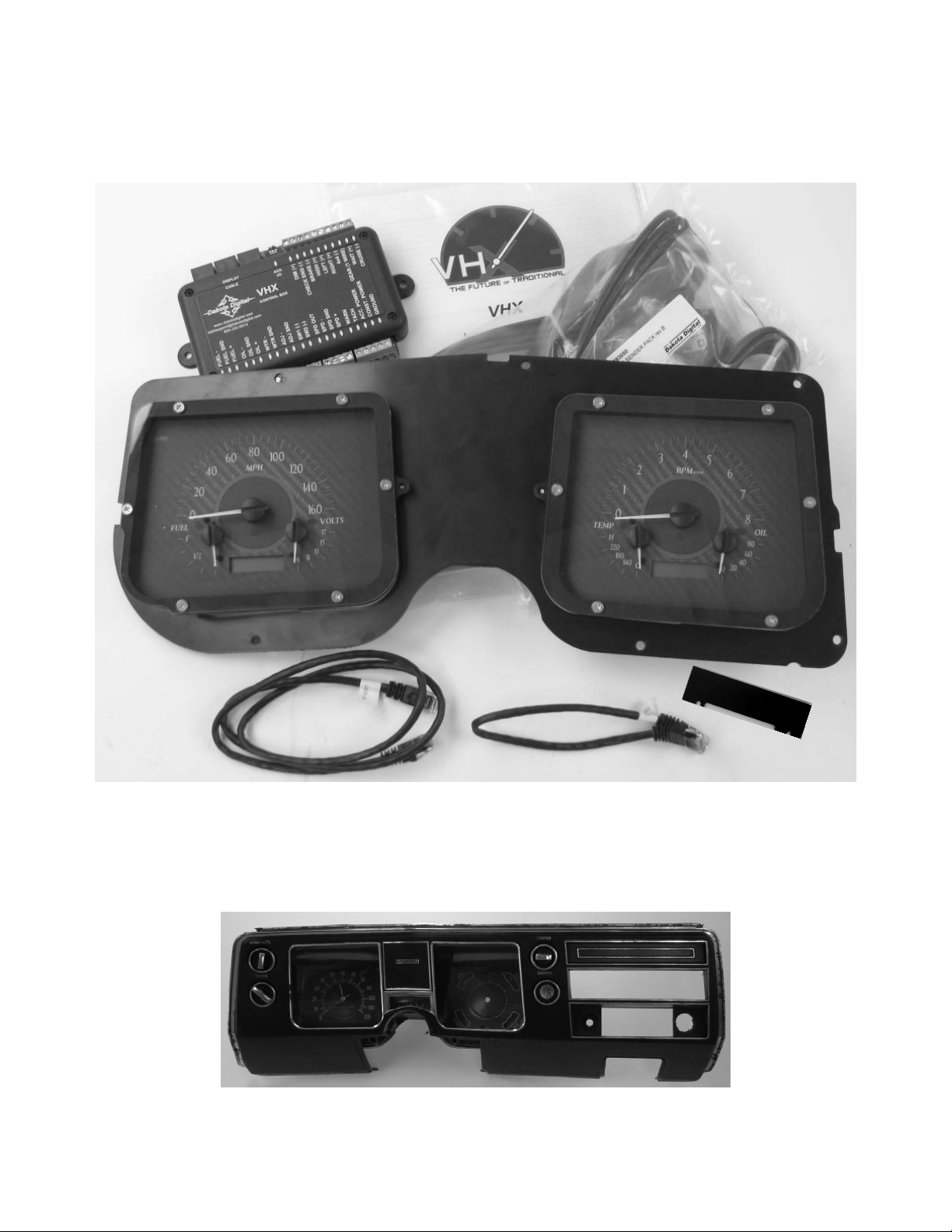

Your new VHX-68C-CVL kit should include:

Installation

1. Remove the stock instrument cluster/dash bezel from the car.

Control Box

CAT5 Cable

(To connect Display Halves)

Universal Sensor

Pack

Installation Manuals

VHX Display

CAT5 Cable

(To connect Display

to Control Box)

Block Off Lens

Manual # 650347

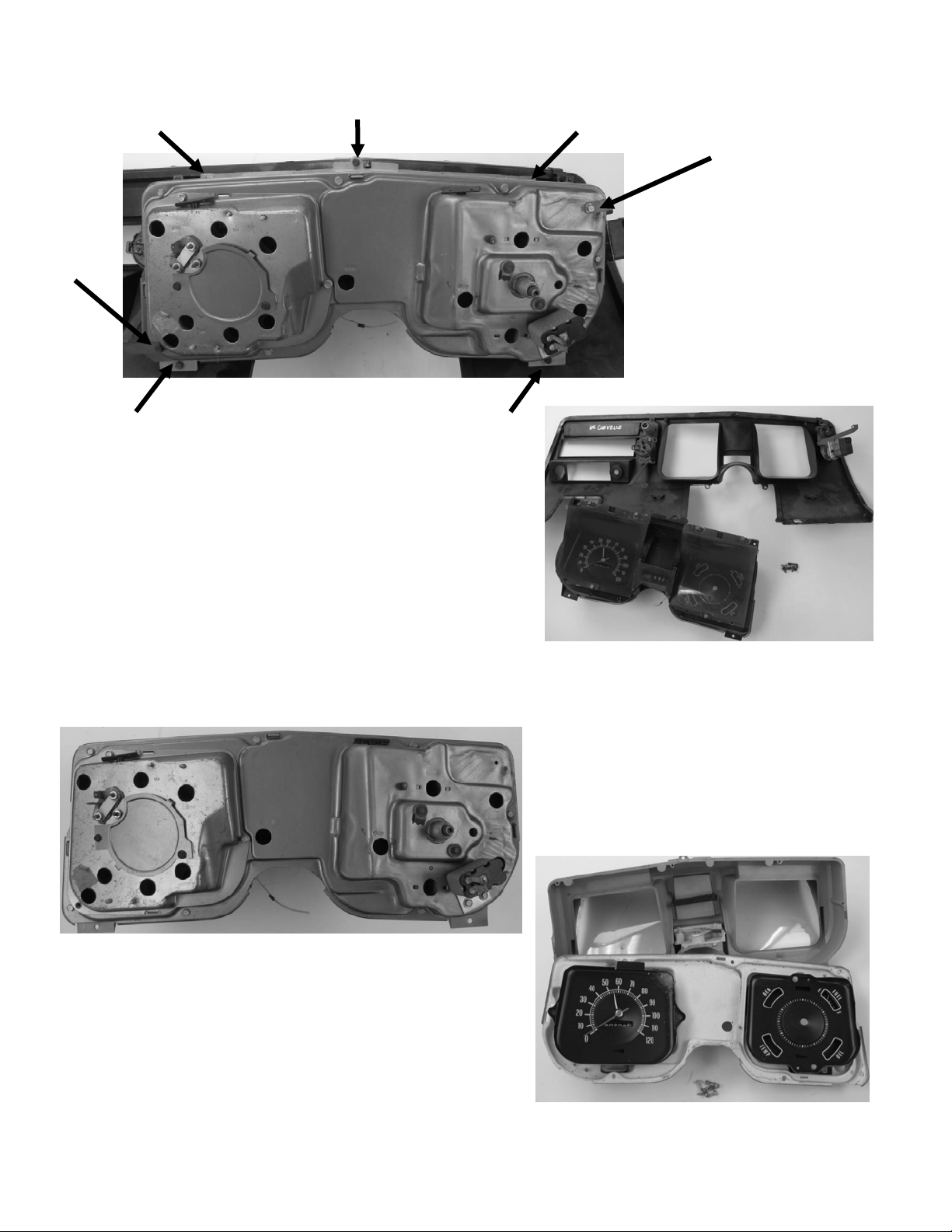

2. Remove the five screws holding the gauges to the bezel as well as the two screws holding

ground straps on the back of the system. Save the screws as they will be reused to secure the

new VHX system in the steps below.

3. Remove the stock gauges from the stock lens spacer. The lens spacer is going to be reused to

secure the new VHX gauges to the dash/bezel. Remove seven screws holding the gauges to the

spacer. Save the screws, they will be reused to attach the new VHX system.

Manual # 650347

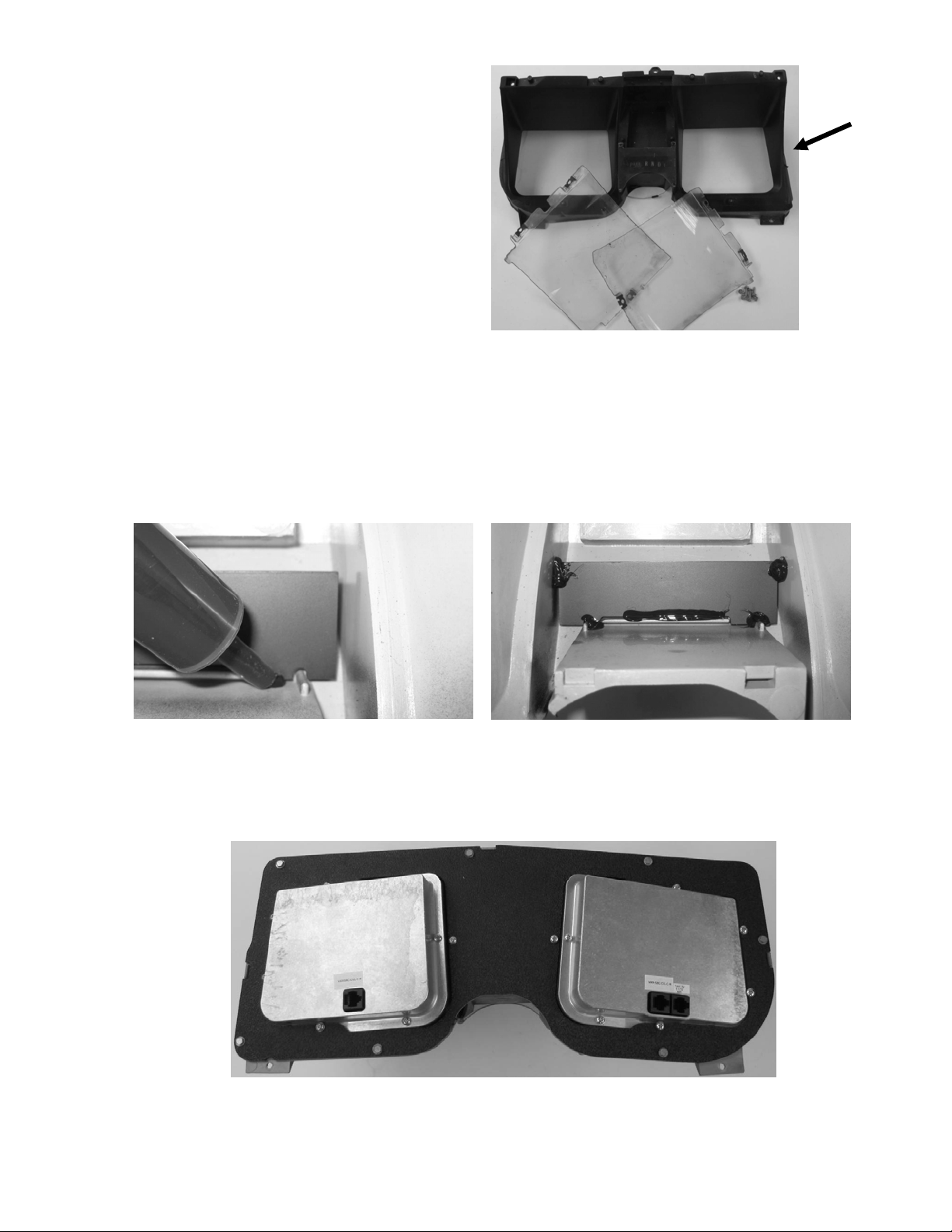

4. Remove the stock lenses from the lens

spacer by removing three screws from the

front of each lens. The stock lenses are

removed since the new VHX kit features a

hard coated clear lens. Now is a good time

to clean the stock lens spacer as it is reused

to secure and space the new VHX system.

5. This step is optional for automatic transmission bezels only. If you purchased a separate GSS-

2000 kit from Dakota Digital, the gear position can be displayed in the VHX message centers,

therefore the stock gear position indicator can be removed.

The stock gear position indicator will slide out from its location. Remove the protective film from

the supplied block off and align the notches with the bumps in the stock housing. Use silicone or

hot glue to attach the block off.

*** Allow the glue to dry before continuing with the installation.

6. Remove the protective tape from the clear lenses and install the VHX system onto the stock lens

spacer removed previously. Secure the system to the spacer reusing the seven screws removed

in step 3.

The spacer

will be reused

Manual # 650347

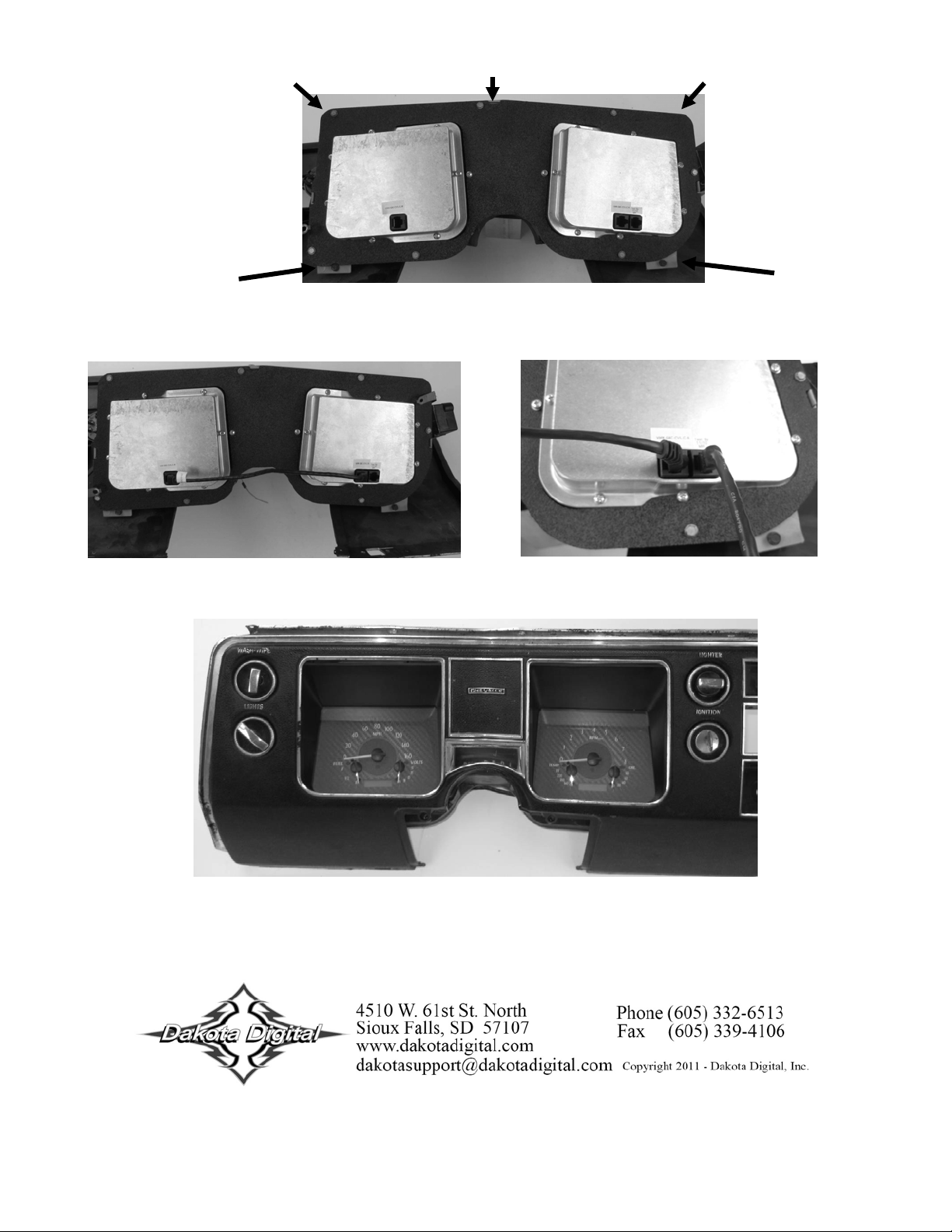

7. Secure the VHX system onto the bezel with the five screws that were removed in step 2.

8. Connect the short CAT5 cable between the two gauge housings, then connect the long cable to

the system so it can be routed and connected to the control box as the system is re-installed.

9. Re-install the cluster into the car and refer to the main manual for wiring instructions to complete

the VHX installation.

MAN 650314:D

VHX

Analog / Digital Gauge System

INSTALLATION AND OPERATION MANUAL

Please read this before beginning installation or wiring.

IMPORTANT NOTE!

This

system

has an odometer preset option that is only

available for the first 100 miles of operation. See odometer preset section (pg 26)

for instru

ctions

and setup information

MAN 650314:D

Thank you for purchasing a VHX system from DAKOTA DIGITAL. VHX is a loose

acronym for Vehicle Hybrid Instrument Systems. Representing the latest electronic dashboard

technology for the street rodder, car, and truck enthusiast alike, the VHX system combines

modern digital electronics with a traditional look to give the driver up-to-date and accurate

information on the operation of his or her vehicle. Fully lit needles, backlit faces, and highly

visible LCD message centers are a few features that make the VHX lineup stand out from other

aftermarket instrumentation. The VHX system boasts excellent daytime visibility and while under

computer control, fully backlit and dimmable for nighttime driving. Monitoring solid state sensors

with microprocessor technology and driving precision stepper motors, the VHX dashboard gives

the driver unparalleled accuracy. User-customizable display feedback and additional features not

typically found on any other brand or type of instrumentation are standard in the VHX system.

Digital accuracy and solid state reliability will give you, the driver, quality service for miles down

the road that includes a limited lifetime warranty on a product engineered and manufactured in

the USA!

VHX INSTRUMENT SYSTEM FEATURES

Digital LCD displays

•Each of the six analog gauges can be displayed here as well as additional functions listed below. Features

are available on either display (L or R).

Mileage readings

•Million mile odometer.

•Two (A/B) re-settable trip odometer (0-9999.9).

•Re-settable service odometer (0-9999 countdown).

Performance readings

•High speed recall. This can be manually reset during normal operation.

•High RPM recall. This can be manually reset during normal operation.

•0-60 mph (0-100kmh) time.

•¼ mile time. This can manually reset during normal operation.

•¼ mile end speed (trap speed). This is reset when the ¼ mile time restarts.

Hour meter

•Resettable hours (0-999.9).

English/metric conversion

•Alternate speed and temperature can be displayed in LCD display.

Built-in Indicators

•Left/Right Turn signal indicators.

•High Beam indicator.

•Check Engine indicator.

•Brake warning indicator.

•4x4 indicator.

•Wait to Start indicator.

•Cruise control indicator.

•Gear position indicator which displays full gear word with use of Dakota Digital GSS-2000.

(purchased separately)

Special outputs

•Shift output to activate external light

•Selectable 2000ppm or 4000ppm speed output for cruise or ECM (not available when using BIM-01-1 for

speed)

Demonstration mode

•Holding Switch 2 while turning on the key will start the system going through a preset sequence of readings.

To exit the demo mode, turn the key off. You may also wire up a separate switch to power the gauges for

demo mode without powering the entire vehicle.

Auxiliary gauge readings in LCD message displays with expansion bus interface modules (BIM)

(purchased separately)

MAN 650314:D

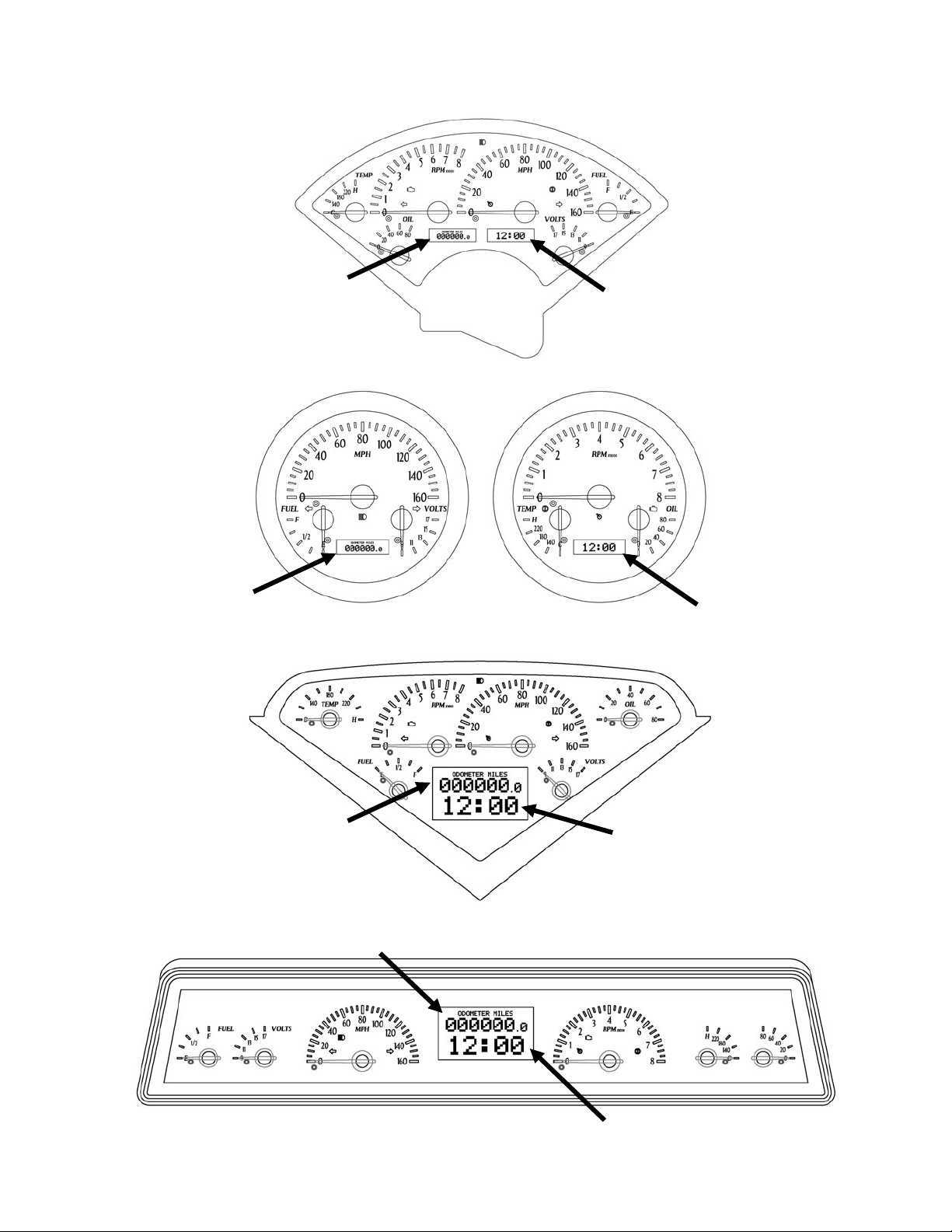

TYPICAL VHX DISPLAY LAYOUTS

Tach/LCD2 Message Center

Speed/LCD1 Message Center

Tach/LCD2 Message Center

Speed/LCD1 Message Center

MAN 650314:D

WARNING

These are precision instruments and must be handled with care. Do not disassemble gauges.

CARE AND CLEANING

Never open the system or attempt to remove the needles as the calibration of the

instrument system could be thrown off. All systems are calibrated and tested before they

leave Dakota Digital.

The clear lens on the front of the VHX system can be cleaned with a mild soap and water

solution or common glass cleaners. Use a soft cloth such as a micro-fiber for wiping the lens

clean.

MOUNTING SYSTEMS

Most VHX systems and kits will come with a separate instruction sheet with mounting

details. Follow this sheet for mounting the actual display system in the dash, and then refer to

this manual for wiring and operation instructions.

CONTROL BOX MOUNTING

Once the display panel is in place, mount the control box within reach of the supplied

networking cable (approximately three (3) feet). If a longer cable is required, replacement CAT5

cables are available online as well as your local electronics stores. Choose a mounting location

that will allow you access to wire all of the inputs on either side of the control box. Double sided

tape, hook and loop fasteners or screws in the two tabs on the case work fine for securing the

control box under the dash.

When selecting a mounting location, avoid placing the control module next to, or

just opposite of the firewall from, ignition components, i.e.: Ignition coil, HEI, etc. Ignition

components can emit tremendous amounts of electrical noise, affecting the operation of

electrical components which can cause erratic operation.

***If you are purchasing a longer network cable to connect the display system to the

control box please make sure to get a CAT 5, CAT5E, or CAT6 “patch cable” and NOT a

“cross over” cable. Replacement cable should be seven feet or less.

MAN 650314:D

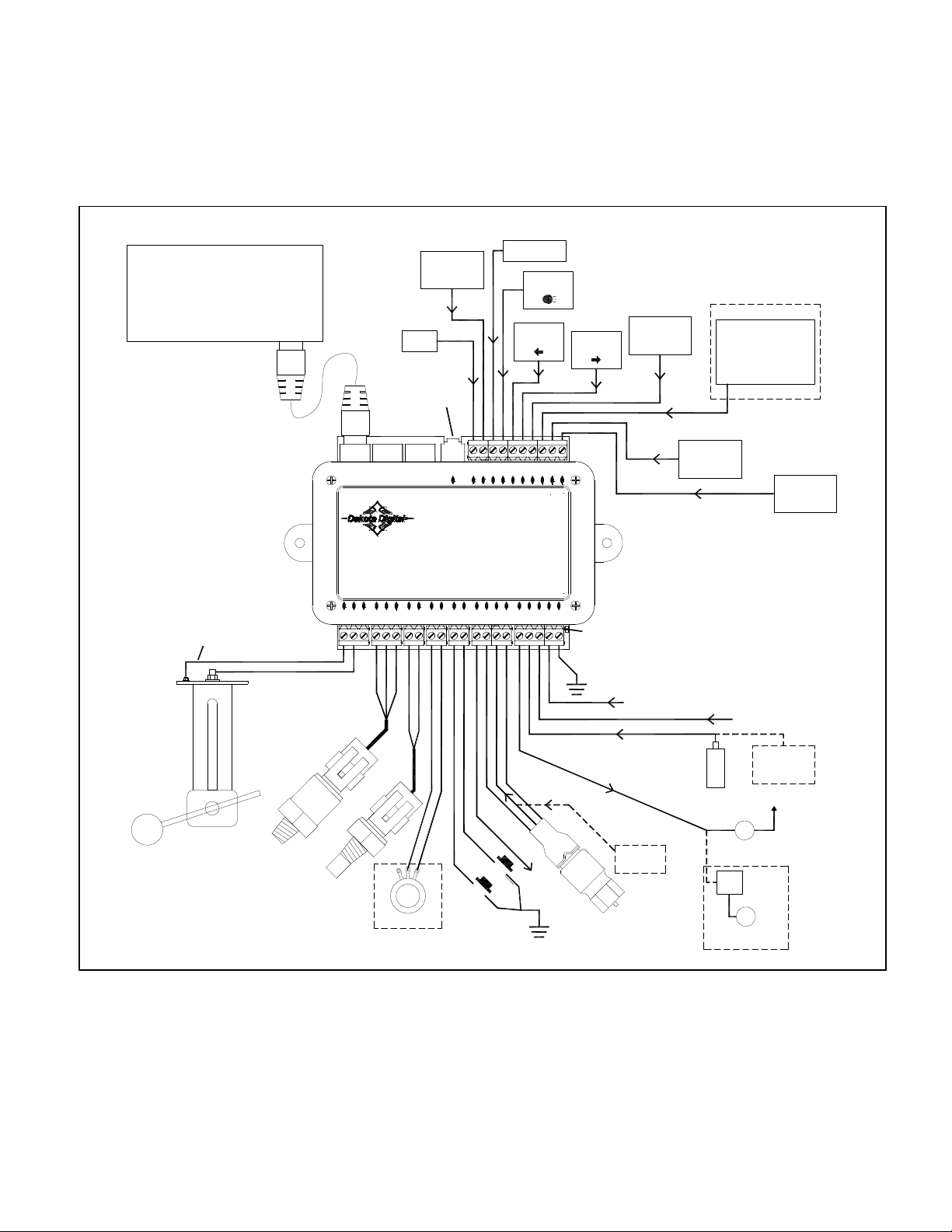

WIRING

While the control box contains several connections, the wiring is straightforward.

Depending on how many auxiliary functions you want displayed, not every terminal will be used in

most applications. On the pages that follow, we describe the function of each terminal, what they

do, and how to wire them.

MOMENTARY SW2

MOMENTARY SW1

CAT 5

Cable

(To Display)

DISPLAY PANEL

STATUS LED

DIM-1

Optional

Cruise Control

Engage Output

Glow Plug Relay

Wait To Start

Output

ECU/ECM

Check Engine

Output

BIM

CONNECTION

ONLY!

4x4

Transfer Case

Switch

DAKOTA DIGITAL

GSS UNIT

1-Wire output

Right Turn

Signal Wire

Optional

Left Turn

Signal Wire

High Beam

Wire

Parking Brake

Switch

SPEED OUT

(2k or 4k PPM)

Connect to tail light circuit,

LED backlights will turn on

when termianl has +12V

Light or Buzzer

(4 Watts or more)

Tail Light

Light or Buzzer

(4 Watts or less)

Relay

EXISTING

FUEL LEVEL

SENSOR

RED

WHITE

BLACK

BLUE or RED

BROWN or BLACK

Additional ground wire to fuel

sensor body or mounting screw.

PRESSURE SENSOR

SEN-03-8

0-100 PSI

TEMP SENSOR

SEN-04-5

100-300 F

PULSE

GENERATOR

ECU/ECM

Speed Output

RED

WHITE

BLACK

+12V KEY ON POWER

(fused 5 - 20 AMP max)

Connect to main

chassis ground

Ignition Coil

(negative side)

- + ECU/ECM

or Ignition Box

(tach output)

SPEED SENSOR

SEN-01-5

16k PPM

ACC. POWER

CONST. POWER

GROUND

TACH

WARN

SPD +

SPD SND

SPD -

SPD OUT

SW2 (-)

SW1 (-)

ADJ SND

ADJ -

WTR SND

WTR -

OIL +

OIL SND

OIL -

FUEL +

FUEL SND

FUEL -

WAIT (+)

CRUISE (-)

GEAR (1 WIRE)

4x4 (-)

RIGHT (+)

LEFT (+)

HIGH (+)

BRAKE (-)

CHECK ENG (-)

VHX

CONTROL BOX

CABLE AUX.

I/O

DISPLAY

www.dakotadigital.com

[email protected]

605-332-6513

DIM (+)

+12V CONSTANT POWER

(fused 5 - 20 AMP max)

MAN 650314:D

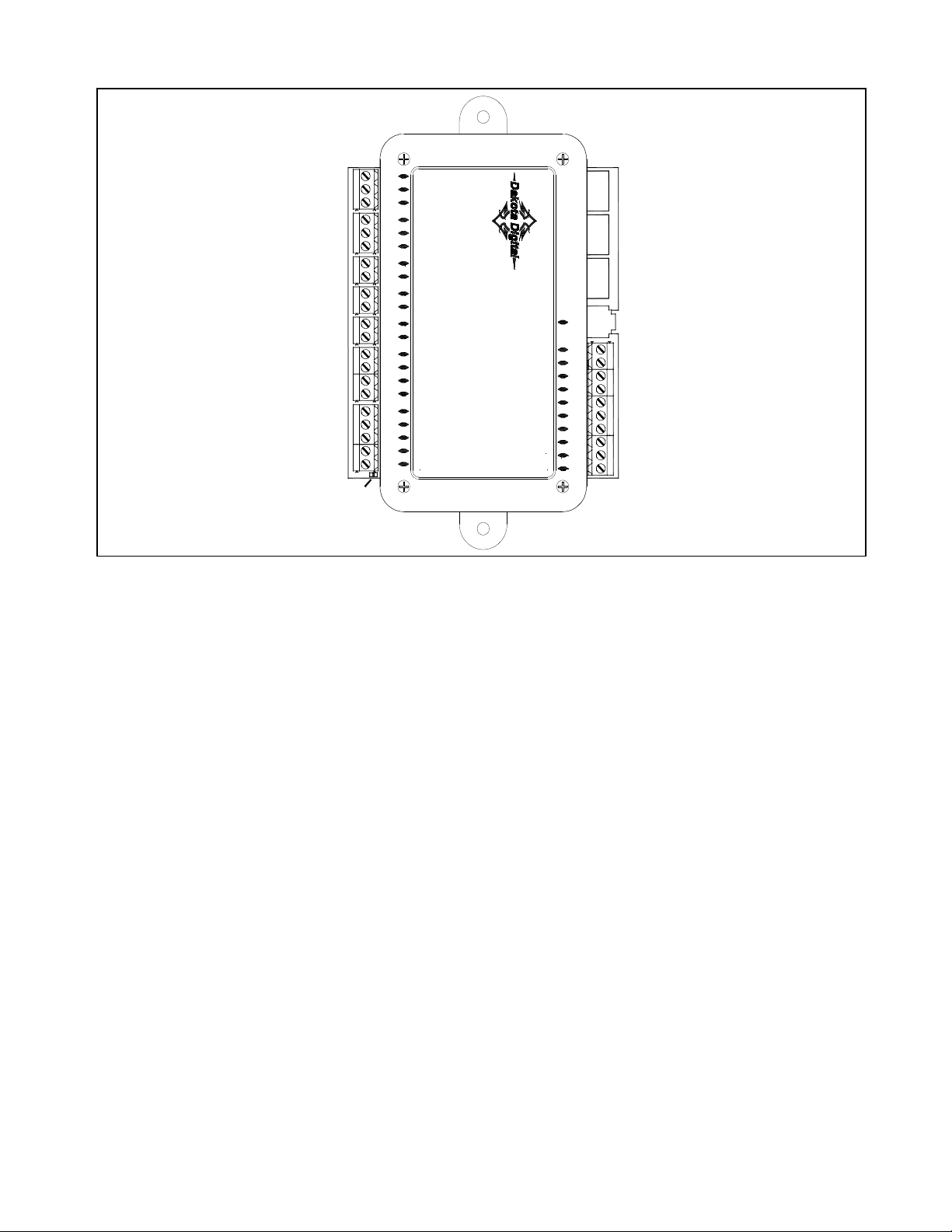

TERMINAL DESCRIPTIONS

CHECK ENGINE INDICATOR INPUT

BRAKE SYSTEM/PARKING BRAKE WARNING INPUT

HIGH BEAM INDICATOR INPUT

LEFT TURN SIGNAL INDICATOR INPUT

RIGHT TURN SIGNAL INDICATOR INPUT

4 WHEEL DRIVE INDICATOR INPUT

1-WIRE GEAR INDICATOR INPUT (FROM GSS UNIT)

WAIT TO START INDICATOR INPUT

CRUISE ENGAGED INDICATOR INPUT

FUEL LEVELSENSOR GROUND OUTPUT

FUEL LEVEL SENSOR INPUT

FUEL LEVEL SENSOR POWER OUTPUT

OIL PRESSURE SENSOR GROUND OUTPUT

OIL PRESSURE SENSOR INPUT

OIL PRESSURE SENSOR POWER OUTPUT

WATER TEMPERATURE SENSOR GROUND OUTPUT

WATER TEMPERATURE SENSOR INPUT

NIGHT DIMMING ADJUSTMENT GROUND OUTPUT

NIGHT DIMMING ADJUSTMENT INPUT

SPEED SELECT SWITCH INPUT SW1

TACH SELECT SWITCH INPUT SW2

2000 PPM SPEED SIGNAL OUTPUT

VEHICLE SPEED SENSOR GROUND OUTPUT

VEHICLESPEED SENSOR SIGNALINPUT

VEHICLESPEED SENSOR POWER OUTPUT

RPM WARNING/SHIFT OUTPUT

TACHOMETER INPUT

+12 VOLT ACCESSORY POWER INPUT

MAIN CHASSIS GROUND INPUT

STATUS LED

TO DISPLAY

CONNECTOR

(Doesn't matter which one)

ACC. POWER

CONST. POWER

GROUND

TACH

WARN

SPD +

SPD SND

SPD -

SPD OUT

SW2 (-)

SW1 (-)

ADJ SND

ADJ -

WTR SND

WTR -

OIL +

OIL SND

OIL -

FUEL +

FUEL SND

FUEL -

WAIT (+)

CRUISE (-)

GEAR (1 WIRE)

4x4 (-)

RIGHT (+)

LEFT (+)

HIGH (+)

BRAKE (-)

CHECK ENG (-)

VHX

CONTROL BOX

CABLE AUX.

I/O

DISPLAY

www.dakotadigital.com

[email protected]

605-332-6513

DIM (+) NIGHT DIMMING INPUT

+12 VOLT CONSTANT POWER INPUT

BIM CONNECTION

STATUS LED

This LED is located at the corner of the control box, next to the GROUND terminal. The

LED is used for diagnostics and for a quick visual check if power is present.

•A steady flash, on and off, about twice a second indicates the system is powered and

operating normally.

•On steady indicates low power, below 9V, at the POWER terminals, or that the system is

in DEMO mode.

•A short flash once every four seconds indicates the CONSTANT POWER terminal is

powered and the system is in stand-by mode.

•Not flashing or lighting indicates loss of power or ground.

GROUND

This is the main ground for the display system. A wire should be run from this terminal to

the vehicle’s main chassis ground. Use 18 AWG or larger wire to ensure sufficient grounding.

Proper vehicle grounding is extremely important for any gauge (or electronics) to operate

correctly. The engine block should have heavy ground cables to the battery, frame, firewall, and

body. Failure to properly ground the engine block or the control box can cause incorrect

or erratic operation.

CONST. POWER

Connect the CONST. POWER terminal to a +12V power from the fuse panel that is “hot”

all of the time, or a fussed wire (5-20 amp) direct to battery power. This terminal should have

power all of the time. The constant +12V supply source should be a fused 5 - 20 amp circuit, the

system draws less than 1 amp, so sharing an existing constant power circuit will generally be fine.

Use 18 AWG wire to ensure the system receives a sufficient power feed. This terminal keeps the

clock memory as well as returning the needles to zero when the system is shut off.

Tabla de contenidos

Otros manuales de Instrumento de medición de Dakota Digital

Dakota Digital

Dakota Digital MCL-4027S Manual de usuario

Dakota Digital

Dakota Digital BIM-22-3 Manual de usuario

Dakota Digital

Dakota Digital VHX-78C-MC Manual de usuario

Dakota Digital

Dakota Digital HLY-2000 Manual de usuario

Dakota Digital

Dakota Digital Odyssey ODY-08-1 Manual de usuario

Dakota Digital

Dakota Digital MVX-2004 Manual de usuario

Dakota Digital

Dakota Digital Odyssey ODYR-19-7 Manual de instrucciones

Dakota Digital

Dakota Digital Odyssey II Series Manual de usuario

Dakota Digital

Dakota Digital HLY-3027 Manual de usuario

Dakota Digital

Dakota Digital MLX-9X00 Series Manual de usuario

Dakota Digital

Dakota Digital ION-20 Manual de usuario

Dakota Digital

Dakota Digital MLX-9X14 Series Manual de usuario

Dakota Digital

Dakota Digital Odyssey ODY-19-4 Manual de usuario

Dakota Digital

Dakota Digital Odyssey ODY-19-6 Manual de usuario

Dakota Digital

Dakota Digital MLX-9X04 Series Manual de usuario

Dakota Digital

Dakota Digital VHX-69C-CVL Manual de usuario

Dakota Digital

Dakota Digital HLY-5000X Manual de usuario

Dakota Digital

Dakota Digital VHX-84B-REG VHX-84B-REG-S-W Manual de usuario

Dakota Digital

Dakota Digital Odyssey II Series Manual de usuario

Dakota Digital

Dakota Digital VHX-67C-CAM-K-B Manual de usuario

Dakota Digital

Dakota Digital DGS-1002B Manual de usuario

Dakota Digital

Dakota Digital Odyssey II Series Manual de usuario

Dakota Digital

Dakota Digital ODY-20 Manual de usuario

Dakota Digital

Dakota Digital MVX-2011 Manual de usuario

Manuales populares de Instrumento de medición de otras marcas

Suaoki

Suaoki D40 Manual de usuario

Elster

Elster BK-G1.6 Manual de usuario

Endress+Hauser

Endress+Hauser Deltabar FMD71 Manual

Duratool

Duratool D03128 Manual de usuario

Vega

Vega VEGAPULS 65 Manual de usuario

Tonghui

Tonghui TH2618B Manual de usuario

Tenmars

Tenmars TM-801 Manual de usuario

MSR

MSR 145 Manual de usuario

TPS

TPS WP-82 Manual de usuario

ELMETRON

ELMETRON CP-511 Manual de usuario

PCB Piezotronics

PCB Piezotronics 003C30 Manual de usuario

Tenma

Tenma 72-10465 Manual de usuario

Endress+Hauser

Endress+Hauser Proline Promag 50 Especificaciones técnicas

Siemens

Siemens SITRANS F Coriolis FCT030 Manual de lista de piezas

KLINGER

KLINGER CMF V Series Manual de usuario

EXFO

EXFO FTB-2 Manual de operación y mantenimiento

Keysight

Keysight M8290A Manual de usuario

ADTEK

ADTEK MW-5 Manual de usuario
