OPERATION MANUAL

SCHEDULE TIMER

MODELS

DST301BA61

Thank you for purchasing Daikin’s schedule timer.

For proper usage, read this manual carefully before using this unit.

This manual will help you with anything you can not understand or should anything go

wrong with the unit during use.

Keep this manual handy for the future reference.

00_CV_3P124623-5C.fm Page 1 Saturday, July 30, 2005 8:10 PM

[1]

1 2364

10 11

DST301BA61

1715 1412

13 18 19 20

DST301BA61

00_CV_3P124623-5C_2.fm Page 1 Wednesday, August 3, 2005 4:53 PM

[2]

2 3 4

DST301BA61

1·8

4 5

DST301BA61

7 6

3·7

1·8

5·6

DST301BA61 DST301BA61

00_CV_3P124623-5C_2.fm Page 2 Wednesday, August 3, 2005 4:53 PM

SAFETY CONSIDER-

ATIONS

Please read these “ SAFETY CONSIDER-

ATIONS ” carefully before installing air condition-

ing equipment and be sure to install it correctly.

After completing the installation, make sure that

the unit operates properly during the start-up

operation.

Please instruct the customer on how to operate

the unit and keep it maintained.

Also, inform customers that they should store

this installation manual along with the operation

manual for future reference.

This air conditioner comes under the term “ appli-

ances not accessible to the general public ”.

Meaning of warning, caution and note symbols.

WARNING

............. Indicates a potentially

hazardous situation

which, if not avoided,

could result in death or

serious injury.

CAUTION ............. Indicates a potentially

hazardous situation

which, if not avoided,

may result in minor or

moderate injury. It

may also be used to

alert against unsafe

practices.

NOTE ................... Indicates situation

that may result in

equipment or prop-

erty-damage-only

accidents.

Keep these warning sheets handy so that

you can refer to them if needed.

Also, if this equipment is transferred to a new

user, make sure to hand over this operation

manual to the new user.

WARNING

In order to avoid electric shock, fire or injury,

or if you detect any abnormality such as

smell of fire, turn off power and call your

dealer for instructions.

Ask your dealer for installation of the air

conditioner.

Incomplete installation performed by your-

self may result in a water leakage, electric

shock, and fire.

Ask your dealer for improvement, repair,

and maintenance.

Incomplete improvement, repair, and main-

tenance may result in a water leakage, elec-

tric shock, and fire.

Improper installation or attachment of

equipment or accessories could result in

electric shock, short-circuit, leaks, fire or

other damage to the equipment. Be sure

only to use accessories made by Daikin

which are specifically designed for use

with the equipment and have them

installed by a professional.

Ask your dealer to move and reinstall the

air conditioner or the remote controller.

Incomplete installation may result in a water

leakage, electric shock, and fire.

Never let the indoor unit or the remote

controller get wet.

It may cause an electric shock or a fire.

Never use flammable spray such as hair

spray, lacquer or paint near the unit.

It may cause a fire.

Never replace a fuse with that of wrong

ampere ratings or other wires when a

fuse blows out.

Use of wire or copper wire may cause the

unit to break down or cause a fire.

Never inspect or service the unit by your-

self.

Ask a qualified service person to perform this

work.

Cut off all electric waves before mainte-

nance.

Do not wash the air conditioner or the

remote controller with excessive water.

Electric shock or fire may result.

Do not install the air conditioner or the

remote controller at any place where

flammable gas may leak out.

If the gas leaks out and stays around the air

conditioner, a fire may break out.

Do not touch the switch with wet fingers.

Touching a switch with wet fingers can cause

electric shock.

CISPR 22 Class A Warning:

This is a class A product. In a domestic envi-

ronment this product may cause radio inter-

ference in which case the user may be

required to take adequate measures.

01_EN_3P124623-5C.fm Page 1 Wednesday, August 3, 2005 2:20 PM

CAUTION

After a long use, check the unit stand and

fitting for damage.

If they are left in a damaged condition, the

unit may fall and result in injury.

Do not allow a child to mount on the unit

or avoid placing any object on it.

Falling or tumbling may result in injury.

Do not let children play on and around

the unit.

If they touch the unit carelessly, it may result

in injury.

Do not place a flower vase and anything

containing water.

Water may enter the unit, causing an electric

shock or fire.

Never touch the internal parts of the con-

troller.

Do not remove the front panel. Some parts

inside are dangerous to touch, and a

machine trouble may happen.

For checking and adjusting the internal

parts, contact your dealer.

Avoid placing the controller in a spot

splashed with water.

Water coming inside the machine may cause

an electric leak or may damage the internal

electronic parts.

Do not operate the air conditioner when

using a room fumigation - type insecticide.

Failure to observe could cause the chemi-

cals to become deposited in the unit, which

could endanger the health of those who are

hypersensitive to chemicals.

Safely dispose of the packing materials.

Packing materials, such as nails and other

metal or wooden parts, may cause stabs or

other injuries.

Tear apart and throw away plastic packaging

bags so that children will not play with them. If

children play with a plastic bag which was not

torn apart, they face the risk of suffocation.

Do not turn off the power immediately

after stopping operation.

Always wait at least five minutes before turn-

ing off the power. Otherwise, water leakage

and trouble may occur.

The appliance is not intended for use by

young children or infirm persons without

supervision.

The remote controller should be installed

in such away that children cannot play

with it.

NOTE

Never press the button of the remote con-

troller with a hard, pointed object.

The remote controller may be damaged.

Never pull or twist the electric wire of the

remote controller.

It may cause the unit to malfunction.

Do not place the controller exposed to

direct sunlight.

The LCD display may get discolored, failing

to display the data.

Do not wipe the controller operation

panel with benzine, thinner, chemical

dustcloth, etc.

The panel may get discolored or the coating

peeled off. If it is heavily dirty, soak a cloth in

water-diluted neutral detergent, squeeze it

well and wipe the panel clean. And wipe it

with another dry cloth.

Dismantling of the unit, treatment of the

refrigerant, oil and eventual other parts,

should be done in accordance with the

relevant local and national regulations.

01_EN_3P124623-5C.fm Page 2 Wednesday, August 3, 2005 2:20 PM

CONTENTS

SAFETY CONSIDERATIONS...........1

FEATURES AND FUNCTIONS........3

NAMES AND FUNCTIONS OF

OPERATING SECTION.......................4

OPERATION.............................................5

Setting present time ........................................5

Setting no. of programmed time......................6

Change and cancellation of no. of

programmed time............................................7

Manual operation ............................................9

Operation control code ...................................9

Error diagnosing function................................9

QUESTION AND ANSWER.............10

SPECIFICATIONS ...............................12

Specifications................................................12

Outline drawings ...........................................12

FEATURES AND FUNCTIONS

• When used in conjunction with central remote controller (Optional Accessory)

The operation controlled by programmed time can be set for up to eight different patterns (timer

No. 1 – 8). Each schedule pattern can be also selected.

Operation controlled by programmed time

Operating time and stopping time can be set to the

minute by each day of the week. The operating and

stopping patterns can also be set in schedule

according to the time slot given twice a day in tune

with the uses.

Unified Operation/Stop

By using this schedule timer, the unified

operation/stop of the indoor unit can be executed

manually regardless of the No. of programmed time in

operation.

See page

5—9.

See page

01_EN_3P124623-5C.fm Page 3 Wednesday, August 3, 2005 2:20 PM

NAMES AND FUNCTIONS OF OPERATING SECTION

(Fig. 1, 2)

UNIFIED OPERATION BUT-

TON “ ”

Press this button to perform the unified

operation regardless of the No. of pro-

grammed time.

UNIFIED STOP BUTTON

“ ”

Press this button to perform the unified

stop regardless of the No. of pro-

grammed time.

OPERATION LAMP (RED)

The light turns on during the operation

of the indoor unit.

DISPLAY “ ” (TIME NO.)

Displays the time No. only when used

in conjunction with the central remote

controller.

DISPLAY

“PROGRAM START.”

(PROGRAMMING START)

The light turns on when the timer is

programmed.

DISPLAY “ OFF ” (HOLIDAY

SETTING)

Lights above the day of the week set

as holiday. The operation controlled by

timer is not available on that day.

DISPLAY “ — ” (SETTING

OF DAYS OF A WEEK)

Flashes below the day of the week pro-

grammed.

DISPLAY “ ” (MALFUNC-

TION CODE)

Displays the contents of malfunction

during the stop due to malfunction.

DISPLAY “ ”

(PRESENT TIME)

Displays the present day of the week

and time.

DISPLAY “ ” (PRO-

GRAMMED TIME OF SYSTEM

START)

Displays the time programmed to start.

DISPLAY “ ” (PRO-

GRAMMED TIME OF SYSTEM

OFF)

Displays the time programmed to stop.

12 TIME NO. BUTTON “ ”

See page 5–9.

CLOCK ADJUSTING

BUTTON “ ”

Press this button to set the present

time.

PROGRAMMING START

BUTTON “ ”

Press this button to set or check the

No. of programmed time. Press it

again after you are through with the

program.

BUTTON FOR SELECTING

DAYS OF A WEEK “ ”

Press this button to select the day of

the week.

HOUR/MINUTE BUTTON

“ ”

Press this button to adjust the present

time and the programmed time.

01_EN_3P124623-5C.fm Page 4 Wednesday, August 3, 2005 2:20 PM

OPERATION





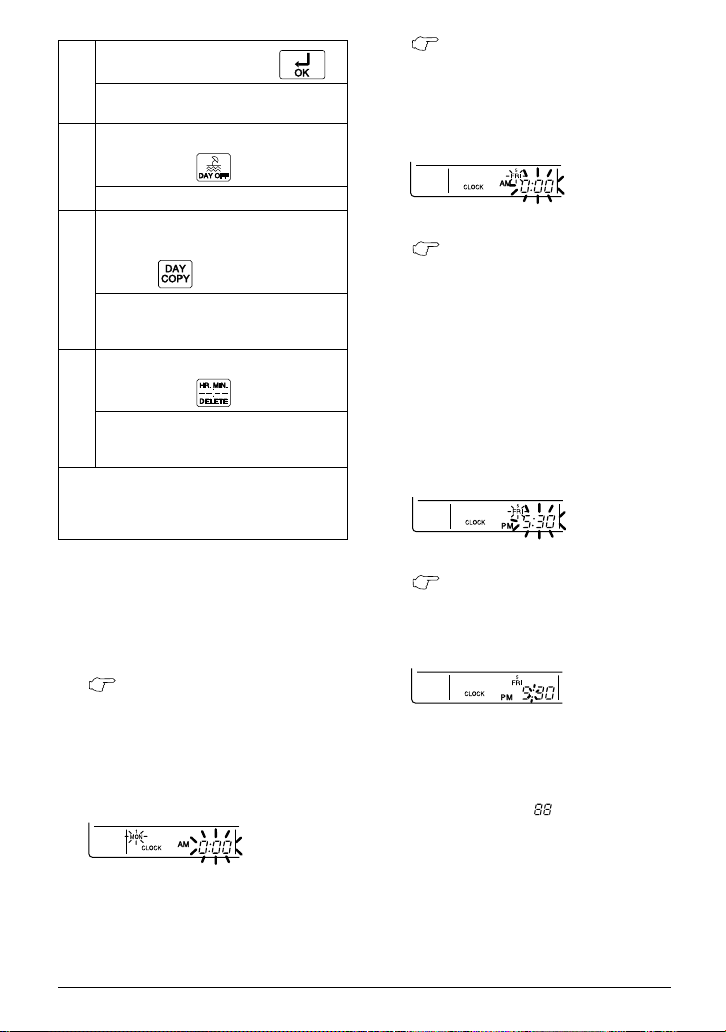

Setting present time (Fig. 3)

(Example) In case of setting Friday, 5:30

p.m.

1. Press the CLOCK ADJUSTING

BUTTON. The present time dis-

play flashes.

(NOTE)

• The present time needs adjusting in case

of turning power supply on for the first

time or the occurrence of power failure

over the period of 48 hours or more.

2. Press the BUTTON FOR

SELECTING DAYS OF A WEEK.

Each time the button is pressed,

the day display shifts to the right.

(NOTE)

• The display “ MON ” follows the display

“ SUN. ”

3. Set the time with the HOUR/

MINUTE BUTTON. Each time the

HOUR/MINUTE BUTTON is

pressed, the display is put forward

minute by minute and hour by

hour. When the button is kept

pressed, the display is put forward

continuously.

(NOTES)

• After becoming “ AM 11:00 ”, when the

button is pressed, the display becomes

“ PM 0:00 ”.

• After becoming “ 59 ” (minute), when the

button is pressed, the display becomes

“ 00 ” (minute).

4. Press the TIMER ON BUTTON

the moment the time signal of TV,

radio, telephone, etc. is heard.

The mark “ : ” flashes, and the

clock starts.

(NOTES)

• The clock used is of 12-hour type.

• When you turn power supply on, the sys-

tem may display “ ” for about one

minute and not start to operate after all the

liquid crystal displays appear at a time.

• If the CLOCK ADJUSTING BUTTON is

pressed by mistake, press it again to

return to the original state. As the clock

does not stop, the time indicated by the

clock is kept correct. In case of power

failure within 48 hours, the clock keeps

operating by utilizing the built-in battery.

TIMER ON BUTTON “ ”

Press this button to set the present

time and the programmed time.

HOLIDAY SETTING

BUTTON “ ”

Press this button to set holidays.

BUTTON FOR COPYING

PROGRAM OF PREVIOUS

DAY “ ”

Use this button to set the No. of pro-

grammed time same as that of the pre-

vious day.

PROGRAM CANCELING

BUTTON “ ”

Use this button to set the programmed

time to cancel. The display shows

“ – ; – – ”.

(Note)

1. Please note that all the displays in the fig-

ure appear for explanation purpose or

when the cover is open.

Set the day to Friday.

Set the time to 5:30 p.m.

Press the TIMER ON BUTTON

in tune with the time signal at 5:30 p.m.

01_EN_3P124623-5C.fm Page 5 Wednesday, August 3, 2005 2:20 PM





Setting no. of programmed time

(Fig. 4)

(Example) Time No. 5 (to be programmed

only when used in conjunction

with the central remote con-

troller)

Monday to Friday:

Operating from 8:45 a.m. till

5:00 p.m.

Operating from 5:15 p.m. till

11:00 p.m.

Saturday and Sunday:

Setting the whole day stop oper-

ation (application for holidays)

controlled by programmed time.

Press the PROGRAMMING

START BUTTON. Programming is

available.

The display “ PROGRAM START ”

appears, and the display of days of a

week flashes.

2. Press the TIME No. BUTTON,

and select the desired number.

(NOTE)

• Unless used in conjunction with the cen-

tral remote controller, The TIME No. is

not displayed and can not be selected.

3. Press the BUTTON FOR

SELECTING DAYS OF A WEEK,

and set the proper day of the week.

Each time you press it, the flash-

ing display of days of a week shifts

to the right.

(1) Setting programmed time

4. Set the programmed time of

system start 1 by using the HOUR/

MINUTE BUTTON. Each time the

HOUR/MINUTE BUTTON is

pressed, the display is put forward

minute by minute and hour by

hour. When the button is kept

pressed, the display is put forward

continuously.

5. Press the TIMER ON BUTTON,

and set the programmed time of

system start 1. Each time you

press it, the next area to be set

flashes.

(NOTE)

• Set the other programmed time in the

same procedure.

Select the TIME No. 5.

Set to Monday.

Set the “PROGRAMMED TIME OF

SYSTEM START 1”at 8:45 a.m.

01_EN_3P124623-5C.fm Page 6 Wednesday, August 3, 2005 2:20 PM

(2) Set the next day of the week.

Set the day of the week to Tuesday, and

copy the program of the previous day

(Monday). In the same procedure, set the

day of the week to Wednesday through Fri-

day in sequence.

6. Press the BUTTON FOR

SELECTING DAYS OF A WEEK

and set the following day. Press

the BUTTON FOR COPYING PRO-

GRAM OF PREVIOUS DAY. The

same program as that of the imme-

diately preceding day of the week

is set.

(NOTE)

• Repeat each procedure 3 – 5 in the

above when not copying the contents of

the previous day.

(3) Holiday setting

7. Press the BUTTON FOR

SELECTING DAYS OF A WEEK

and set one or more days of the

week as holiday. Press the HOLI-

DAY SETTING BUTTON, and the

display “ OFF ” is displayed at the

top of the day of the week. If you

press it again, the display returns

to the original state.

8. Press the PROGRAMMING

START BUTTON, and finish the

program setting.

(NOTES)

• Unless the button is pressed within 20

minutes, the display will automatically

revert back to the original state. In this

case, setting contents up to the point

where the TIMER ON BUTTON (or HOL-

IDAY SETTING BUTTON or BUTTON

FOR COPYING PROGRAM OF PREVI-

OUS DAY) is pressed will only take

effect.

• The display “ PROGRAM START ”

and the display of days of a week “ — ”

disappears.

• The flashing display goes off, and the

No. of programmed time of the present

day is displayed. Then the operation

controlled by timer starts.

• The operation controlled by timer is exe-

cuted even while the program is being

set.





Change and cancellation of no.

of programmed time (Fig. 5)

(Example) Time No. 3 (to be set only when

used in conjunction with the

central remote controller)

1. Press the PROGRAMMING

START BUTTON. The program

setting is ready. The display

“ PROGRAM START ” appears,

and the display of days of a week

flashes.

2. Press the TIME No. BUTTON,

and select the desired No.

Set Saturday and Sunday as holidays.

This is the end of the setting example.

Operating from

8:45 a.m. till

5:00 p.m.

A: Change/

cancel partially (Wednesday)

After operating

from 8:45 a.m.

till 7:00 p.m.,

the operation

stops.

Operating from

5:15 p.m. till

11:00 p.m.

B: Cancel the

whole (Thursday)

Whole day

stop.

Select the time No. 3.

01_EN_3P124623-5C.fm Page 7 Wednesday, August 3, 2005 2:20 PM

Tabla de contenidos

Otros manuales de Minutero de Daikin

Daikin

Daikin DST301B61 Manual de usuario

Manuales populares de Minutero de otras marcas

Intermatic

Intermatic P1131 Manual de usuario

Learning Resources

Learning Resources Time Tracker mini Manual de usuario

CEBEK

CEBEK I-215 Manual de usuario

Somogyi

Somogyi home TS MD 5 Manual de usuario

Profile

Profile 010200280 Manual de usuario

Gizmo

Gizmo T4 Manual de usuario

Tekmar

Tekmar Timer 031 Manual de usuario

sisel

sisel ENDA ETM2432 Manual de usuario

B&Q

B&Q TE103 Manual de operación y mantenimiento

Hozelock

Hozelock AC Plus 2700 Manual de usuario

GIC

GIC Eliro V7DDSS3Eliro V7DFTS3 Manual de usuario

Tork

Tork TU40 Manual de usuario

Emos

Emos EMT400F Manual de usuario

FarmTek

FarmTek Polaris Manual de usuario

Maximum

Maximum CRONUS Manual de usuario

Uberhaus

Uberhaus TD133B Manual de usuario

Clas Ohlson

Clas Ohlson 31-3766 Manual de usuario

Gewiss

Gewiss 90 AM Series Manual de usuario
