Hardware Manual

Use smart and save smart

●

Thank you for purchasing intelligent Touch Controller.

●

This operation manual contains notes for safe use of the

product.

For correct use, be sure to read this manual

carefully before use.

Store this manual close at hand so that it can be referred

to as required.

Model

DCS601C51

MAC ADDRESS

intelligent Touch Controller

We use recycled paper for making this operation manual.

Maintenance

Precautions 6

Maintenance

LCD Maintenance 7

When Leaving the Product

Turned OFF for a Long Time 7

Troubleshooting 8

Maintenance

For Your Information

Before use

Safety Instructions

Be sure to follow the instructions below 1

System Overview 3

Part Names and Functions 4

For Your Information

Options 12

Specification 13

After-sales Service 14

3P073677-12P04.11.226:40PMページ1

Instructions given here are classified into the following two categories.

Instructions in both categories are important for safety and must be duly followed.

Caution

Warning

Failure to follow the instruction may lead to serious consequences including death or

serious injury.

Failure to follow the instruction may cause injury or material damage, which, in some

cases, leads to serious consequences.

The symbol given in the manual shows the following:

Do not attempt to do things described in the

instruction.

Be sure to provide grounding as required. Absolutely avoid exposing the unit to water.

Be sure to follow the instruction.

Be sure to follow the instructions below

Safety Instructions

Read the manual carefully in advance for correct use

When any abnormality (such as burnt smell) is

generated, turn the power OFF and contact the

dealer you purchased the product from.

Continuing to operate with

the abnormality left

unattended may cause

failure, electric shock or fire.

For remodelling or repair, contact the dealer

you purchased the product from.

Failure to remodel or repair

properly may cause water leak,

electric shock or fire.

For transferring or reinstallation, contact the

dealer you purchased the product from.

Failure to install properly may

cause water leak, electric shock

or fire.

Warning Notes on use for users

Do not touch the inside of the controller.

Do not remove the front panel.

Touching the inside is dangerous

and may cause failure.

For inspection and

adjustment

of the inside of the controller,

contact the dealer you

purchased the product from.

3P073677-12P04.11.226:40PMページ2

Do not install in a place subject to flammable

gas.

Leakage of gas resulting in

accumulation around the unit

may lead to ignition.

Do not install in a place subject

to direct sunlight.

Failure to follow the

instruction may lead to

discoloring of the LCD

that hinders proper

display.

Be sure to provide grounding.

Do not connect the grounding

wire to any gas pipe, water pipe,

lightning rod or telephone

grounding.

Inappropriate grounding may

lead to electric shock.

Do not install the controller in a place subject

to water.

Water in the device may lead

to electrical leak and failure

in the electronic components

inside.

Do not wipe the surface of the controller touch

panel with benzine, thinner or chemically-

treated dust cloth.

Failure to follow the instruction may

lead to discoloring or peeling of the

paint. Any soiling must be wiped off

with a piece of cloth soaked in a

diluted neutral

detergent and

wrung sufficiently.

Wipe again with a

dry piece of cloth.

To clean, be sure to stop operation and turn the

power OFF.

Failure to follow the

instruction may lead to

electric shock or injury.

Washing may lead to

electric shock.

Be sure to operate with the touch pen provided.

Failure to follow the

instruction may lead to

damage or failure.

Do not wash the controller

with water.

No exposure to

water allowed!

No exposure to

water allowed!

Caution Notes on use for users

benzine thinner

Before use

3P073677-12P04.11.226:40PMページ3

System Overview

This intelligent Touch Controller is capable of controlling/monitoring up to 64 groups of indoor units (hereafter

“groups”).

The main functions of the intelligent Touch Controller include:

1. Collective starting/stopping of operation of the indoor units connected to the

intelligent

Touch Controller.

2. Starting/stopping of operation, temperature setting, switching between temperature control modes and

enabling/disabling of operation with the hand-held remote control by zone or group .

3. Scheduling by zone or group .

4. Monitoring of the operation status by zone or group .

5. Display of the air conditioner operation history.

6. Compulsory contact stop input from the central monitoring panel (non-voltage, normally-open contact).

7. Power distribution of the air conditioners. (With the optional DCS002C51)

8. Control and Monitoring of air conditioner with personal computer by the Controller (with the optional

DCS004A51).

∗

A group of indoor units include:

∗

Zone control with the intelligent Touch Controller

∗

Zone control, which allows collective settings for more than one group, is available with the intelligent Touch

Controller, which facilitates the setting operations.

One indoor unit without a remote control.

Up to 16 indoor units controlled with one or two remote controls.

•

One setting makes the same setting for all of the units in one zone.

•

Up to 128 zones can be set with one intelligent Touch Controller.

(The maximum number of groups in one zone is 64.)

•

Groups can be zoned at will with the intelligent Touch Controller.

•

Units in one group can be divided into more than one zone.

One indoor unit controlled with one or two remote controls.

intelligent Touch Controller

Zone 1

Up to 16 units Up to 16 unitsTwo remote controlsRemote control

No remote control Remote control Remote control

Indoor unit

Zone 5

Zone 2 Zone 3 Zone 4

3P073677-12P04.11.226:40PMページ4

Be sure to use the touch pen for

operation of the touch panel of

the intelligent Touch Controller.

Operating with an object other

than the touch pen provided may

cause damage and failure.

Note

Part Names and Functions

Color LCD with Touch Panel

Provides a display for monitoring

and operation.

Be sure to use the touch pen

provided for operation.

PCMCIA Card Slot

Used when using the optional

Power Proportional Distribution

(DCS002C51) or updating the

intelligent Touch Controller

software to a newer version.

Touch Pen

Use the touch pen for operation.

Be sure to use the touch pen for

operation.

Use caution not to lose the touch

pen.

When the pen is lost, contact the

dealer you purchased the

product from.

Front and Side View

Before use

3P073677-12P04.11.226:40PMページ5

Terminals on the Back of intelligent Touch Controller

Using D3-NET Plus adapter

being sold as an accessory,

you can increase the number

of indoor units to be controlled.

RS232-C connector for

D3-NET Plus adapter

When using AIRNET service,

connect it to the telephone line.

Modem connector for AIRNET

This is used when distributing the power supply to indoor

units using optional Power Proportional Distribution software

sold separately and when stopping the indoor units

compulsorily by contact input.

The size of terminal block is M3.5.

Terminal block for watt hour meter and force stop

input of indoor units

When monitoring and operating

the indoor units using the optional

Web and E-mail function software

sold separately, connect to LAN

via Ethernet cable.

Ethernet connector for web

Securely connect the earth wire.

Terminal size is M4.

Earth terminal block

Connect to AC100-240V power supply.

Terminal size is M4.

Terminal block for power supply

The terminal size of the terminal

block for communication with

indoor units is M3.5.

Terminal block for D3-NET

communication

LINE

COM L0Dil Pi3 COM Pi2 Pi1 F2 F1 L2 L1

PHONE

RS-232C LAN

3P073677-12P04.11.226:40PMページ6

Precautions

Internal Battery Enable(ON)/Disable(OFF)Switch

The intelligent Touch Controller is equipped with internal batteries in order to run the clock during

blackouts as well as to save data during blackouts when using the optional Power Proportional

Distribution. The batteries can be enabled and disabled using the switches shown in the figure below.

The clock and Power Proportional Distribution will not function properly when a blackout occurs

if this switch is turned to

「

OFF

」

The switches are turned to

「

」

when the unit is installed. Do not touch them unless the power

has been turned off for a long time. (See the next page for details on what to do if the power has

been off for long periods of time.)

Note

●

Do not touch other switches.

●

Avoid turning the switch ON and

OFF with excessive force; otherwise

such operation may lead to parts

damage and failure.

OFF

is the location of the knob. RESET

As shown in the figure, set the battery switch on the left side of this controller to ÒOFFÓ (switch knob

upper side) or ÒONÓ (switch knob lower side), using a precision minus(-) screwdriver.

(Turning this switch OFF does not erase the settings for groups, zones or schedule.)

Maintenance

3P073677-12P04.11.226:40PMページ7

Maintenance

●

When the surface of the LCD or the main unit of the intelligent Touch Controller is soiled, wipe the soil

off with a piece of cloth soaked in a diluted neutral detergent and wrung sufficiently.

Note

Do not use thinner, organic solvent, strongly acid solution, etc.

The print may fade or wear out and discolor.

Forced rubbing with hard cloth may cause damage to the liquid crystal display unit.

Remove stains, always using a soft waste cloth.

If the unit is stored with water droplets and stains sticking to the liquid crystal display unit, a blot may

be made and the coating may come off.

LCD Maintenance

When Leaving the Product Turned OFF for a Long Time

When you leave the intelligent Touch Controller turned OFF for a long time

(6 months or longer), turn the switch OFF to maintain the battery.

●

The intelligent Touch Controller has a built-in battery for operating the clock in power failure.

The battery mentioned above is for power failure only and it may be completely discharged if no power

is provided for a long time.

(The capacity is worth about 2 years of in total if no power is supplied.)

●

To use the intelligent Touch Controller again, turn the switch ON.

As shown in the figure, set the battery switch on the left side of this controller to ÒOFFÓ (switch knob

upper side) or ÒONÓ (switch knob lower side), using a precision minus(-) screwdriver.

(Turning this switch OFF does not erase the settings for groups, zones or schedule.)

[Setting the switch]

Note

●

Do not touch other switches.

●

Avoid turning the switch ON

and OFF with excessive force;

otherwise such operation may

lead to parts damage and failure.

If electric components in the intelligent Touch Controller are charged with static

electricity, it may cause failure.

Be sure to discharge the static electricity accumulated in your body before

attempting any operation.

To discharge yourself, touch a grounded metal object (control panel, etc.).

Caution

RESET

is the location of the knob.

OFF

3P073677-12P04.11.226:40PMページ8

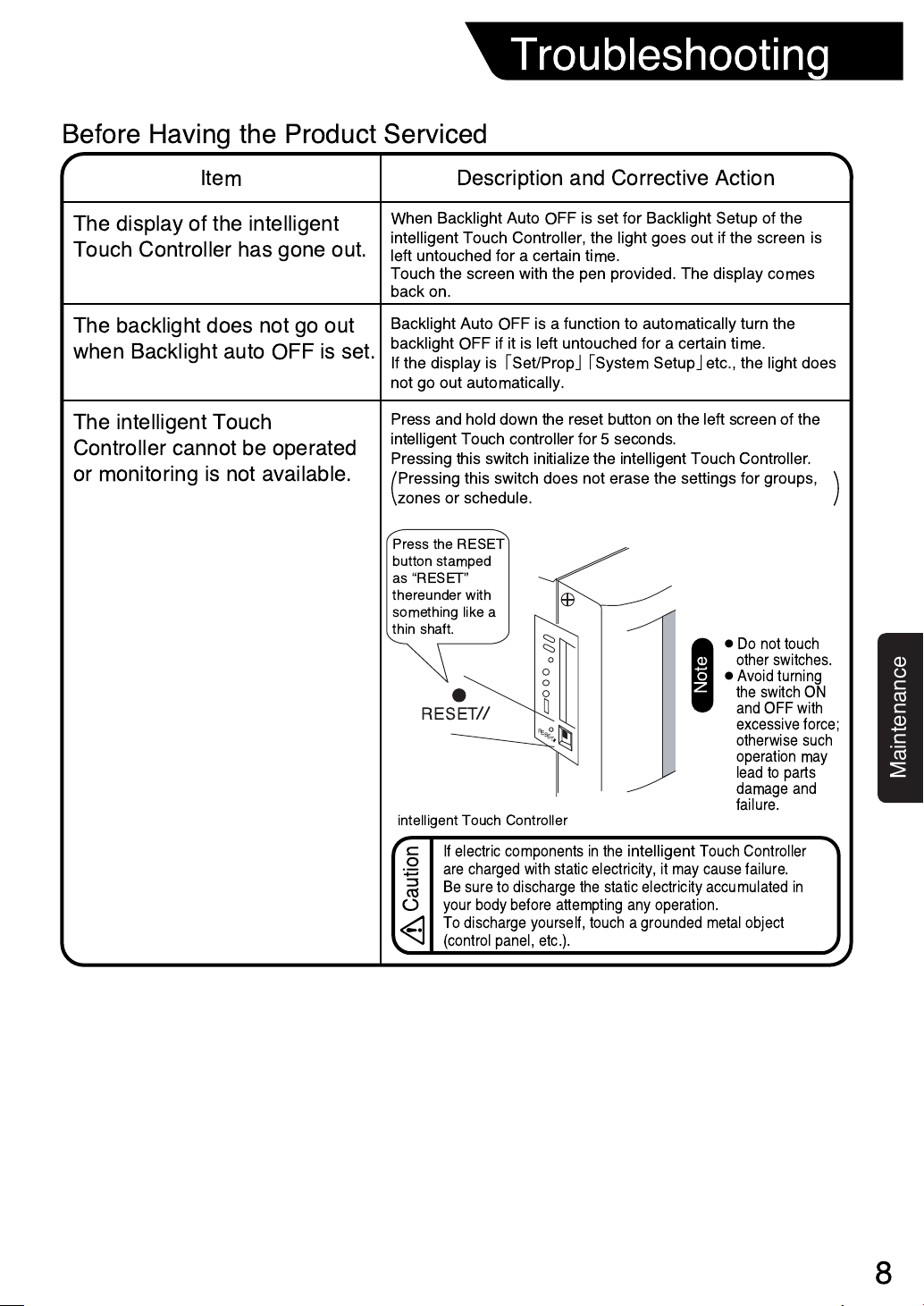

Troubleshooting

Before Having the Product Serviced

Item Description and Corrective Action

When Backlight Auto OFF is set for Backlight Setup of the

intelligent Touch Controller, the light goes out if the screen is

left untouched for a certain time.

Touch the screen with the pen provided. The display comes

back on.

The display of the intelligent

Touch Controller has gone out.

Backlight Auto OFF is a function to automatically turn the

backlight OFF if it is left untouched for a certain time.

If the display is

「

Set/Prop

」「

System Setup

」

etc., the light does

not go out automatically.

The backlight does not go out

when Backlight auto OFF is set.

Press and hold down the reset button on the left screen of the

intelligent Touch controller for 5 seconds.

Pressing this switch initialize the intelligent Touch Controller.

Pressing this switch does not erase the settings for groups,

zones or schedule.

The intelligent Touch

Controller cannot be operated

or monitoring is not available.

intelligent Touch Controller

Note

●

Do not touch

other switches.

●

Avoid turning

the switch ON

and OFF with

excessive force;

otherwise such

operation may

lead to parts

damage and

failure.

If electric components in the

intelligent

Touch Controller

are charged with static electricity, it may cause failure.

Be sure to discharge the static electricity accumulated in

your body before attempting any operation.

To discharge yourself, touch a grounded metal object

(control panel, etc.).

Caution

RESET

Press the RESET

button stamped

as ÒRESETÓ

thereunder with

something like a

thin shaft.

Maintenance

3P073677-12P04.11.226:40PMページ9

The intelligent Touch Controller is designed in such a way that

the buzzer sounds when any part of the screen is pressed. It

is normal.

Item Description and Corrective Action

On the Monitoring screen,

buzzer sounds when an area

not allocated for a button for

operation is pressed.

The buzzer sound may occasionally break up when the load

on the CPU is particularly large, but this is not a problem.

Something is wrong with the

buzzer sound (the sound

breaks up, etc.)

While the Monitoring screen is shown, the screen is updated

every 3 seconds to show the latest status of air conditioners.

The screen may look flickering when the update is made. It is

normal.

The screen flickers at a regular

interval.

Updating of the display may take some time depending on the

communication status with the air conditioners connected.

Update is completed in a few seconds.

Touching the screen of the

intelligent Touch Controller does

not change the display soon.

There may be found some dots that are never illuminated or

always illuminated on a certain part of the LCD of the

intelligent Touch Controller. It is normal.

The LCD may inherently generate unevenness due to change

of temperature, which is normal.

Some dots of LCD are never

illuminated.

When adding an air conditioner to be connected to the

intelligent Touch Controller, trial running of the intelligent

Touch Controller, as well as of the air conditioner, is required.

When trial running of the intelligent Touch Controller has

not been performed, contact our representative.

An air conditioner to be connected

to the intelligent Touch Controller

has been added but the added air

conditioner cannot be monitored

on the Monitoring screen of the

intelligent Touch Controller.

3P073677-12P04.11.226:40PMページ10

Otros manuales para DCS601C51

Tabla de contenidos

Otros manuales de Controladores de Daikin

Daikin

Daikin Maverick I Manual de usuario

Daikin

Daikin KBRCS01A Manual de instrucciones

Daikin

Daikin BRC7C62 Manual de usuario

Daikin

Daikin MicroTech III Manual de instalación

Daikin

Daikin ECFWMB6 Manual de usuario

Daikin

Daikin DCM601B51 Manual de usuario

Daikin

Daikin BRC1H61W Manual de usuario

Daikin

Daikin BRC7C64W Manual de usuario

Daikin

Daikin FTXB50C Manual de usuario

Daikin

Daikin MicroTech III Manual

Daikin

Daikin MicroTech III Manual

Daikin

Daikin EKRP1C14 Manual de usuario

Daikin

Daikin MicroTech III Manual de usuario

Daikin

Daikin RoCon+ HP Series Manual de usuario

Daikin

Daikin System Manager Instrucciones de funcionamiento y mantenimiento

Daikin

Daikin UATYP-AY1(B) Manual de usuario

Daikin

Daikin MicroTech III Manual

Daikin

Daikin homecontrols EKRUFHT61V3 Manual de usuario

Daikin

Daikin homecontrols EKRSIBDI1V3 Manual de usuario

Daikin

Daikin MERCA Manual de usuario

Daikin

Daikin MicroTech III Manual de usuario

Daikin

Daikin BACnet Manual

Daikin

Daikin RoCon HP Manual de usuario

Daikin

Daikin BRC1H61W Manual de usuario

Manuales populares de Controladores de otras marcas

Digiplex

Digiplex DGP-848 Instrucciones de funcionamiento

YASKAWA

YASKAWA SGM series Manual de usuario

Sinope

Sinope Calypso RM3500ZB Manual de usuario

Isimet

Isimet DLA Series Style 2 Manual de instalación

LSIS

LSIS sv-ip5a Manual de usuario

Rockwell Automation

Rockwell Automation 1769-L31 Manual de usuario

Airflow

Airflow Uno hab Manual de usuario

ABB

ABB ACS580-01 drives Manual de usuario

Panasonic

Panasonic GM1 Series Manual de usuario

Emerson

Emerson SW93 Manual de usuario

AutoAqua

AutoAqua Smart ATO micro SATO-120P Manual de usuario

Panasonic

Panasonic FP? Positioning Unit RTEX Manual de usuario

Samson

Samson Type 5824 Manual de servicio

Alpha IP

Alpha IP MIOB 21001 Manual de usuario

Siemens

Siemens OpenAir GMA 1 Series Manual de usuario

Surecom

Surecom SR-629 Manual de usuario

Fishman

Fishman TriplePlay Manual de usuario

Regulus

Regulus SRS1 T Manual de usuario
