Dahua VTH1200 Series Manual de usuario
4.3 inch Analog VTH User’s Manual
For VTH1200 Series
V1.0.0
Important Safeguards and Warnings
Please read the following safeguards and warnings carefully before using the product in order
to avoid damages and losses.
Note:
Do not expose the device to lampblack, steam or dust. Otherwise it may cause fire or
electric shock.
Do not install the device at position exposed to sunlight or in high temperature.
Temperature rise in device may cause fire.
Do not expose the device to humid environment. Otherwise it may cause fire.
The device must be installed on solid and flat surface in order to guarantee safety
under load and earthquake. Otherwise, it may cause device to fall off or turnover.
Do not place the device on carpet or quilt.
Do not block air vent of the device or ventilation around the device. Otherwise,
temperature in device will rise and may cause fire.
Do not place any object on the device.
Do not disassemble the device without professional instruction.
Warning:
Please use battery properly to avoid fire, explosion and other dangers.
Please replace used battery with battery of the same type.
Do not use power line other than the one specified. Please use it properly. Otherwise,
it may cause fire or electric shock.
Special Announcement
This manual is for reference only.
All the designs and software here are subject to change without prior written notice.
All trademarks and registered trademarks are the properties of their respective
owners.
If there is any uncertainty or controversy, please refer to the final explanation of us.
Table of Contents
1 General Introduction...............................................................................................................4
1.1 Appearance ..........................................................................................................................4
1.2 Device Port Introduction ......................................................................................................7
2 Installation.............................................................................................................................10
3 Basic Function Introduction ..................................................................................................11
3.1 Main Menu .........................................................................................................................11
3.2 Bidirectional Talk with Management Center .....................................................................12
3.3 Visual Bidirectional Talk with Door Station........................................................................12
3.4 Monitoring Function...........................................................................................................12
3.5 Unlocking Function.............................................................................................................12
3.6 DND Function .....................................................................................................................13
3.7 View Announcement..........................................................................................................13
3.8 Alarm Function ...................................................................................................................13
3.8.1 Arming/Disarming Function 13
3.8.2 Alarm Message and Reporting Function 14
3.8.3 Alarm Output 14
4 FAQ........................................................................................................................................15
Appendix 1 Technical Specifications ........................................................................................16
1 General Introduction
1.1 Appearance
The VTH appearance is shown in Figure 1- 1 and Figure 1-2.
Figure 1- 1 VTH1200 CS
Please refer to the following chart for detailed information.
No.
Name
Description
1
Video display
4.3-inch TFT color screen, resolution 480*272.
2
Power indicator
It is on if power works as normal.
3
Info indicator
No announcement or alarm:
Arm: indicator on
Disarm: indicator off.
Announcement without alarm:
Indicator flashed slowly.
1
6
2
3
4
5
Alarm:
Indicator flashes quickly.
4
Speaker
Audio output
5
Microphone
Audio input
6
SOS button
Under any interface, press this button, VTH will call
management center.
If now menu is on, press SOS button can to back to
previous menu.
Menu button
Press this button to enter menu. Press this button
again to select item in menu.
Under standby, long press this button for 2s to view
menu, or long press this button for 5s to disarm.
Call button
When being called, press this button to answer call.
During calling status, press this button to hang up.
Under standby, long press this button for 5s to turn
on/off DND (do not disturb).
Monitor button
Monitor VTO video. Under standby, when there is
announcement, press this button to view
announcement. When there is alarm, press this
button to view alarm info.
In menu interface, set ring, brightness as pressing
this button can decrease value of parameter.
Unlock button
During incoming call, calling, monitoring, press this
button to unlock corresponding VTO. In menu
interface, set ring, brightness as pressing this button
can increase value of parameter.
Chart 1- 1
Figure 1- 2 VTH1200 DS
Please refer to the following chart for detailed information.
No.
Name
Description
1
Microphone
Audio input
2
Video display
4.3-inch TFT color screen, resolution 480*272.
3
Speaker
Audio output
4
Hidden indicator
No announcement or alarm:
Arm: indicator on for 2s and off for 0.5s
Disarm: indicator NO
Announcement without alarm:
Indicator flashed slowly.
Alarm:
Indicator flashes quickly.
5
SOS button
Under any interface, press this button, VTH will call
management center.
If now menu is on, press SOS button can to back to
previous menu.
Menu button
Press this button to enter menu. Press this button
again to select item in menu.
Under standby, long press this button for 2s to view
menu, or long press this button for 5s to disarm.
Call button
When being called, press this button to answer call.
During calling status, press this button to hang up.
Under standby, long press this button for 5s to turn
on/off DND (do not disturb).
Monitor button
Monitor VTO video. Under standby, when there is
announcement, press this button to view
announcement. When there is alarm, press this
button to view alarm info.
In menu interface, set ring, brightness as pressing
this button can decrease value of parameter.
Unlock button
During incoming call, calling, monitoring, press this
button to unlock corresponding VTO. In menu
interface, set ring, brightness as pressing this button
can increase value of parameter.
Chart 1- 2
1.2 Device Port Introduction
The device interfaces are shown as follows, please see Figure 1- 3 and Figure 1-4.
Figure 1- 3 VTH1200-CS Seires
Please refer to the following chart for detailed information.
No.
Name
Description
1
Alarm input extension
4-ch wired alarm input
2
Alarm output extension
1-ch wired alarm output
3
RJ-45 port
Power/A/V port
4
4 symmetrical ports
At position of bracket
Chart 1- 3
1
3
2
4
Figure 1- 4 VTH1200-DS
Please refer to the following chart for detailed information.
No.
Name
Description
1
RJ-45 port
Power/A/V port
2
Alarm input/output
extension
4-ch wired alarm input, 1-ch wired alarm output
3
4 symmetrical ports
At position of bracket
Chart 1- 4
2 Installation

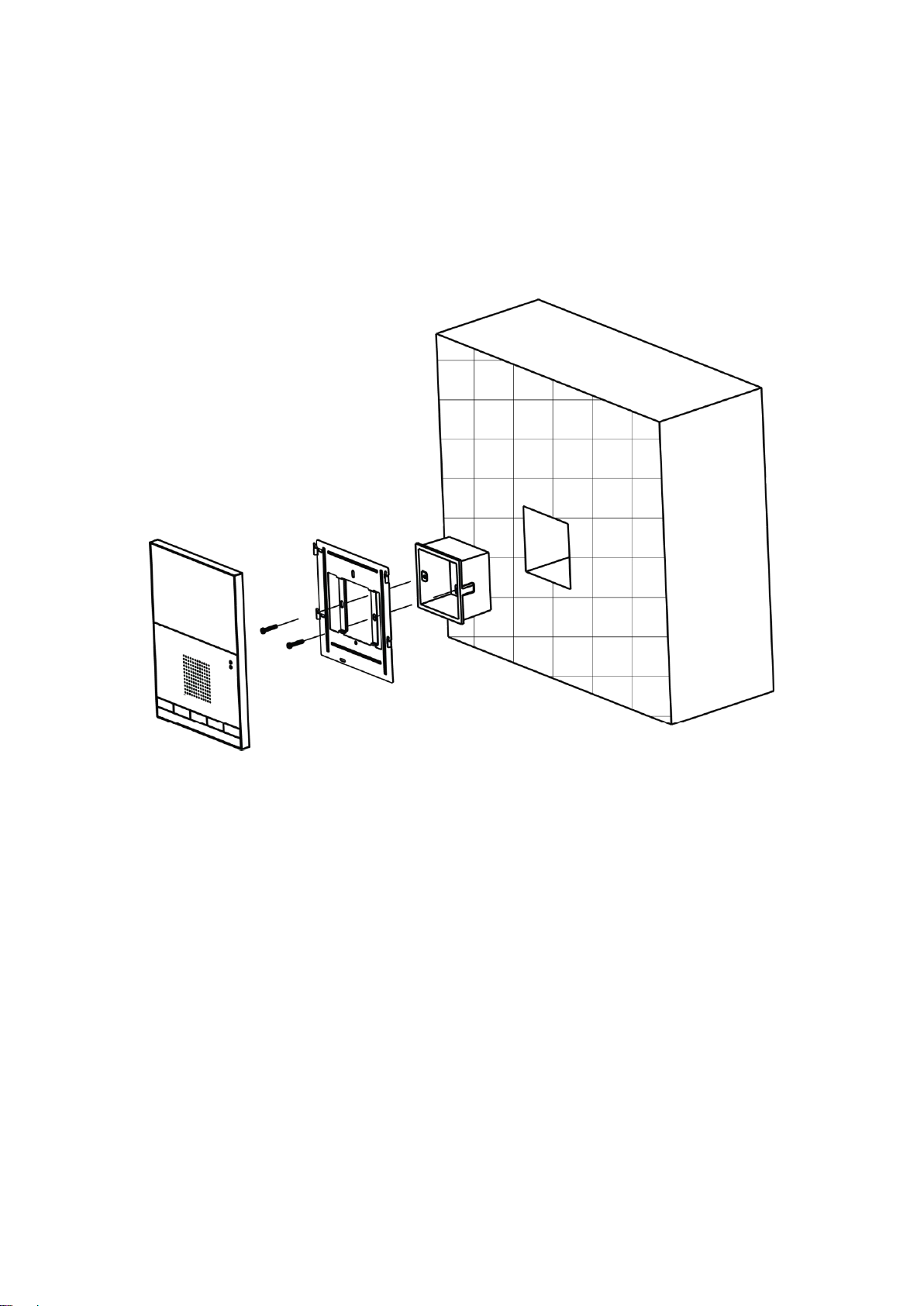

Step 1. Embed 86 box in wall.
Step 2. Fix installation bracket on 86 box, fix via screw (M4 X 30).
Step 3. Fix the device on installation bracket, fix via bucket.
See Figure 2- 1.
Figure 2- 1
Note:
Device center to ground shall be 1400mm to 1600mm.
Try to avoid exposing VTH to bad environment, such as condensation, high temperature,
greasy dirt, dust, corrosion, direct sunlight and etc.
If there is abnormality after you plug in network cable, you should unplug it immediately
and unplug the device from power supply. You may plug in the device to power supply
after troubleshoot.
Device installation and test must be done by professional staff. If there is any malfunction
or failure, please do not try to dismount or fix it by yourself, and please contact after-sales
department for assistance.
